Double way C hook type hybrid feeder clamp
- Category: Clamps & Clips >>>
- Supplier: Jiangsu,Maxdao,Technology,Limited
Share on:
Product Overview
Description
Product Description

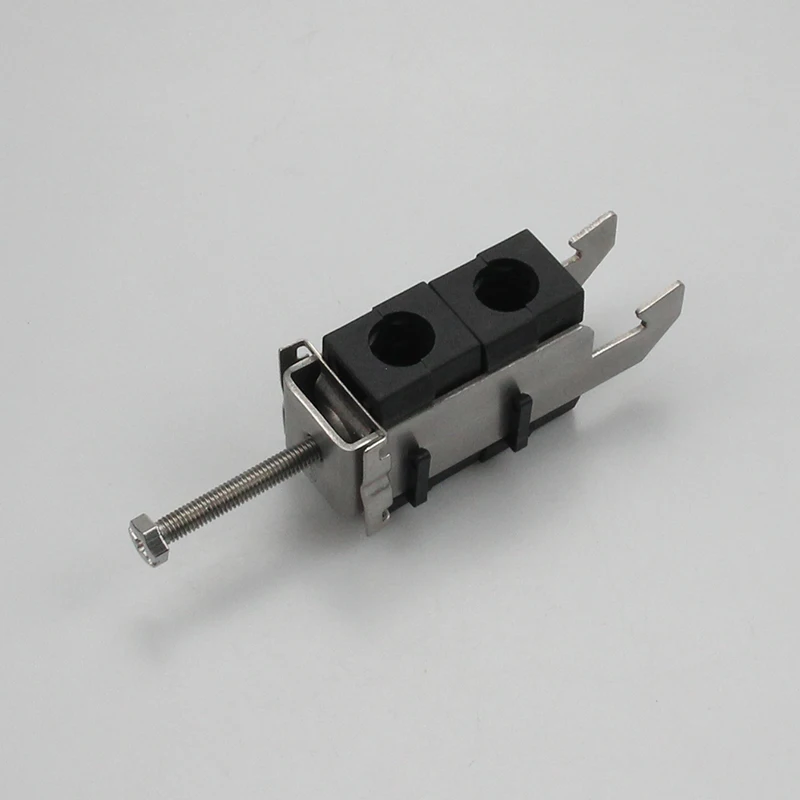

Hook Type Feeder Clamps
1. Self-locking Feeder Clamps are the optimal solution for an easy and quick fastening to various supports of:coaxial cables, waveguides and fiber optic cables.
2. The cables are firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
3. The installer can visually control the pressure exerted by the screw.
4. Between 1 and 12 cables can be fastened with the same clamp. The calibrated saddles, secured by a clip, can be inserted either frontally or laterally in the bow.
2. The cables are firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
3. The installer can visually control the pressure exerted by the screw.
4. Between 1 and 12 cables can be fastened with the same clamp. The calibrated saddles, secured by a clip, can be inserted either frontally or laterally in the bow.
5. Another Self-locking Feeder Clamps are provided with “V” profile saddles, and suitable for a large range of cable diameters.
Main Features
1. Simple and strong structure
2. Selected high quality materials
3. Secured components with easy mounting
4. Resistance to atmospheric factors(U.V. rays, salty air, a.s.o.)
5. High resistance to temperature variations (from -30°C to +120°C)
6. Absolute safety for cables and installers
7. Easy and quick installation
2. Selected high quality materials
3. Secured components with easy mounting
4. Resistance to atmospheric factors(U.V. rays, salty air, a.s.o.)
5. High resistance to temperature variations (from -30°C to +120°C)
6. Absolute safety for cables and installers
7. Easy and quick installation

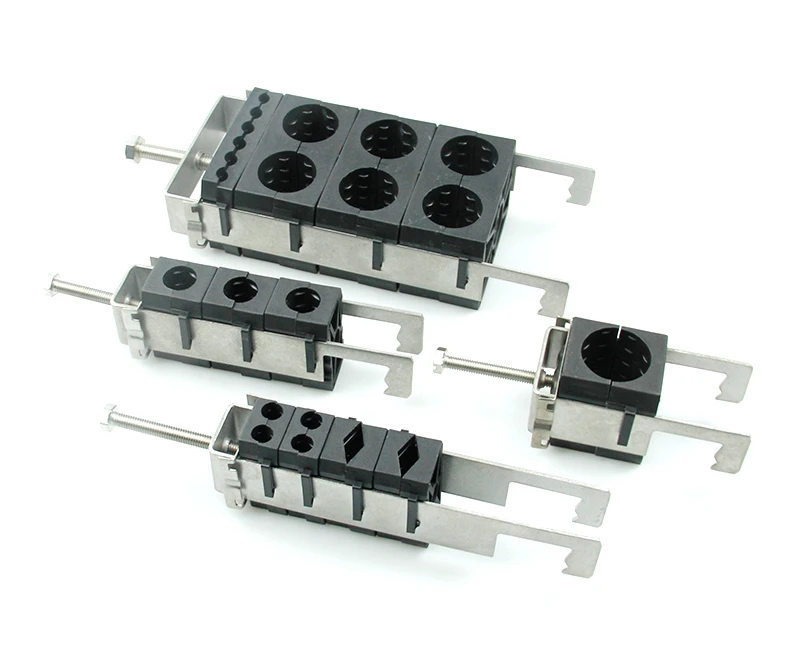

Hook Type Feeder Clamp Family
Parts of Hook Type Feeder Clamp
Hook
Type: A3, A4, A5, B, C, E, M.
Material: SUS304.
A: 25mm.
B: 12mm, 22mm, 34mm, 46mm, 58mm, 70mm.
C: 30-228mm, according to the number of cables.
Screw & Plate
Screw Material: SUS304.
Screw: M6, M8.
Length of Screw: 30mm, 45mm, 55mm, 70mm, 90mm.
Plate Material: SUS304.
Plate Size: Suitable for Hook.
Saddles
Type: Single Run Calibrated Saddle, Double Run Calibrated Saddle, Three Run Calibrated Saddle, Six Run Calibrated Saddle; Elastic Coax Blocks.
Material: PA6, PP, POM.
Components
333
1 | 2 | 3 | 4 | 5 |
Screw | Hook | Plate | Elastic Coax Blocks | V Profile Saddles |
