Многофункциональный сварочный аппарат MIG 350G, новая модель
- Category: MIG Welders >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (1600284668587):
Product Overview
Description
Arc Stability
Waveform control,for added stability of the arc, even at low current.
Protections
Equipped with temperature,voltage and current sensors for high protection.
Digital Display
Waveform control,for added stability of the arc, even at low current.
Protections
Equipped with temperature,voltage and current sensors for high protection.
Digital Display
Variable amperage control with digital meter, for a simultaneous welding current and tension display.
Accessories
Optional trolley and water cooling unit.
| Parameter/Model | MIG350G |
| Input Voltage(V) | AC380V±15% |
| Rated Input Power(KW) | 13.9 |
| Frequency(HZ) | 50/60 |
| Rated Input Current(A) | 21.1 |
| Output Current Range(A) | 50-350 |
| Output Vlotage Range(V) | 16.5-31.5 |
| Duty Cycle(%) | 60 |
| Efficiency(%) | 85 |
| Type Of Wire Feeder | Separated |
| Wire-feeding Speed(m/min) | 3-15 |
| Power Factor | 0.93 |
| Housing Protection Grade | IP21S |
| Insulation Grade | F |
| Plate Thickness(mm) | 0.8+ |
| Net Weight(kg) | 29.5 |
| Packing Dimension(mm) | 600x360x525 |
What's Include

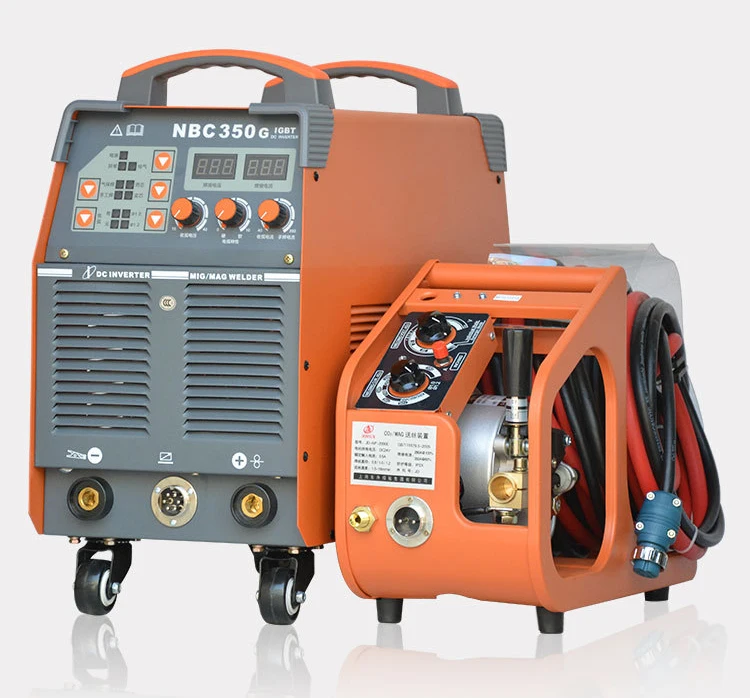

- MIG 350G Machine
- MIG welding troch: North QTB500AF 3m cable.
- Wire feeder: WF 350F with 10m 35SQ cable.
- Earth cable: 35SQ with 3m cable with 500A earth clamp.
- CO2 gas regulator
- Instruction Manual
