Thailand 180 200kg/h vacuum fish feed oil spray machine pond fish feed machinery
- Category: >>>
- Supplier: Jinan Baimai Haiyuan Extrusion Machinery Co. Ltd.
Share on (1600284687283):
Product Overview
Description
Product Description
Chicken pond fish feed machinery Application
Haiyuan pond fish feed machinery can produce floating/sinking fish feed,the fish feed diameter from 0.5mm to 20mm.Double screw fish feed extruder can not only produce fish feed,it is can also used for dog food(cat/dog food) by changing the die on extruder.Haiyuan Pre-conditioner(Steam)Type extruder machinery adopted advaned world technology with low repairment rate,and we have many turnkey projects for fish feed/pet food,and we can show you real customer factory demo,or take customers to visit the on-site machinery running.
Materials :wheat/ corn flour, born powder and so on
Final feed: different shapes and sizes of dog food,cat food,fish food,shrim feed
Capacity of fish food equipment: 150kg/h, 250kg/h, 500-600kg/h,800-1000kg/h,1500-2500kg/h,3000-5000kg/h
Consumption of fish food equipment: Low electricity and labor consumption
Design: With flexible design based on the client's demands, we provide turn key project.

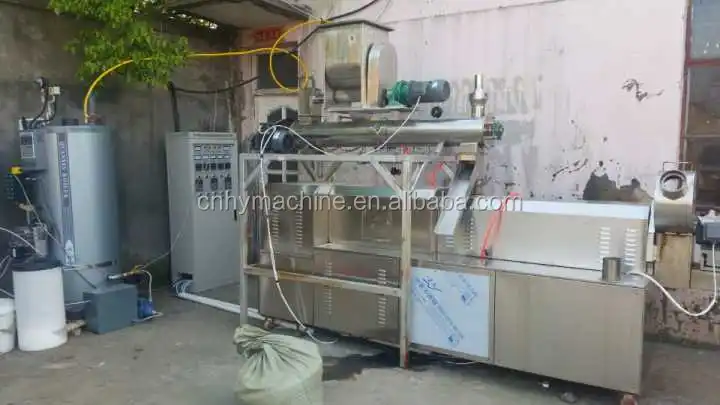

Equipments List of Aquaculture fish feed processing machine
Blender --vacuum Conveyor --storage--conditioner--Twin Screw Extruder--Air Conveyor--Multi-Layer Oven--Roller --Oil Sprayer--Flavor Roller--Packing System
fish feed machine 180-200kg per hours SPECIFICATIONS | ||||||
Power Engine | Motor model | Kw | 30 | |||
Motor Brand | Siemens(China) | |||||
Net Weight | KG | 600 | ||||
Main performance parameters for fish feed manufacturing machinery | Main performance parameters | kg/h | 200-300 | |||
Cutter Power | kw | 1.5 | ||||
Feeder Power | kw | 1.5 | ||||
fish feed manufacturing machinery other parameters | Oil Pump | kw | 0.37 | |||

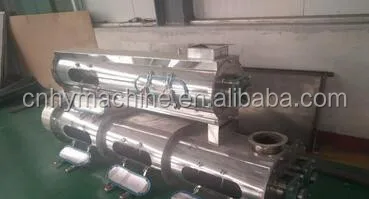

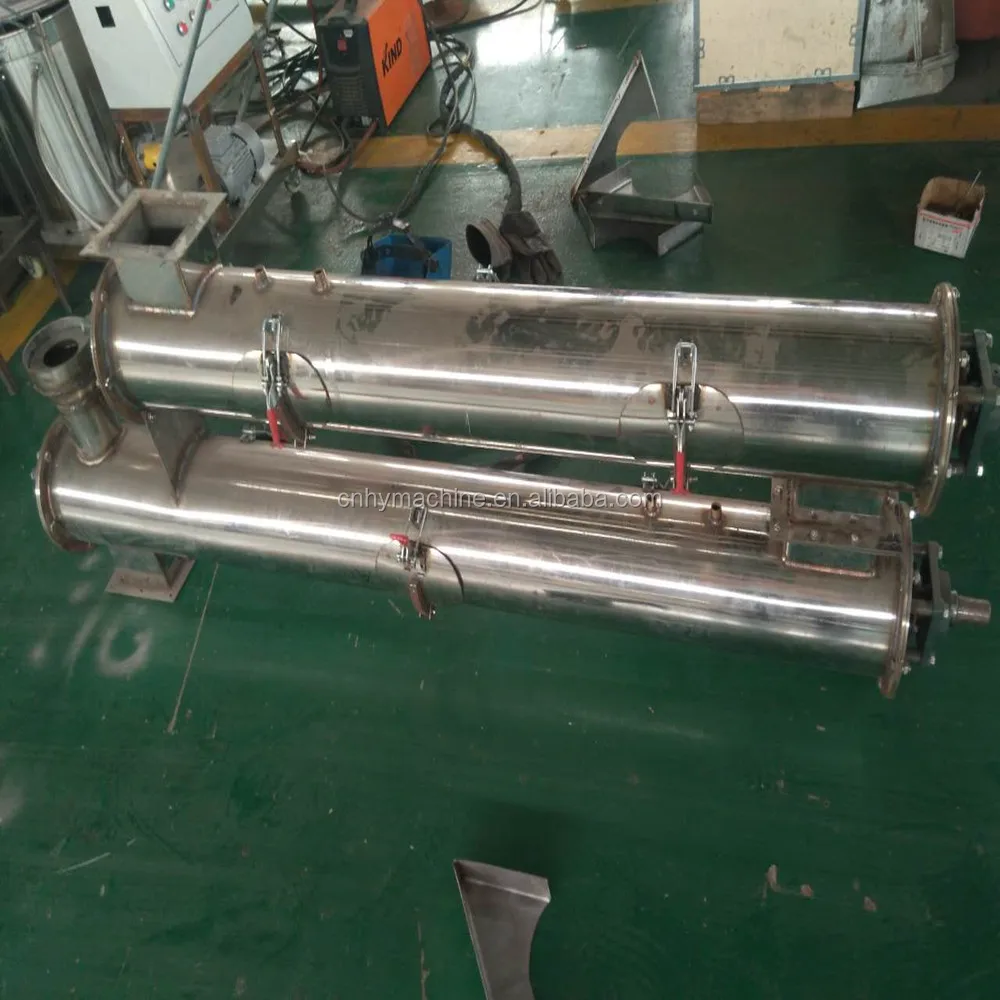

Pre-conditioner | kw | 3+3 | ||||
Pre-conditioner material | Stainless steel | |||||
Chicken pond fish feed machinery Main Features
1) Compact structure type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
fish feed making machine Main motor
Name: Motot
Brand: Siemens
Original: China
Domestic famous engines, strong driving force, low power consumption, high economic benefits and low maintence.

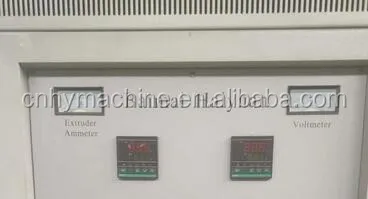

fish feed machine Converter
Name: Converter
Brand: Delta
Original: Taiwan
Delta converter imported from Taiwan,high quality products.
fish feed pellet machine Bearing
Name: Bearing
Brand: SKF
Original: Sweden
World famous Bearing manufacturer in Sweden,high quality bearing imported.
floating fish feed pellet machine price Electric parts
Name: Switch
Brand: Schneider
Original: France
Imported famous brand switch for Schneider from France
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support for fish feed mill machine
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Other feed pellet machine Packaging | ||
Size | 2000(L) * 1400 (W) * 1800(H)MM | |
Weight | 1.5T | |
Packaging Details | The normal small co extruding screw extruder package is Pallet (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
PHJ70S fish feed pellet machine Packaging | ||
Size | 3400(L) * 1200(W) * 2900 (H)MM | |
Weight | 1.9T | |
Packaging Details | The norm small extruder package is Pallet (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
