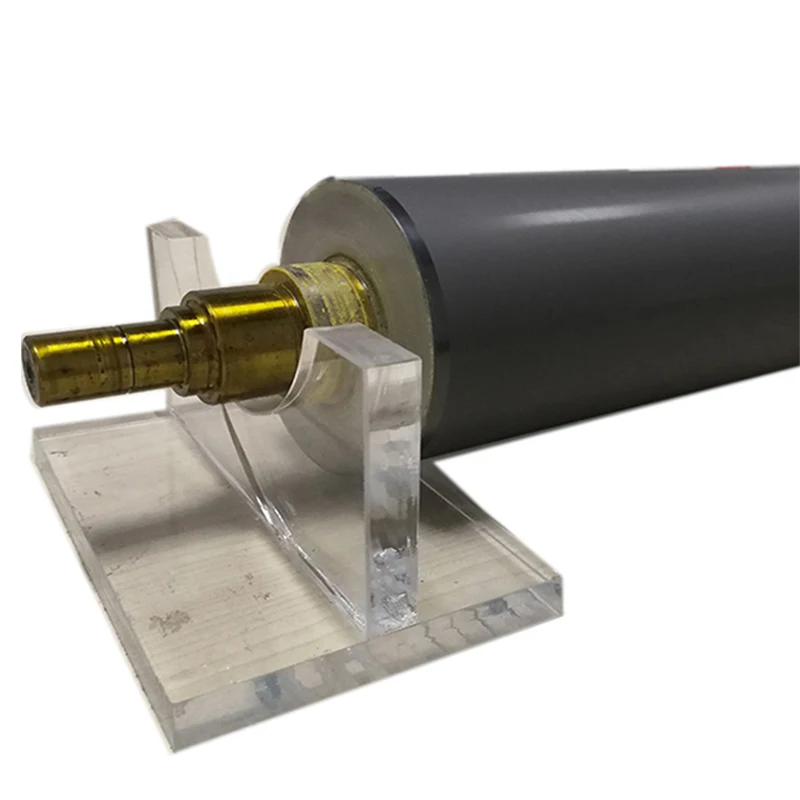

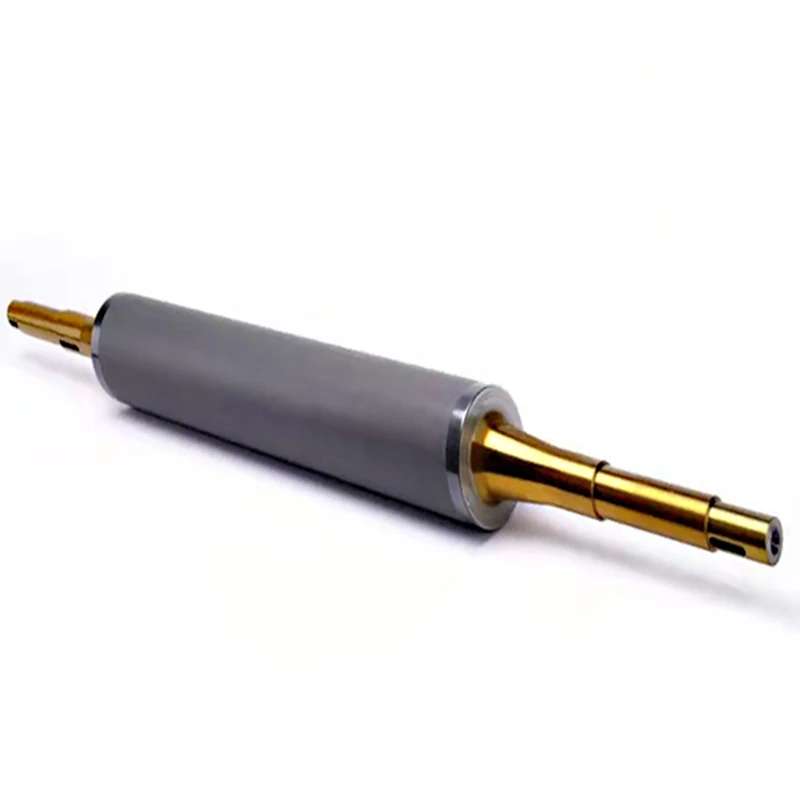

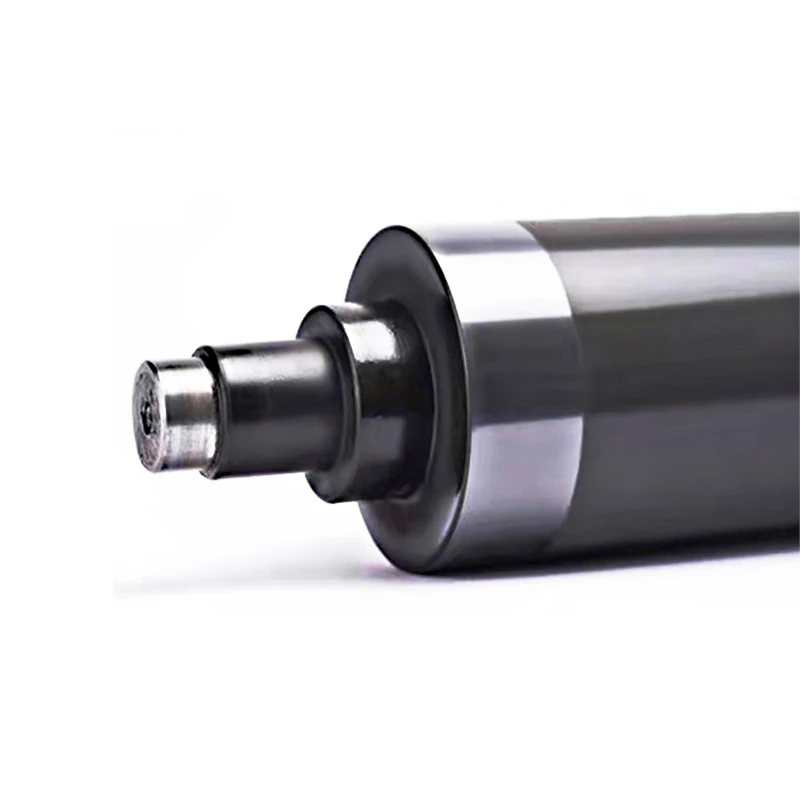

Rotogravure Printing Chrome Roller Gravure Cylinder
- Category: >>>
- Supplier: Guangzhou Jiaqi Printing Supplier Co. Ltd.
Share on (1600284736854):
Product Overview
Description
China Manufacturers Flexo Printing Solid Ceramic Anilox Roller
Features Of The Anilox Roller Ceramic:
1.Uniform cell shape,fast and even ink release.
2.Easy cleaning,ideal cell shape with smooth,steep walls flat bottom
3.Precise cell volume
4.As high a theoretical volume as possible.
5.Longer life expectancy.
6.Good corrosion resistance
7.High bond strength with the base metal,low TIR.
8.Volume report for each anilox.
1.Uniform cell shape,fast and even ink release.
2.Easy cleaning,ideal cell shape with smooth,steep walls flat bottom
3.Precise cell volume
4.As high a theoretical volume as possible.
5.Longer life expectancy.
6.Good corrosion resistance
7.High bond strength with the base metal,low TIR.
8.Volume report for each anilox.
Application Of Ceramic Anilox Roller:
1.Flexo printing machine(unit type ,central cylinder type,cascade type)
2.Gravure printing machine
3.Corrugated water-based ink printing slotting machine
4.Coating and machine
5.Glazing machine ect.
1.Flexo printing machine(unit type ,central cylinder type,cascade type)
2.Gravure printing machine
3.Corrugated water-based ink printing slotting machine
4.Coating and machine
5.Glazing machine ect.

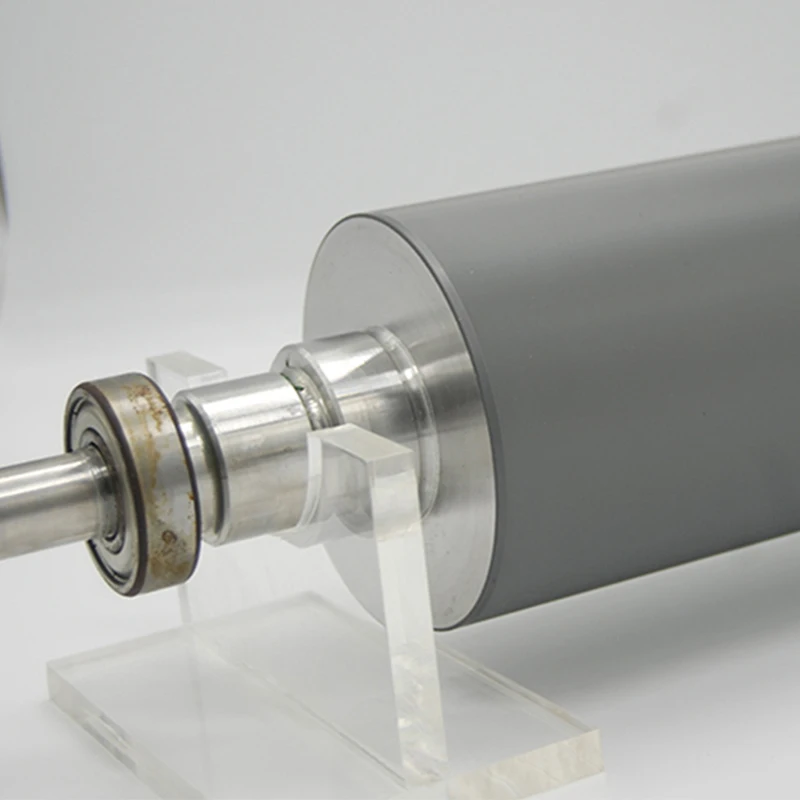

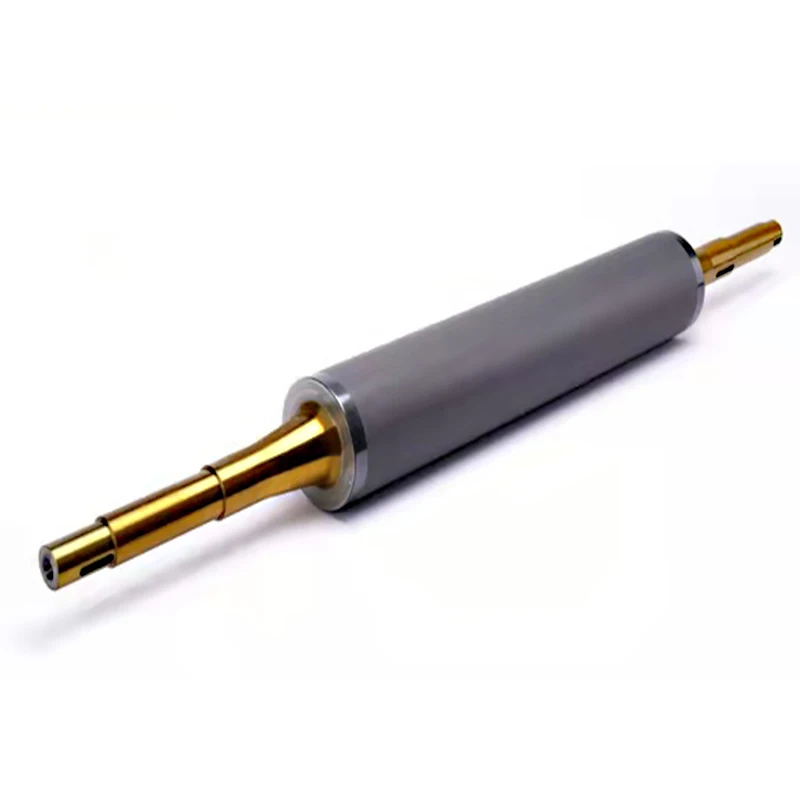

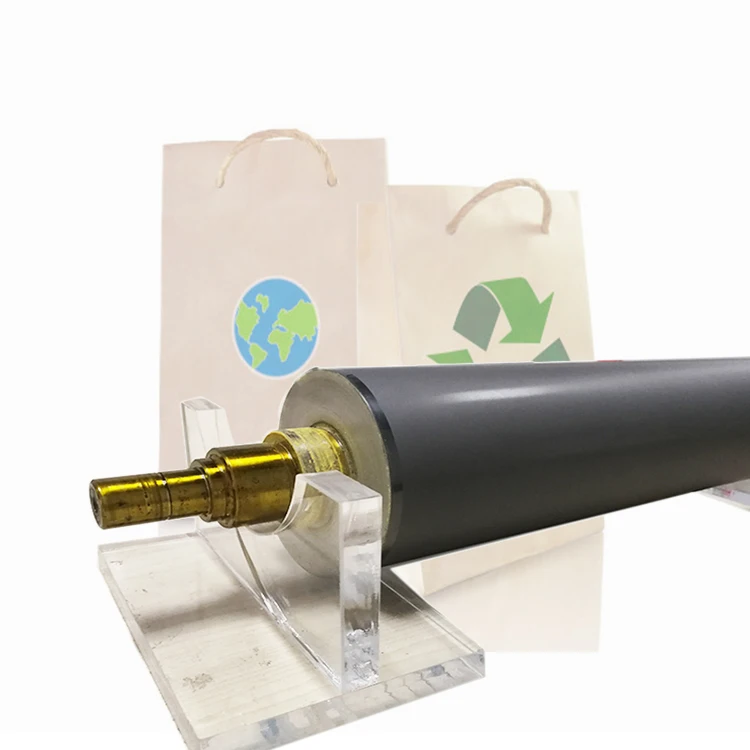

Detailed Image

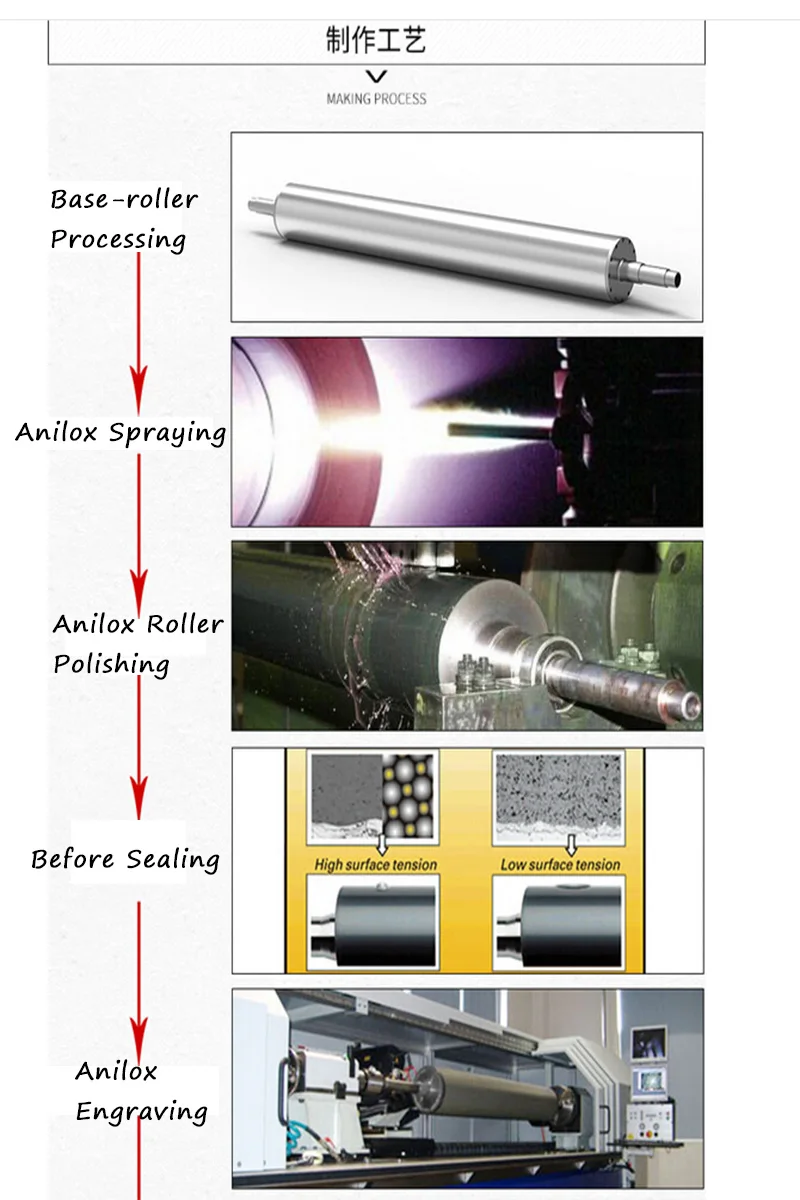

Advantage
1.Base roller
material: 45# steel tube or No5 series aluminum
1.Base roller
material: 45# steel tube or No5 series aluminum
General performance requiremen: 45# steel tube
thickness:
We can also make the special thickness according to customers requirement.
strict inspection procedure of base roller:
Incoming inspection including surface roughness,straightness, dynamic balance,cylindricity and so on.
2. Chrome oxide ceramic layer
Using the famous plasma spraying machine from Switzerland supplier.
The evenness of 80% ceramic powder can be controlled between 15u-35u
The hardness of chrome oxide ceramics can reach 1200HV.
strict inspection procedure of base roller:
Incoming inspection including surface roughness,straightness, dynamic balance,cylindricity and so on.
2. Chrome oxide ceramic layer
Using the famous plasma spraying machine from Switzerland supplier.
The evenness of 80% ceramic powder can be controlled between 15u-35u
The hardness of chrome oxide ceramics can reach 1200HV.
3.Antiseptic treatment
we use the nanoscopic sealant to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.
we use the nanoscopic sealant to coat on the surface of the ceramic which can reach the tiny cell to protect the base roller from solvent corrosion.
4.Precise delivery on the inks
We make trial engraving before the real engraving.
We use the scanner to scan each layer to test the volume of the cell
According to the realationship between the LPI and BCM , we can make sure whether the LPI is ok.
We make trial engraving before the real engraving.
We use the scanner to scan each layer to test the volume of the cell
According to the realationship between the LPI and BCM , we can make sure whether the LPI is ok.
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Item Type | Hot Sale Flexo Engraving Ceramic Anilox Roller Printing |
Usage | Flexo Machine |
Screen count range | 30-2000 LPI |
Maximum width | 5500mm ( with axis) |
Diameter range | 25-600 mm |
Cell shape | Hexagon,Diamond,Tri-heliCal and other special shapes |
MOQ | 1PC |
Cell Angle | 60°,45°,30°and other special requirements |
Delivery | About 25 working days after received payment |
Payment | VISA,T/T,Weston Union and etc. |
Shipping Method | By Sea,DHL,Fedex,TNT and etc. |

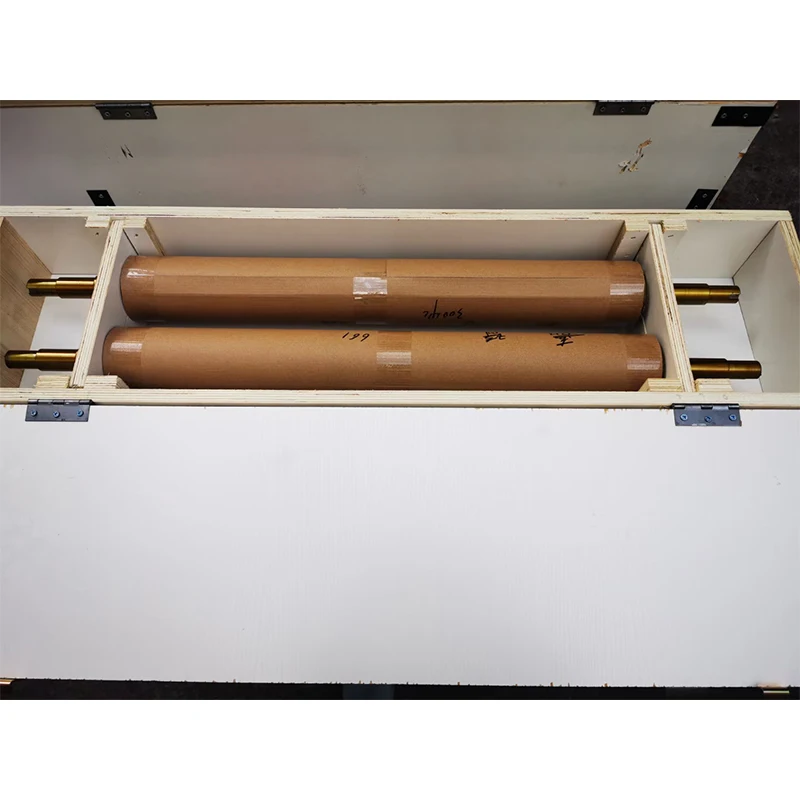

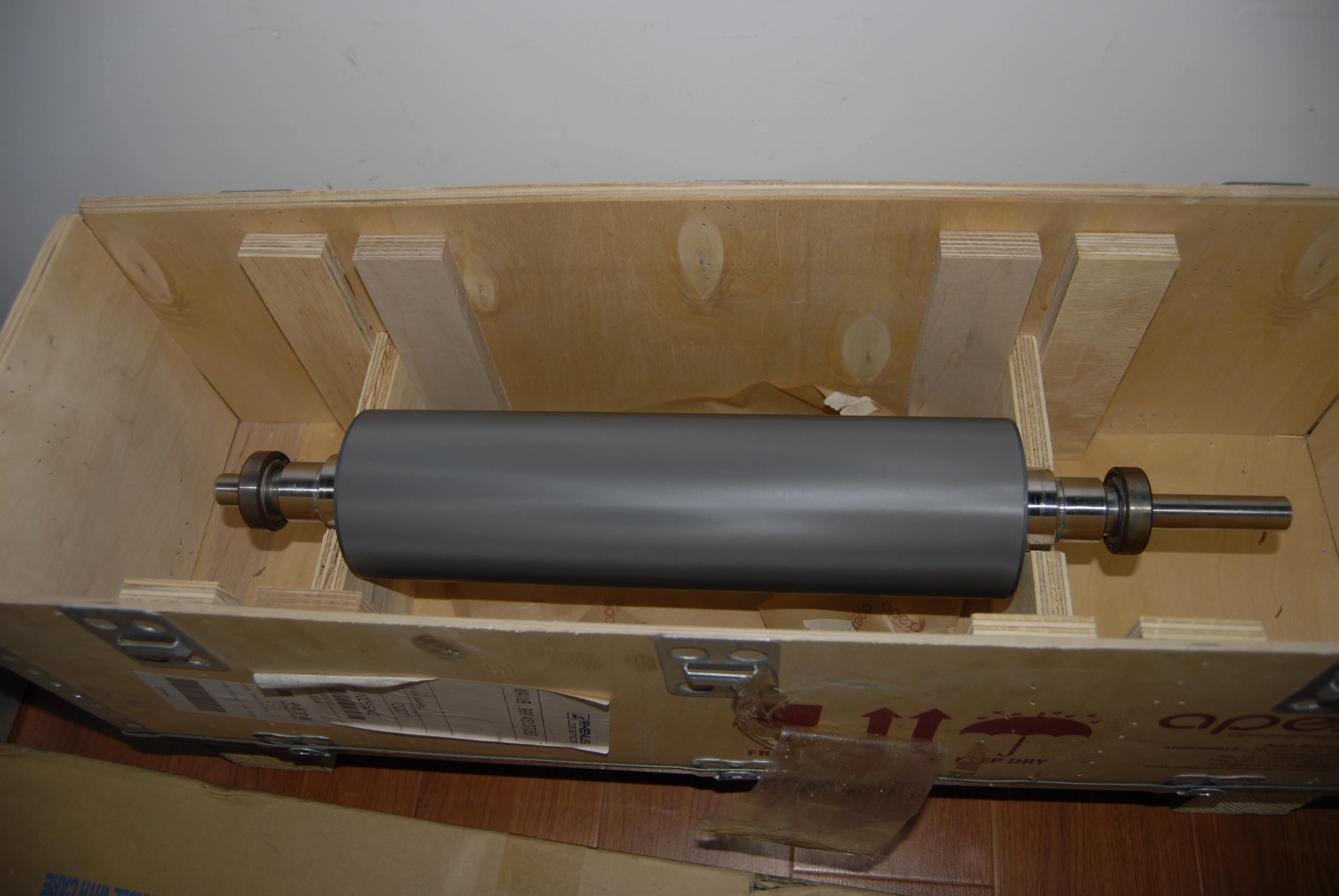

Package Image
\t\t\t\t\t\t\t\t\tPackaging&Shipping \t\t\t\t\t\t\t
Packaging:
Wooden Care Or Carton Package
Shipping:
(1)By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
(2)By Sea:21~45working days
(3)By Air:3~7working days
(4)By Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .
