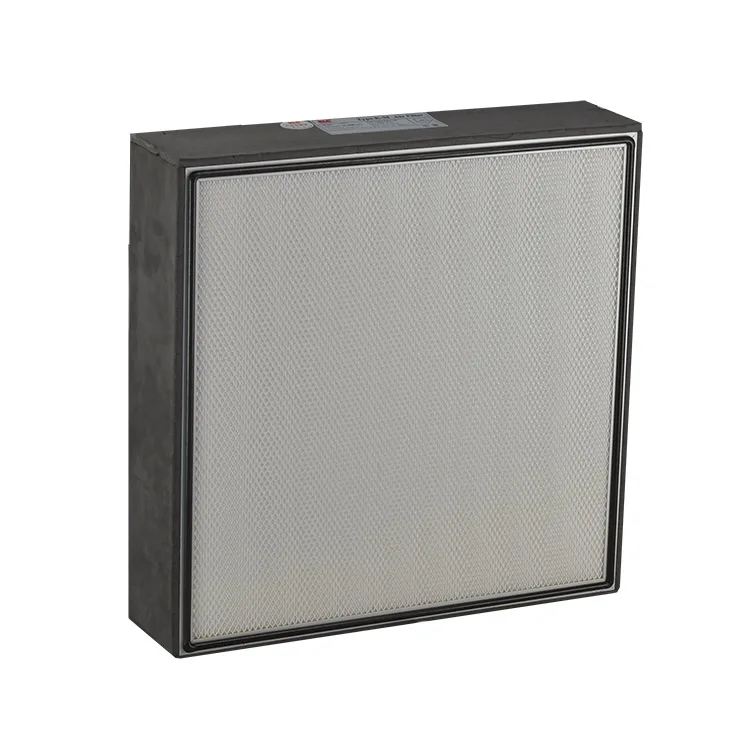

Good Ventilation Performance HEPA Air Filter with Hood Disposable Mini Pleat Filter
- Category: >>>
- Supplier: Guangzhou KLC Cleantech Co. Ltd.
Share on (1600284795136):
Product Overview
Description
Products Description
Efficiency: H13 / H14
Media: Micro glass fiber
Frame: Aluminum / GI / SUS
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: Hot melt bead
Optional thickness: 120 / 150 / 220mm
Max Temperature: 70℃
Max Humidity: 100%
Media: Micro glass fiber
Frame: Aluminum / GI / SUS
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: Hot melt bead
Optional thickness: 120 / 150 / 220mm
Max Temperature: 70℃
Max Humidity: 100%
● Special sealing technology, superior softness, non-deformation
● Light weight, easy installation and replacement
● Integrated design, can be with insulation and lifting lugs
● 100% factory inspection

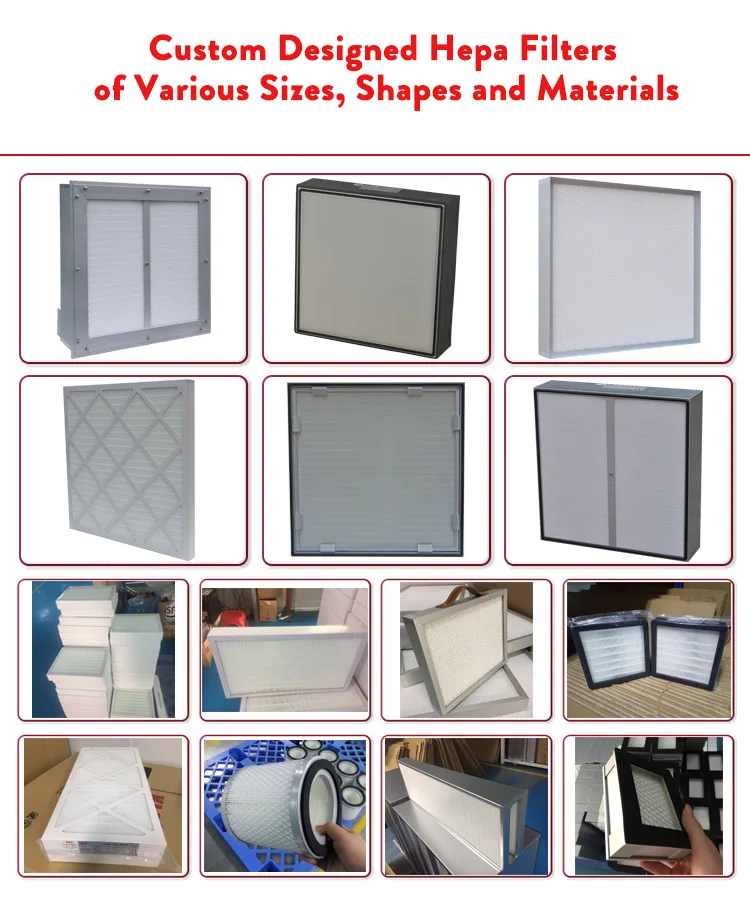

Custom Design
Model NO. | Actual Size HxWxD (mm) | Air Flow (m³/h) | Media Area Flow (m²) | Velocity (m/s) | Efficiency |
K59-001 | 610*610*120 | 1000 | 10.91 | 0.75 | H13-H14 |
K59-002 | 570*1170*120 | 1800 | 19.08 | 0.75 | H13-H14 |
K59-003 | 610*1220*120 | 2000 | 21.31 | 0.75 | H13-H14 |
K59-004 | 610*610*150 | 1200 | 13.64 | 0.90 | H13-H14 |
K59-005 | 570*1170*150 | 2150 | 23.85 | 0.90 | H13-H14 |
K59-006 | 610*1220*150 | 2400 | 26.64 | 0.90 | H13-H14 |
K59-007 | 610*610*220 | 1500 | 16.78 | 1.12 | H13-H14 |
K59-008 | 570*1170*220 | 2700 | 29.36 | 1.12 | H13-H14 |
K59-009 | 610*1220*220 | 3000 | 32.80 | 1.12 | H13-H14 |
Places with high requirement of cleanliness, such as surgery, lab, pharmacy, micro-electronic, fiber optic equipment and food processing factory, etc.
