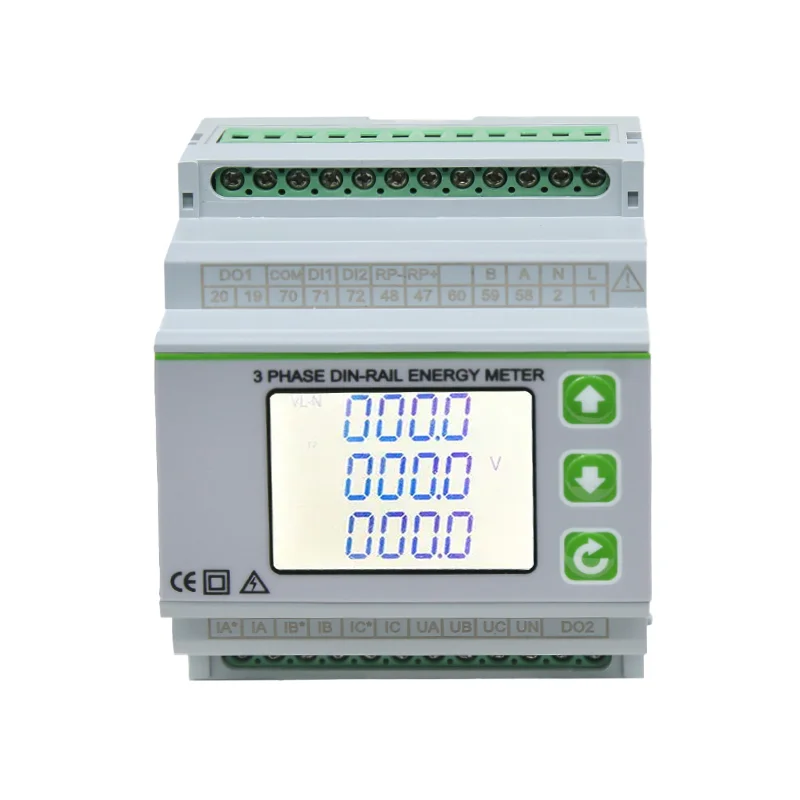

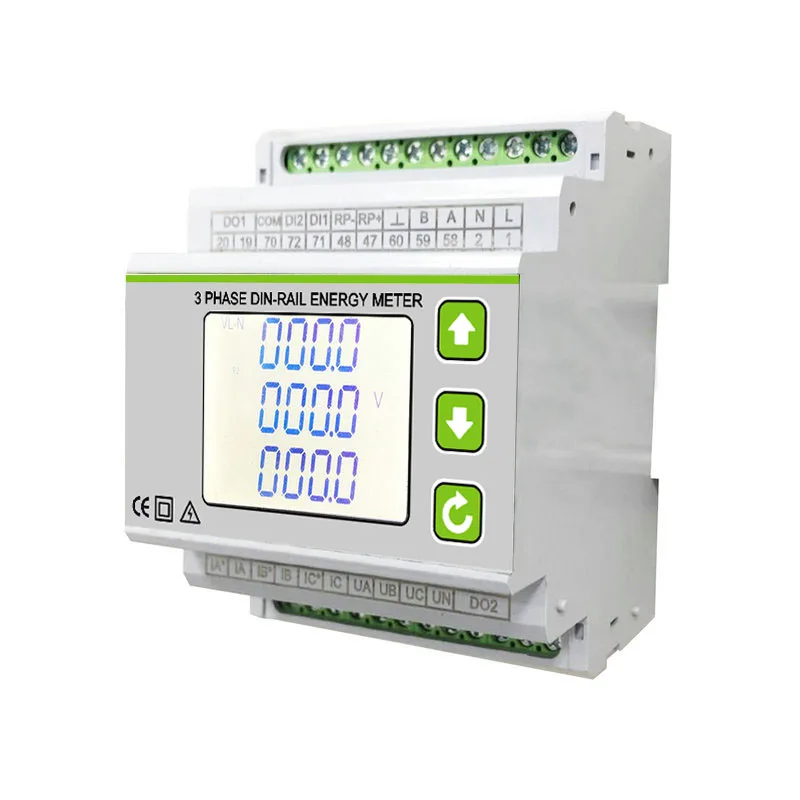

High Quality wifi energy meter electric Power Meter RS485 Modbus 100A Din rail Meter Kwh 3 Phase 4 wire energy meter
- Category: >>>
- Supplier: Chongqing Blue Jay Technology Co. Ltd.
Share on (1600284816616):
Product Overview
Description
19D series wifi energy meter is designed for DIN-RAIL mounting, suitable for residential energy metering and smart energy project.The Modbus-RTU and pulse output communication of the electric power meter allow seamless integration with data acquisition systems. Various sub-models are available, and prepaid (IC card) is optional. 19D series din rail energy meter can transmit data by wireless (4G/5G, Rolar etc.). Moreover, extension modules are available in built-in and external these two versions.
The three-phase din rail electric power meter and electric energy meter adopts a pen segment LCD screen, which is a combined ACpower measurement terminal, and is a highly integrated product for AC parameter measurement applications. It has many functions,including measurement and calculation of three-phase AC power, power accumulation, harmonic analysis, voltage and currentunbalance analysis, multi-rate energy measurement, maximum demand measurement, 4-channel switch input, 2-channel relay output.
19D-34C electric energy meter also provides a communication interface to connect with the computer monitoring system, supportsthe RS485 interface MODBUS communication protocol, and can upload the measured data and equipment status. This electric powermeter can be widely used in electric power, communication, railway, transportation, environmental protection, petrochemical, steel and other industries to monitor the power consumption of AC equipment.
Features
* 35mm DIN rail mounting* Optional 2 channel relay control output.
* A total of 4 switch input functions can be selected.
* Standard Modbus-RTU or DL/T645 mode
* Optional 50 SOE, real-time save the switch value alarm events.
* Optional multiple tariffs and prepaid billing function
* The system wiring methods include three-phase four-wire system and three-phase three-wire system.
* Utility Revenue Grade Accuracy--- IEC 62053-21 1.0 Class / IEC 62053-22 0.5 Class

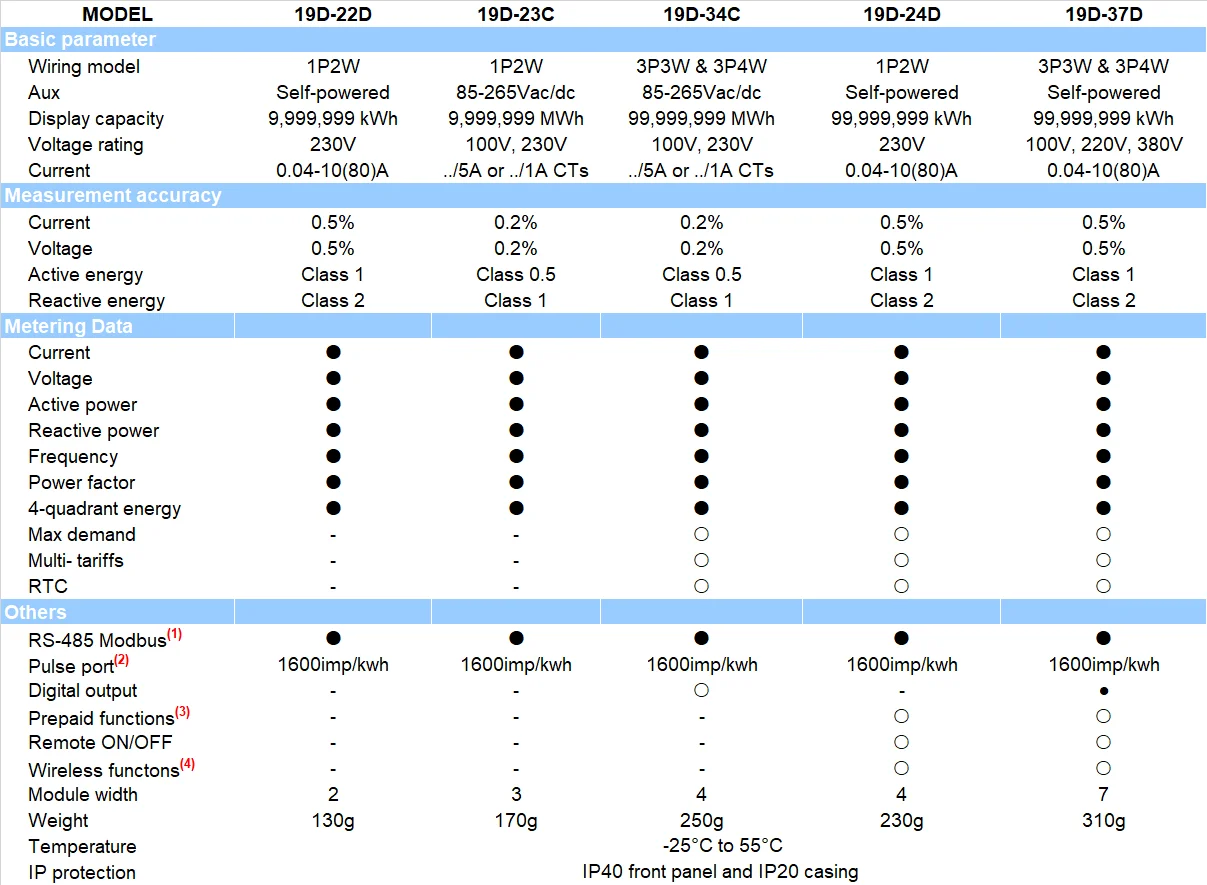

Technical parameters
