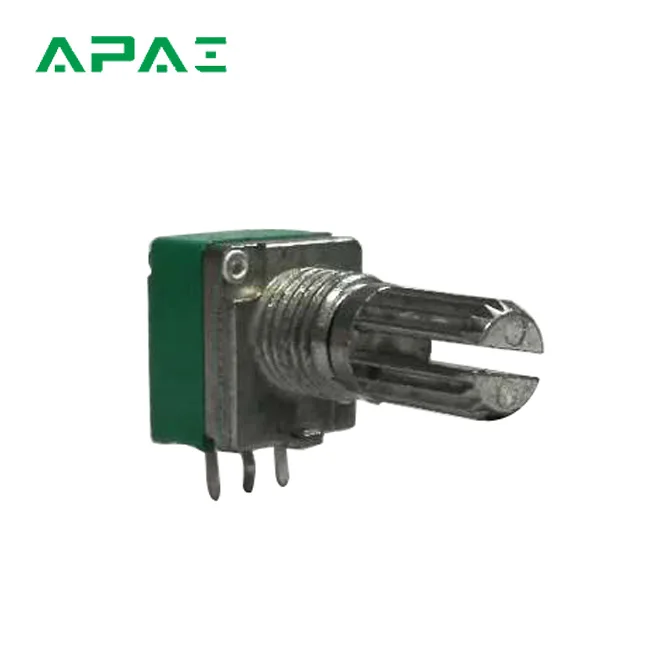

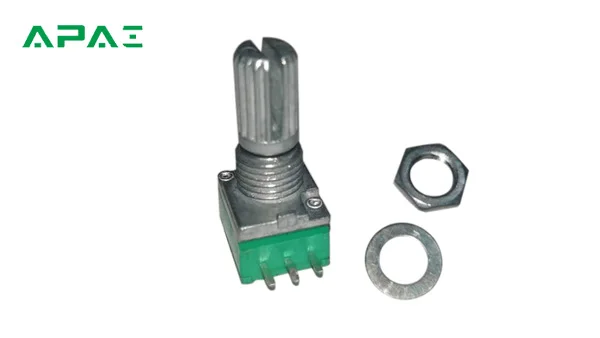

RK097N Single 9mm potentiometer vertical 10k 50k alpha potentiometer 9mm

Operating temperature -10℃~ +70℃
Manual soldering 260 ℃ Max 3sec
Total resistance 1KΩ ~ 1MΩ
Resistance tolerance ±20%
Resistance taper A B
Residual resistance Less than 20 Ω
Insulation resistance More than 100MΩ at DC 250V
Max. Operating voltage 50V AC
Withstand voltage 1 Minute at AC 300 V
Total rotational angle 300° ± 5°
Rotational torque 20 ~ 250 gf.cm
Rotational stopper strength 4Kgf.cm Max
Rotational life 10,000 cycles
