Hopeland rfid reader access control system 15m long distance rfid reader EPC C1 GEN2 ip65 rs485 uhf integrated reader

Hopeland rfid reader access control system 15m long distance rfid reader EPC C1 GEN2 ip65 rs485 uhf integrated reader

Category: >>>
Supplier: Shenzhen,Hopeland,Technologies,Co.,Ltd.

Price:$231.00 - $273.00

Price in USD:Details

Quantity:

Product Overview

Description

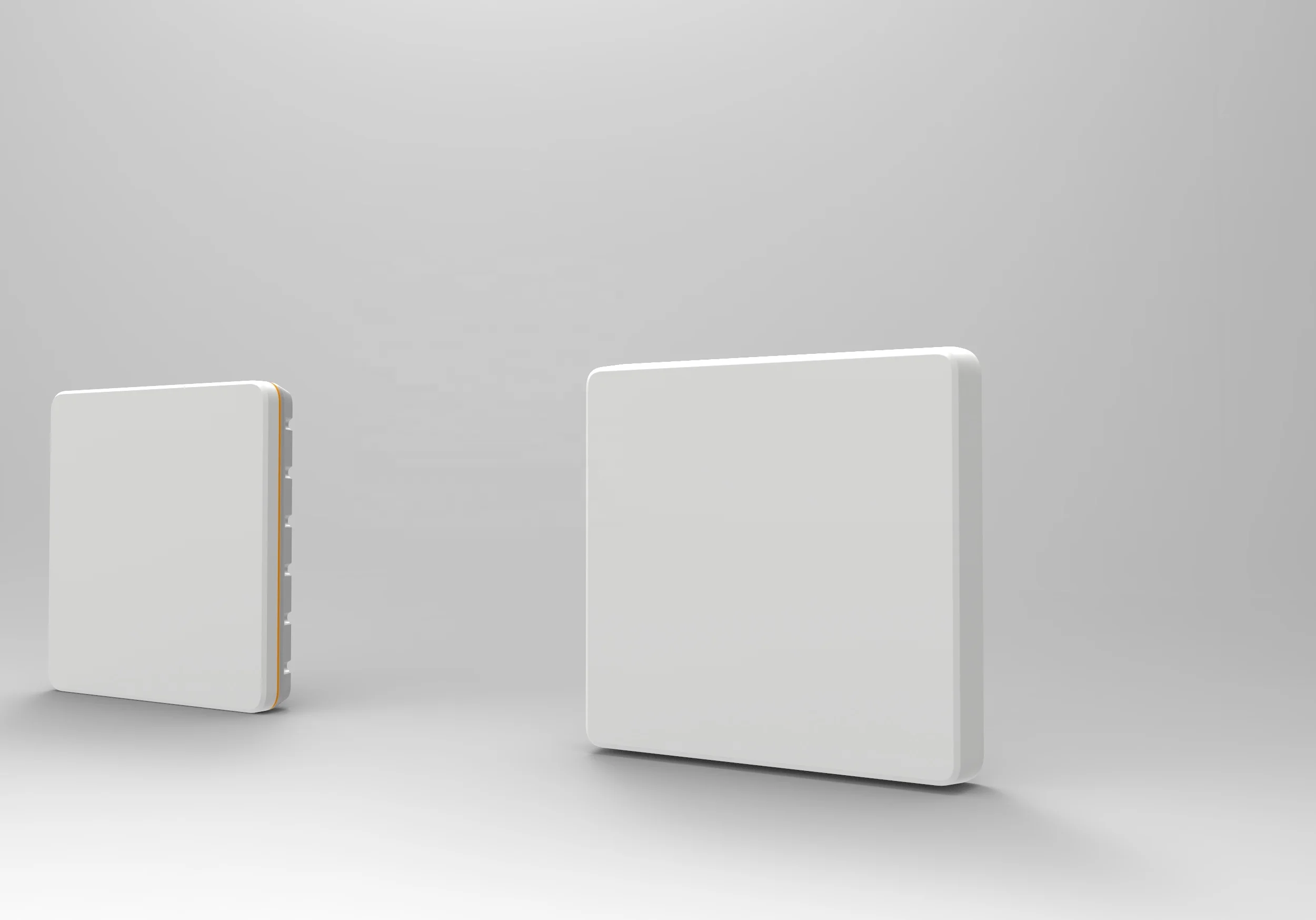

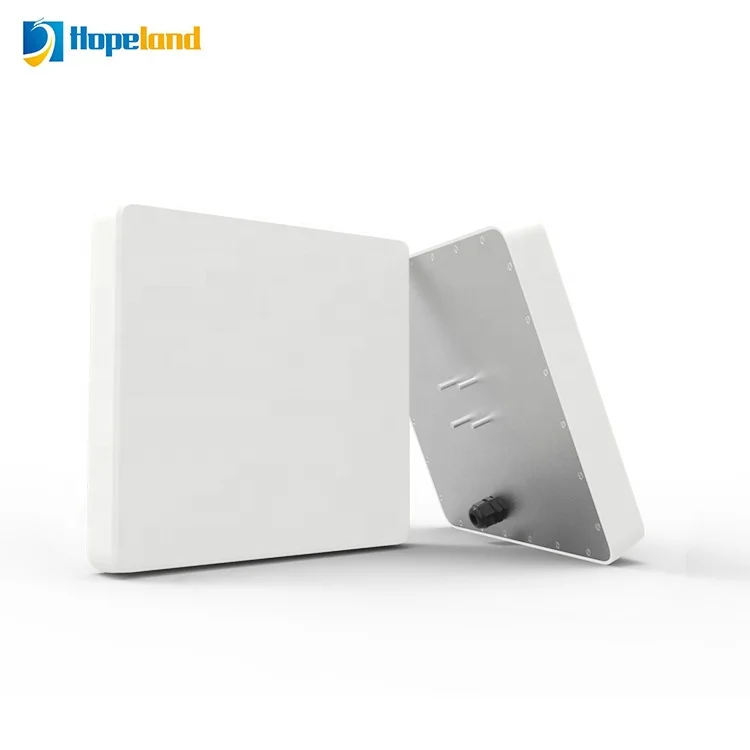

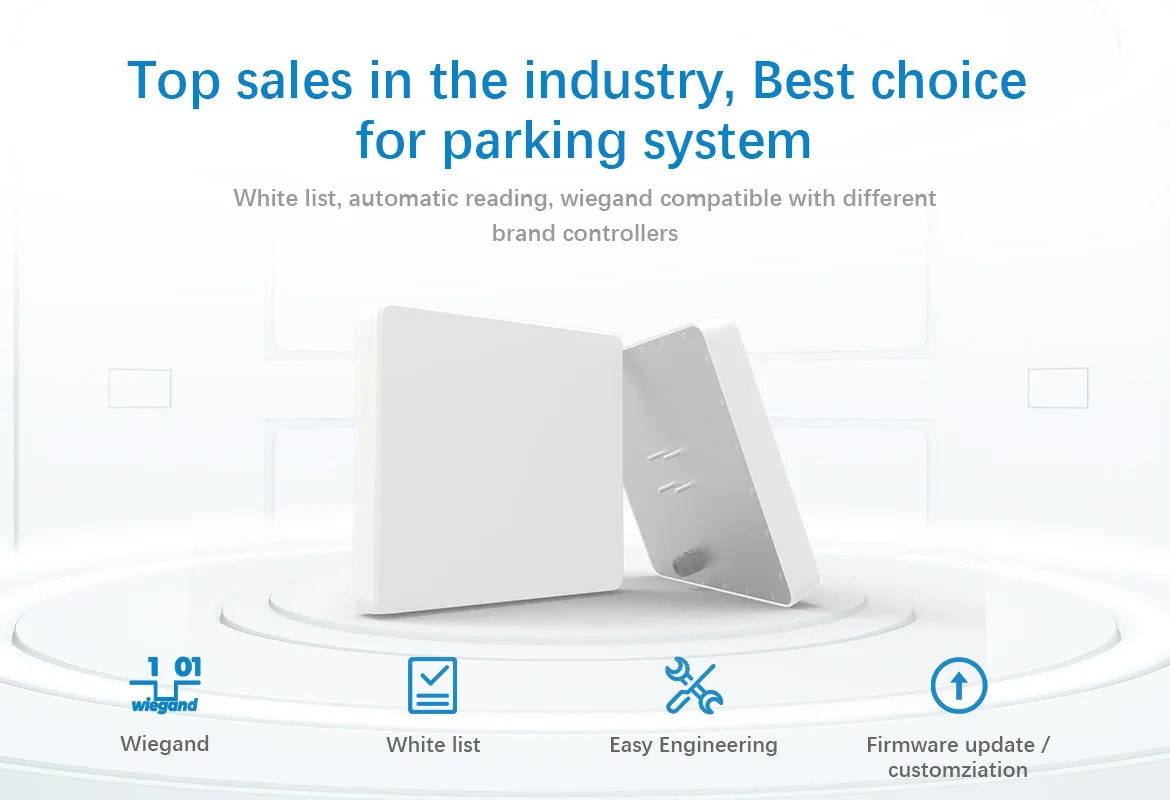

Long Reading Range Integrated RFID Reader

HZ100T

* TM600 chipset offer high performance

* Aluminum casting / waterproof housing apply to all weather industrial scenarios
* Various communication / software Interfaces helps faster application system
* Different developing languages SDK meet different developer needs
* Integrated design supports better deploy /installation / engineering / wiring
* Special application projects customized interfaces / data transferring prolongable
* Widely used in E-parking, garbage truck, feeding vehicle, access control and so on

Details Images

Gorgeous fashion LED light

Show working status clearly

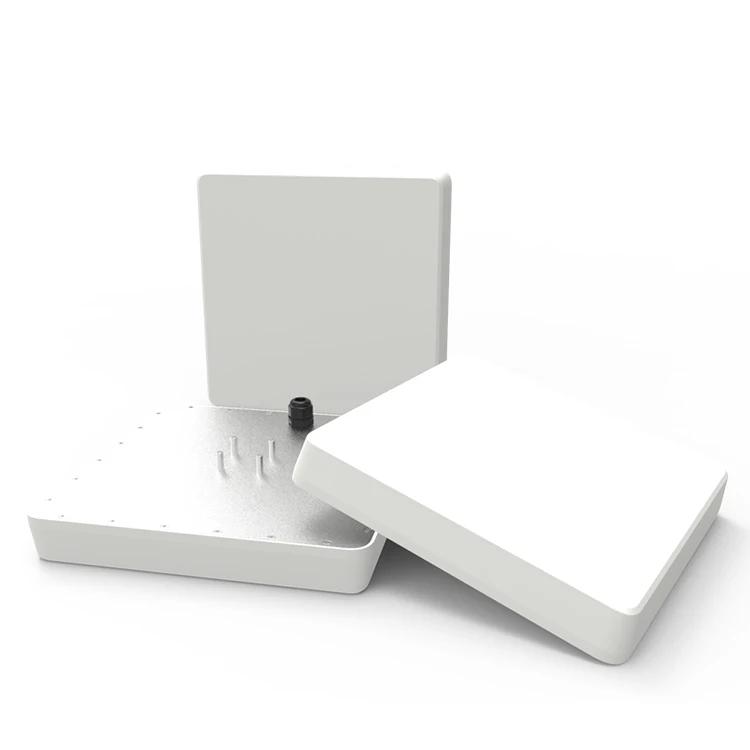

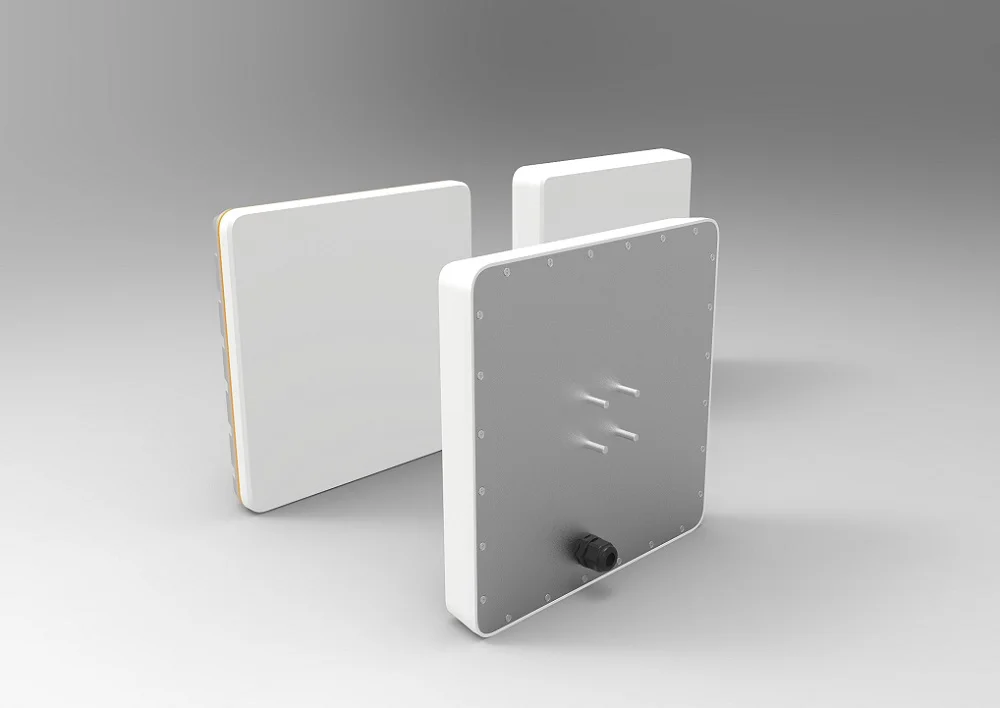

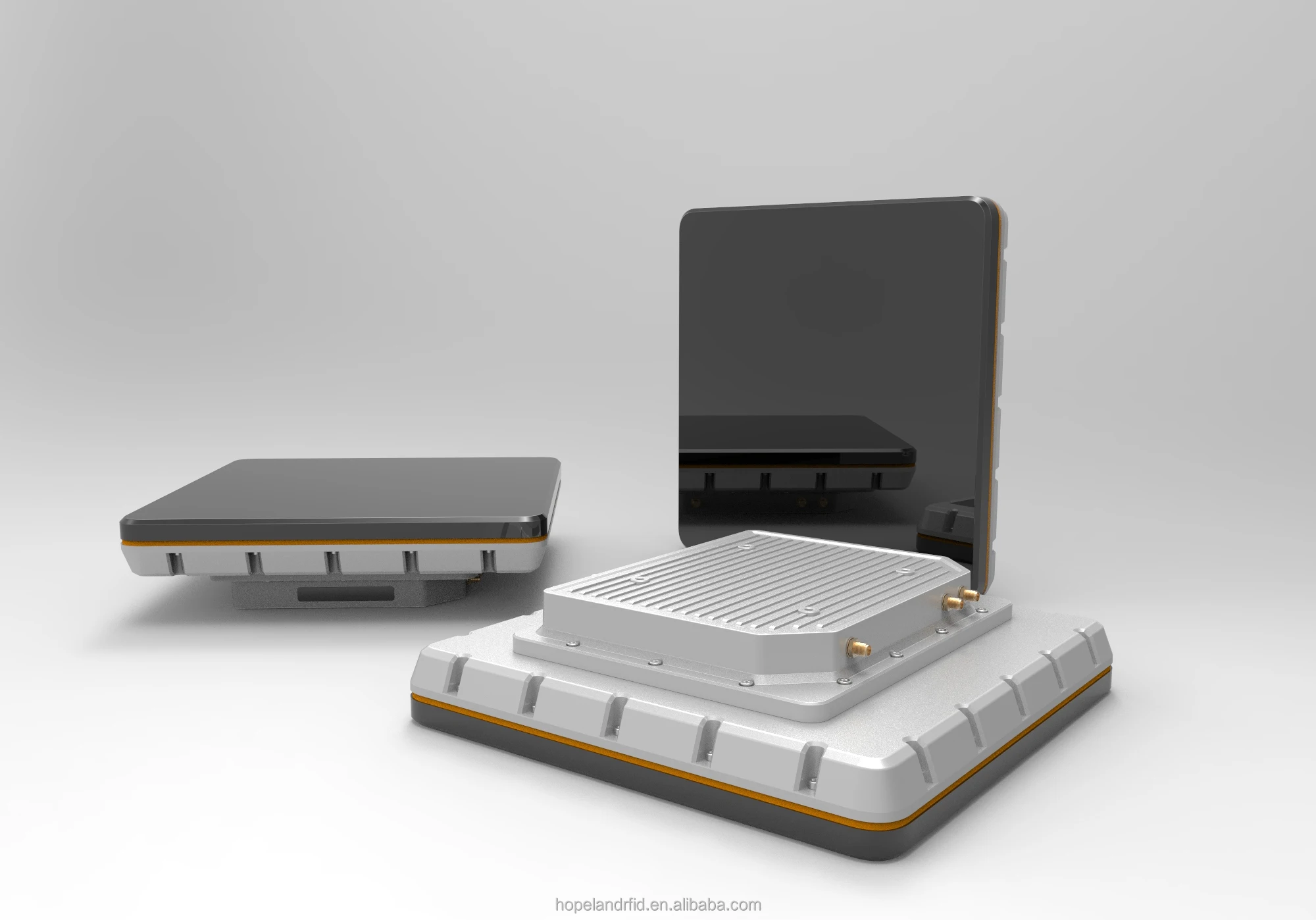

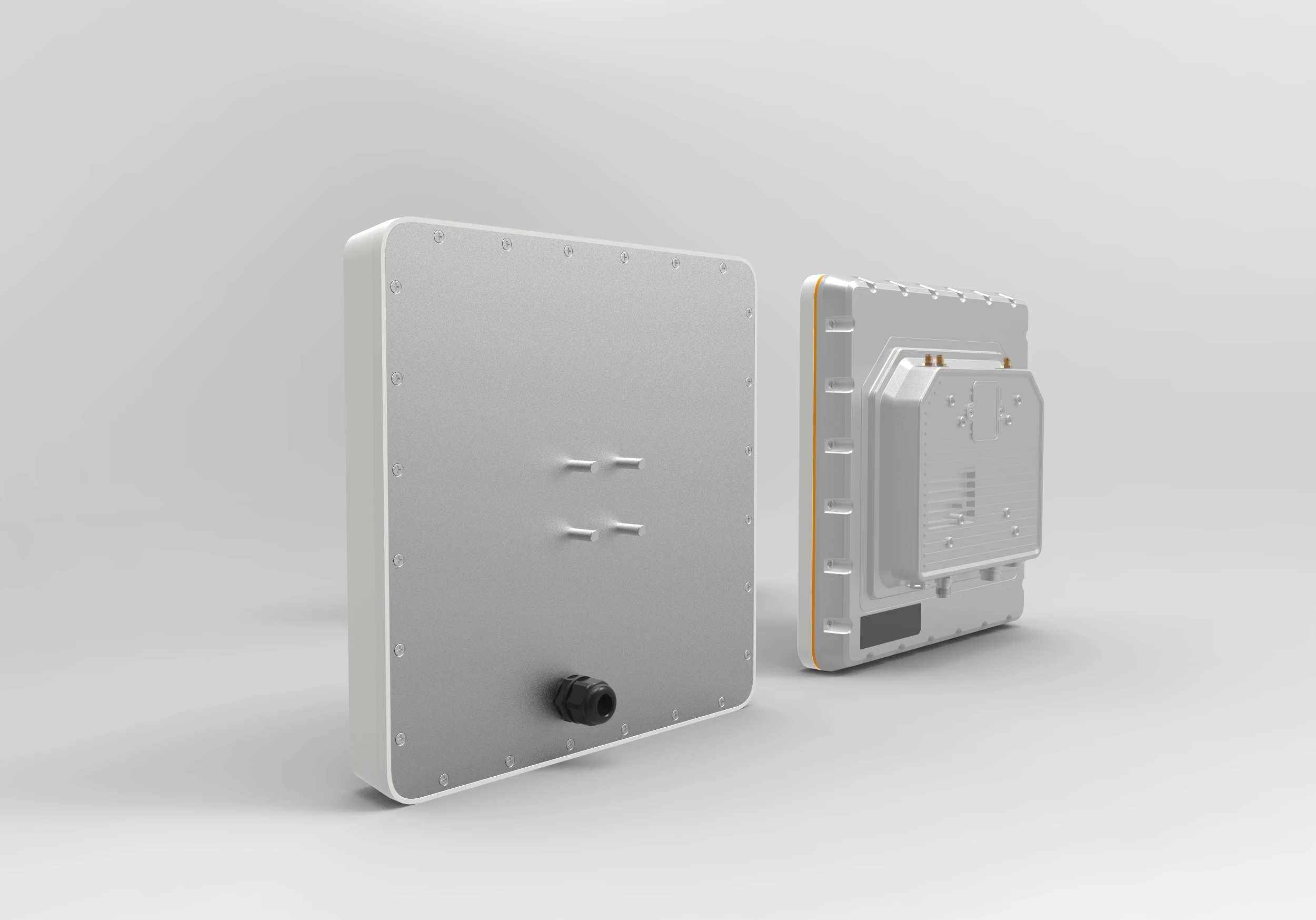

Die-cast aluminum anti-vibration design

IP66-67 supportable, outdoor reader best choice

Specifications
Size & N.W.	276mm(L)×276mm(W)×40mm(H), 1.6Kgs
Connectivity	RJ45, RS-232, RS-485, Wiegand
Chipset	TM600
Frequency	FCC: 902 MHz-928MHz; ETSI 865-868MHz(ETSI EN302208); CMII.920-925 MHz; EAC/ TELEC/ KC/ SIRIM/ NBITC/ NTC/ Anatel standards optional; other standards customizable
Power Supply	DC24V/2.5A(DC9V-30V,30W)
Reading Distance	0~ ≥20m(According to Tag & Environment, max 40m)
RFID	Protocol: ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, GEN2V2 Frequency: FCC / CE(ETSI) / CN(CMII) in standard Russia, Japan, Brazil, Australia, etc, special frequency band optional RF output: 0-33dBm adjustable
Customization Service	Logo, Brand, color, software, IP level, all support, depends on your project and quantity

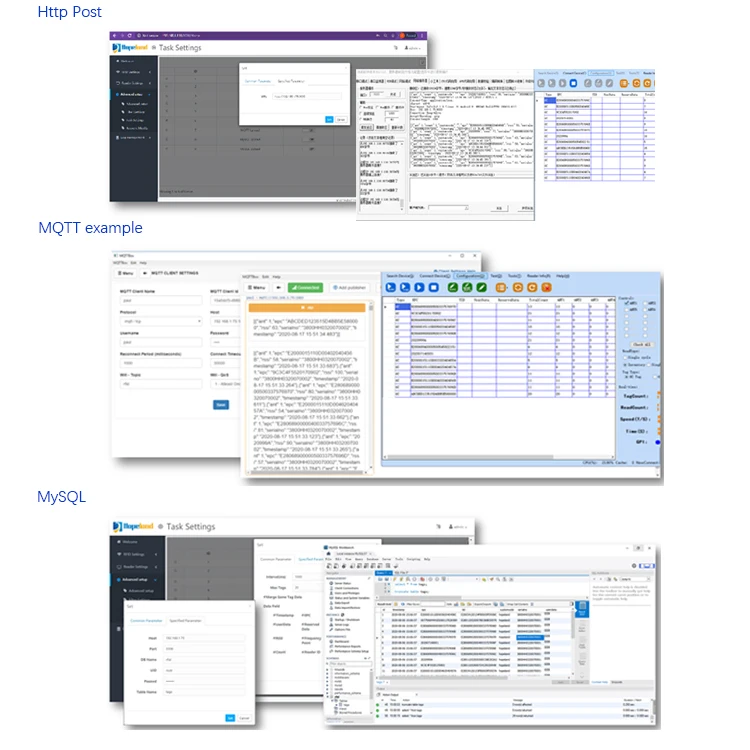

Web platform functions

More Series

HF100 Sharp series long reading / HH100 Android version 2 port reader

Application & Cases

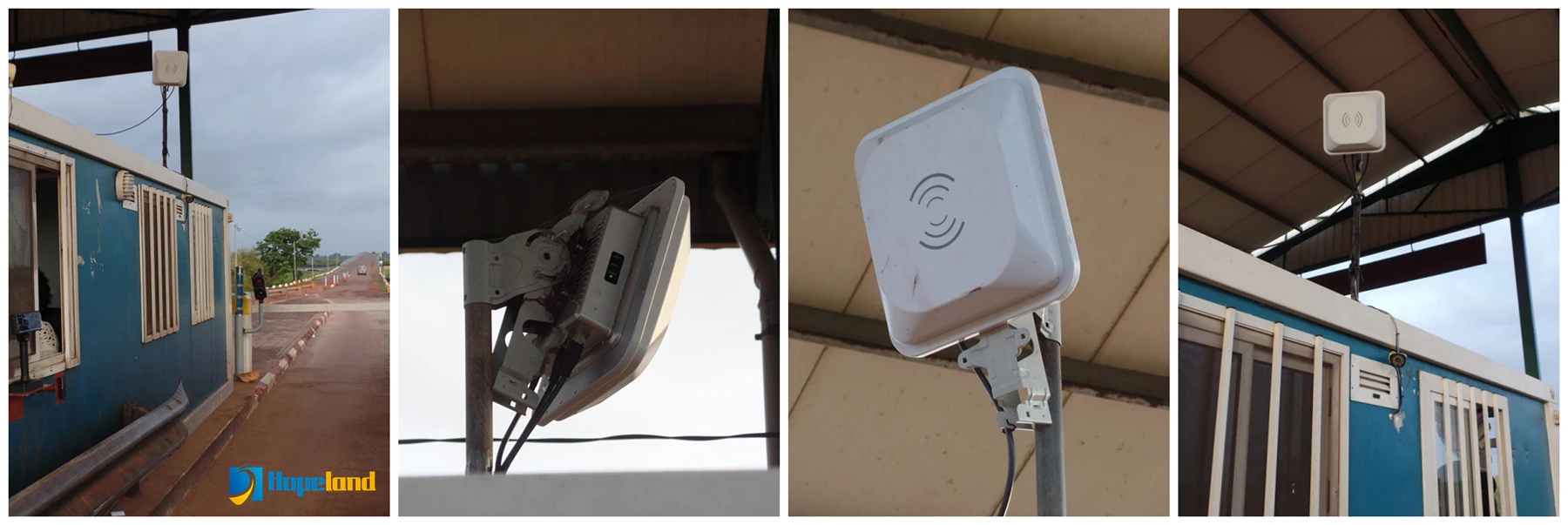

PARKING SYSTEM, ETC SYSTEM

Intelligent Manufacturing - BMW auto parts

Person management - Hospital Patients

Smart Retail -24hr shop

Access control - RFID gate

Warehousing - Inventory & Track

Packages

Package size: about 32*32*15cm（single box); Gross weight: about 5kg（single package）

Nice and Safe box within foam

Good carton material

Pallet packaging plus film

Company Introduction

About Hopeland

A national-level high-tech enterprise passed ISO9001,ISO14001, OHSAS18001 system certifications.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.

To support the success of distributors, OEM/ODM, and system integrator partners, we sell products into more than 80 countries & regions worldwide with multiple certifications such as CE, FCC, SRRC, NBIT, Anatel etc. Our solutions are also widely used in areas of ETC solution, Intelligent Parking, Aviation, Smart Retail, Medical, Smart Grid, Assets Management, Warehousing & Logistic, Supply Chain, Industry 4.0 and so on.
