TDXL BA800 Best Price Cheap 4 Star 14 Frequency Signal Rugged Tablet GPS GNSS RTK Measurement Antenna
- Category: Other Test Instruments >>>
- Supplier: Shenzhen,Soten,Technology,Company,Limited
Share on:
Product Overview
Description
Products Description
Passive antenna characteristics | ||||||||

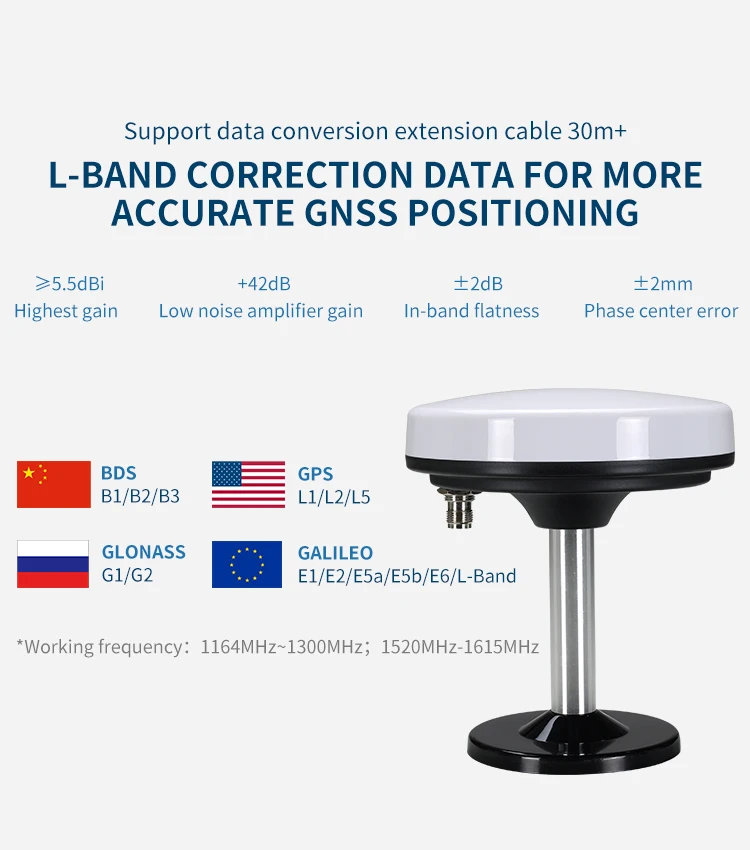

Support satellite signal | BDS：B1、B2、B3； GPS：L1、L2、L5； GLONASS：G1、G2； GALILEO：E1、E2、E5a、E5b、E6、L-Band | |||||||
Working frequency | 1164MHz~1300MHz；1520MHz-1615MHz | |||||||
Impedance matching | 50 Ω | |||||||
Polarization mode | right-handed circular polarization (RHCP) | |||||||
Antenna axis ratio | ≤3dB | |||||||
Horizontal coverage | 360° | |||||||
Highest gain | ≥5.5dBi | |||||||
Low noise amplifier characteristics | ||||||||
Low noise amplifier gain | 40±2dB | |||||||
Noise figure | ≤2.0dB | |||||||
Output standing wave ratio | <2.0 | |||||||
In-band flatness | ±2dB | |||||||
Operating voltage | 3.0~16V DC | |||||||
Working current | ≤35mA | |||||||
Whole machine & structure & environmental adaptability | ||||||||

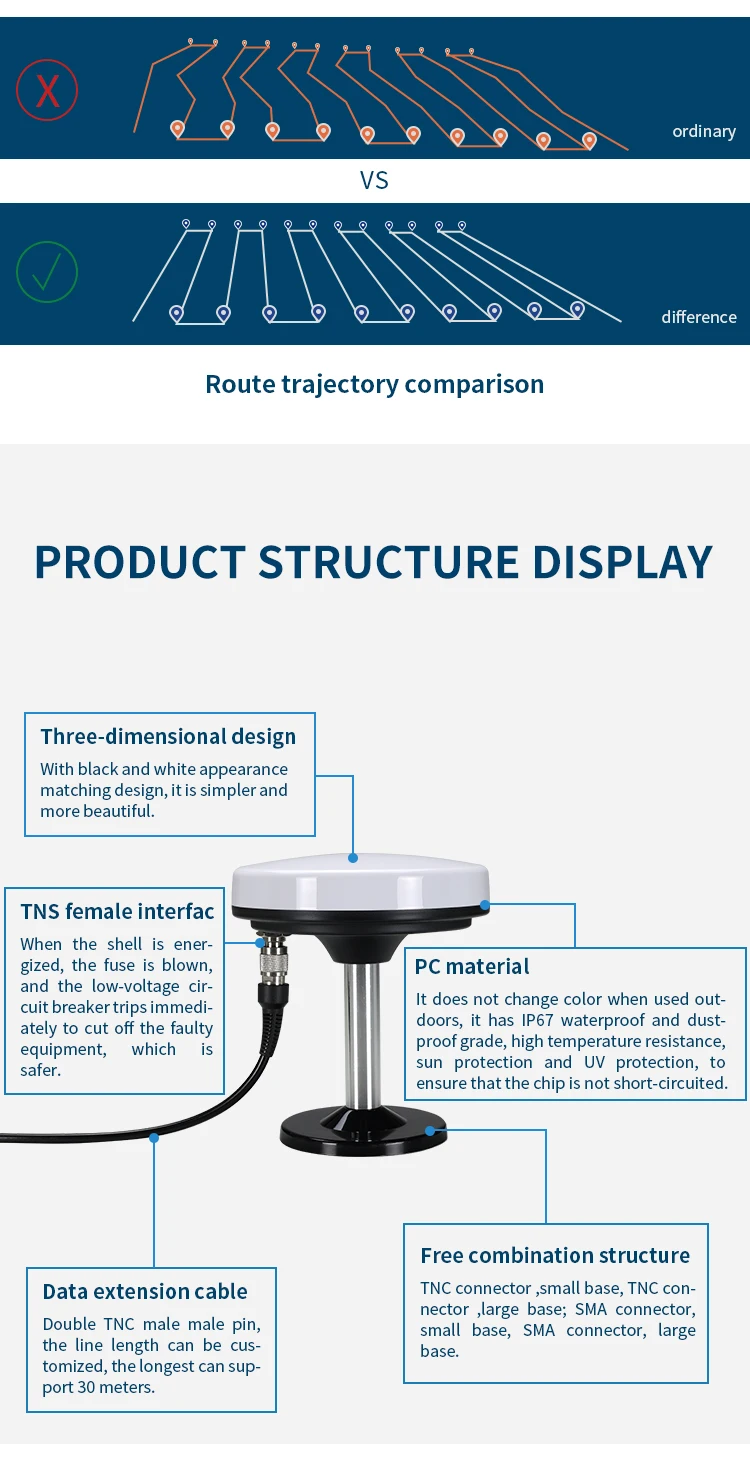

Output Interface | TNC | |||||||

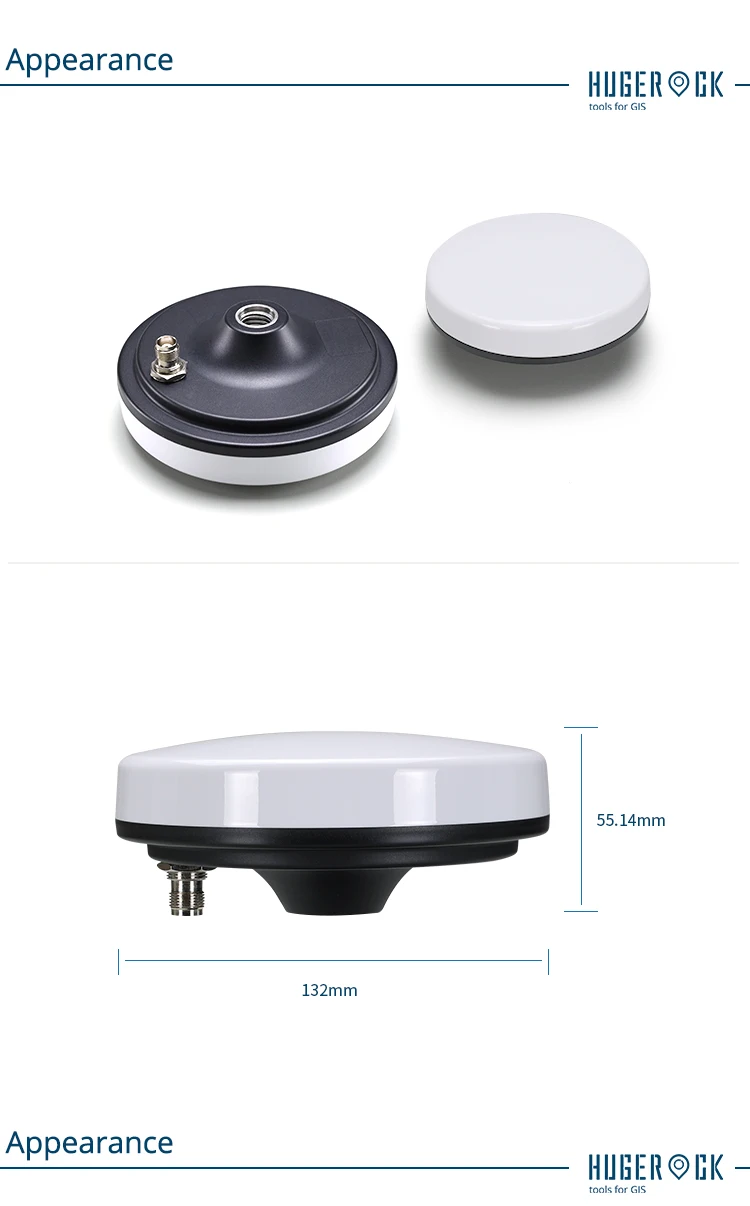

Antenna size | φ132mm*55.14mm | |||||||
Operating temperature | -40℃~+80℃ | |||||||
Storage temperature | -45℃~+85℃ | |||||||
Storage humidity | 95% non-condensing | |||||||
Colour | white | |||||||
Installation method | TNC tightening installation | |||||||
Weight | ≤350g | |||||||
Phase center error | ±2mm | |||||||
Dual-frequency delay tolerance | ≤5ns | |||||||
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
