JIANGSU JIACHENG GROUP
JIANGSU JIACHENG GROUP(Stock Code: 830957) - As a TOP 3 professional manufacturer in textile machinery based in China, we have 30 years experience since 1990(founded) and 15 years export experience on ALIBABA since 2004, over 300 workers and 7000 square meters factory rooms, and all products passed CE, BV, TUV & ISO 9001:2015 certifications.
Our main products are high speed fancy yarn crochet machine, high speed energy-saving type chenille yarn machine, fancy twister,napping machine and cone winder, etc. And our products have exported to India, Pakistan, Bangladesh, Nepal, Indonesia, Malaysia,Vietnam, Thailand, Laos, Egypt, Morocco, Brazil, Cambodia, Peru and Chile, etc. Our factory is located in Zhangjiagang city, It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.




Products Description

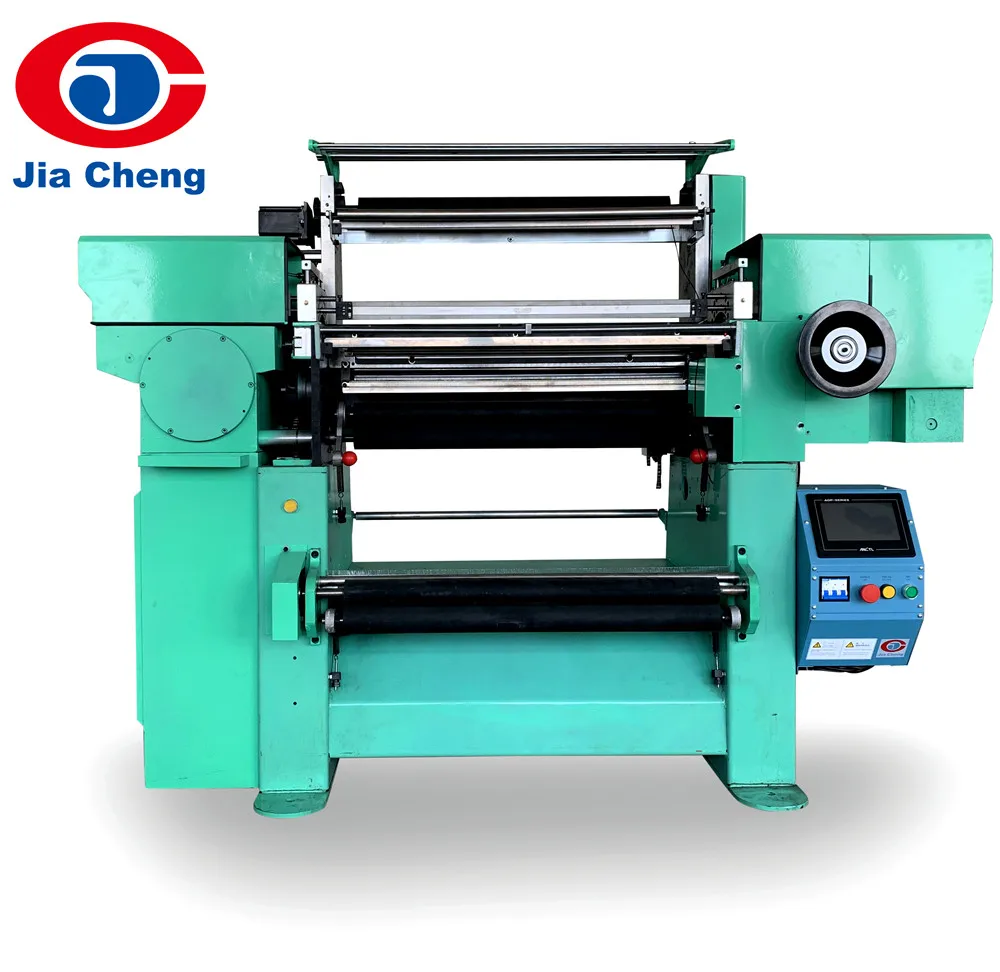

JC-980B CROCHET MACHINE
JC-980B high speed fancy yarn crochet machine controls the device by changing inlay methods to produce all kinds of various pattern yards.the machine speed is controlled by a frequency converter,starting at slow speed with stepless changes,fast breaking to low speed according to meet the test production demand,the machine is divided into three main sections:

Main machine(L*W*H)mm:1750 x 1950 x 1750
Winding section(L*W*H)mm: 3000 x 2800 x2400
Yarn frame(L*W*H)mm: 4200 x 1880 x 2750






MAIN TECHNICAL PARAMETERS:
Operational width:
762mm(30inch)
Gauge needles per inch:
15,18,20(according to customers’need)
Weft needle plates:
2 sets
Lin chain:
12-50 sections
Main shaft speed:
Max.1500r/min
The girth of rack frame:
170cm
Whole machine power:
1.56kw
NO.0f yarn bobbin:
520 pieces
Gauge of yarn spindle:
200mm
Certificate:
CE

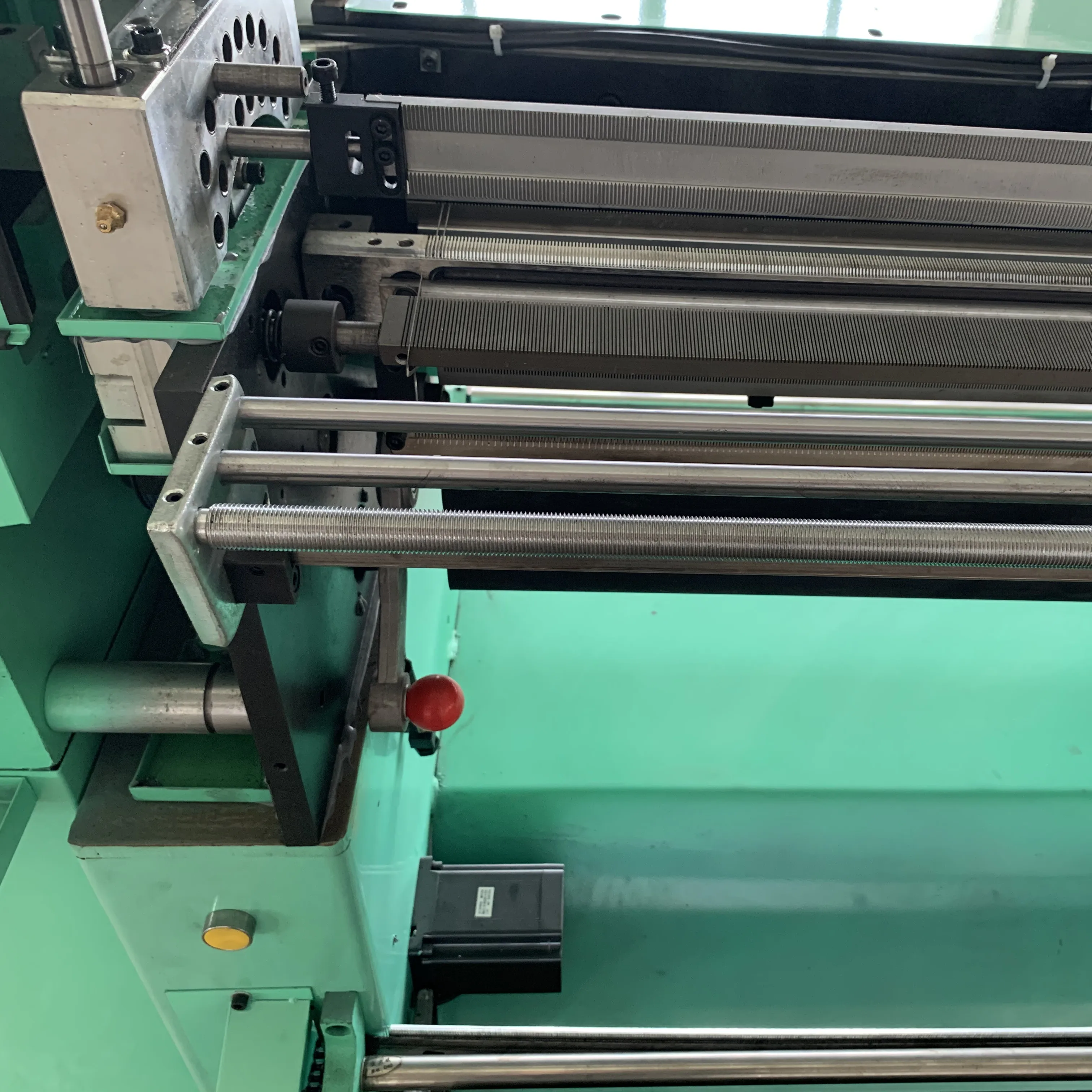

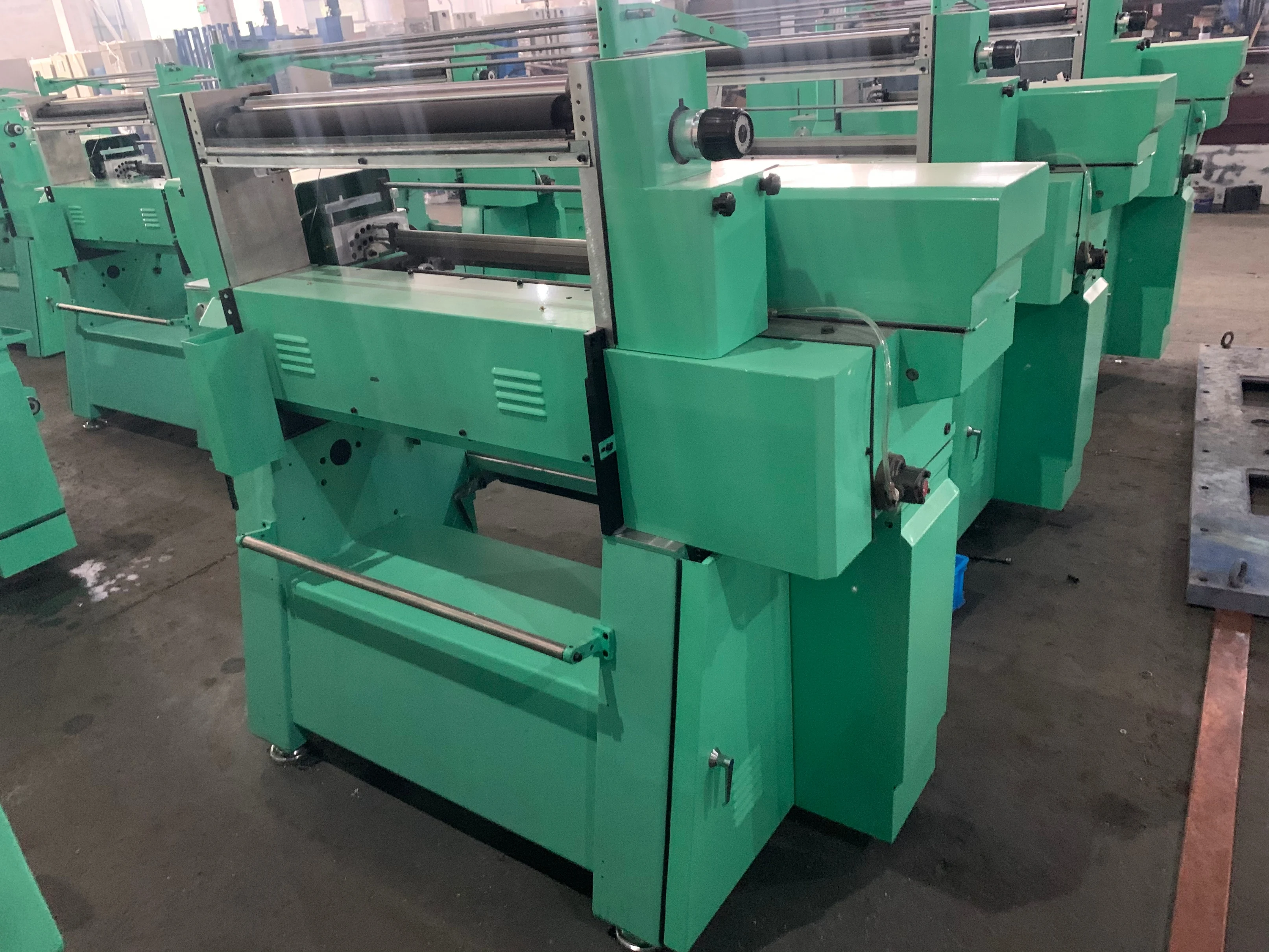

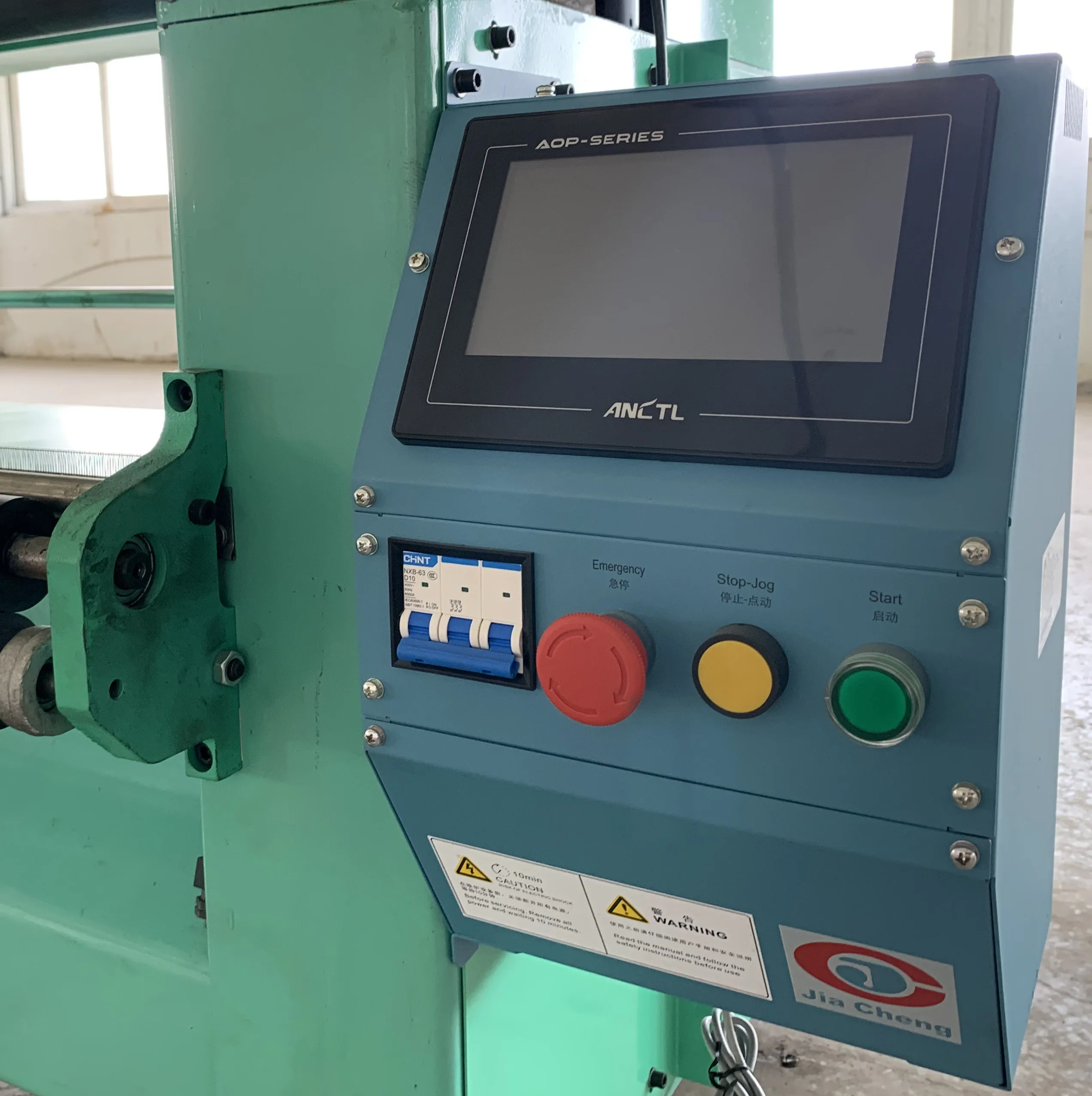

Details Images

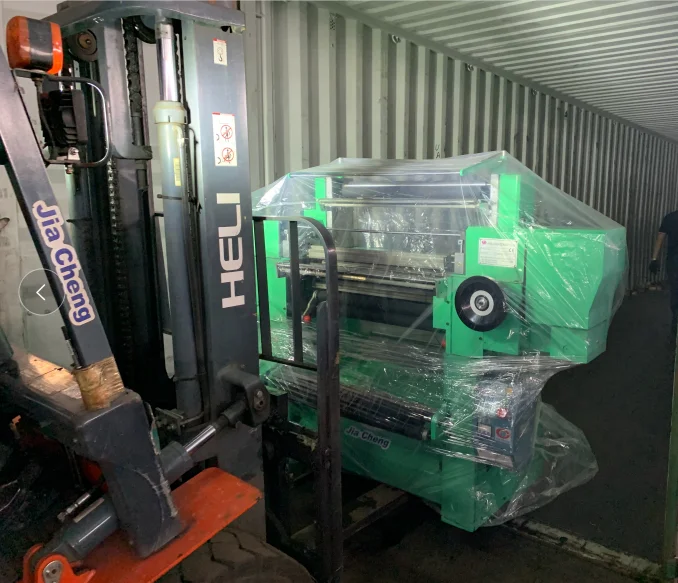

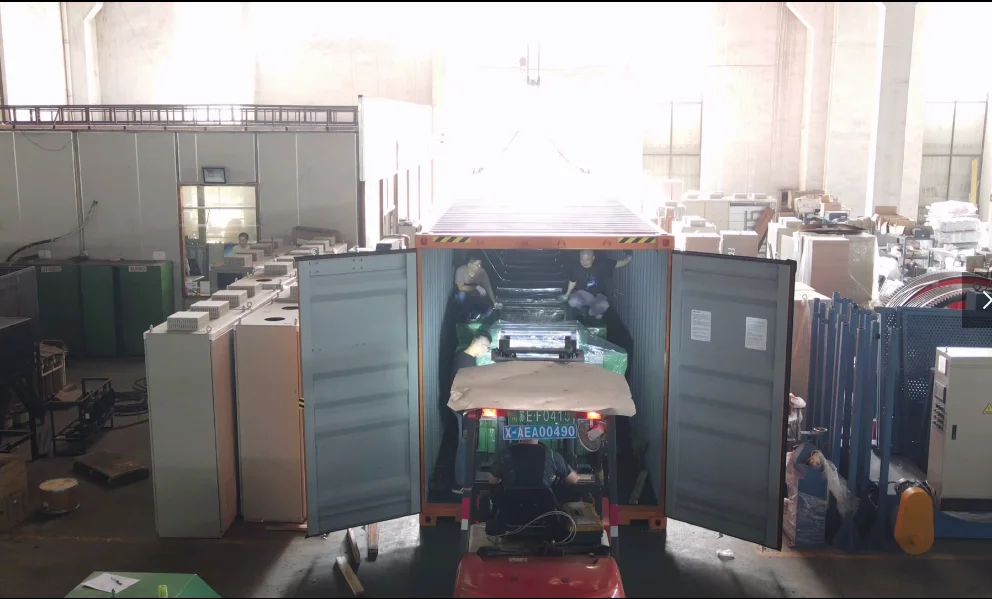

Packing and Shipping




SALES AND SERVICE NETWORK




Certifications




FAQ


About us:
1. We established in 1990, we are the professional manufacturer have more than 30 years of experience in making all kinds of textile machinery.
2. We are the factory not the trade company, machine's body and other key components and parts are produced by our own factory, quality is reliable.
3. We can control the price, the quality and the delivery time.

-----------------------

Q： How long is the machine warranty?
A： It's 12 months from B/L date. Each machine will be tested and get a warranty hangtag before packing and delivery.

Q ： What technical support can I get?
A： Each machine has instruction book. We also offer video support. Learning in our factory is for free. We can also send technician
to your factory with cost if needed.
Q ：What is your term of delivery?

A： We accept EXW, FOB SHANGHAI and CIF. You can choose the one which is the most convenient or cost effective for you.

Q ：What about the lead time for the mass production?

A： Normally it takes about 30 days after getting deposit.
