AT24C02 AT24C04 AT24C16 AT24C64 smart Electricity Water Meter cashless contact card

Model number

Specification

SLE5542(4442)

256bit encryption card,can read data,write data and password,protect data and write password.

ISO 7816 Compliant pad locations

256*8 bit EEPROM organization

byte-wise addressing

Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

32*1 bit organization of protection memory

2-wire link protocol

Answer to reset according to ISO standard 7816-3

Programming time 2.5mS per byte for both erasing and writing

Minimum of 10000 write/erase cycles

Data retention > 10 years

Programmable Security Code (PSC)

Data write only after correct 3-byte PSC

SLE5528(4428)

ISO 7816 Compliant pad locations

1024*8 bit EEPROM organization

byte-wise addressing

Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

32*1 bit organization of protection memory

2-wire link protocol

Answer to reset according to ISO standard 7816-3

Programming time 2.5mS per byte for both erasing and writing

Minimum of 10000 write/erase cycles

Data retention > 10 years

Programmable Security Code (PSC)

Data write only after correct 3-byte PSC

FM4442

256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442)

FM4428

1024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428)

ISSI4442

256bit

ISSI4428

8Kbit

AT24C01

1Kbit(stop production)

AT24C02

2Kbit

AT24C04

4Kbit

AT24C16

16Kbit

AT88SC102

1Kbit

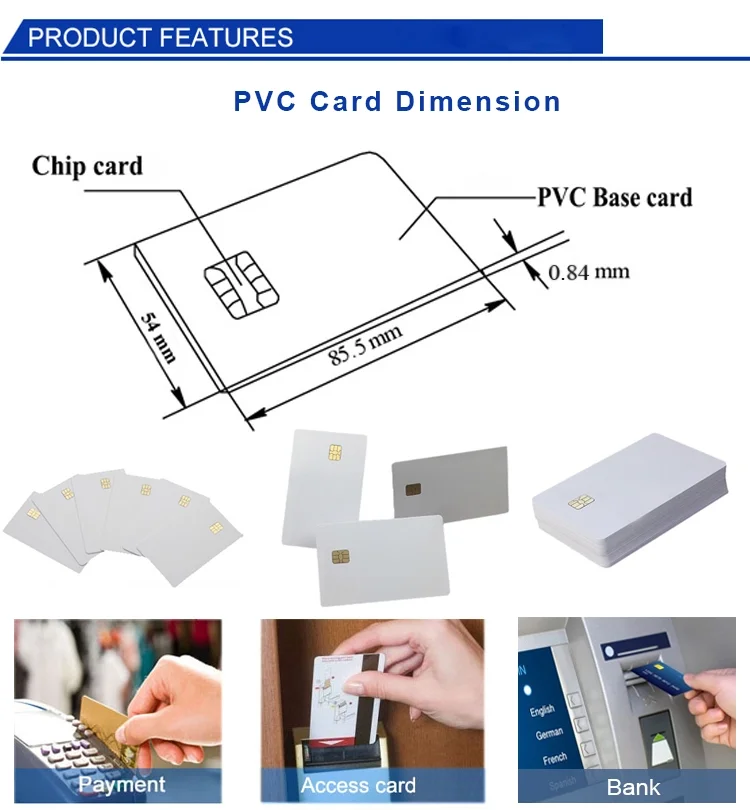

Card Type

Thickness

Packaging Details

G.W./CTN

PVC Card

0.76mm

250 pcs/inner box, 5000 pcs/ctn.

28 KG

Magnetic Card

0.76mm

250 pcs/inner box, 5000 pcs/ctn.

28KG

Contact Card

0.81mm

200 pcs/inner box, 5000 pcs/ctn.

30KG

13.56MHz&UHF RFID Card

0.84mm

200 pcs/inner box, 5000 pcs/ctn.

32 KG

125KHz RFID Card

0.9mm

200 pcs/inner box, 5000 pcs/ctn.

35 KG
