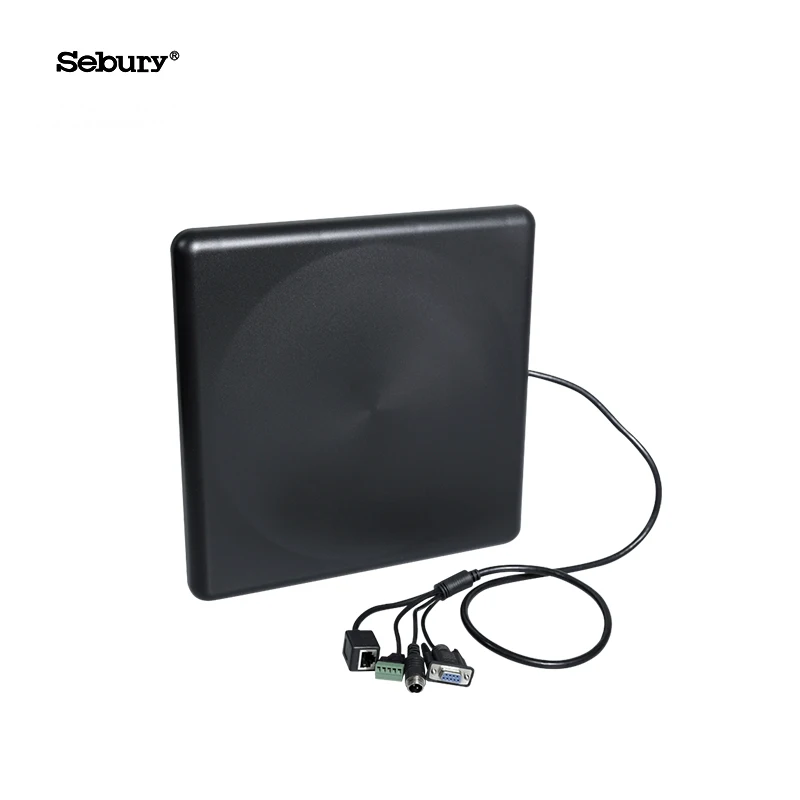

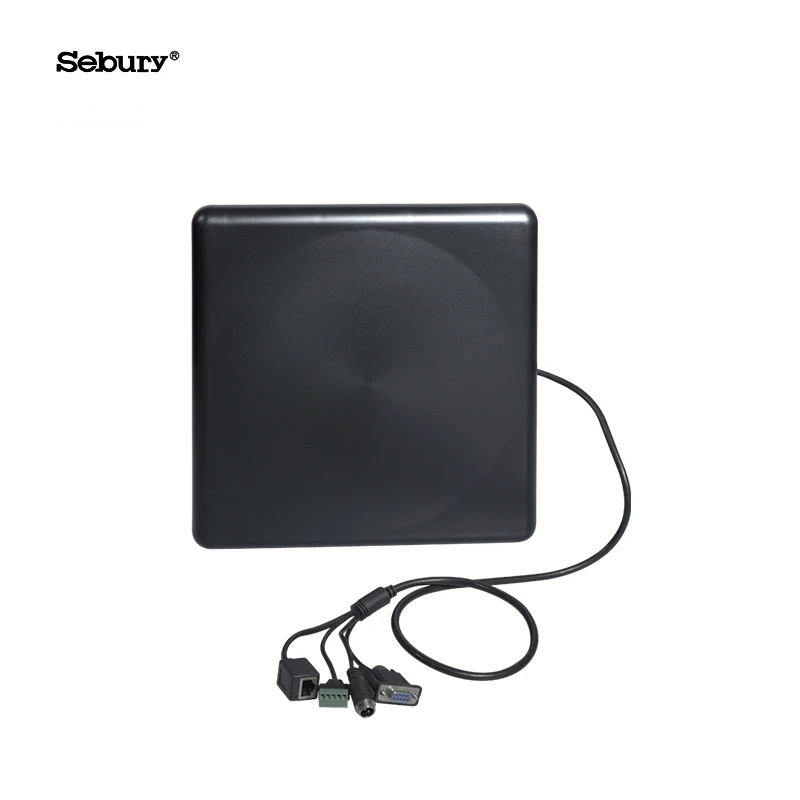

parking system project long range integrated uhf reader with USB,RS232,RS485,Weigand,RJ45,WIFI,4G,Blue tooth
- Category: >>>
- Supplier: Sebury Technology Co. Ltd
Share on (1600285538720):
Product Overview
Description
Products Description

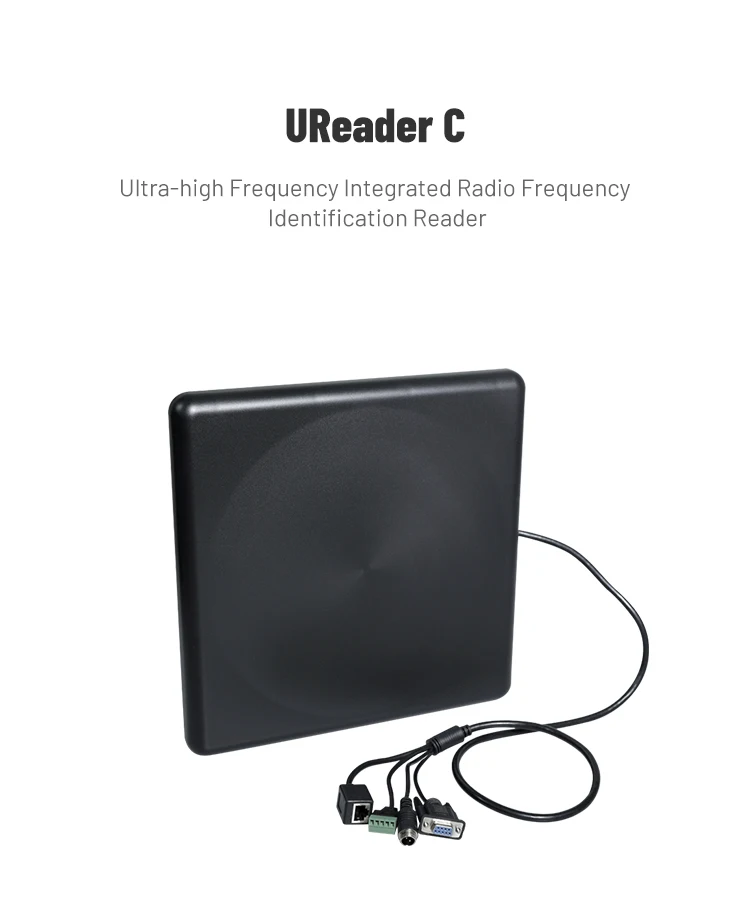

UReader C is an ultra-high frequency integrated radio frequency identification reader. It adopts low power consumption and cost-effective reader module scheme design. It has long reading distance, fast recognition speed, various interface types and convenient installation Features. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems, and production process control.
Features and advantages:
* Based on low-power, cost-effective reader module design
* Working frequency 840~868MHz/902~928MHz (canbe adjusted according to the requirements of different countries or regions)
* Support electronic tags that comply with EPC Global UHF Class 1 Gen2/ISO 18000-6C standards
* Support reading various sensor electronic tags such as temperature electronic tags and water and dew electronic tags
* Optimized multi-label inventory algorithm, the inventory speed of tags can reach more than 100 sheets per second
* Work in a wide-spectrum frequency hopping (FHSS) or fixed frequency transmission mode
* RF output power up to 30dBm (1dBm step adjustable)
* Supports command, polling and trigger working methods
* Support independent and combined inventory of EPC, TID, USER data area
* Support IAP firmware upgrade
* Low power consumption +12V DC power supply
* Support USB, RS232, RS485, Wiegand, RJ45 (TCP/IP, UDP) and WIFI, 4G,Bluetooth and other wireless interfaces are optional
* Waterproof grade IP66
*Provide demo software and SDK development kit
* Support the secondary development of multi-platform Windows, Android, Linux andmulti-language C, C#, JAVA
Product Specifications | ||||
Size | 228*228*68mm | |||
Weight | 1.7kg | |||
Wind resistance | 30m/s | |||
Reflector material | aluminum | |||
Radome color | Black | |||
Antenna cover material | ABS | |||
Working temperature | -40~80°C | |||
Main function | ||||
Air interface protocol | EPC Global UHF Class 1 Gen 2 / ISO 18000-6C | |||
Sensor tag | Conventional tags and sensor tags such as temperature and water dew sensor tags | |||
RSSI detection | Tag signal strength detection support | |||
RF parameters | ||||
Working frequency | 840~960MHz optional,frequency hopping function | |||
RF output power | 30dBm±1dB（MAX） | |||
Power output step | 1dBm | |||
Channel occupied bandwidth | ＜250KHz | |||

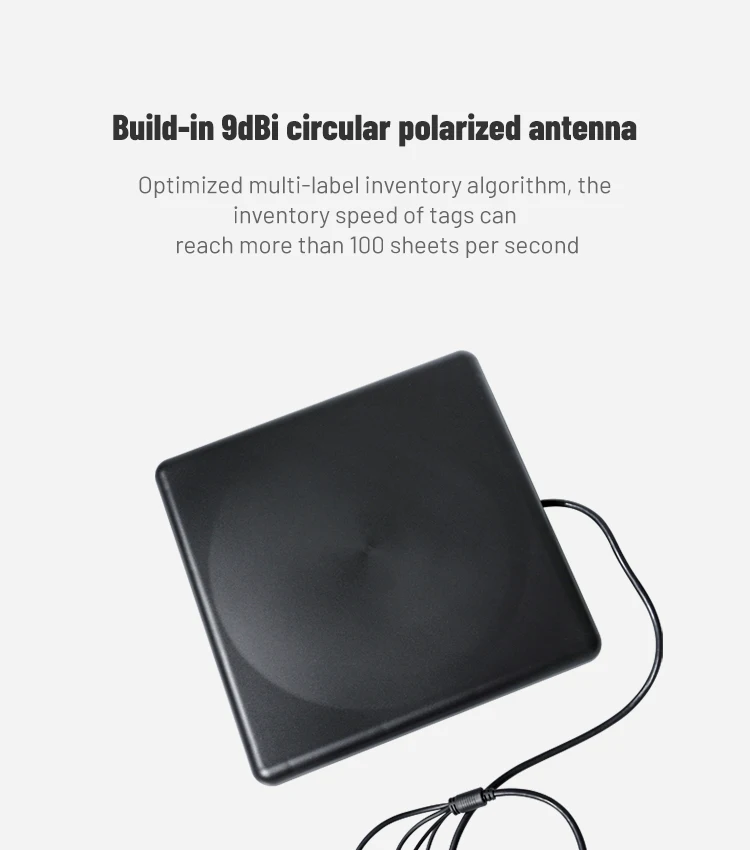

Antenna | Built-in 9dBi circular polarization antenna | |||
Access label performance | ||||
Continuous tag reading distance | ≥8 meters | 8dBi circularly polarized antenna, 30dBm output power, Standard E41 test card | ||
Continuous tag writing distance | ≥4 meters | |||
Tag recognition speed | ≥100pcs/s | |||
Communication parameters | ||||
Communication Interface | Support USB, RS232, RS485, Wiegand;RJ45 (TCP/IP, UDP) optional, wireless WIFI, 4G,Bluetooth optional | |||
Communication rate | 115200bps | |||
Power parameters | ||||
Operating voltage | DC 12.0V (+9~24V) | |||
Operating current | ≤600mA / DC12V | |||
Standby current | ≤100mA / DC12V | |||
Working environment | ||||
Working temperature | -20~+65℃ | |||
Storage temperature | -30~+85℃ | |||
Working humidity | ＜95% RH (+25℃) without condensation | |||
Interface definition | ||||
Project | Description | |||
Red | +12V | |||
Black | GND | |||
Yellow | Wiegand DATA0 | |||
Blue | Wiegand DATA1 | |||
Purple | RS485 R+ | |||
Orange | RS485 R- | |||
Brown | GND | |||
White | RS232 RXD | |||
Green | RS232 TXD | |||
Gray | Trigger input (TTL level) | |||
Antenna specifications Electrical indicators | ||||
Frequency range | 865~940MHz | |||
Gain | 9dBi | |||
Horizontal lobe width | 65±5º | |||
Vertical lobe width | 70º | |||
Front-to-back ratio | ≥10dB | |||
Standing wave ratio | ≤1.3 | |||
Impedance | 50 Ω | |||
Maximum power | 50W | |||
Polarization mode | Circular polarization | |||
Waterproof grade | IP66 | |||
Lightning protection | DC grounding | |||
