Brand new radiator panel production line for wholesales

Product Overview

Description

Brand new radiator panel production line for wholesales

Video link:

YouTube: https://youtu.be/4XEjzNQ-_VQ

QQ video: https://v.qq.com/x/page/b3215mteysv.html

Baidu video: https://haokan.baidu.com/v?vid=5069123998117132795&bfe=1

General instruction

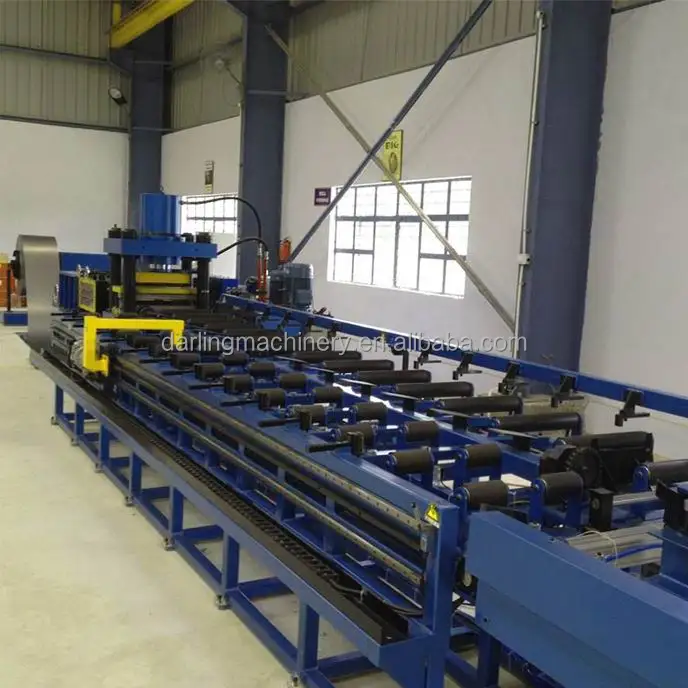

Our automatic transformer radiator production line mainly absorbed, improved & updated the technology and design of Germany GEORG & Canada MTM. The whole line is composed of automatic uncoiling machine, roll forming machine, pressing machine, magnetic turning table, multiple spot welding equipment, side seam welding machine, head welding machine, side shearing machine, head cutting machine, and controlling cabinets, etc. The sizes of radiators are 320, 460, 480, 520, 535, or custom-design (as per client’s actual requirement). This line is fully automatic production line from coil strips to well-made radiator panels, all the processes are finished online. All parameters are set on screen, the operating is very convenient. and the performance reaches the first-rate in the world.

Working procedure

Uncoiling → roll forming → hydraulic pressing → turn over table for two pieces joining → multiple spot welding → side seam welding → head welding → side shearing → head cutting → finished product

Technical specification

Item		Parameter

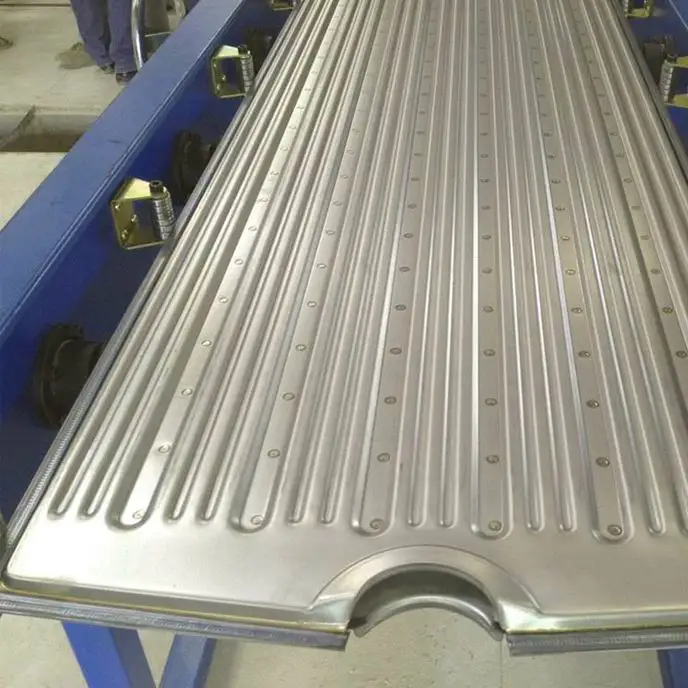

Standard panel size		310mm, 320mm, 460mm, 480mm, 520mm, 535mm, etc
Panel length		500-4000mm
Length tolerance		±1.0mm
Panel bearing pressure		Positive pressure≥ 0.15Mpa, negative pressure ≥ 133Kpa, without deformation
Panel material		ST12, SPCC, DC01 cold rolled steel, 1.0-1.2mm
Total power		Approx 315KW
Total line dimension		46.5m x 3.5m
Oil fluits size	Steel thickness 1.0mm	≥ 11mm
	Steel thickness 1.2mm	≥ 11mm
Number of oil fluits	Panel 310mm, 320mm	3
	Panel 460mm, 480mm	5
	Panel 520mm, 535mm	6
Input coil width	Panel 310mm	325mm
	Panel 460mm	475mm
	Panel 520mm	535mm
Note: Panel size specification standard is spec: 310mm, 320mm, 460mm, 480mm, 520mm, 535mm, etc. But it can be designed according to customer requirement, design fee extra charge.If need one machine to produce multi-specs panel, additional charge $60000USD for one spec.  Panel length: 1500-4000mm Work speed: 3-6m per minute Control system: PLC automatic control, fully automatic Electric system: all electric elements use international famous brand products

Production line configuration

No.	Function	Components	Quantity

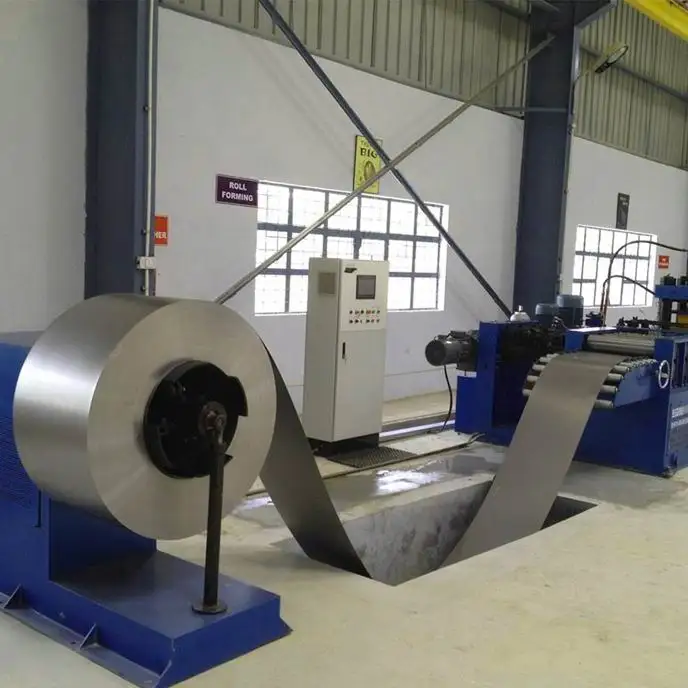

1	Panel forming work	Hydraulic uncoiling equipment	1 set
		Main roll forming machine	1 set

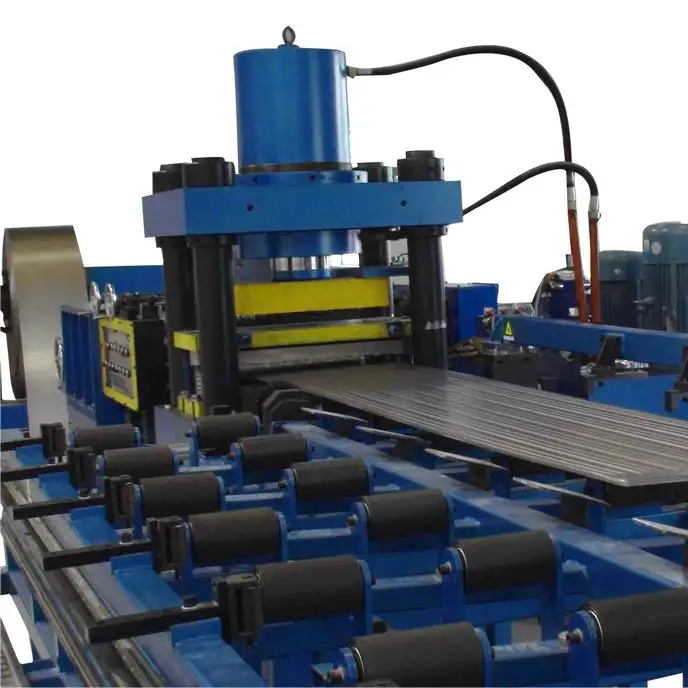

		Pressing and shearing equipment	1 set
		Output and overturning equipment	1 set
2	ERW  (electric resistance welding)	Servo feeding device	1 set

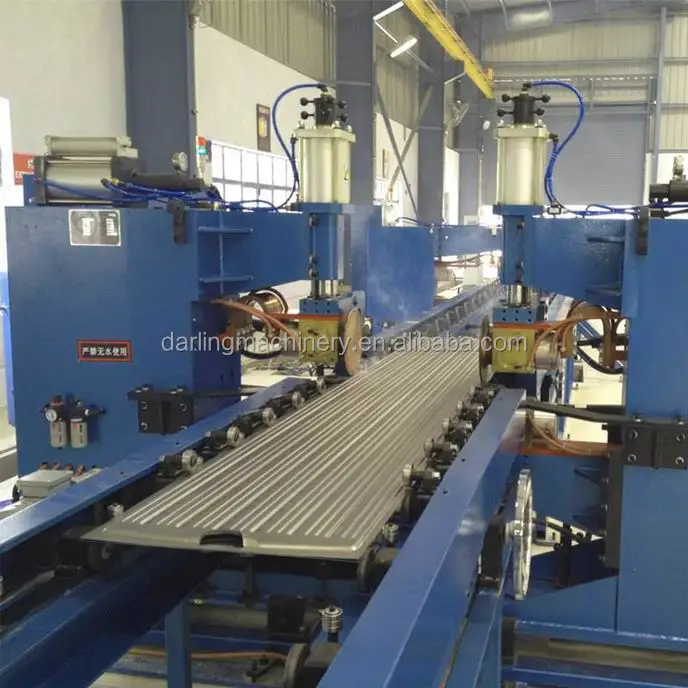

		DN-4x200-6 multi-spot welding machine	1 set
		Forwarding device after multi-spot welding	1 set
		FZN-2x130-ZP-A seam welding machine	1 set
		Forwarding device after seam welding	1 set
		FN-200x2-B end welding machine	1 set
		Forwarding device after end welding	1 set
3	Side shearing	GJ-200 leveling and side shearing machine	1 set
4	Head shearing	Forwarding device after shearing	1 set
		120T press machine	1 set
		Head shearing mould	1 set
		Positioning device	1 set
		Run-out conveyor for finished radiator fin	1 set

Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.

Getting Local office support, please contact with our company:

Shandong Darling Machinery Equipment Co., Ltd. Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158  Website: www.darlingmachinery.com

We will be the best partner



Although we live in different countries, our hearts are always together. We don’t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!



Our cooperation is Double win results.



® Our aim is:

Through using our machine, you can make better product and earn more money !



FAQ:

1, are you manufacture or trading company?

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.

2, how about your quality ?

we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.

3, what about your after sales service ?

we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.

4, why  do we must choose you as our supplier ?

customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let  you to cooperate with us safely.
