Product Overview
Description
Product Description

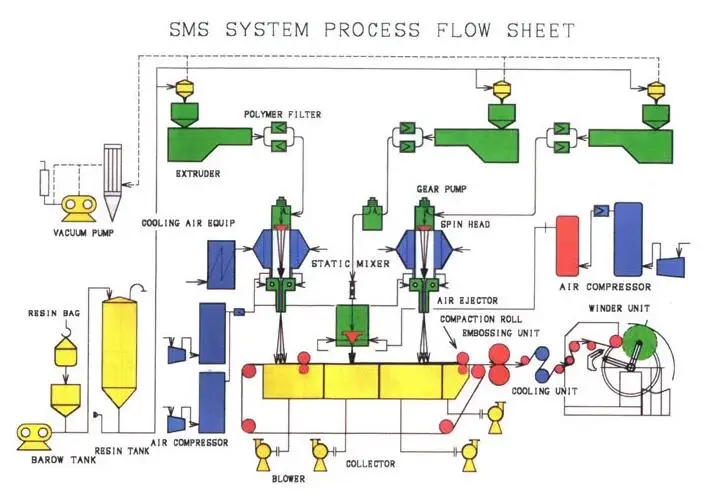

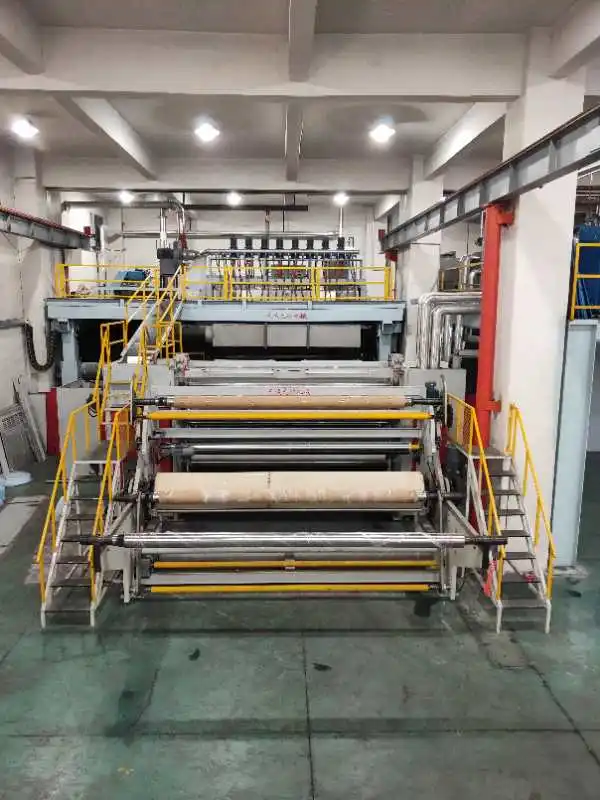

Process of meltblown nonwoven production line
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
Product Paramenters
Model No. | AZX-M-1.6 | AZX-M-2.4 | AZX-M-3.2 |
M(Product width) | 1600mm | 2400mm | 3200mm |
Equipment Size | 15*8.6*9.5m | 15*9*9.5m | 15*10*9.5m |
Speed | 150m/min | 150m/min | 150m/min |
Gram Weight | 10-180g/m² | 10-180g/m² | 10-180g/m² |
Yield (according to 70g/m²) | 4T/Days | 7-8T/Days | 9-10T/ Days |
Model No. | AZX-S-1.6 | AZX-S-2.4 | AZX-S-3.2 |
S(Product width) | 1600mm | 1600mm | 1600mm |
Equipment Size | 15*8.6*9.5m | 15*8.6*9.5m | 15*10*9.5m |
Speed | 200m/min | 200m/min | 200m/min |
Gram Weight | 10-180g/m² | 10-180g/m² | 10-180g/m² |
Yield (according to 70g/m²) | 4T/Days | 7-8T/Days | 9-10T/ Days |
Model No. | AZX-SS-1.6 | AZX-SS-2.4 | AZX-SS-3.2 |
SS(Product width) | 1600mm | 1600mm | 1600mm |
Equipment Size | 29*13.10m | 30*14*10m | 32*15*10m |
Speed | 300m/min | 300m/min | 300m/min |
Gram Weight | 10-150g/m² | 10-150g/m² | 10-150g/m² |
Yield (according to 70g/m²) | 9-10T/Days | 13-14T/Days | 18-19T/Days |
Model No. | AZX-SSS-1.6 | AZX-SSS-2.4 | AZX-SSS-3.2 |
SSS(Product width) | 1600mm | 2400mm | 3200mm |
Equipment Size | 31*20*10m | 32*21.10m | 34*22*10m |
Speed | 400m/min | 400m/min | 400m/min |
Gram Weight | 12-150g/m² | 12-150g/m² | 12-150g/m² |
Yield (according to 70g/m²) | 10-11T/Days | 15-16T/Days | 20-22T/Days |
Model No. | AZX-SMMS-1.6 | AZX-SMMS-2.4 | AZX-SMMS-3.2 |
SMMS(Product width) | 1600mm | 2400mm | 3200mm |
Equipment Size | 31*20*10m | 32*21.10m | 34*22*10m |
Speed | 500m/min | 500m/min | 500m/min |
Gram Weight | 10-150g/m² | 10-150g/m² | 10-150g/m² |
Yield (according to 70g/m²) | 9-10T/Days | 13-14T/Days | 18-19T/Days |
Model No. | AZX-SSMMS-1.6 | AZX-SSMMS-2.4 | AZX-SSMMS-3.2 |
SSMMS(Product width) | 1600mm | 2400mm | 3200mm |
Equipment Size | 31*20*10m | 32*21.10m | 34*22*10m |
Speed | 500m/min | 600m/min | 600m/min |
Gram Weight | 12-150g/m² | 12-150g/m² | 12-150g/m² |
Yield (according to 70g/m²) | 10-11T/Days | 15-16T/Days | 20-22T/Days |
Details Images

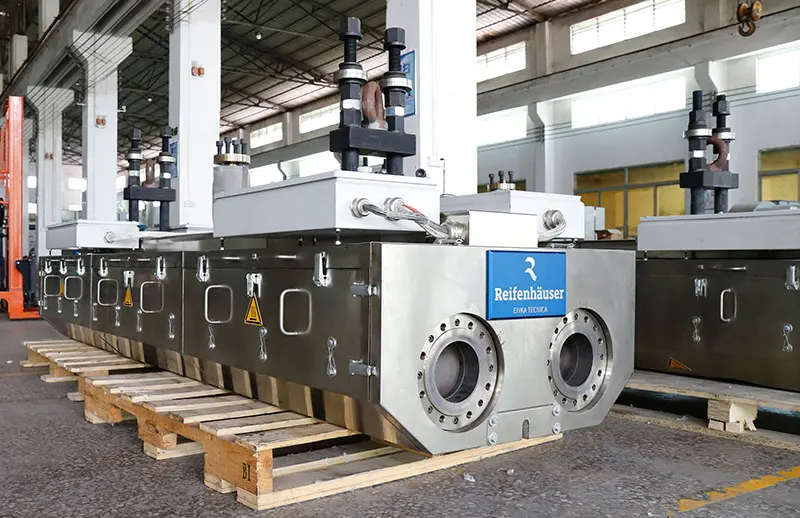

Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10;
Number of holes:5.276;
Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;

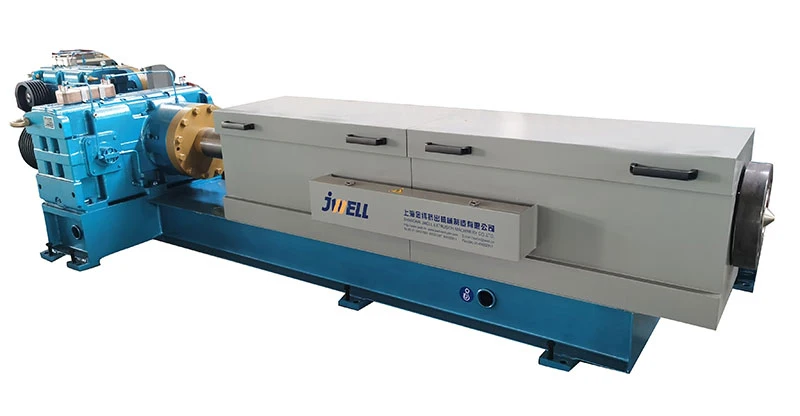

Extrusion Machine
Aperture：90 300kg/h 1pc;
Application
Company Profile
Asen(Foshan)Technology Co.,Ltd is one of AZX Group Limited subsidiary company. It is a strong R & D, excellent design,professional production & sales and after-sales service in one company. We are specialized in manufacturing S(Spunbond),M(Meltblown),SS，SXS，SSS，SMS，SMMS ，SSMMS etc.type PP(Polyproplene) Spunbond & Melt blown Nonwoven Production line. Our group was established in 2009, Involve in the field of Nonwoven machine, Nonwoven fabric, Medical supplies etc., we are providing high-quality products and excellent services for global users.
