Manufacturer manufacturing high quality transformer vacuum drying oven

Product Overview

Description

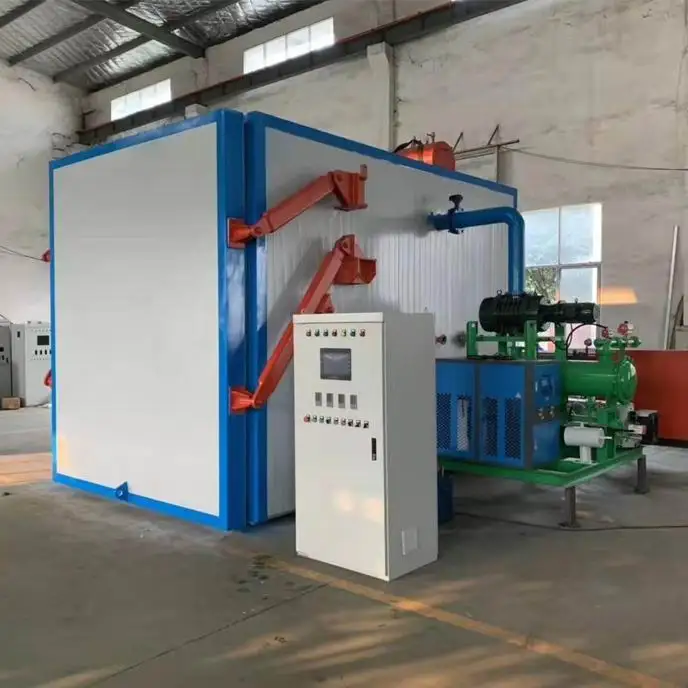

Manufacturer manufacturing high quality transformer vacuum drying oven

Main use of equipment

The equipment is used for the drying treatment of electrician products of oil-immersed power transformers with voltage levels below 110KV. We guarantee the process requirements and quality requirements of product processing, and provide process treatment schemes of 35KV and 10KV voltage levels and related control program.



Main technical features of the equipment

This equipment has the following technical features:

1 With reasonable vacuum system design, there is enough condensed water in the condenser to effectively avoid the pollution of the vacuum pump during the drying process, which greatly prolongs the service life of the vacuum pump.

2 The heating system control is equipped with a power control module to ensure smooth temperature control, reduce the actual heating power during heating, and prolong the service life of the heating tube.

3 In the heating process, according to the different temperature of the body, the pressure alternating mode is automatically repeated several times to periodically reduce the pressure in the vacuum tank to a certain value, so it can create the most suitable conditions for the evaporation of water in the insulation of the body, it make the water evaporation process of drying process in a reasonable state.

4 The processing time of the equipment for the 110KV grade 63000KVA product can be controlled within 70-80 hours, which can save more than 30% compared with the traditional hot air drying equipment.

5 The equipment is adjusted by variable pressure, which can effectively solve the the iron core rust problem during the drying process.

6 The equipment automation level and the products processing technology level both can reach the domestic advanced level, and the quality of the processed products can reach the level of superior products in the industry.

7 This equipment adopts manual control and automatic control. When it is automatically controlled, it can realize unattended automatic drying of the whole drying process.

Main components of the equipment

Item	Name	Quantity
1	Vacuum drying tank system	1 set
2	Door opening mechanism and door frame	1 set
3	Vacuum system	1 set
4	Condensing system	1 set
5	Heating system	1 set
6	Pneumatic piping system	1 set
7	Cooling water system	1 set
8	Hydraulic system	1 set
9	Control and measurement system	1 set
10	Spare parts	1 set

On-site requirements

Rated power: 96kW, 380V, 50Hz, three-phase, power should be connected to the electric control cabinet;

Cooling water: pressure >0.1MPa, circulating pool >3m³

Equipment area dimension: 6000 x 6500mm;

Compressed air: 0.4-0.6Mpa, consumption 0.2 m³/min;



Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.
