Customizable Epoxy Resin vacuum casting tank equipment for transformer

Product Overview

Description

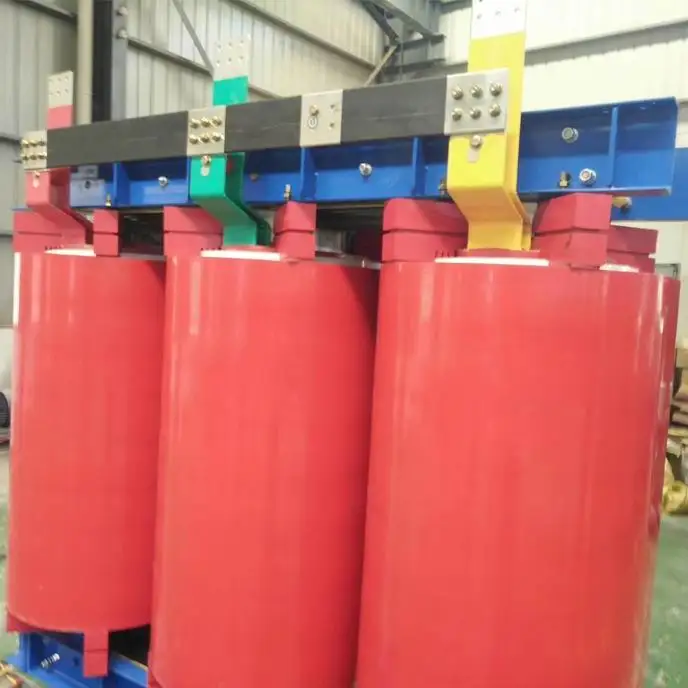

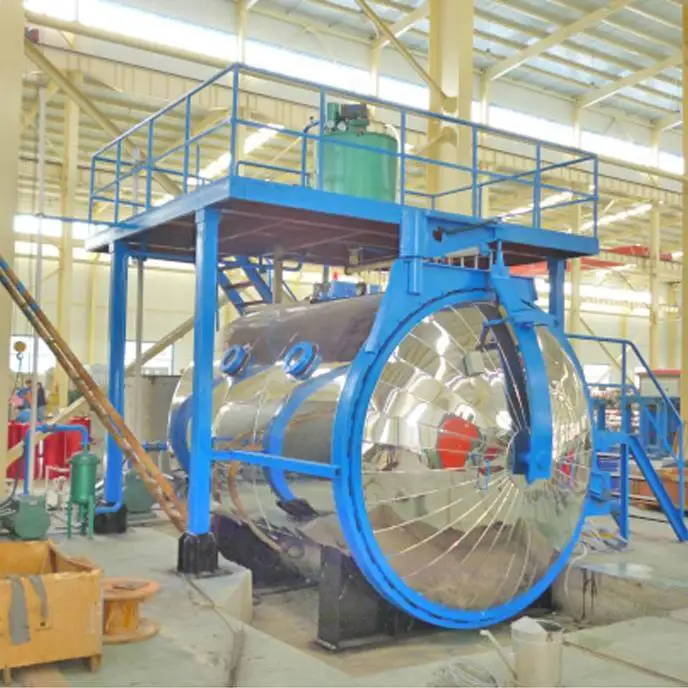

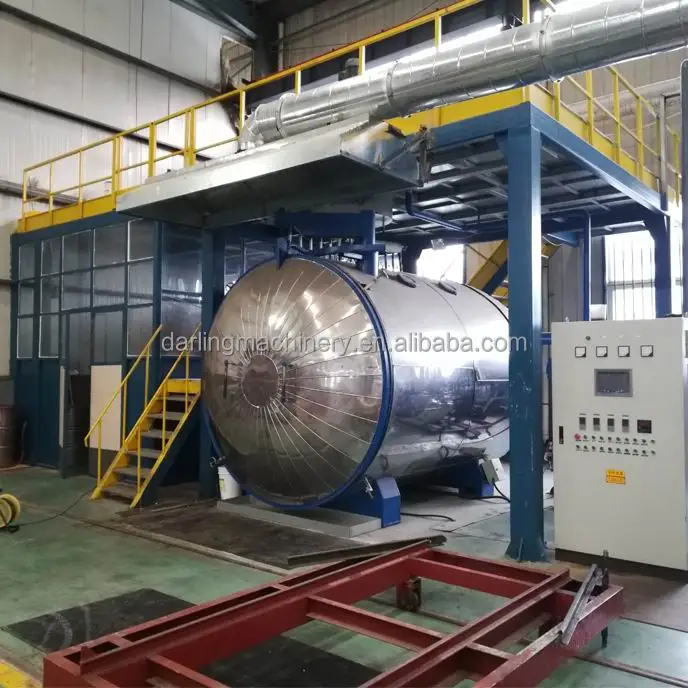

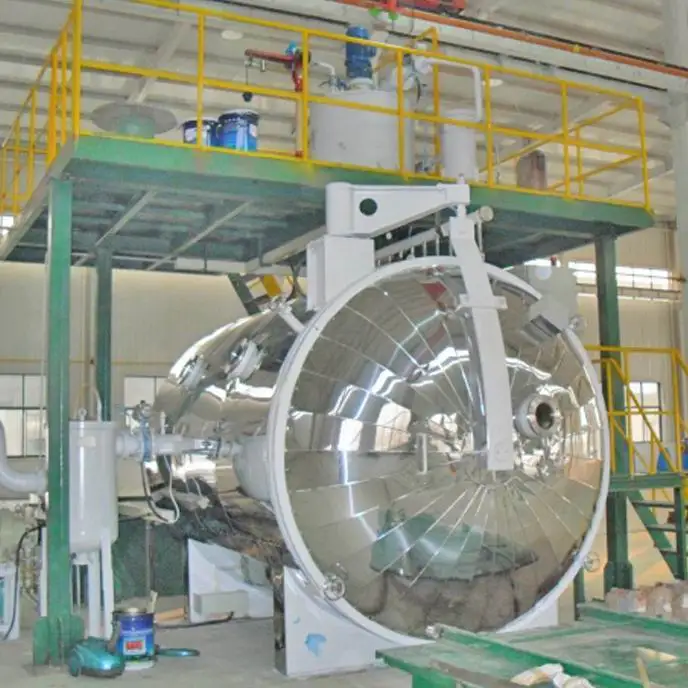

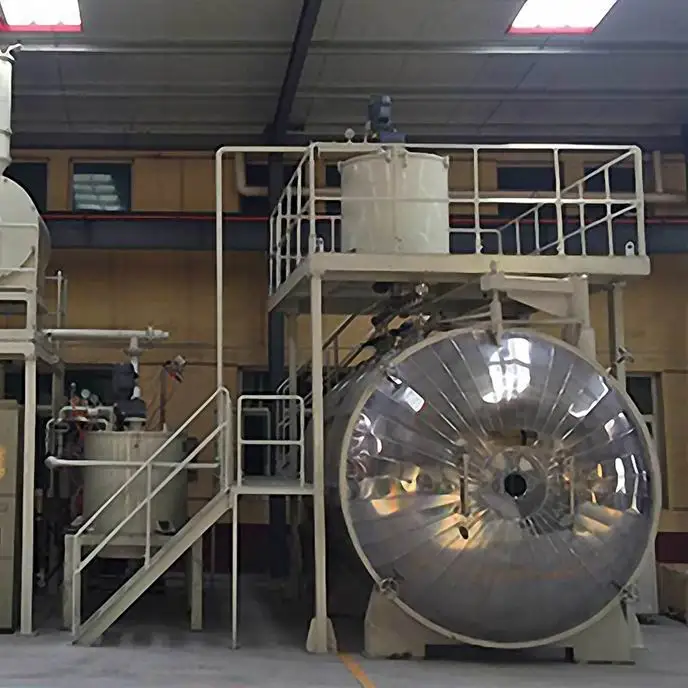

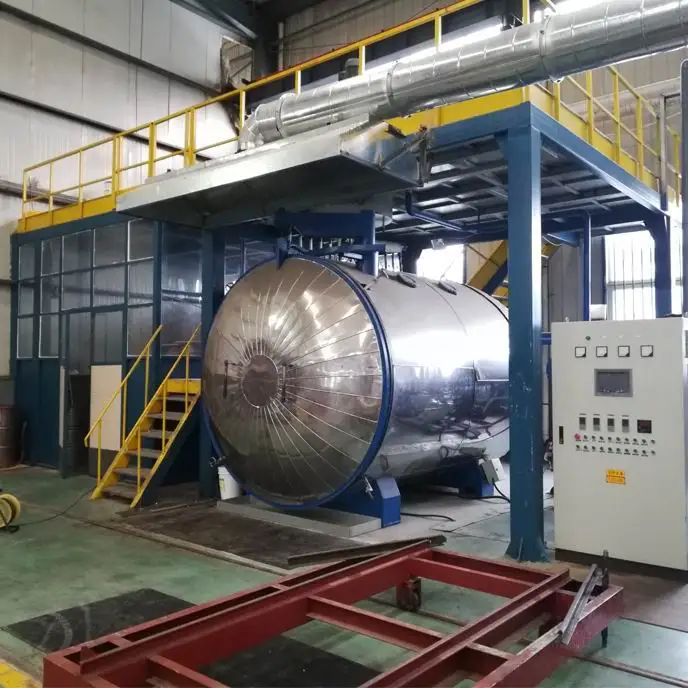

Customizable Epoxy Resin vacuum casting tank equipment for transformer

The main technical requirements are as follows:

The effective size of the pressure casting tank is: φ2400mm x 3000mm (horizontal); the effective volume of the final mixing tank: 400L

This equipment is suitable for two-component epoxy resin formulations with fillers, the ratio of resin (or curing material) + fillers does not exceed 1: 1.3-1.6, and the viscosity of the mixture is not greater than 4000 centipoise. (If the mixture does not meet this requirement or without filler, it must be declared in advance for special design).

Annual production capacity: 1 million KVA

Equipment system composition

No.	Name	Quantity
1	300 liter resin premix degassing tank and material processing system	1 set
2	300 liters of curing material premix degassing tank and material processing system	1 set
3	Electronic weighing system	2 sets
4	400 liter final mixing tank	1 set
5	Vacuum pressure casting tank	1 set
6	Heating system	4 sets
7	Vacuum system	2 sets
8	Computer control system	1 set
9	Cooling water system	1 set
10	Pneumatic and pressurized systems	1 set
11	Casting material conveying system	2 sets
12	Steel frame platform (steel frame materials provided by users, designed and manufactured by our company)
13	Reserve the interface of the silicon powder processing system, and install it when necessary.

Technical indicators and parameters

No.	Name	parameters
1	Casting tank size	φ2400mm x 3000mm
2	Pumping speed of vacuum system main pump	300L/S
3	Working temperature of casting tank	70~85℃
4	Cold ultimate vacuum degree of casting tank	≤30Pa
5	Working vacuum degree of casting tank	100~300Pa
6	Leakage rate of casting tank	≤50Pa. L/S
7	Working pressure of casting tank	0~0.6MPa
8	This equipment adopts electronic scale to measure and high-viscosity conveying pump to convey materials.
9	This equipment uses dynamic mixer to mix materials and adopts film degassing technology.
10	This equipment has computer program control and manual control. Automatically record material tank, casting tank, mold temperature, vacuum degree.
11	Each mixing tank adopts electric heating, heat-conducting oil is used as heat transfer medium, and the temperature is controlled automatically.
12	Using vacuum casting + pressurization process, the maximum rated design pressure of the casting tank is 0.6MPs



The casting tank adopts direct heating method of electric heating element (Taiwan brand), rock wool insulation, 430 stainless steel thin plate armor, and the outer surface temperature of the insulation layer is not higher than room temperature 30 ℃.

Equipment power, water, gas source requirements (user equipped):

Rated power: 120kW, 380V, three-phase four-wire special distribution cabinet

Equipment area: 8m x 8m, the effective height of the plant is 6 meters

Cooling water: pressure> 0.2MPa, maximum consumption> 3m3 / h.

Compressed air: 0.4~0.6MPa, there should be air compressor, triple parts, compressed air consumption is about 3m3 / min.
