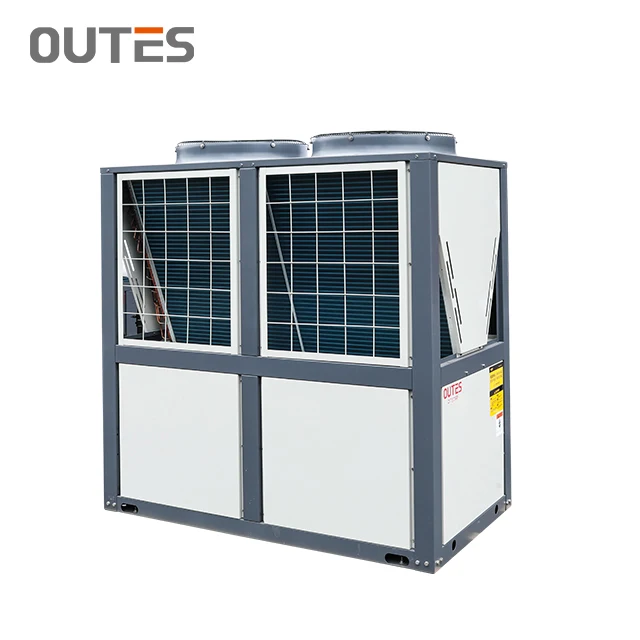

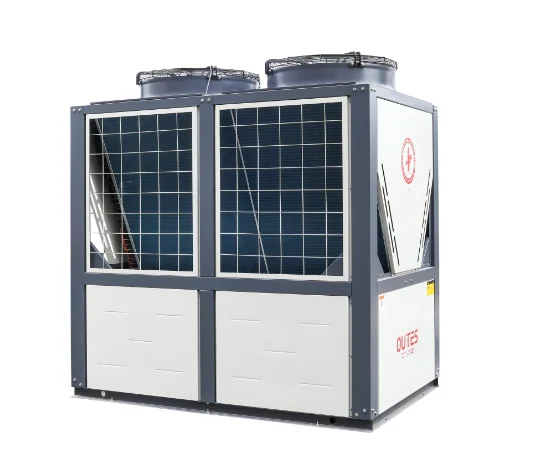

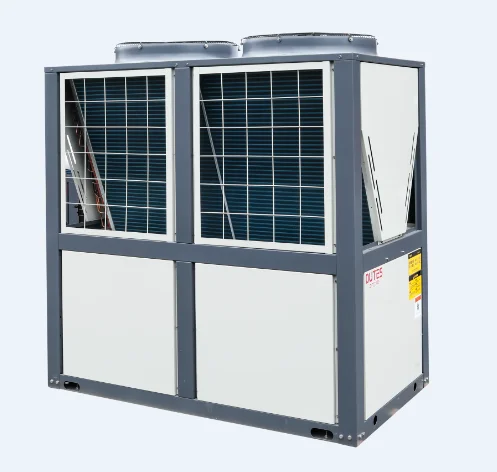

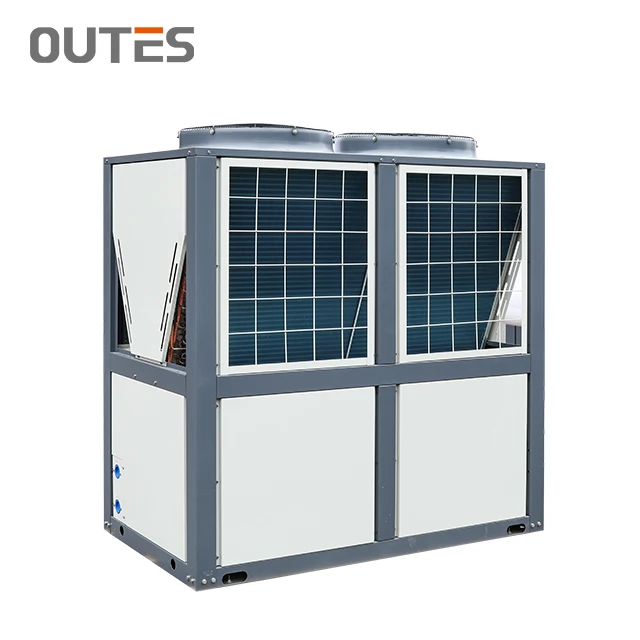

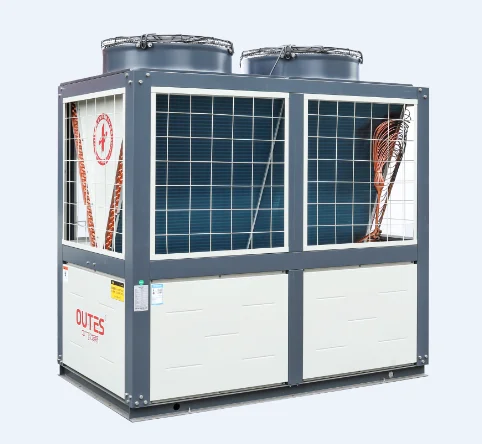

Outes Commercial EVI 25 workable 160kW Air Source Heat Pump
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd. Ningbo Branch
Share on (1600285696607):
Product Overview
Description
PRODUCT FAMILY
PRODUCT OVERVIEW

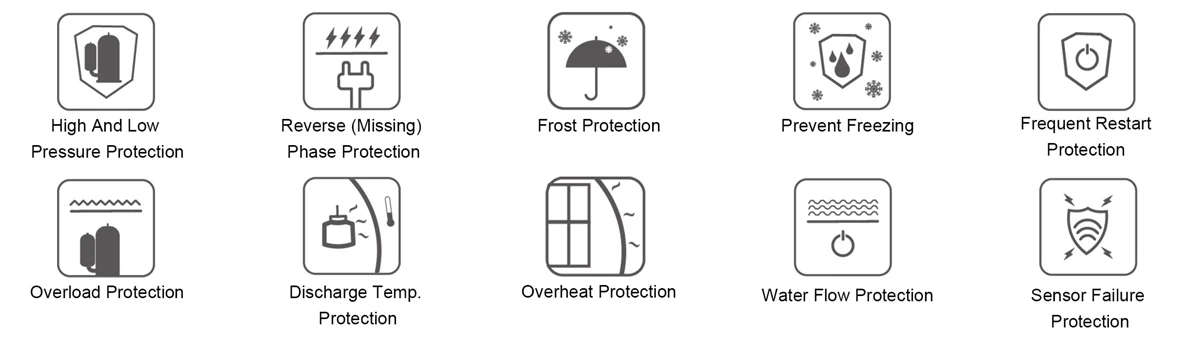

PRODUCT FEATURE
Multi Function
Modular Control
Easy Disassembly and Easy Installaton Start by Stage
Modular Connection
Modular Backup Running
Modular Rotation Running
Intelligent Control System

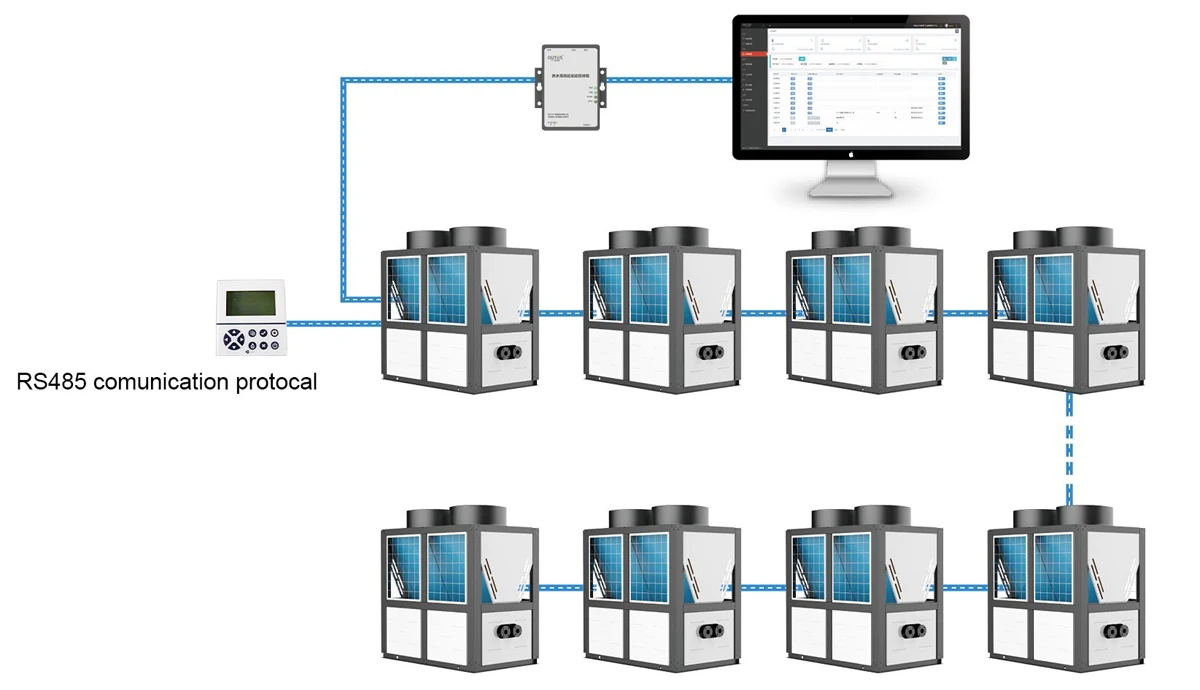

Long Distance Monitoring System
Modular Connection
Modular Backup Running
Modular Rotation Running
Intelligent Control System
Long Distance Monitoring System
PRODUCT SPEC.
Model | AHh45Ee | AHh50Ee | AHh160Ee | AHh180Ee | |||
Power Supply | / | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | ||
Heating-A7W35 | Heating Capacity | kW | 42.0 | 47.3 | 168.0 | 178.5 | |
Heating Input Power | kW | 10.9 | 12.1 | 44.0 | 47.0 | ||
Heating Running Current | A | 20.7 | 23.0 | 83.5 | 89.2 | ||
COP | W/W | 3.85 | 3.90 | 3.82 | 3.80 | ||
Heating-A7W45 | Rating Heating Capacity | kW | 40.0 | 45.0 | 160.0 | 170.0 | |
Heating Input Power | kW | 11.3 | 12.7 | 45.20 | 47.90 | ||
Input Current | A | 21.5 | 24.1 | 85.85 | 90.97 | ||
COP | W/W | 3.54 | 3.54 | 3.54 | 3.55 | ||
Heating- A-12W41 | Rating Heating Capacity | kW | 19.9 | 23.5 | 79.6 | 92.1 | |
Heating Input Power | kW | 9.02 | 10.6 | 36.0 | 40.3 | ||
Input Current | A | 17.1 | 20.1 | 68.4 | 76.5 | ||
COP | W/W | 2.21 | 2.22 | 2.21 | 2.27 | ||
Outdoor Unit | Rated Input Power | kW | 16.6 | 17.6 | 66.3 | 70.6 | |
Rated Input Current | A | 31.5 | 33.5 | 126.0 | 134.0 | ||
Min. Working Temperature ( Heating) | ℃ | -30 | -30 | -30 | -30 | ||
Refrigerant Type | / | R410A | R410A | R410A | R410A | ||
Compressor Brand/Type | / | Danfoss/Scroll | Danfoss/Scroll | Danfoss/Scroll | Danfoss/Scroll | ||
Capacity Adjustable | / | ON/OFF | ON/OFF | ON/OFF | ON/OFF | ||
Water side Heat Exchange | / | Tube in Tube | Tube in Tube | Tube in Tube | Tube in Tube | ||
Water Connection Size | / | G1-1/2(Female Thead) | G1-1/2(Female Thead) | DN80 | DN80 | ||
Rated Water Flow | m3/h | 6.9 | 7.7 | 28.9 | 29.2 | ||
Water Pressure Drop | kpa | 65 | 75 | 75 | 75 | ||
Max.Water Pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | ||
Noise | dB(A) | ≤65 | ≤65 | ≤70 | ≤70 | ||
Electrical Shock Proof Grade | / | Class I | Class I | Class I | Class I | ||
Outdoor Unit Water Proof Class | / | IPX4 | IPX4 | IPX4 | IPX4 | ||
Running Weight | kg | 400 | 450 | 1350 | 1480 | ||
Net Dimension ( L*W*H) | mm | 1600*900*1660 | 1600*900*1660 | 2200*1450*2335 | 2860*1450*2335 | ||
Packing Dimension ( L*W*H) | mm | 1650*1010*1760 | 1650*1010*1760 | 2270*1500*2450 | 2930*1500*2450 | ||
Container Loading20'/40'/40'HC | Pcs | 7/14/14 | 7/14/14 | 4/8/8 | 2/4/4 | ||

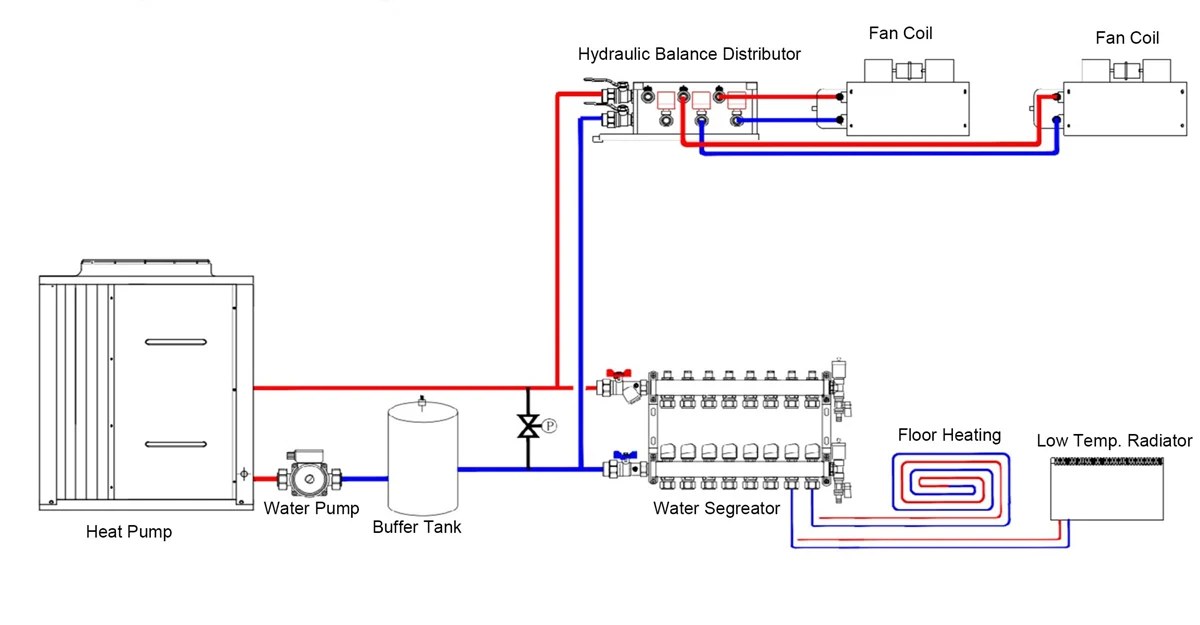

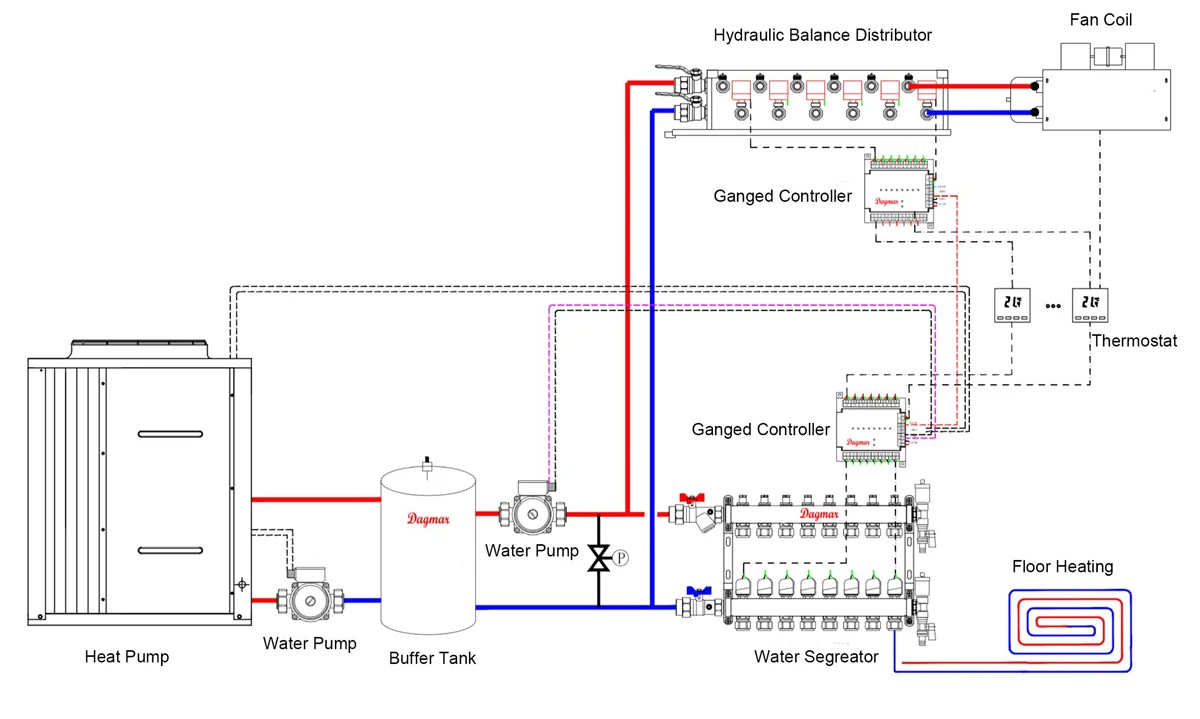

PRODUCT DIAGRAM
Primary Circulation System
Secondary Circulation System

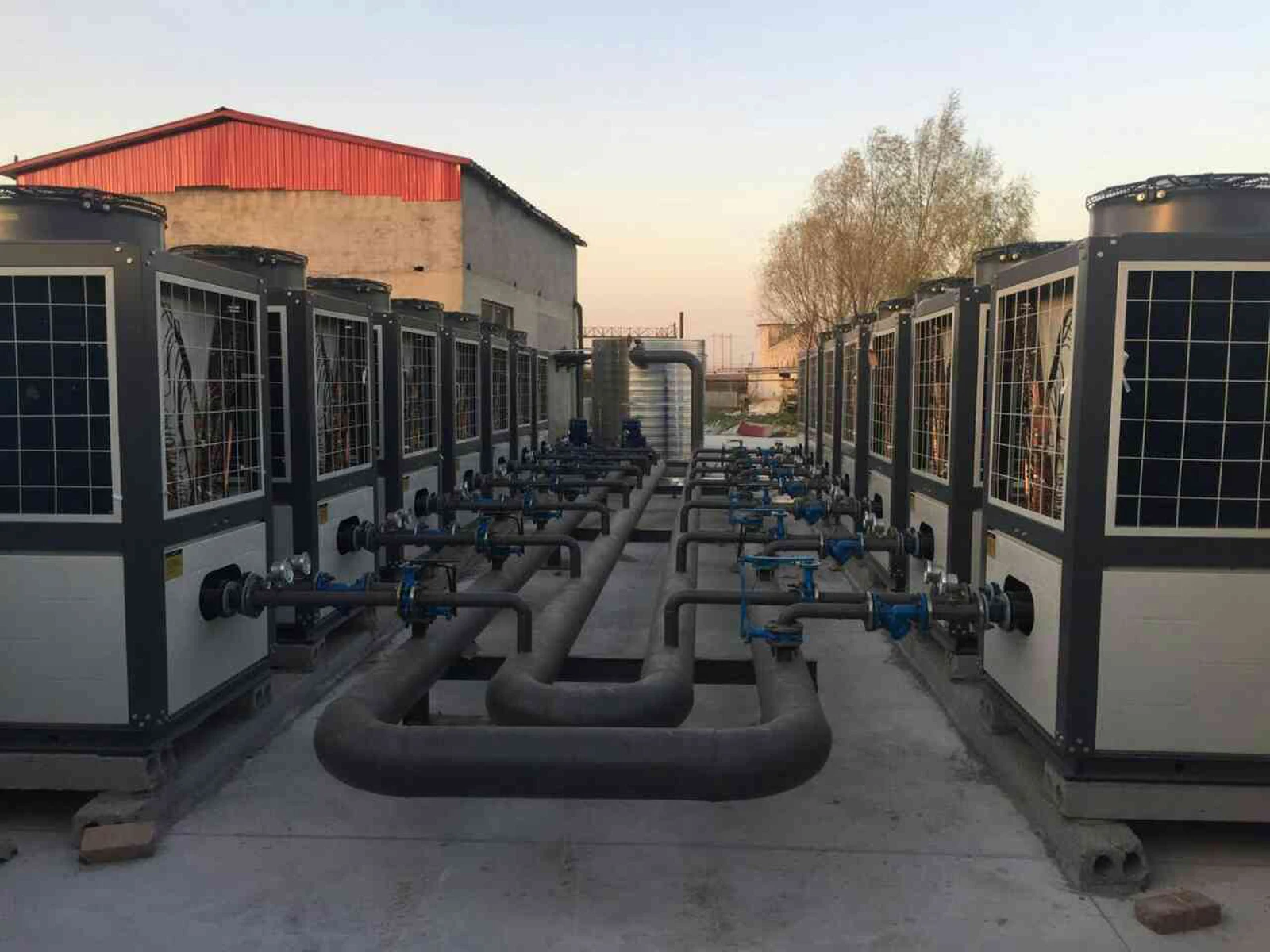

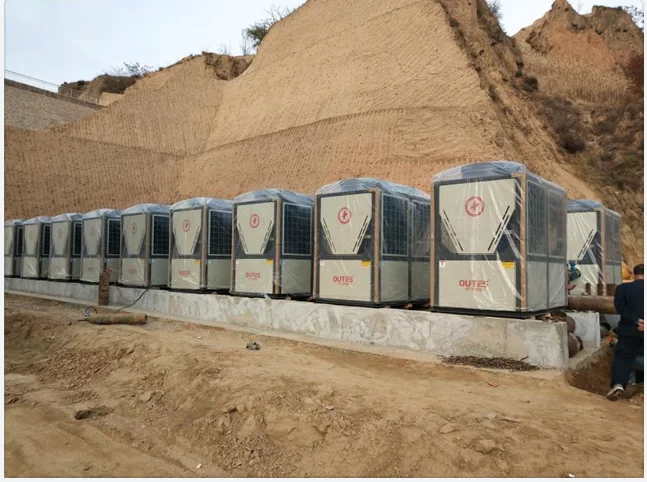

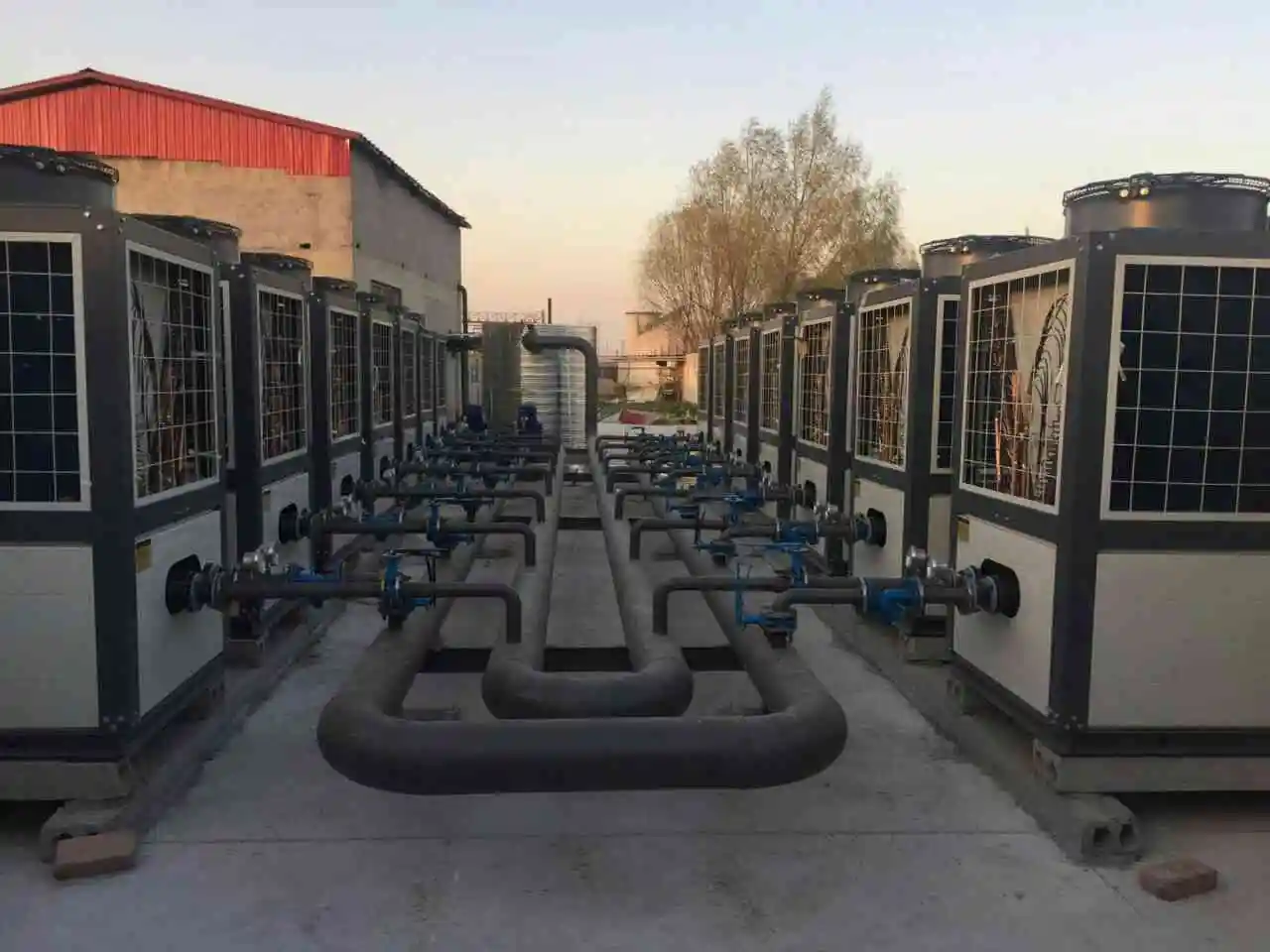

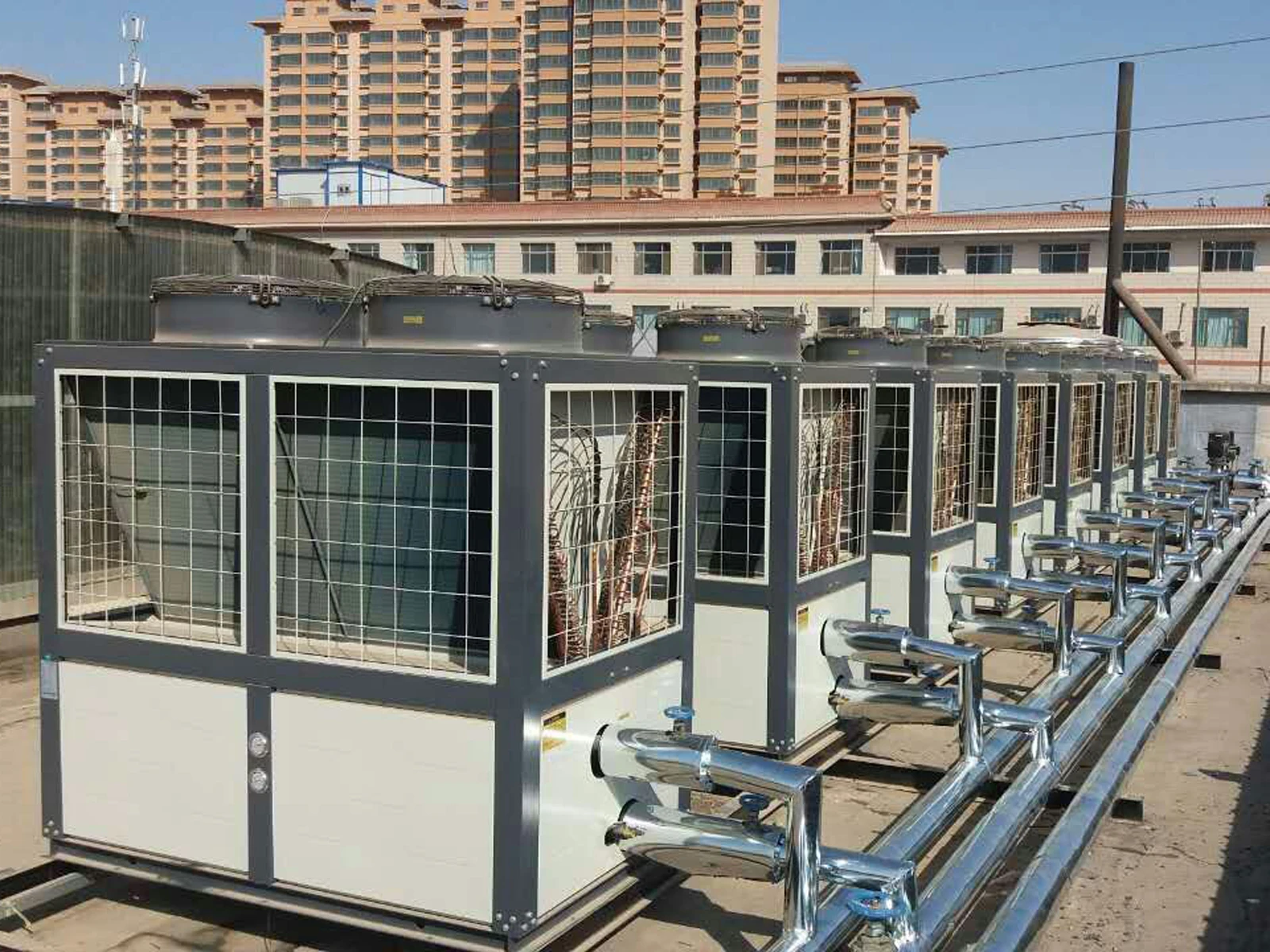

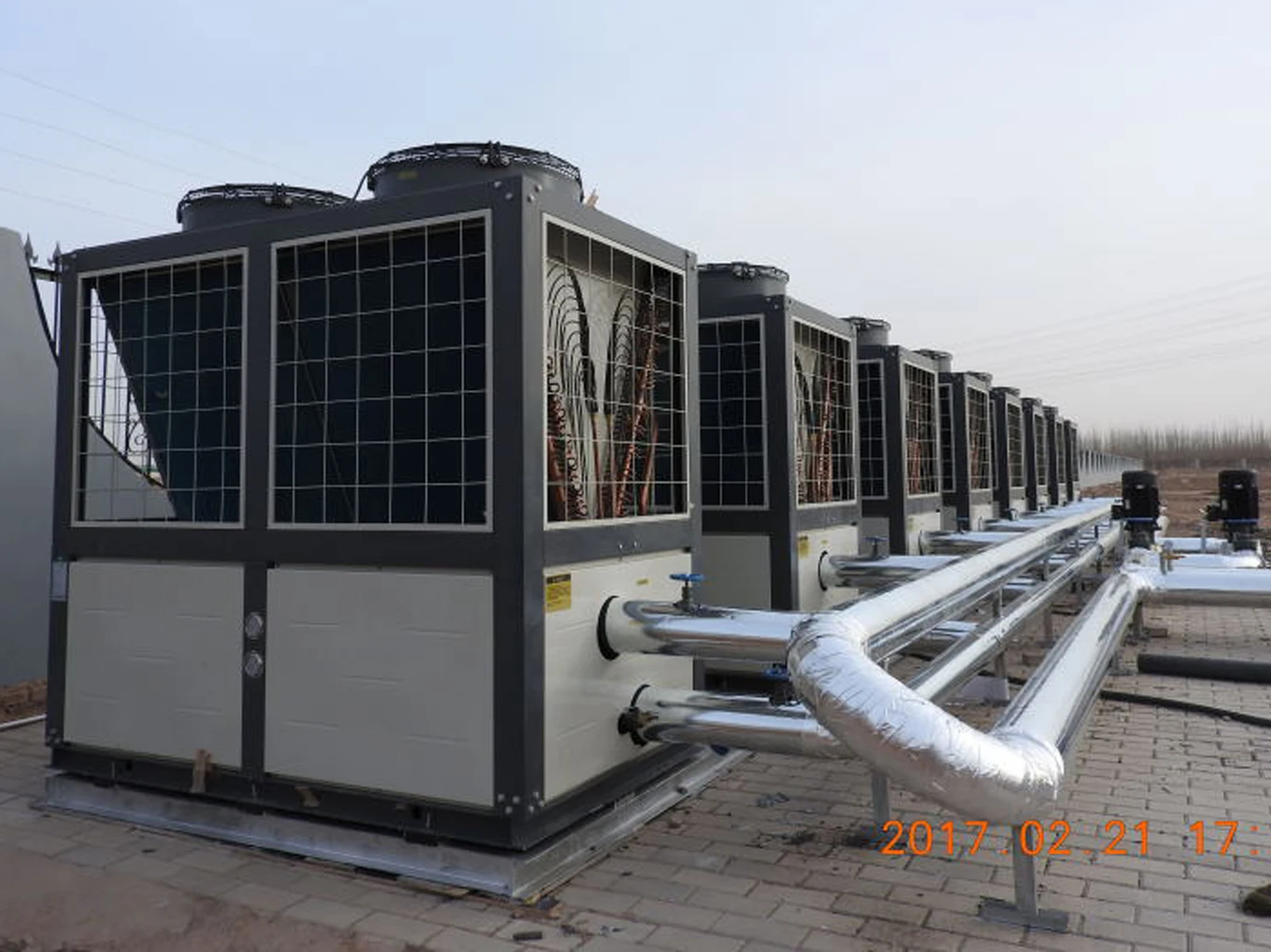

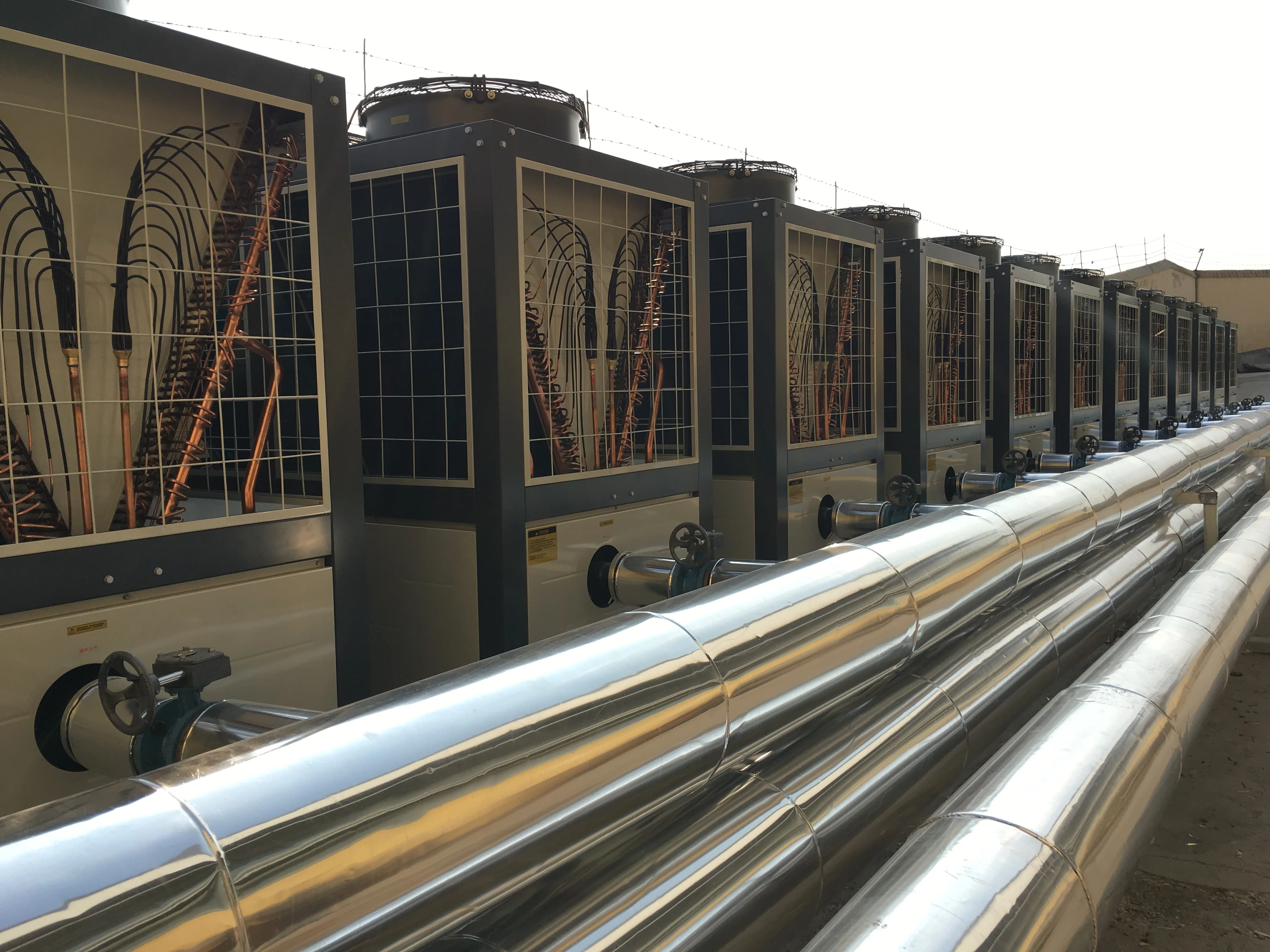

REFERENCE PROJECT
ABOUT OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
FAQ
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?

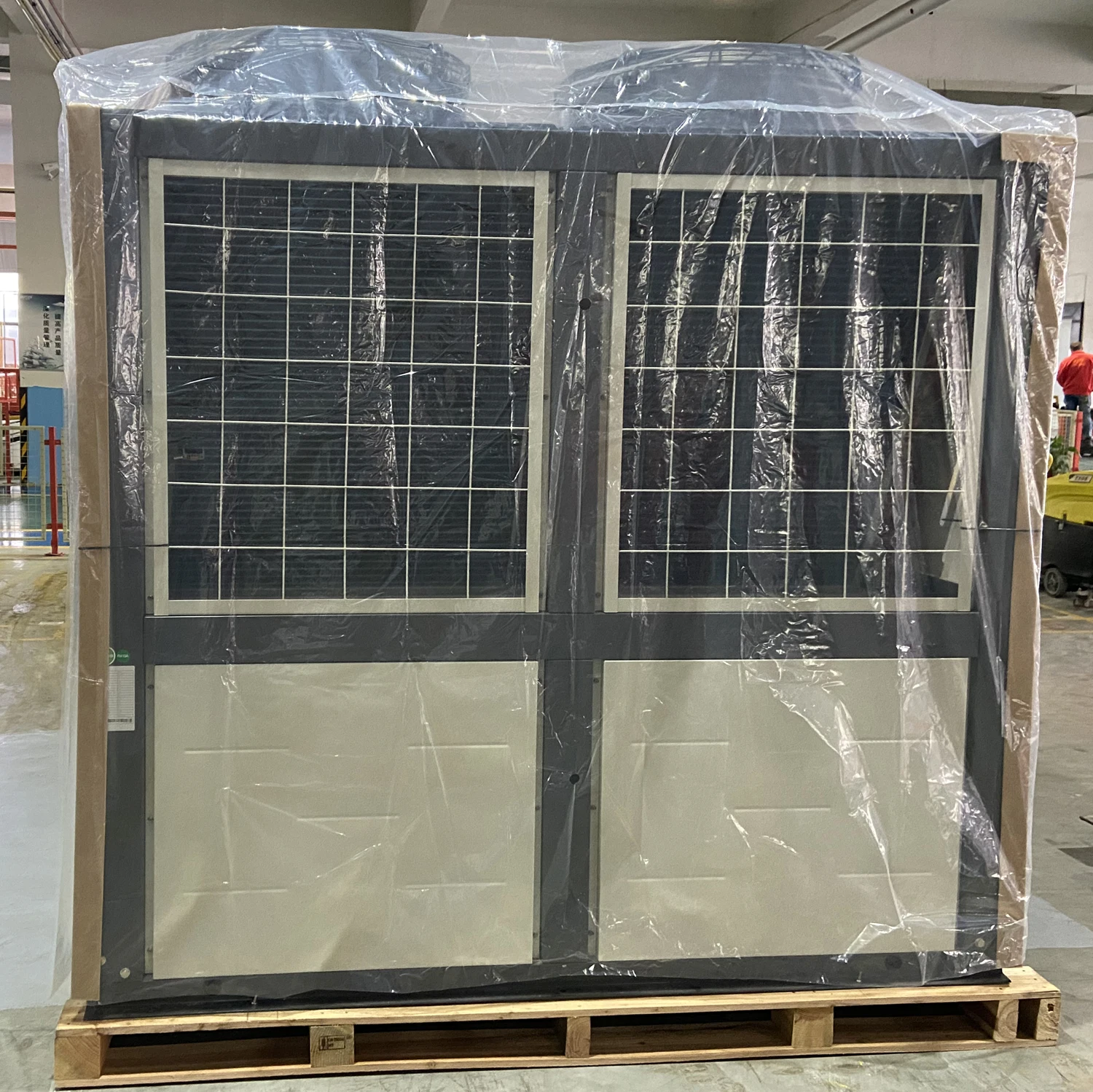

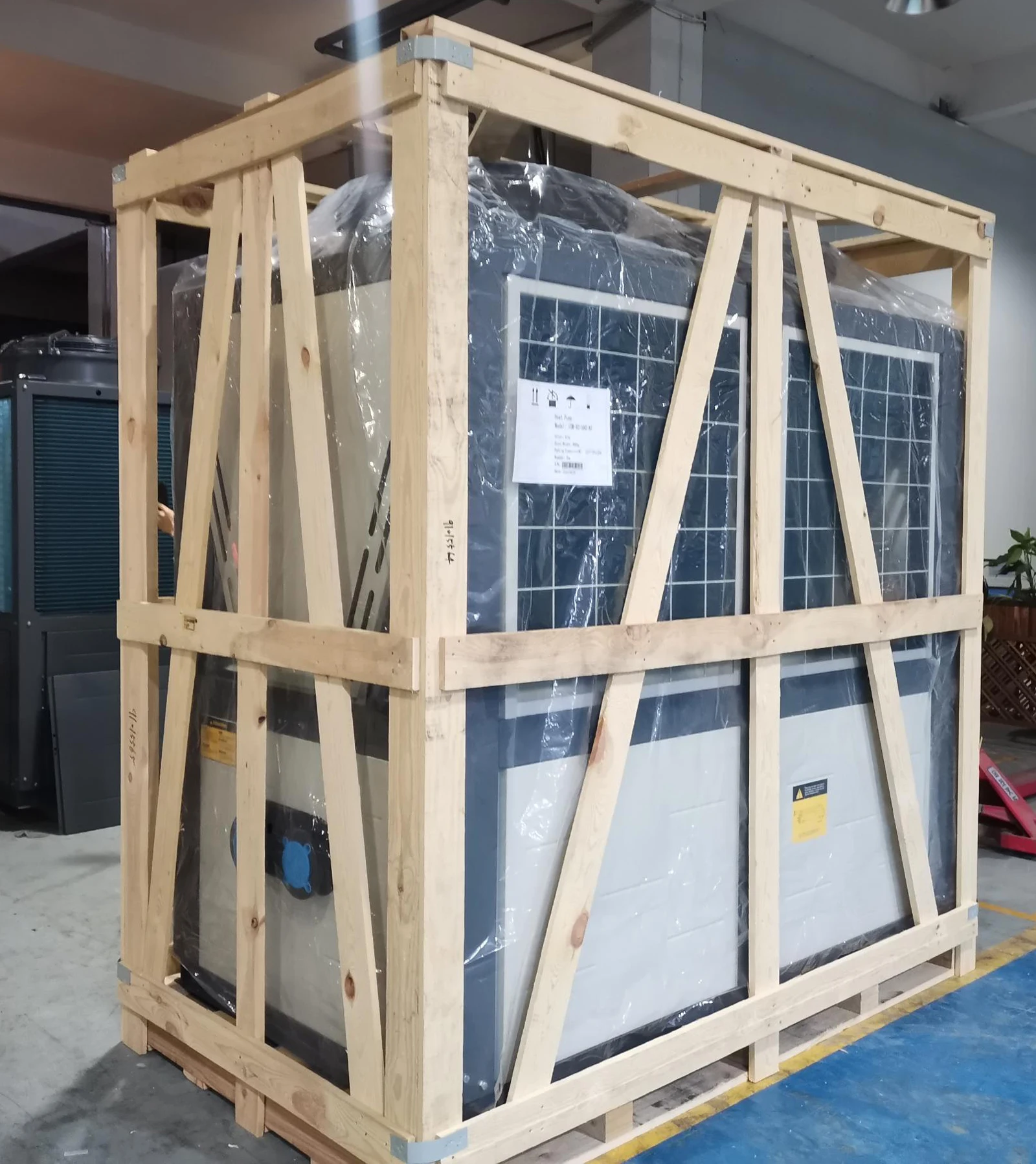

A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
