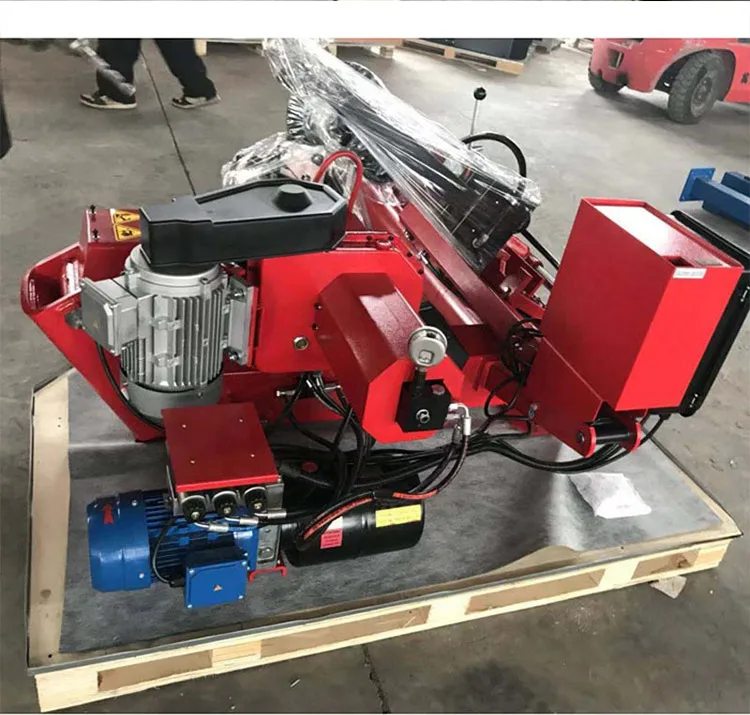

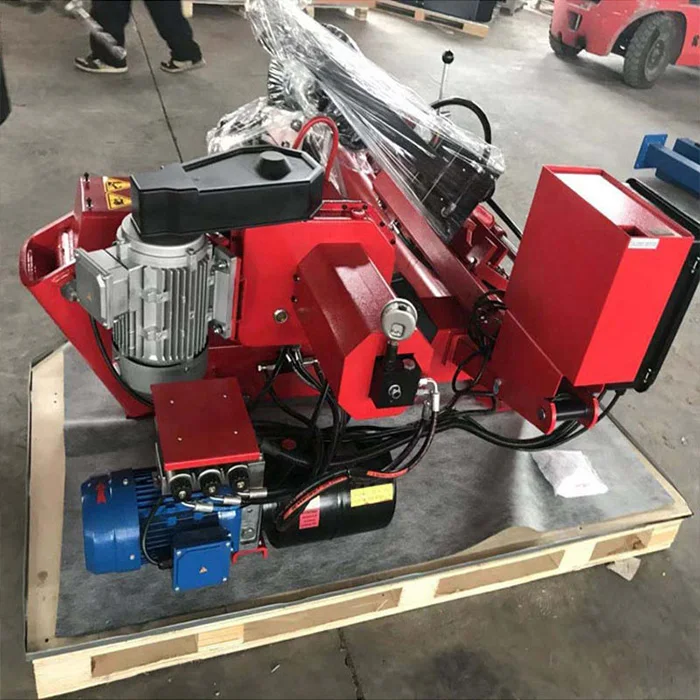

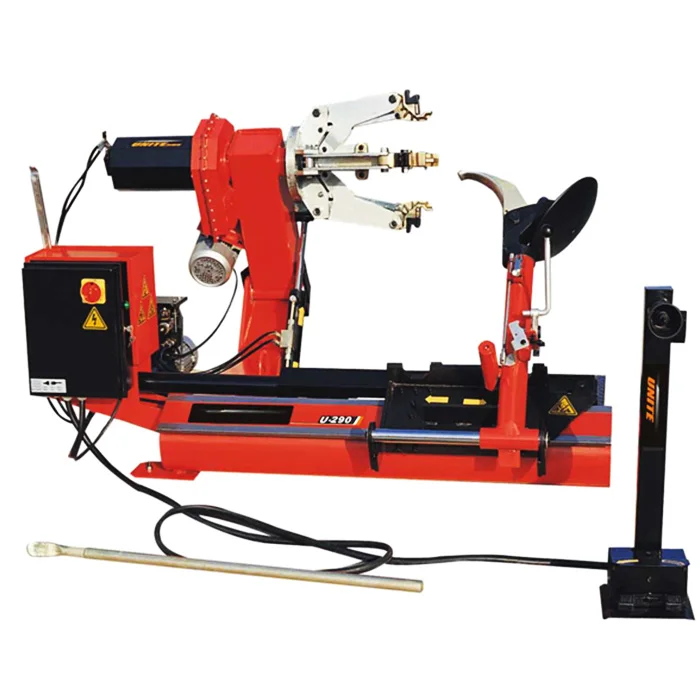

Semi automatic tire changer atc 880 tire repair equipment tire dismounting machine
- Category: Tire Changers >>>
- Supplier: Hebei Jingji Lifting Technology Co. Ltd.
Share on (1600285786610):
Product Overview
Description

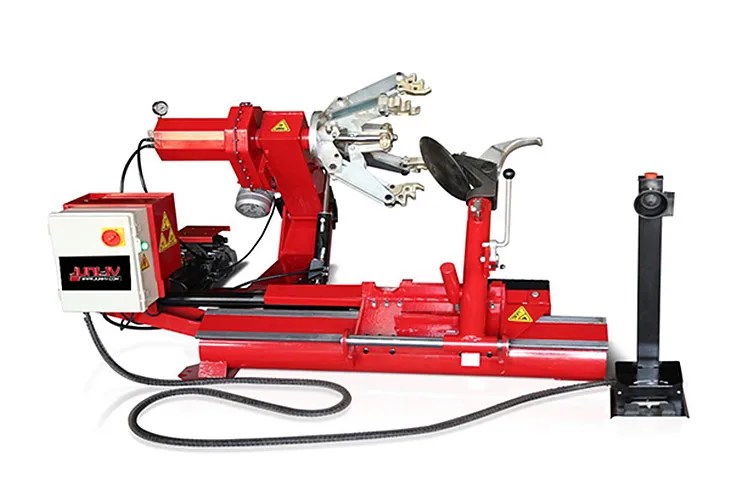

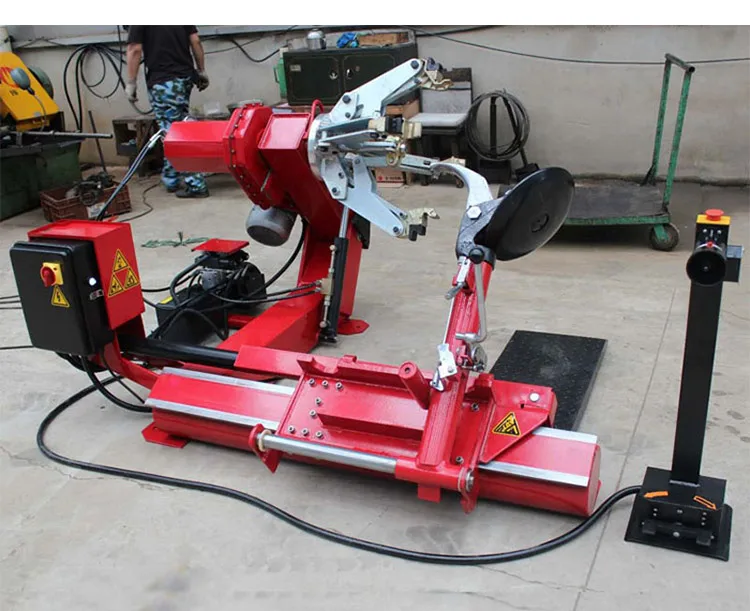

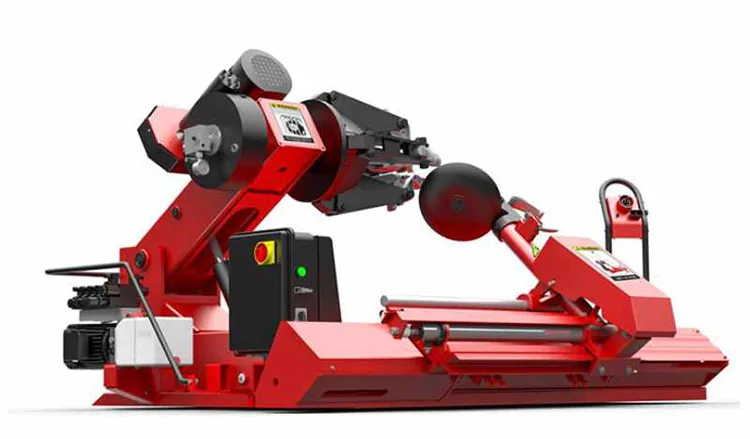

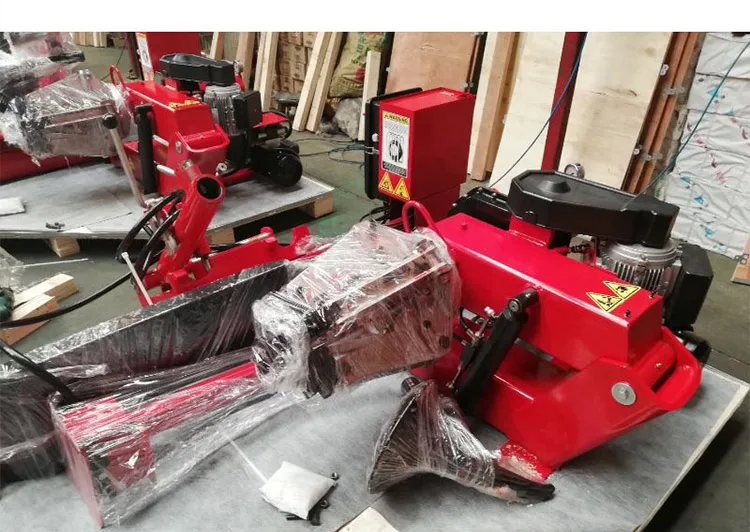

TRUCK TYRE CHANGER MACHINE
DESIGNED FOR CHANGING TIRES OF TRUCKS AND BUSES
model | T568 | T598 |

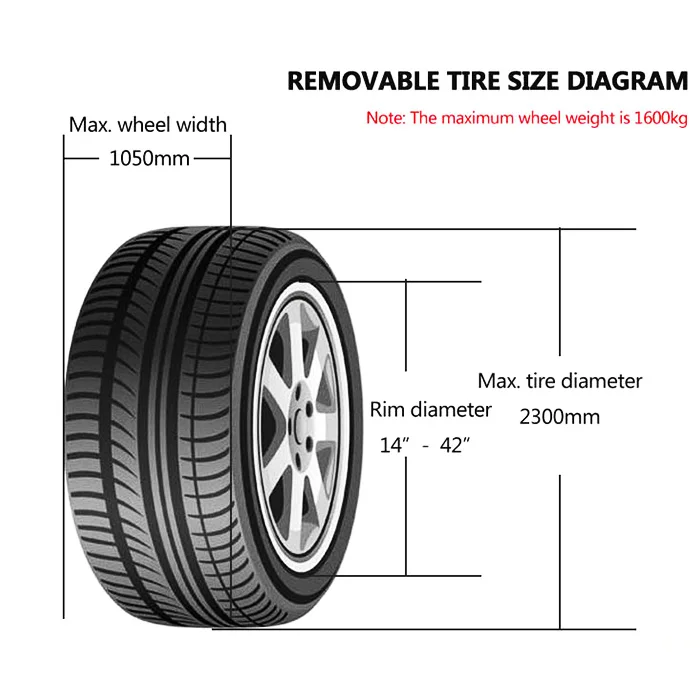

Rim diameter | 14" -26" | 14" -42" |
Max.wheel weight | 500KG | 1600KG |
Max.wheel width | 780mm | 1050mm |
Max.tyre diameter | 1600mm | 2300mm |
Hydraulic pump motor | 1.5kw 380V-3PH | 1.5kw 380V-3PH |
Gearbox motor | 2.2kw 380V-3PH | 2.2kw 380V-3PH |
Bead breaker force | 2500kg | 3300kg |
Operation control voltage | 24v | 24v |
Machine weight approx | 517KG | 758KG |
Overall dimensions approx | 2500*2000mm | 2500*2000mm |
Power | 220/400v 50/60Hz 1P/3P | 220/400v 50/60Hz 1P/3P |
20" /40"GP | 8/27PCS | 6/14PCS |
size of carton | 2030*1600*1000mm | 2130*1850*1090mm |
GW | 647kg | 850kg |
NW | 570kg | 758kg |
Features:
1.The Parts of the hydraulic station are qualified imported sub assembly.
2.The main motor and its correlative electric parts accord with the CE standard .
2.The main motor and its correlative electric parts accord with the CE standard .
3.The hydraulic cylinder sealing parts imported, with pressure adjusting device.
4.The movable control unit can avoid the improper operation.

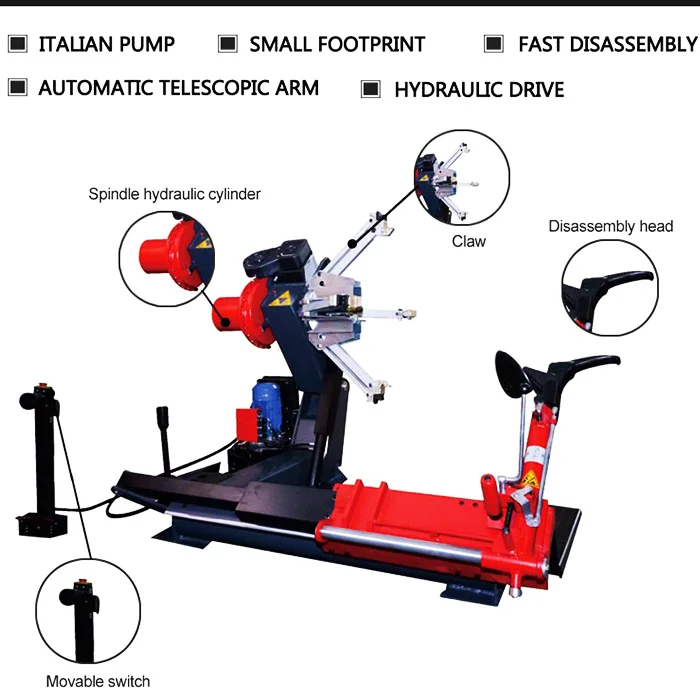

*Economical electro-hydraulic tire changer for trucks, buses and tractors
* Simple design, efficient and easy to use
* Super-duty electric motor and hydraulic drive for superior torque and powerful wheel clamping.

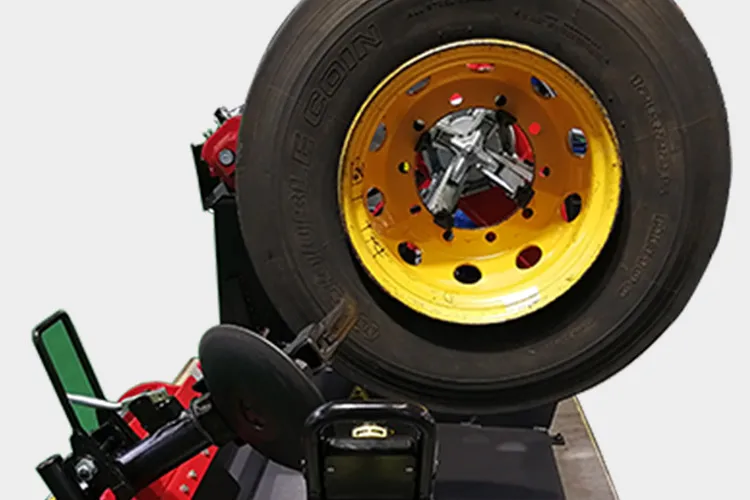

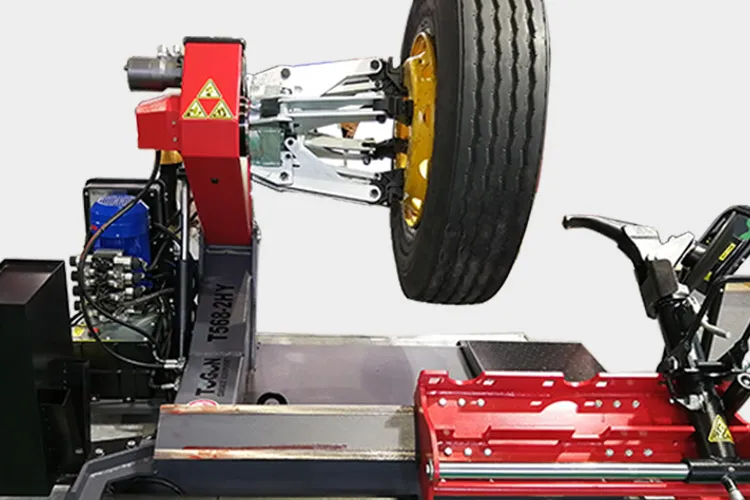

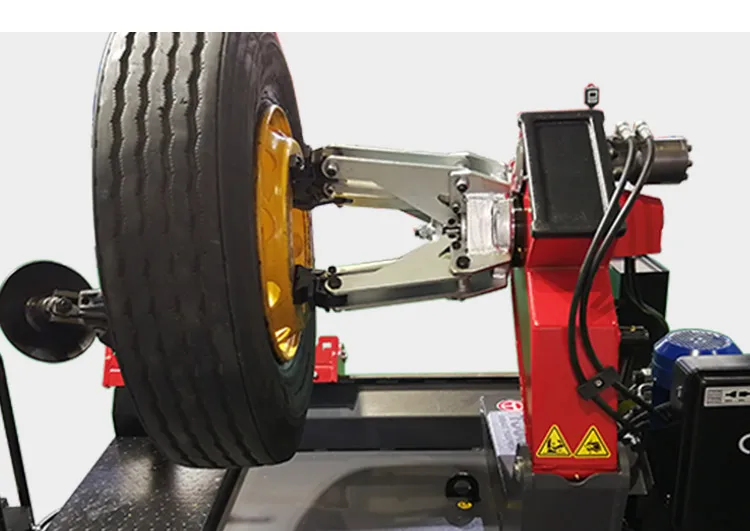

* Self-centering hydraulic clamping chuck* The special design of the clamping jaw can guarantee the fix of the rim
* Spreader-type jaws ensure secure clamping of rims
*Quick-positioning and lock mount/demount arm
*Quick-positioning and lock mount/demount arm
* Hydraulic sliding carriage positions tool head for bead breaking, mounting and demounting
* Single piece frame for maximum strength and rigidity
* Portable remote console for safe machine operation and control
* Portable remote console for safe machine operation and control
* Suitable for use on alloy wheels
* Full range of accessories, spares and consumables available
* The tool head and bead breaking disk can rotate to make it convenient to adjust the position to dismount/mount the tire
* The tool arm with the two position of adjustment can execute the appropriate adjustment when dismount/mount different size of tires
* The design of electrical cabinet complies with the CE certificate standard
* The design of electrical cabinet complies with the CE certificate standard
OPTIONAL ACCESSORIES
Tubeless roller
Alu alloy rims protection rings
Alu alloy rims protection set
* Clockwise and anticlockwise rotation of the clamp
* Rim size available from 14"-26"
* Movable tyre platform controlled by the controlling unit
* Special for truck, bus and earth moving vehicle wheels
Movable tyre platform controlled by the control unit
