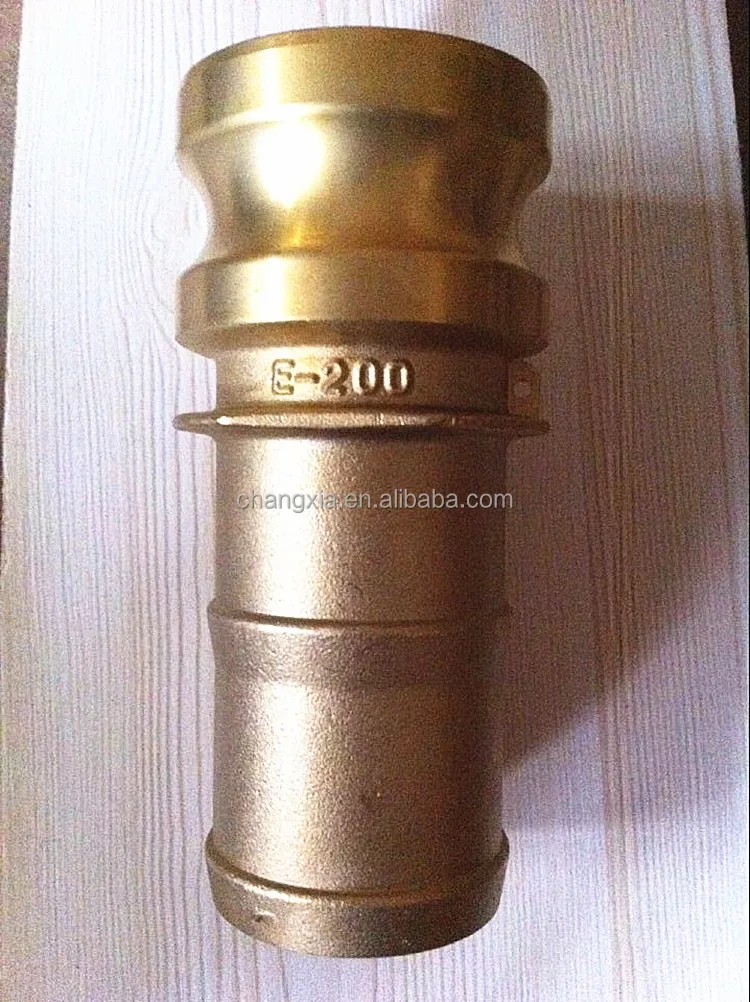

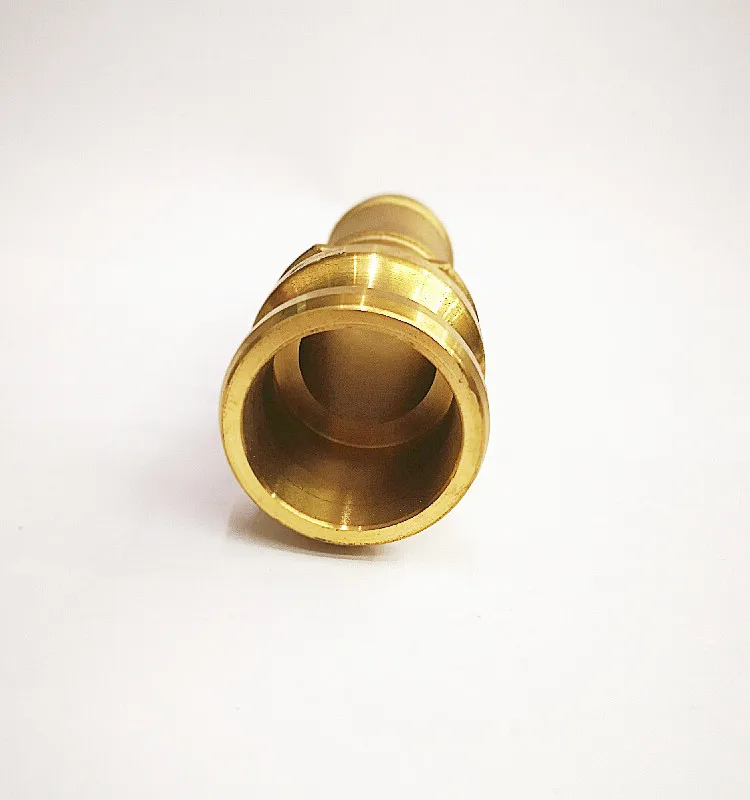

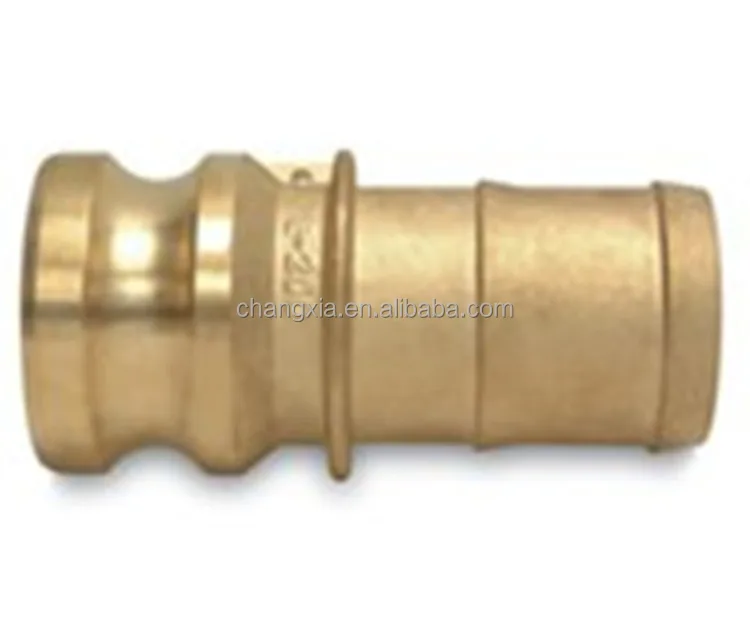

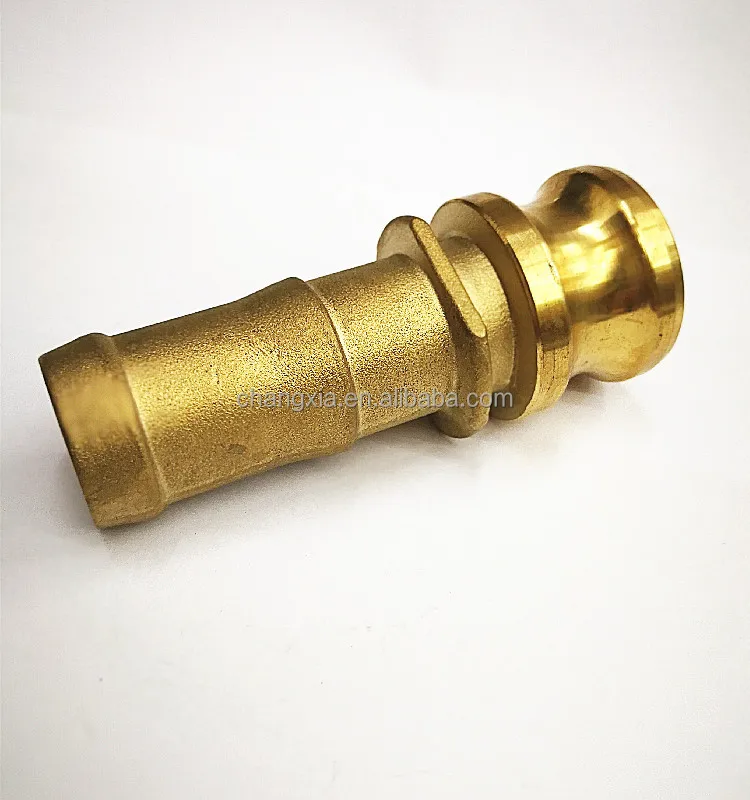

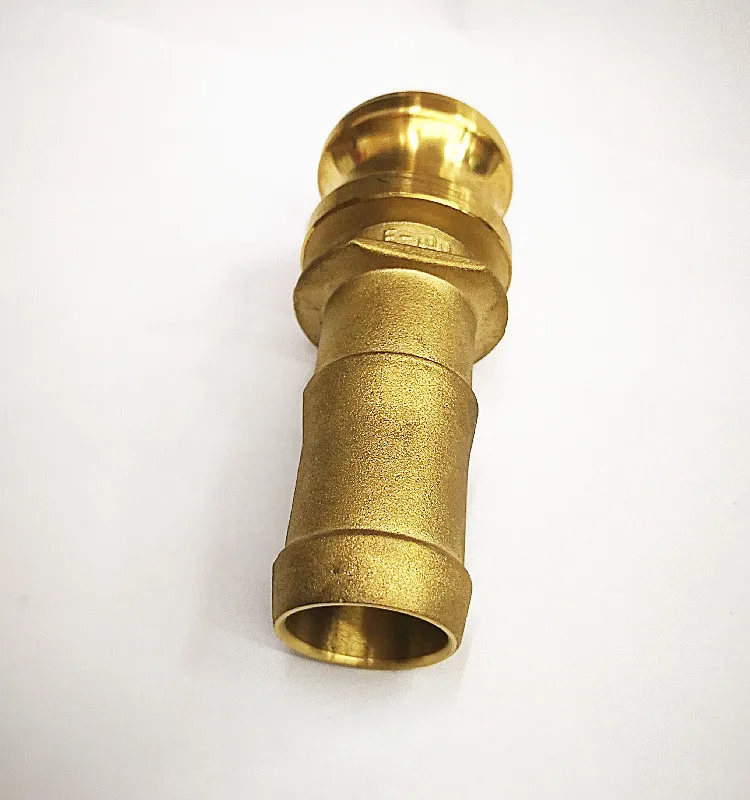

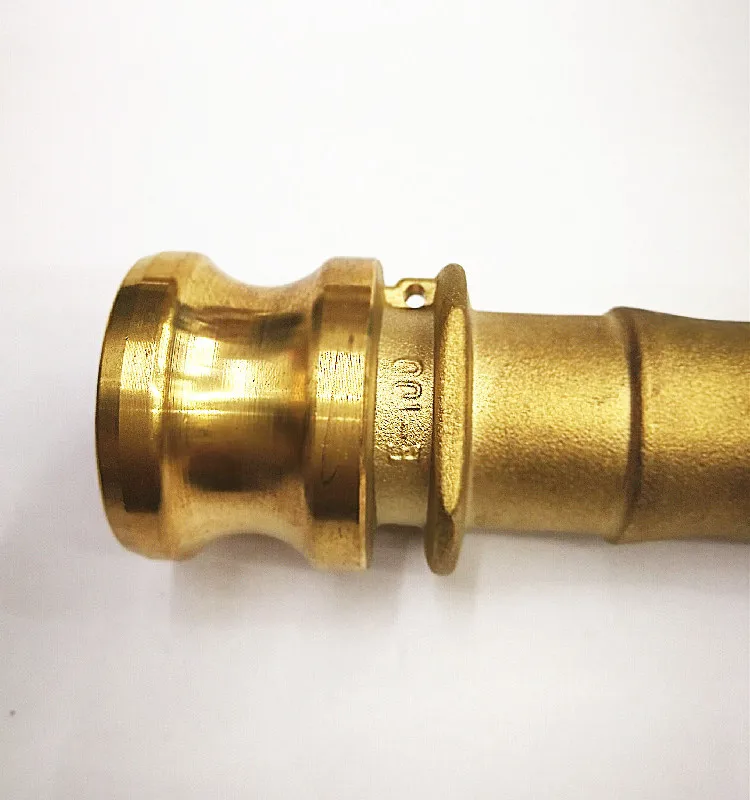

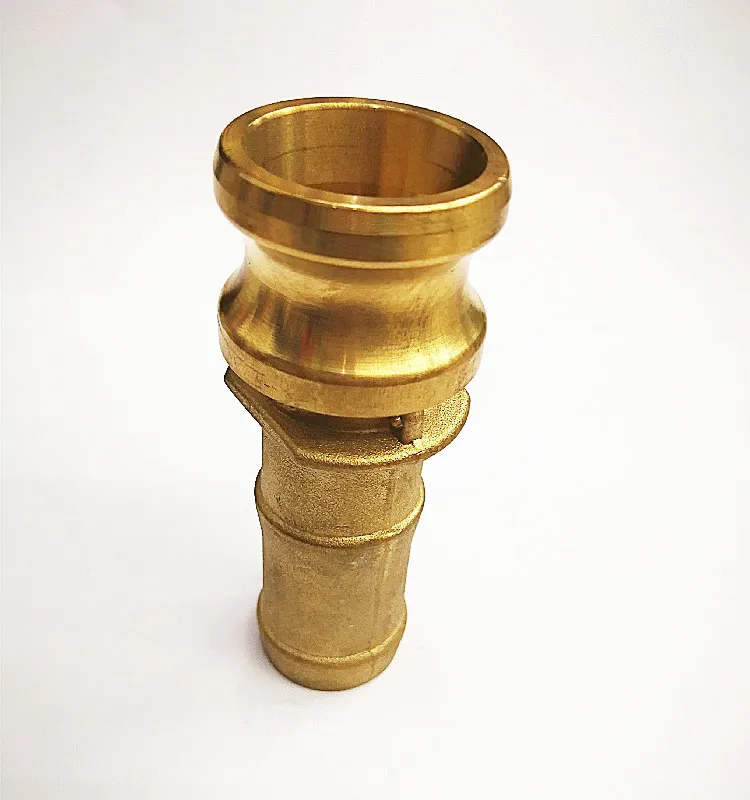

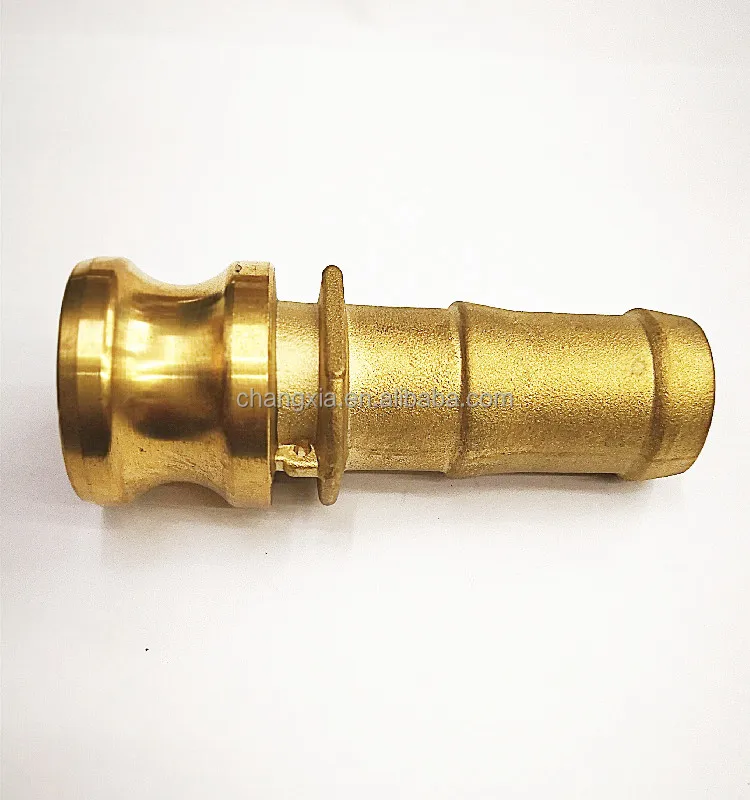

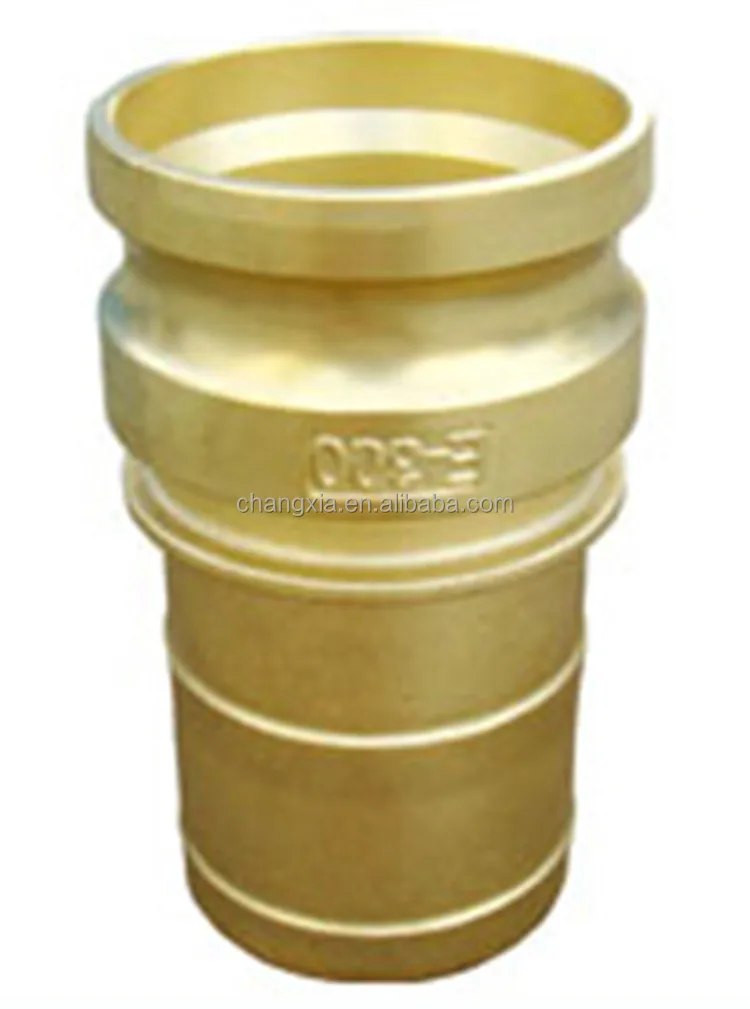

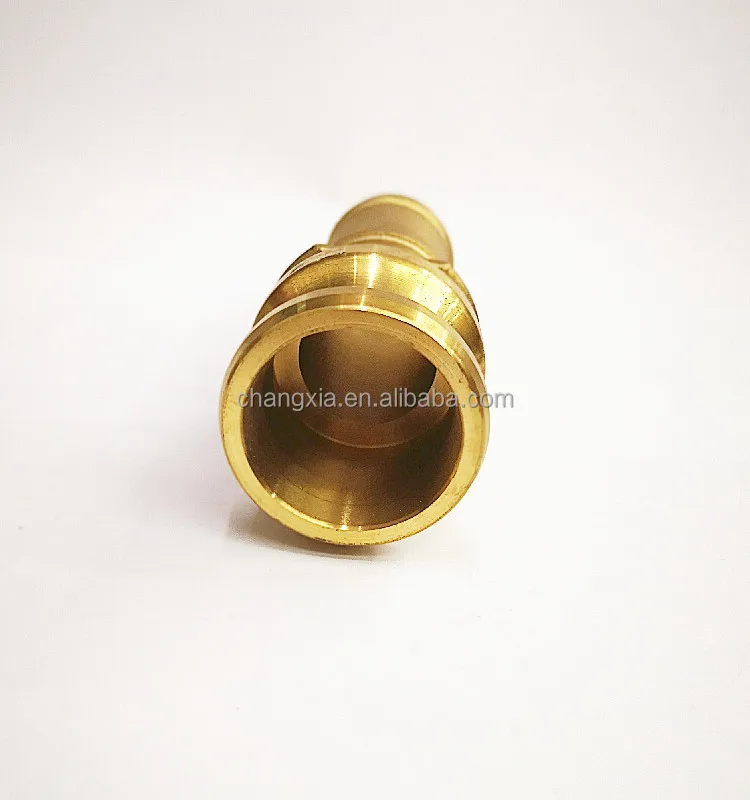

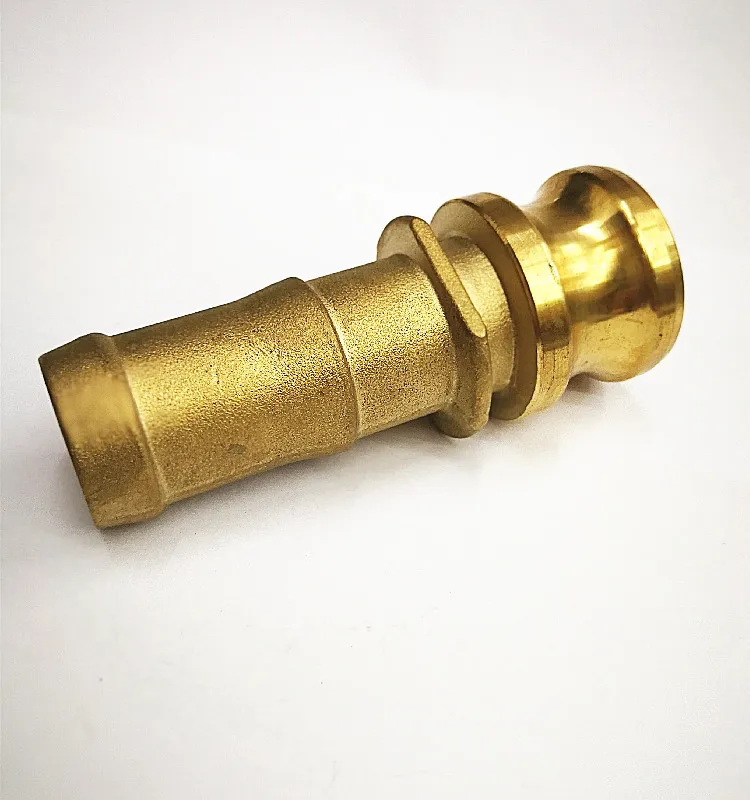

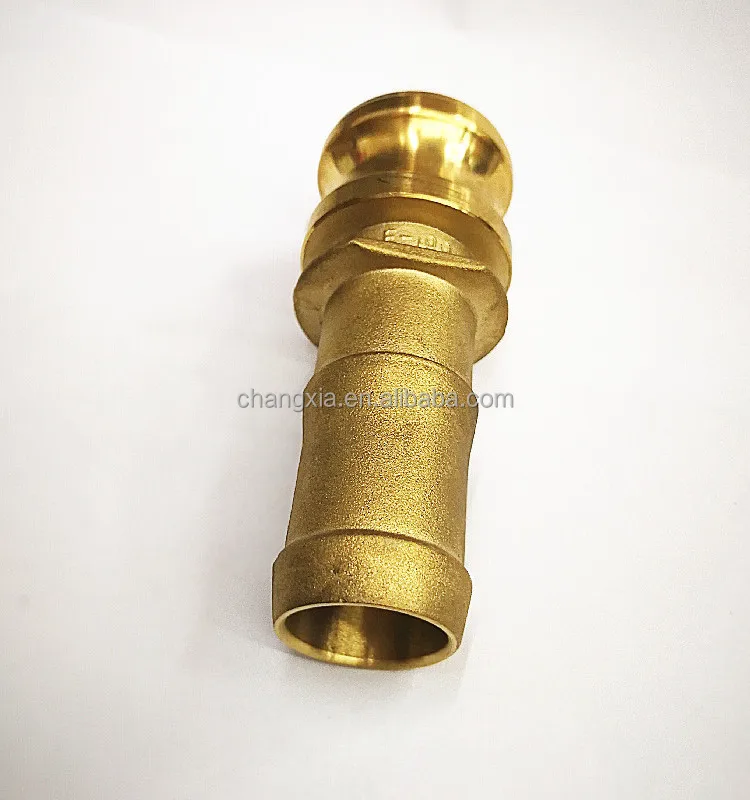

Brass Cam lock Couplings Male Adapter x Hose Shank Type E size from 1/2 to 6 inches Sand Casting & Forging
- Category: >>>
- Supplier: Yiwu Changxia Trading Co. Ltd.
Share on (1600285805902):
Product Overview
Description
STAINLESS STEEL CAMLOCK COUPLINGS
Standard:
♠ Our camlock couplings are made to stardard of A-A-59326 (superseding MIL-C-27487) or DIN2828.
Technic:
♠ SAND CASTING & FORGING
Size:
♠ From 1/2" to 6", more big size can also be custom-made to suit customers' own requirements
Type:
♠ A, B, C, D, E, F, DC, DP, DA
Body material:
♠ BRASS
Cam arm material:
♠ BRASS
Assembly:
♠ Body + Gaskets + Handles + Pins + Pull Rings + Safety Clips
Gaskets material:
♠ NBR ( Temp Range °C - 30°C ~ + 100°C )
♠ EPDM ( Temp Range °C - 50°C ~ + 150°C )
♠ Viton ( Temp Range °C - 20°C ~ + 200°C )
♠ PTFE envelop gasket ( Temp Range °C - 190°C ~ + 260°C )
♠ Silicone ( Temp Range °C - 60°C ~ + 200°C )
Other material are available on request.
Thread:
♠ NPT
♠ BSP ( We usually produce the female thread parallel BSPP , male thread tapered BSPT )
Working Pressure ( Brass )
| Size (Inch) | 1/2" | 3/4"~2" | 2-1/2" | 3" | 4" | 5"~6" |
| Working Pressure (Psi) | 150 Psi | 250 Psi | 150 Psi | 125 Psi | 100 Psi | 75 Psi |
| CHA-0165-E Brass Camlock Coulpings - Male Adapter x Hose Shank Type -E | ||||
| Size (Inch) | Part #1 | Weight | pcs/ctn | |
| (kg) | ||||
| 1/2" | E050 | BR | ||
| 3/4" | E075 | BR | ||
| 1" | E100 | BR | ||
| 1-1/4" | E125 | BR | ||
| 1-1/2" | E150 | BR | ||
| 2" | E200 | BR | ||
| 2-1/2" | E250 | BR | ||
| 3" | E300 | BR | ||
| 4" | E400 | BR | ||
| 5" | E500 | BR | ||
| 6" | E600 | BR | ||
