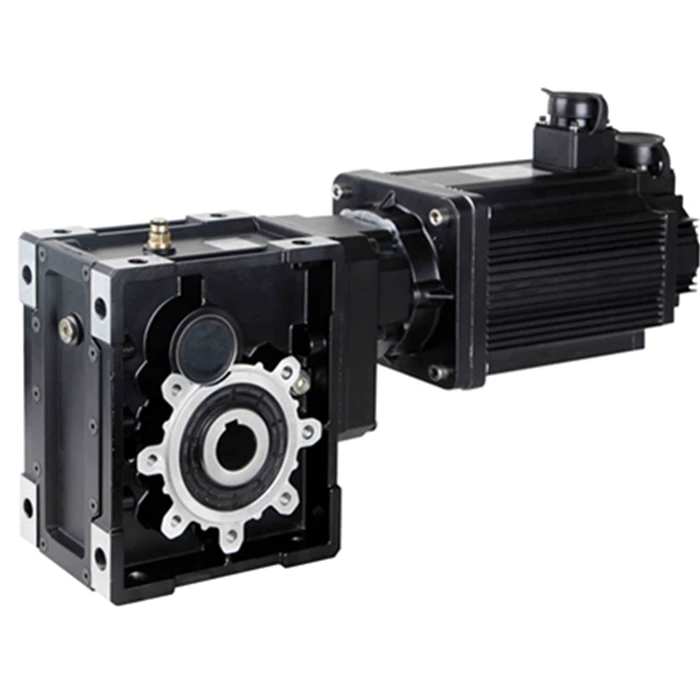

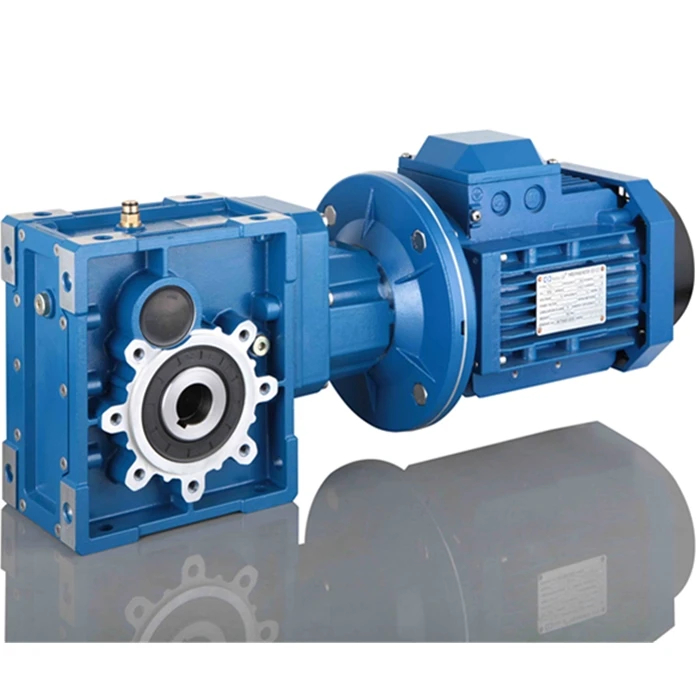

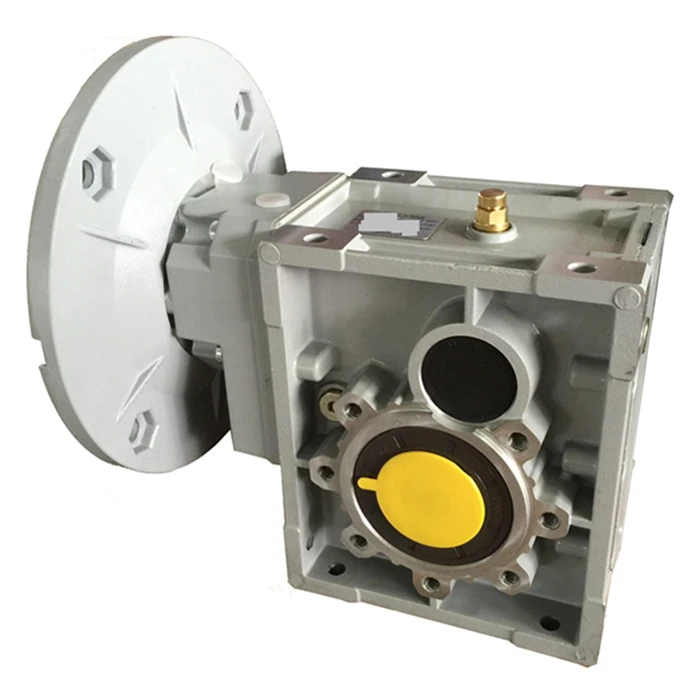

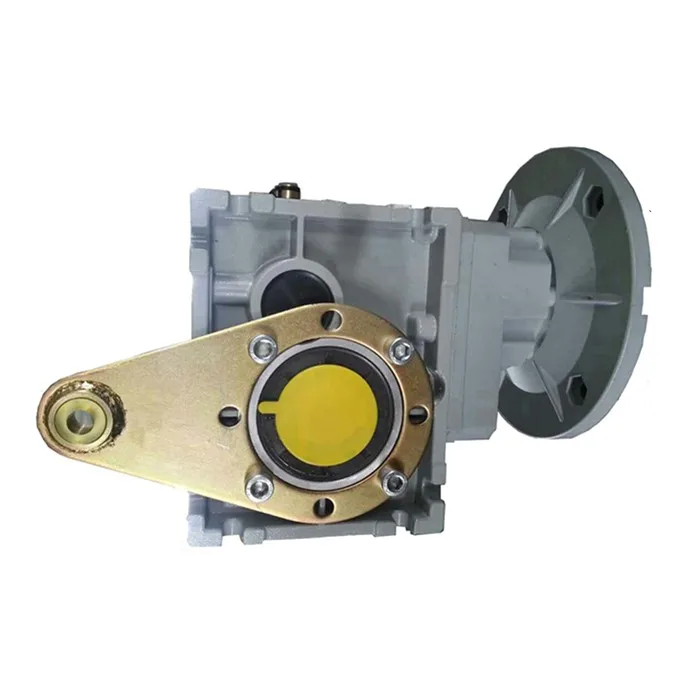

BKM series hypoid gear motor helical speed reducer gear speed reducer gearbox speed reduction gearbox for light industry
- Category: >>>
- Supplier: Wenzhou Qilian Import and Export Co. Ltd.
Share on (1600285909331):
Product Overview
Description
Product Overview
Product Characteristics
1. Drive by hypoid gear, has big ratios.
2. Large in output torque, high efficiency, energy saving and environmental protection.
3. Made of high quality aluminum alloy, light in weight and non-rusting
4. Smooth in running and low in noise, can work long in dreadful conditions.
5. Good-looking in appearance, durable in service life and small in volume.
6. Suitable for all round installation, wide application and easy of use.
7. The Mounting Dimension of BKM series are compatible with NMRV series worm gear unit (A part of NMRV050 dimensions are different
from BKM050)
8. Modular and multi-structure can meet the demands of various conditions.
2. Large in output torque, high efficiency, energy saving and environmental protection.
3. Made of high quality aluminum alloy, light in weight and non-rusting
4. Smooth in running and low in noise, can work long in dreadful conditions.
5. Good-looking in appearance, durable in service life and small in volume.
6. Suitable for all round installation, wide application and easy of use.
7. The Mounting Dimension of BKM series are compatible with NMRV series worm gear unit (A part of NMRV050 dimensions are different
from BKM050)
8. Modular and multi-structure can meet the demands of various conditions.
FEATURES AT A GLANCE
Housing material:Aluminum alloy
Output shaft matrerial: 40Cr
Hardness level: 242-286HB
Transmission efficiency
B:92%-94%
C:90%-92%
Oil seal brand: SKF
Bearing: C&U
No | Item | Data | ||
1 | Transmission Stage | B: 2 stages | C: 3 stages | |
2 | Output torque | Up to 500N.m | ||
3 | Ratio | B: 7.5,10,12.5,15,20,25,30,40,50,60 | C: 50,60,75,100,125,150,200,250,300 | |
4 | Motor power | 0.12~5.5KW,with flange:B5 or B14 | ||
5 | Helical gear | Material:20CrMnTi | ||
6 | Hardness level: 58-62HRC | |||
7 | Precision level:6 grade | |||
8 | Lubricant | Mineral oil or synthetic oil |
