CK6132 lathe machine CNC lathe with certification ISO CE
- Category: >>>
- Supplier: Taizhou Tairui Cnc Machine Co. Ltd.
Share on (1600285962002):
Product Overview
Description

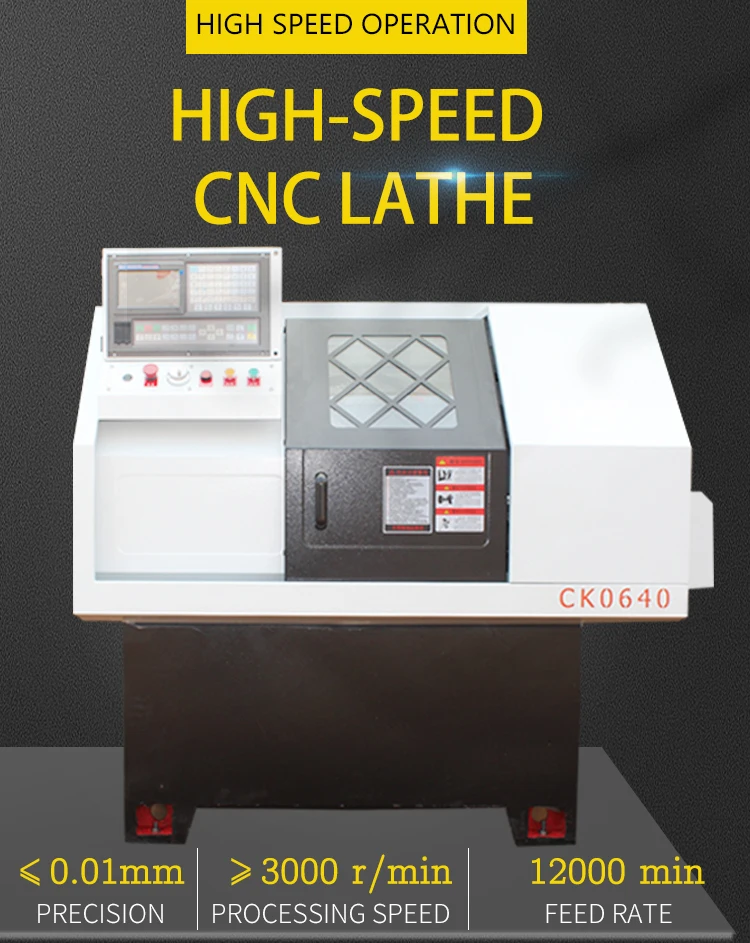

Model | CK0640 |
Max. swing diameter over bed(mm) | 320 |
Max. swing diameter over cross slide(mm) | 110 |
Max. turned length(mm) | 350 |
Spindle bore(mm) | 49 |
Spindle rod bore(mm) | 41.5 |
Spindle speed(r.p.m) | 0-3000 |
Spindle rod thread | M48*1.5 |
Spindle motor power(KW) | 4 |
Spindle head type | A2-5 |
Taper of spindle bore | 21° |
X/Z travel(mm) | 560/350 |
X/Z rapid travel speed(mm/min) | 12000/12000 |
X-axis servo motor torque(N·m) | 110/4 |
Z-axis servo motor torque(N·m) | 110/6 |
X/Z repeated positioning accuracy(mm) | 0.005 |
Overall dimensions(mm) | 1750*1100*1600 |
Weight(kg) | 1000 |

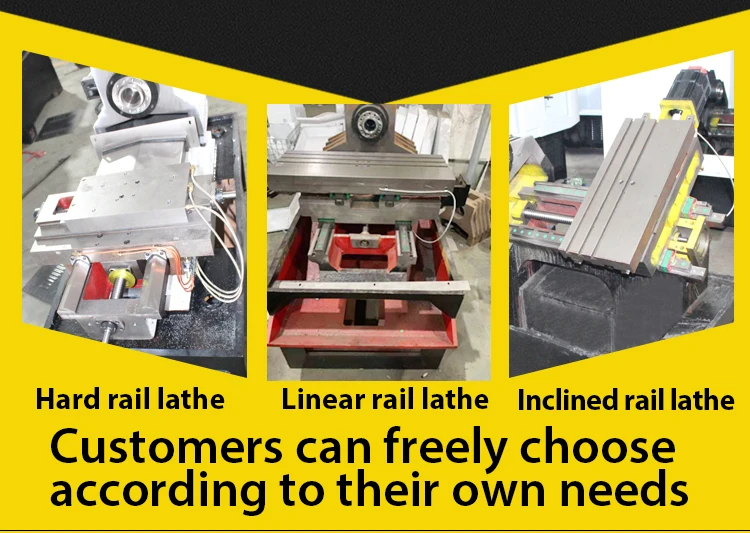

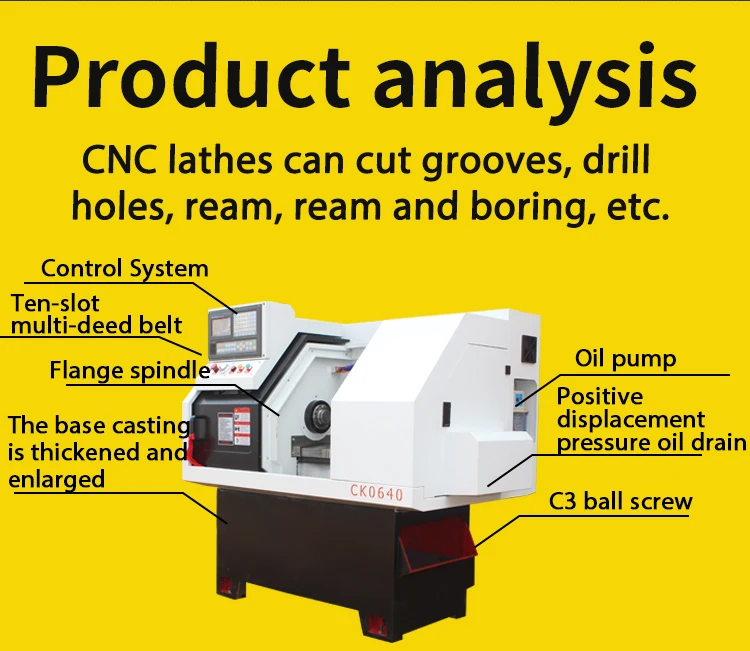

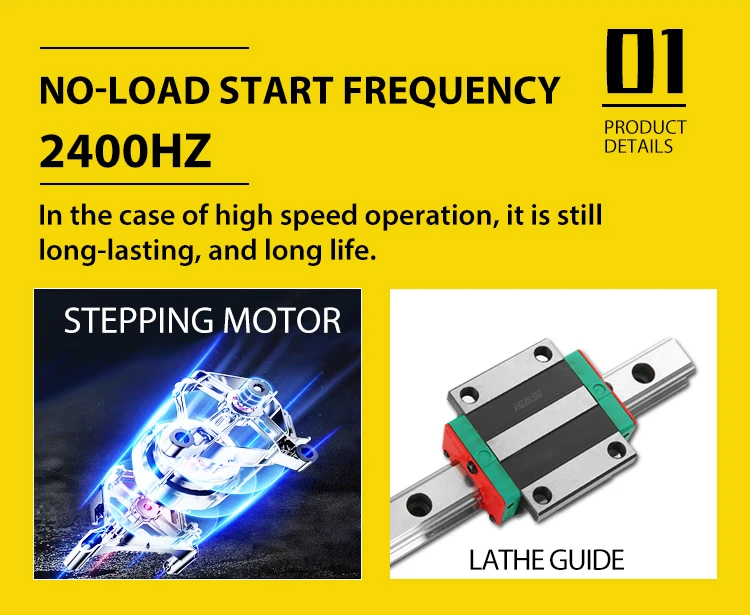

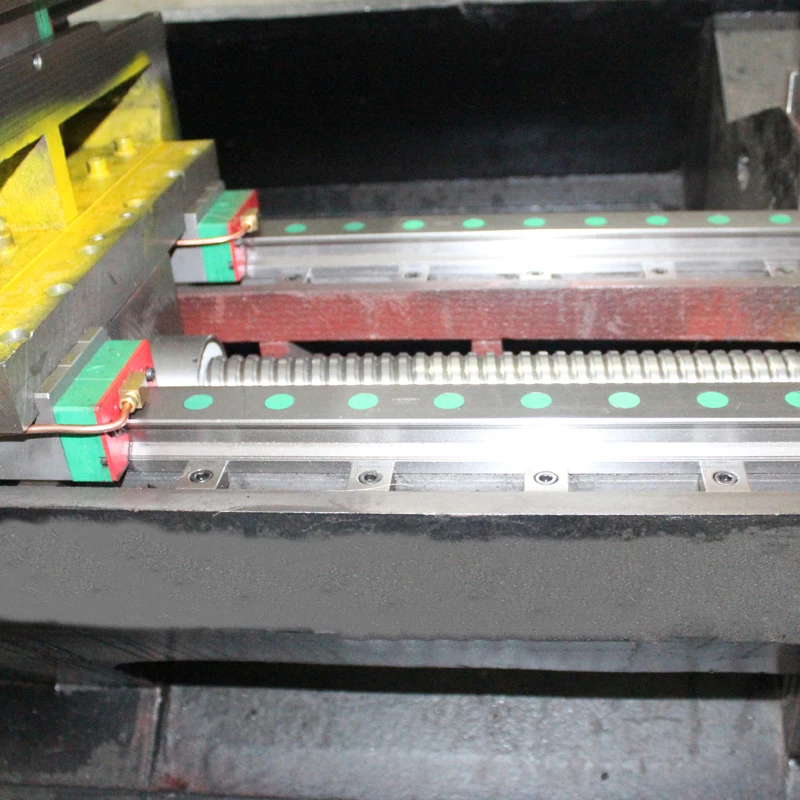

Hard rails, linear rails, and inclined rails are available for customers to choose. The guide rail does not vibrate during high-speed feed, and there is no crawling phenomenon during low-speed feed. It has high sensitivity and good wear resistance. It can work continuously under long-term heavy load and accuracy. Good retention

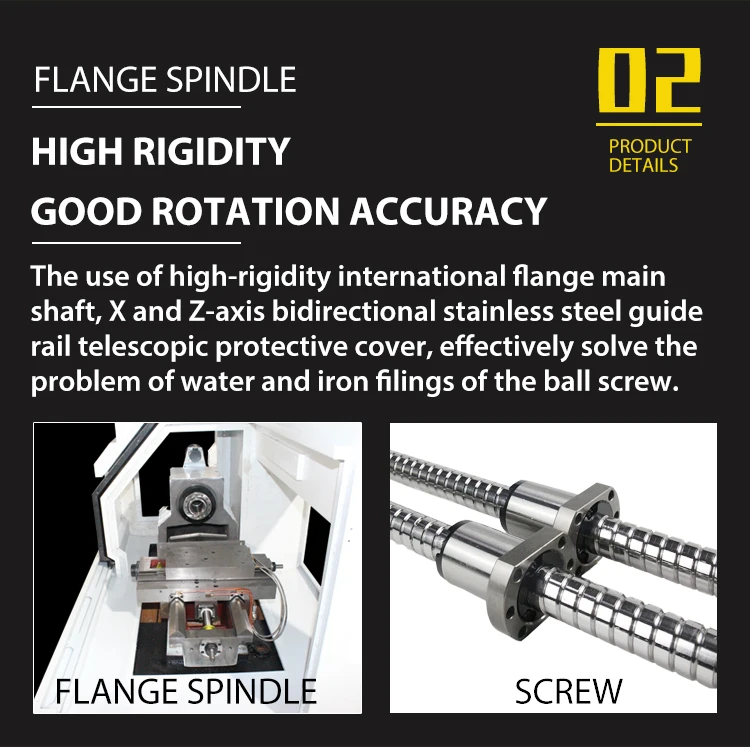

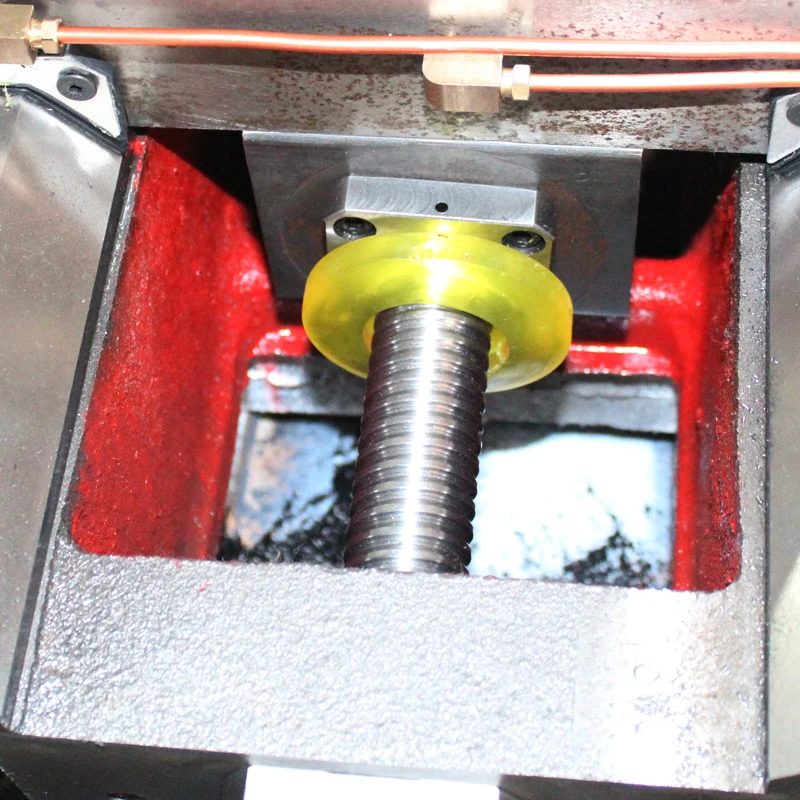

The material of the ball screw is imported from Germany, accuracy grade C3, double pre-tightened high-precision ground screw, 4 embedded screws + 2 large nuts double pre-tightened to prevent the screw from loosening and gaps in long-term operation.

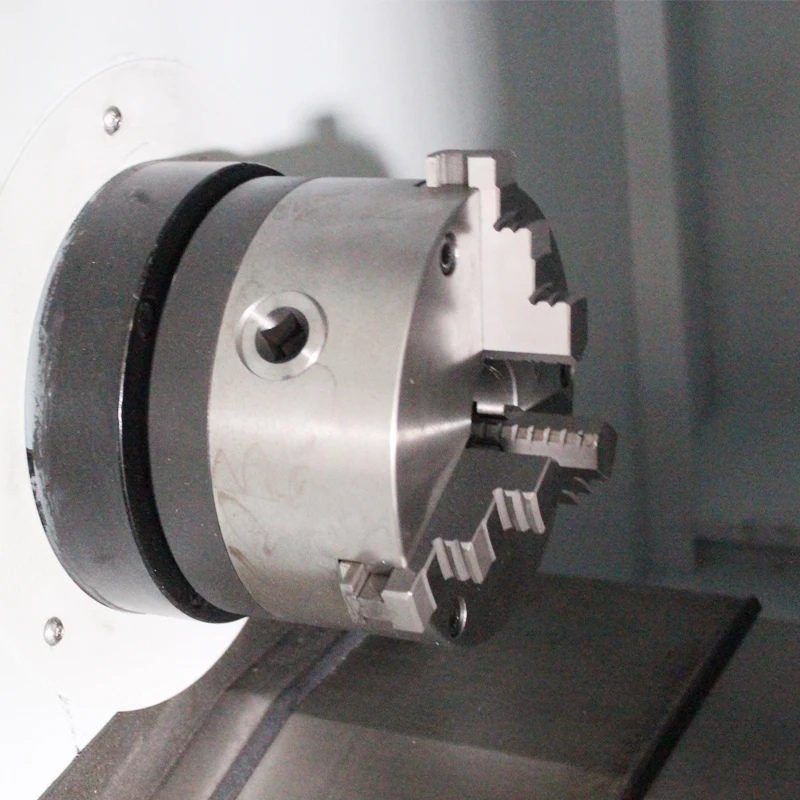

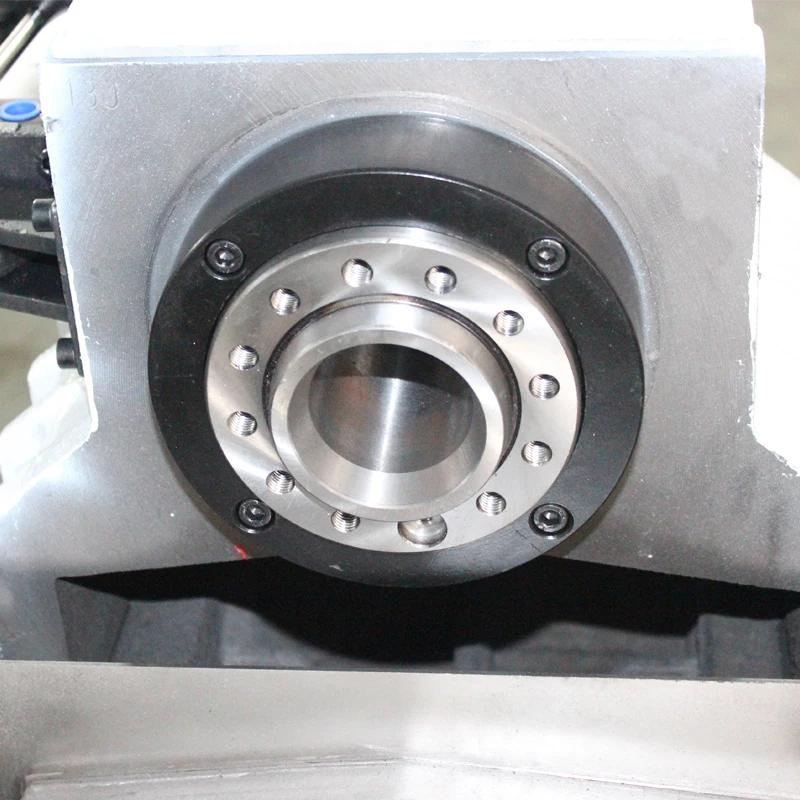

The main shaft is driven by a ten-slot multi-ribbed belt, and the clamping method is a Taiwan three-claw assembly. The claws are made of spring steel quenched, which is long-lasting.
After years of accumulation of CNC machine tool manufacturing technology, Taizhou Tairui CNC Machine Co.,Ltd. has collected most of the technical expertise of the electroprocessing industry, developed and manufactured high-performance machine tool products with Taiwan, Singapore, European and American technical teams.The major products include EDM wire cutting machine,EDM die sinking machine,EDM drilling machine,CNC milling and engarving machine,CNC lathe,CNC machining center,etc.The company has perfect management and good service,and its products are sold well in China, India, Vietnam, Korea, Ukraine, Russia, America, France, Bulgaria, Egypt, Germany, the UK, Ecuador, Colombia, etc.
