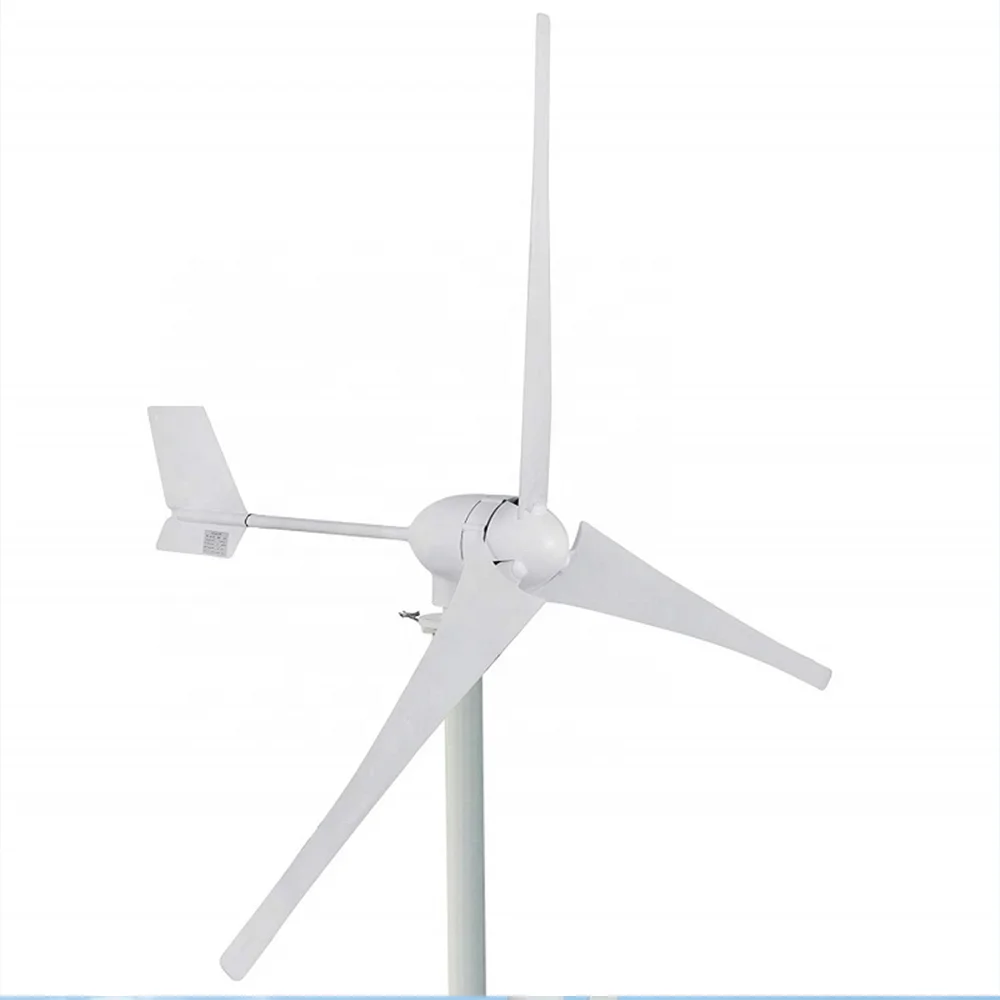

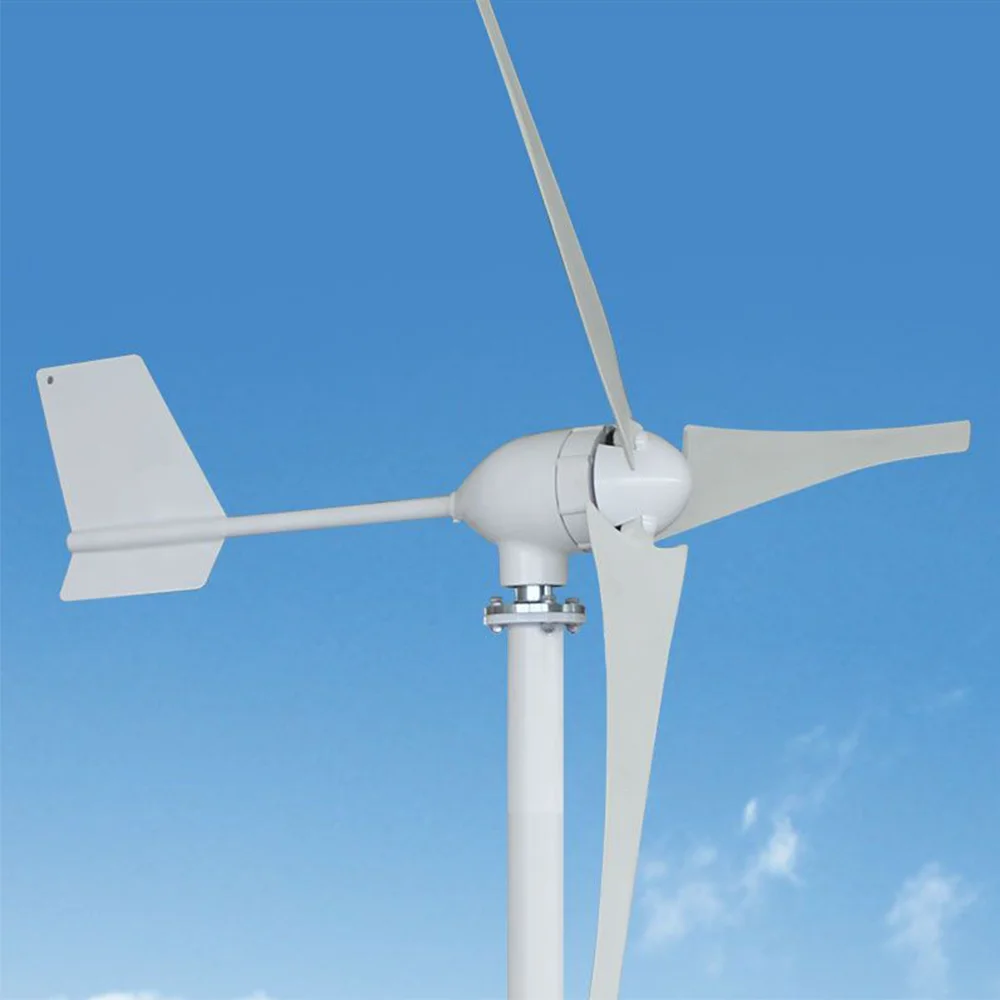

Horizontal Axis Wind Turbine 1200w Wind Generator 3 Blades 12v 24v 48v With Waterproof
- Category: >>>
- Supplier: Jiangsu Shenghuang New Energy Technology Co. Ltd.Jiangsu Ltd.
Share on (1600286014774):
Product Overview
Description
Company brief
Why Choose Us
Products Description
FEATURES:
1.Low start up speed ,high wind energy utilization 2.Easy installation, tube or flange connection optional 3.Blades using new art.
of precision injection molding,matched with optimized aerodynamic shape and structure which enhance the wind energy utilization.
and annual output. 4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator.
and ensure the performance of whole system. 6.Controller,inverter can be matched(optional) accroding to customers' specific needs.
1.Low start up speed ,high wind energy utilization 2.Easy installation, tube or flange connection optional 3.Blades using new art.
of precision injection molding,matched with optimized aerodynamic shape and structure which enhance the wind energy utilization.
and annual output. 4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator.
and ensure the performance of whole system. 6.Controller,inverter can be matched(optional) accroding to customers' specific needs.

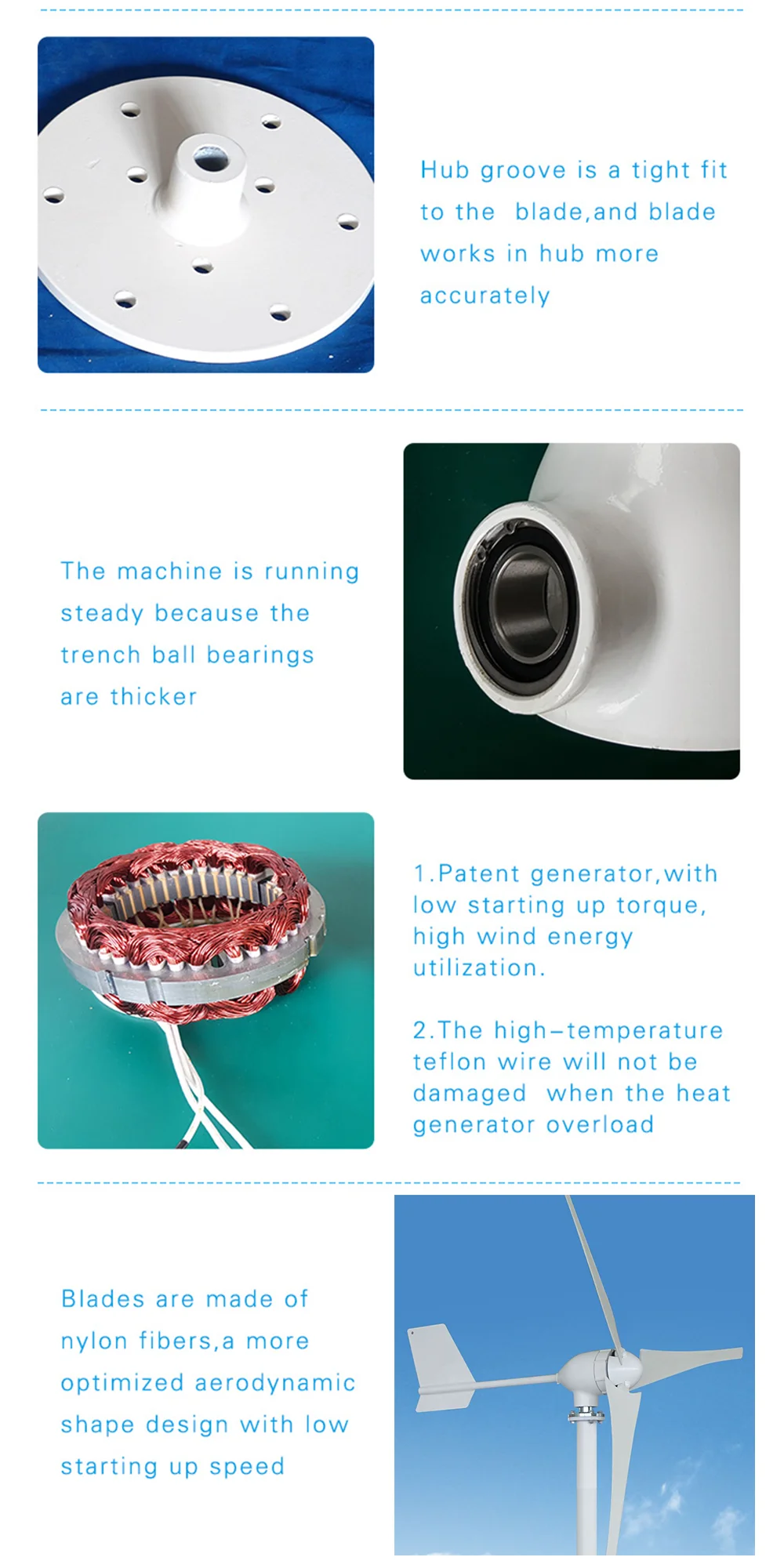

Details Images
Model | SM3-1200 | ||||||
Rated power | 1000w | ||||||
Maximum power | 1300w | ||||||
Rated voltage | 12V/24V/48V | ||||||
Start-up wind speed | 2.0m/s | ||||||
Rated wind speed | 13m/s | ||||||
Survival wind speed | 50m/s | ||||||
Number of blades | 3 | ||||||

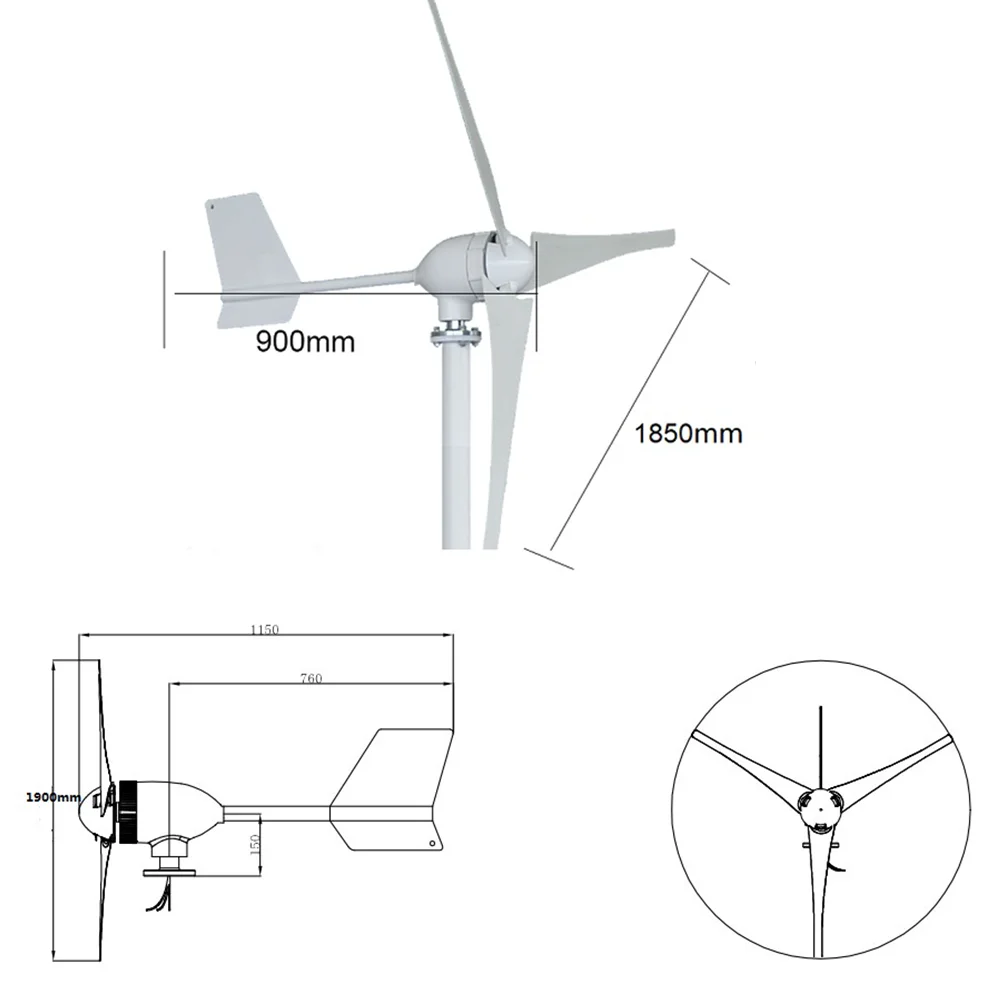

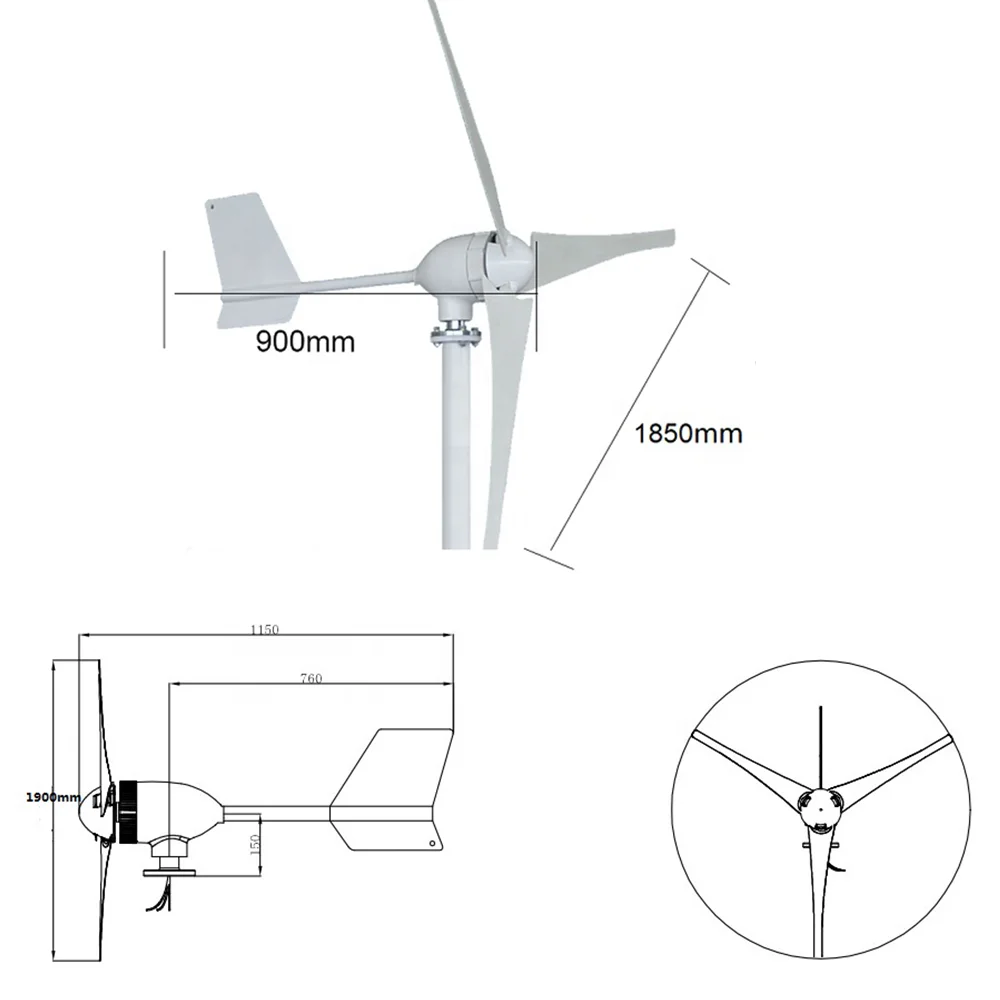

Wind Wheel Diameter | 1.85M | ||||||
Blades material | Nylon Fiber | ||||||
Generator type | 3 phase AC permanent magnet generator | ||||||
Magnet Steel Material | NdFeB | ||||||
Control system | Electromagnet | ||||||
Working temperature | -40°C - 80°C | ||||||
Design life | 20 years | ||||||

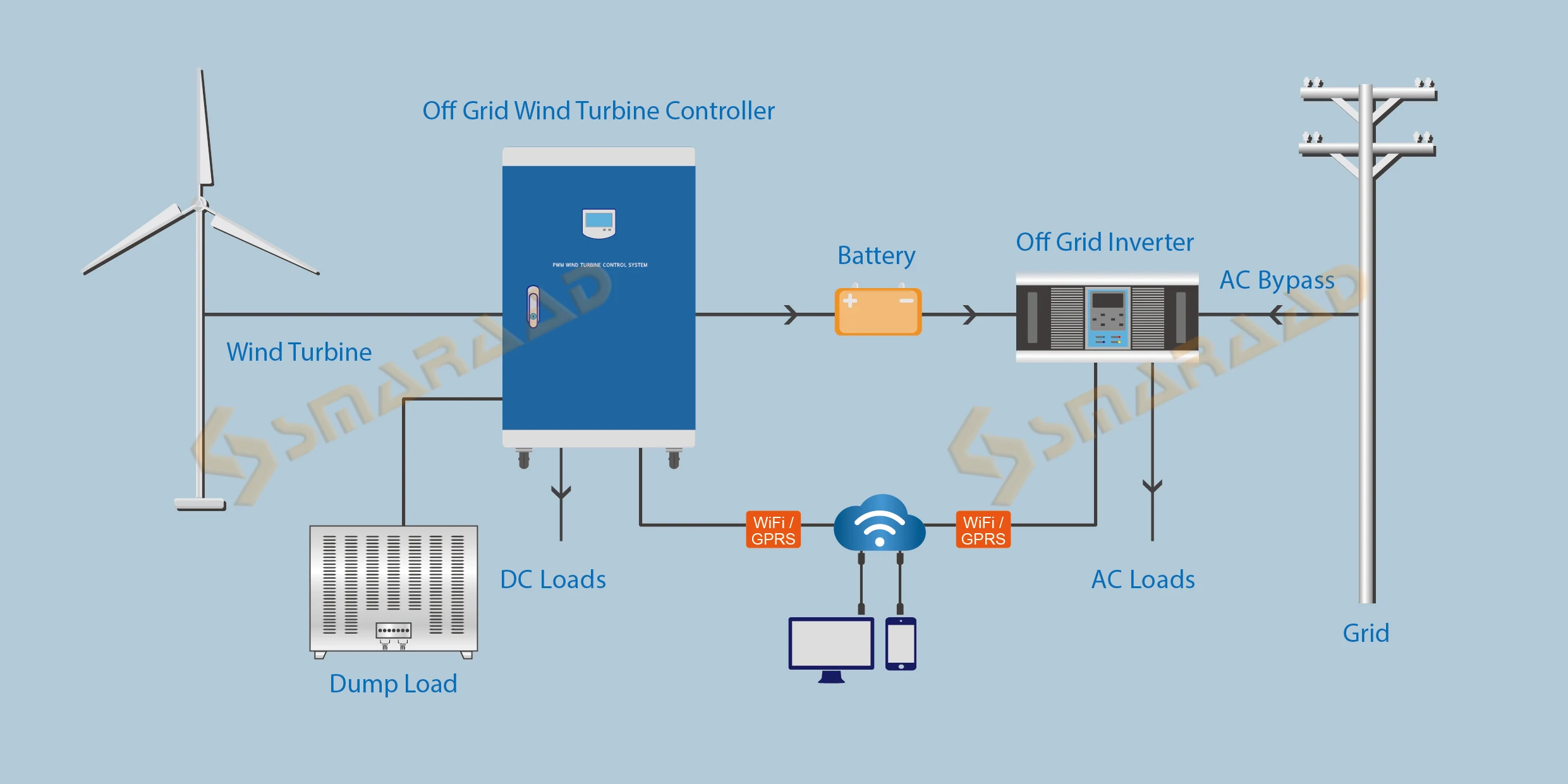

Off grid system diagram：
