Product Overview

Description





Automatic soldering machine is an automatic soldering equipment, which mainly completes the soldering operation by using the motion function of the manipulator. The core part of the automatic PCB soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head.The soldering iron unit can be adjusted to any direction, 360° free rotation for R-axis. Data cable soldering machine is for XYZ movements with teaching pendant for easy programming, even beginner can quickly grasp the operation essentials. Widely used in electronic products as wires, PCBA, Led light, circuit boards, home appliances,etc.

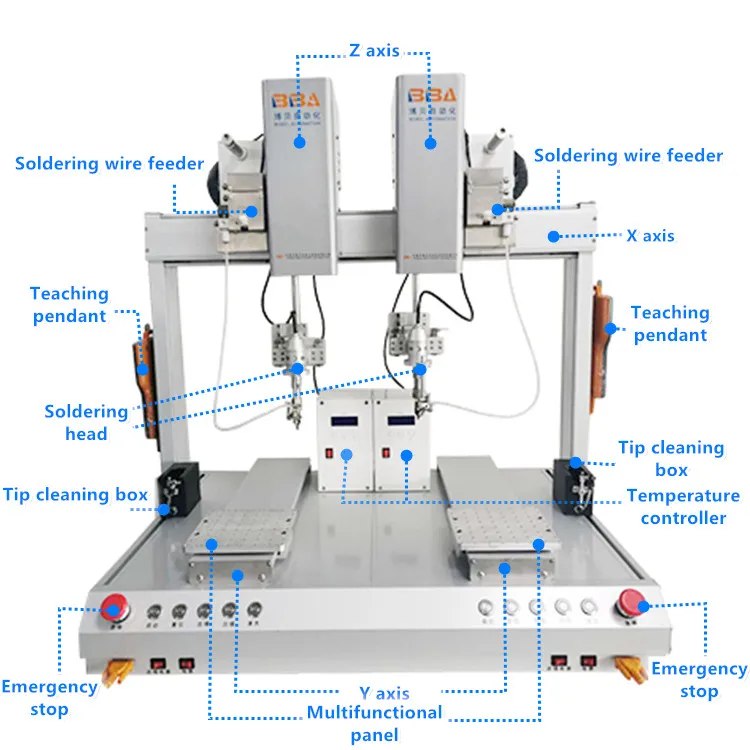

Products Description

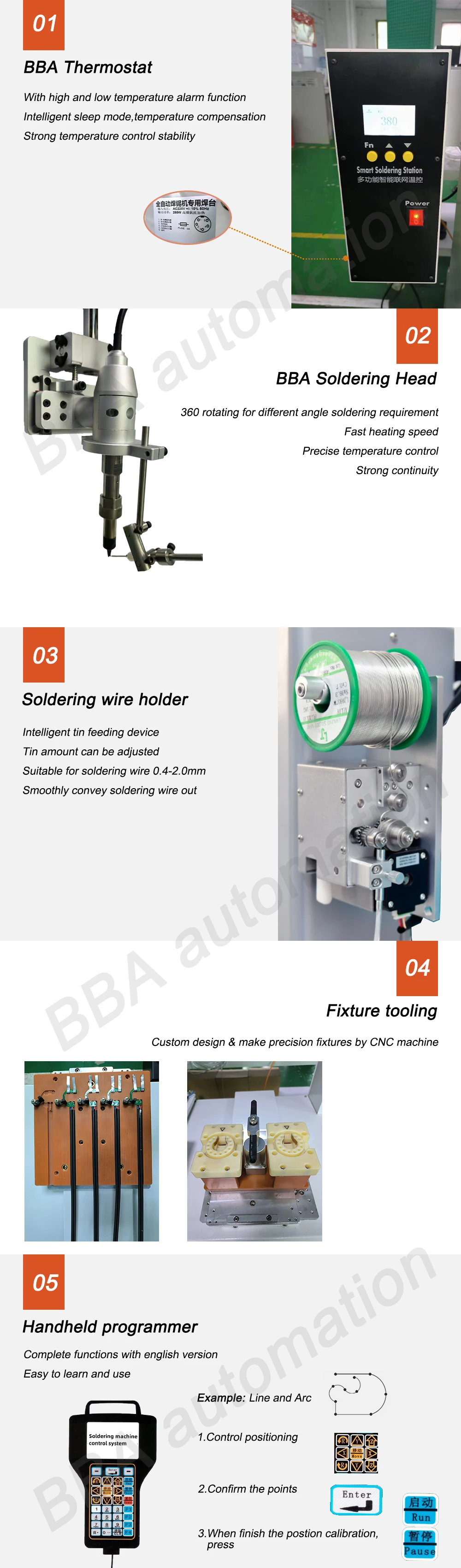

Machine external accessories




Detailed operating instructions & videos prepared to teach you step by step

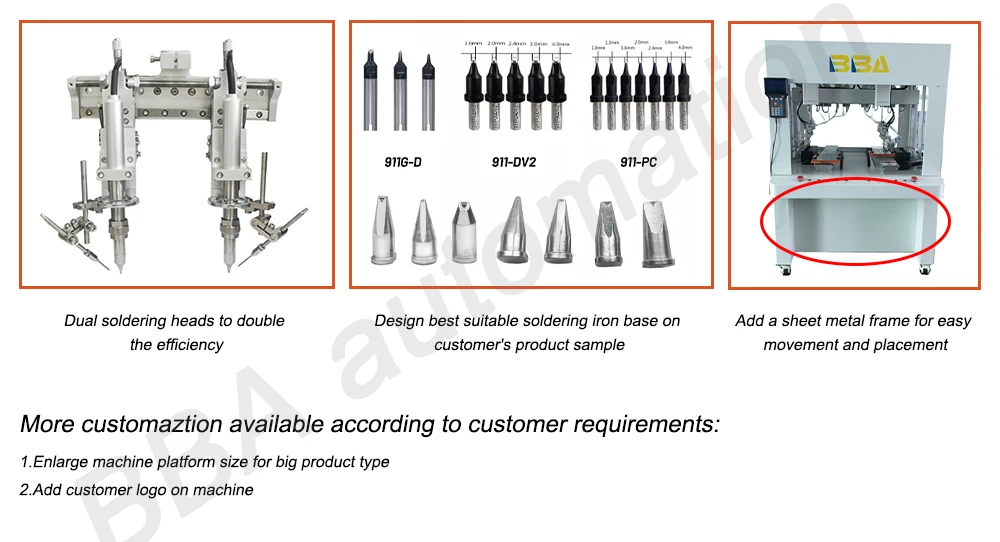

Customization available






Specifications of soldering machine series


Model
BBA-331HX (Single Y platform)
BBA-5331HX
 (Dual Y platforms)
BBA-6331HX
 (Dual soldering systems)
BBA CUSTOMIZED
Voltage
AC 110/220V 50/60HZ
Power
350W
350W
700W
To order
Movable range
X
300mm
X
500mm
X
500mm
To order
Y
300mm
Y1/Y2
300mm
Y1/Y2
300mm
Z
100mm
Z
100mm
Z
100mm
R
360°
R
360°
R
360°
Max moving speed
X
600mm/s
X
600mm/s
X
600mm/s
To order
Y
600mm/s
Y1/Y2
600mm/s
Y1/Y2
600mm/s
Z
400mm/s
Z
400mm/s
Z
400mm/s
R
300°/s
R
300°/s
R
300°/s
Repeat Positioning Accuracy
±0.02mm (X * Y * Z), ±0.05° (R)
To order
Maximum Load Weight
8KG (For Work Platform)
To order
Programming File Capacity
256MB, up to 999 files, single file up to 1000 points
To order
Preheating Temperature Range
0℃~ 550℃
To order
Solder Wire Diameter
0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm)
To order
Tin feeding control
Precision stepper motor
To order
External Dimensions(L*W*H)
70*60*85(CM）
85*60*85(CM）
100*60*85(CM）
To order
Weight
65KG
90KG
120KG
To order

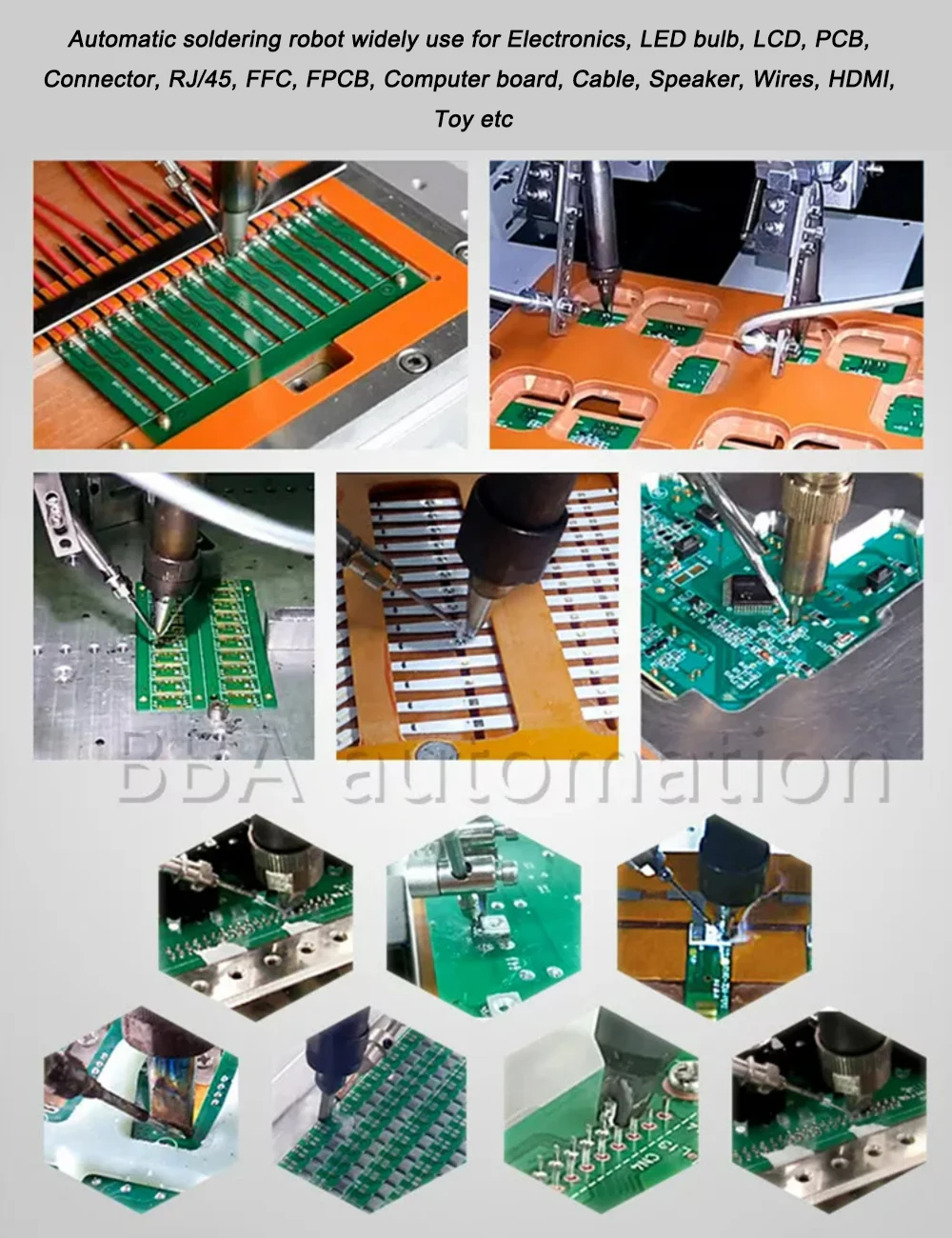

Customer case




Packing & Delivery






Company Profile

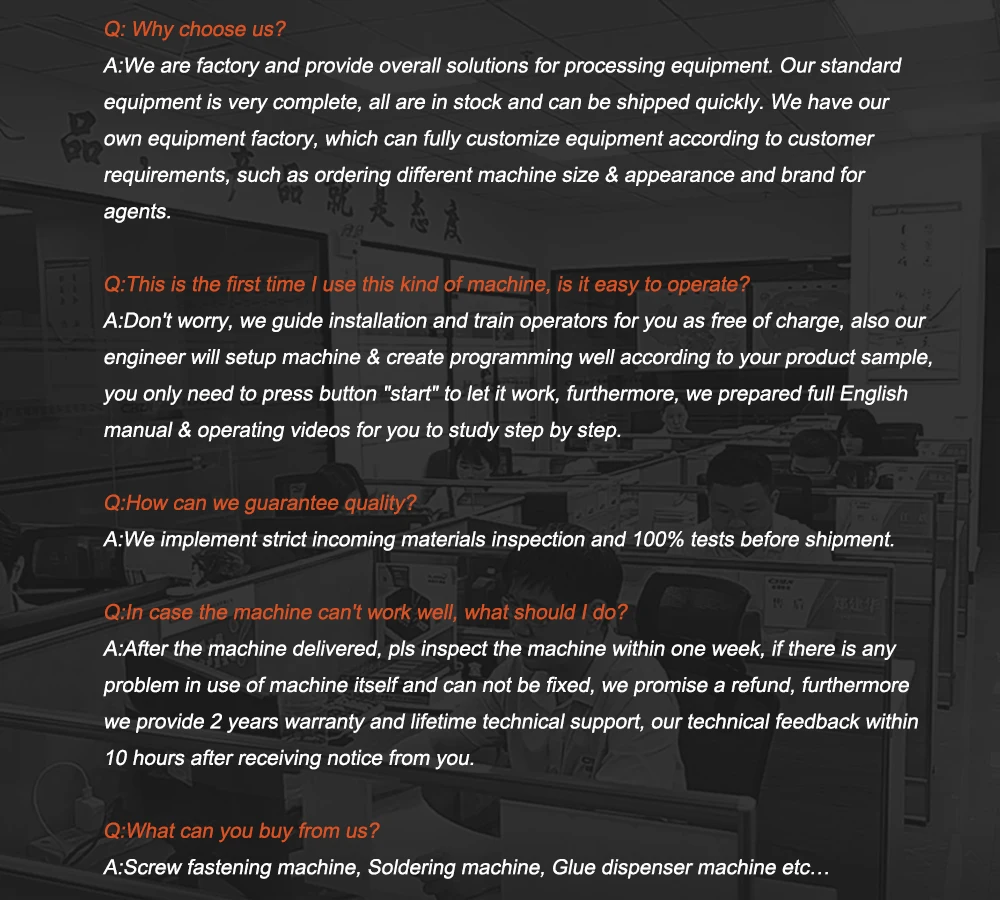

FAQ
