Automobile Emi Shielding Expandable Tinned Copper Braided Cable Sleeve
- Category: Cable Sleeves >>>
- Supplier: LITEX,TEXTILE,&,TECHNOLOGY,CO.,LTD.
Share on:
Product Overview
Description
Product Description
Automobile Emi Shielding Expandable Tinned Copper Braided Cable Sleeve
Product details
Product Description

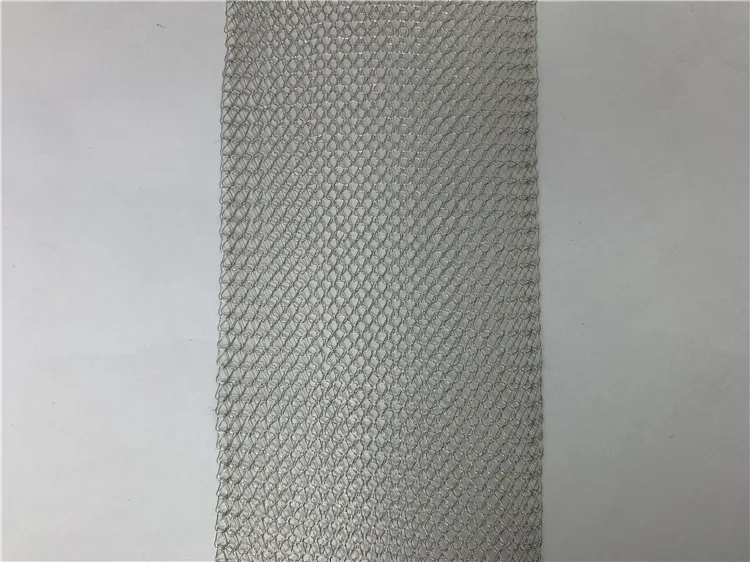

This functional fabric tubing is designed with the purpose of EMI (electro-magnetic interference) shielding. Using our metal coiling technique, we have manufactured a novel composite material of fiberglass (aramid) core covered with tinned copper plating. The composite material is then braided into a tube that may be used to encase any sort of cables in need of EMI protection. This braided design allows the tube structure to expand, which means the ability to accommodate a wider range of cables with different thicknesses, as well as the bendability to wrap around all sorts of objects.
Composition
Core: Fiberglass (aramid)
Covering: Tin plated copper
Features
Cable casing to protect sensitive electronic equipments
• Braided structure allows breathability and flexibility of the fiber to bend or curve across any object.
• Incorporation of conductive yarn in the braided weave allows for superior EMI shielding.
• Three different diameter sizes ranging from 3-15 ø covers most of the cable size spectrum currently in the market.
• Heat resistance: Can resist temperatures up to 600 degrees C.
Shielding Efficiency

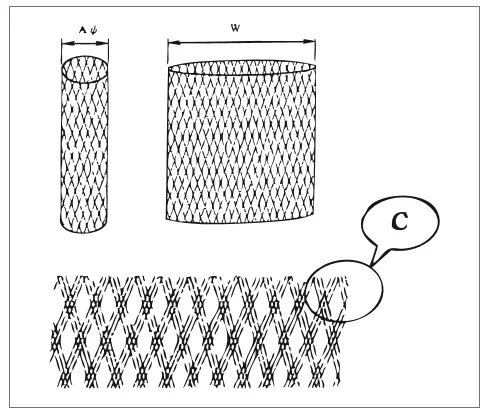

Specification
Product | Smallest Diameter (ø) | Largest Diameter (ø) | Minimum Bend (mm) | (c) |
KPTS-3 | 3 | 12 | 6 | 3 |
KPTS-6 | 6 | 22 | 15 | 3 |
KPTS-15 | 15 | 28 | 19 | 3 |

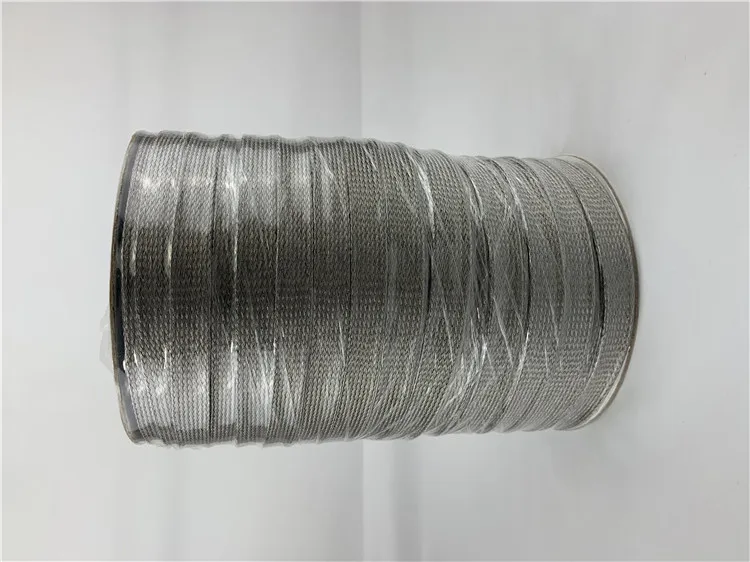

*Standard put up: 100M per roll, 4 rolls per carton.
