BestScope BUC3D 500C 5.1MP High Resolution C mount USB3.0 CMOS Digital Microscope Camera
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (1600286073083):
Product Overview
Description
Products Description
Introduction

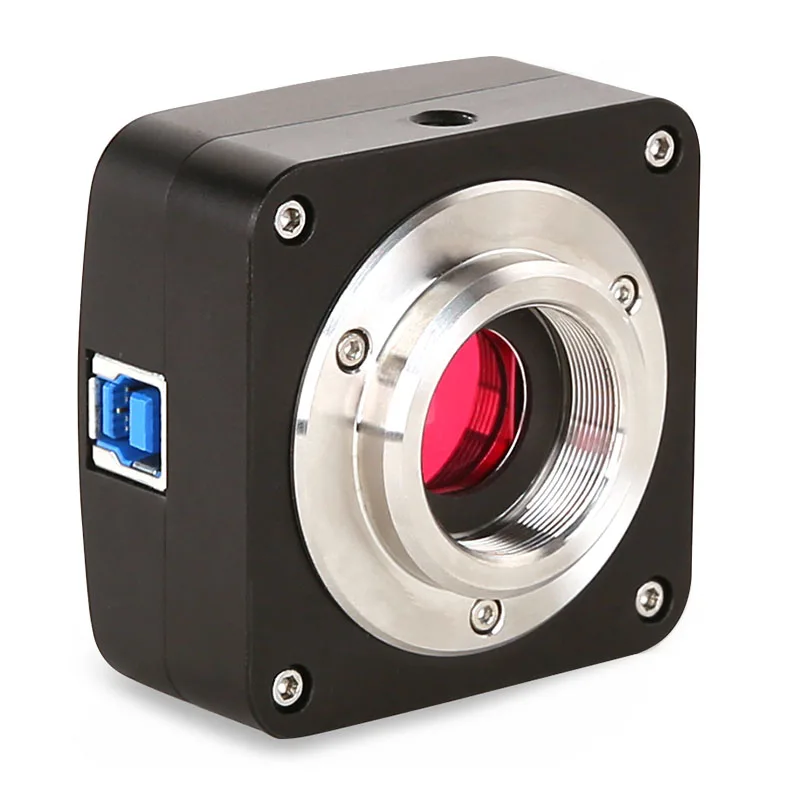

BUC3D series cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
BUC3D series cameras hardware resolutions range from 5.0M to 10M and come with the CNC aluminum alloy compact housing.
BUC3D series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The BUC3D series cameras can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
Features
The basic characteristic of the BUC3D cameras are as follows:
1. Standard C-Mount camera with Aptina CMOS sensor;
2. CNC aluminum alloy housing;
3. USB3.0 5 Gbps interface ensuring high frame rate;
4. With advanced video & image processing application ImageView;
5. Providing Windows/Linux/Mac OS multiple platforms SDK;
6. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
BUC3D series cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
BUC3D series cameras hardware resolutions range from 5.0M to 10M and come with the CNC aluminum alloy compact housing.
BUC3D series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The BUC3D series cameras can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
Features
The basic characteristic of the BUC3D cameras are as follows:
1. Standard C-Mount camera with Aptina CMOS sensor;
2. CNC aluminum alloy housing;
3. USB3.0 5 Gbps interface ensuring high frame rate;
4. With advanced video & image processing application ImageView;
5. Providing Windows/Linux/Mac OS multiple platforms SDK;
6. Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
BUC3D-500C | 5.1M/MT9P006(C) 1/2.5“ (5.70×4.28) | 2.2×2.2 | 1.76v/lux-sec 67.74dB 38.5dB | 14.0@2592×1944 29.4@1280×960 103.1@640×480 | 1×1 2×2 4×4 | 0.1ms~2000ms |
C: Color; M: Monochrome;
Other Specification for BUC3D Camera | ||
Spectral Range | 380-650nm (with IR-cut Filter) | |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor | |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor | |
Capture/Control API | Native C/C++, C#/VB.NET, DirectShow, Twain and Labview | |
Recording System | Still Picture and Movie | |
Cooling System* | Natural | |
Operating Environment | ||
Operating Temperature (in Centigrade) | -10~ 50 | |
Storage Temperature (in Centigrade) | -20~ 60 | |
Operating Humidity | 30~80%RH | |
Storage Humidity | 10~60%RH | |
Power Supply | DC 5V over PC USB Port | |
Software Environment | ||
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux | |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
Memory:2GB or More | ||
USB Port: USB3.0 High-speed Port | ||
Display:17” or Larger | ||
CD-ROM | ||

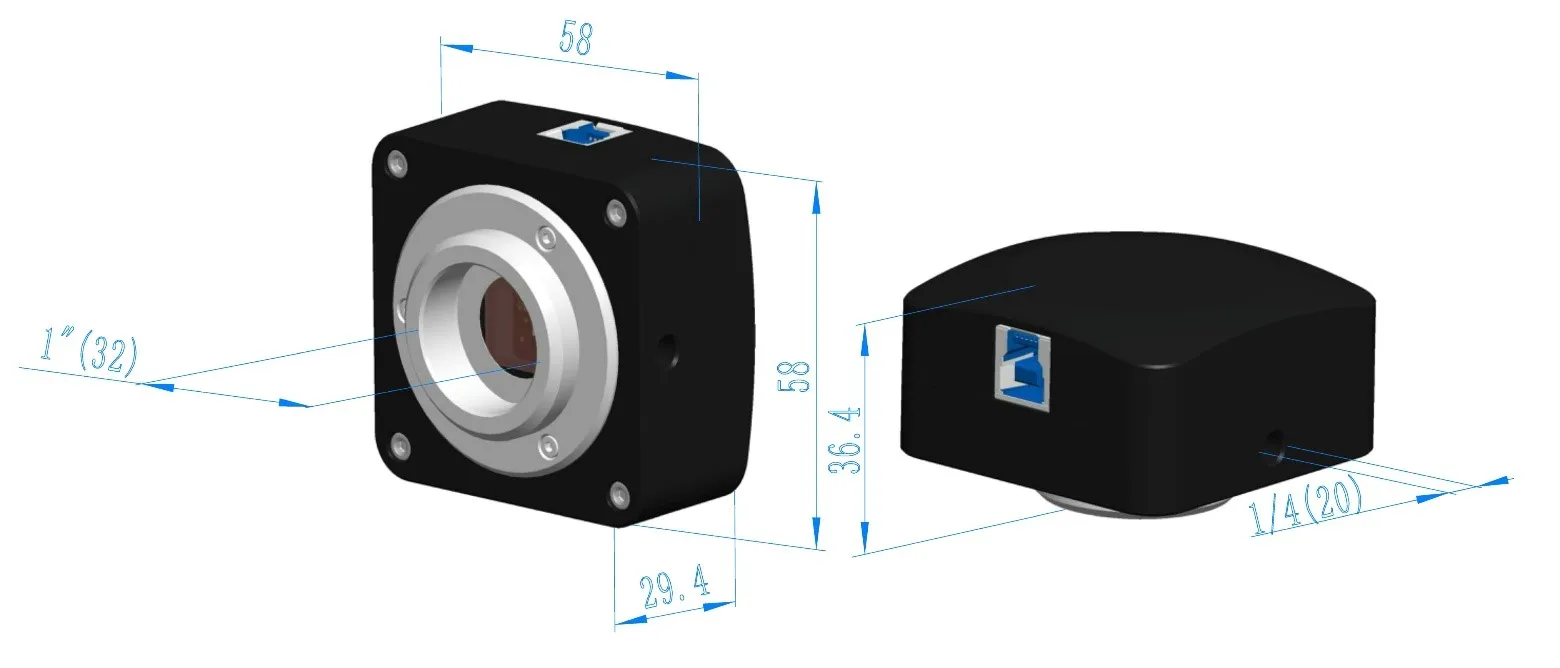

Dimension of BUC3D
The BUC3D body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
The BUC3D body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

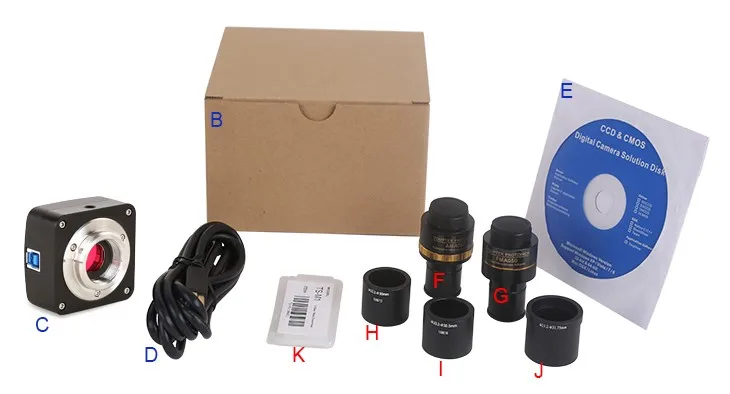

Packing Information for BUC3D
Standard Camera Packing List | ||||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |||
B | Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box) | |||
C | BUC3D series USB3.0 C-mount CMOS camera | |||
D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | |||
E | CD (Driver & utilities software, Ø12cm) | |||
Optional Accessory | ||||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | ||
C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | ||||
G | Fixed lens Adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | ||
C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) | ||||
Note: For F and G optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application. | ||||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | |||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | |||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | |||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | ||
