Africa type Single phase Digital Meter KHLSM
US $6.83-$7.10
Высококачественный профессиональный и точный трехфазный цифровой гармонический измеритель энергии, трехфазный Электрический измеритель энергии
- Category: Energy Meters >>>
- Supplier: Beijing,Jiangyuan,Hengtong,Electromechanical,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Htew Series electric energy meters
Adopting AC sampling technology, can measure many single phase or three phase grid electrical parameters such as current, voltage, power, electric energy etc. directly or indirectly. It can be used for local display, and also can be connected with the control equipment to form measuring and controlling system.
Fitted with RS-485 communication port, adopting Modbus-RTU protocol. Meters can switch electric parameter signal into standard analog output, with four-channel switching input / two-channel switching output. Based on different requirements, by keys on the faceplate, electric parameters for transformation ratio, alarm, communication etc. can be set up and controlled.
Product Name | Function Description | Wholesale price |

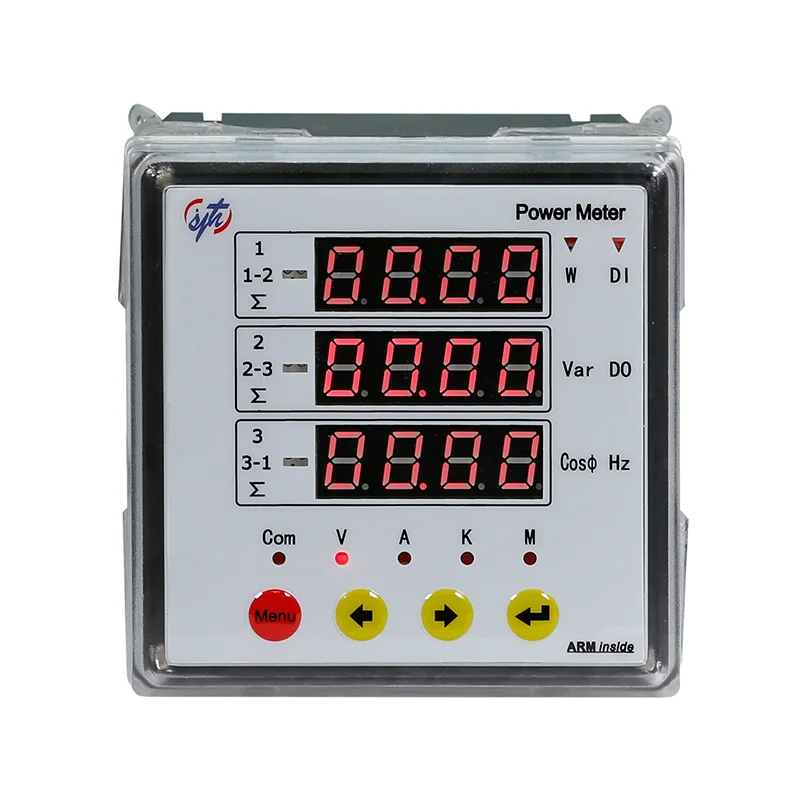

HTEW-7S5 | LCD display screen; Opening 67*67, three-phase circuit, 3p3w or 3P4W. | Please contact us in detail. We can offer you the best price. |

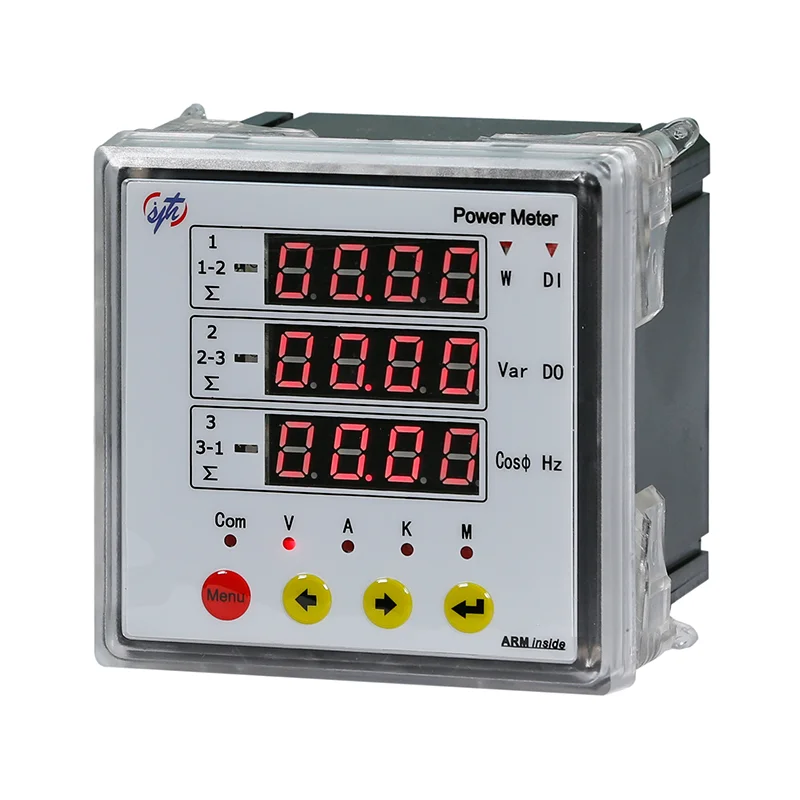

HTEW-9S5 | LCD display screen; Opening 91 * 91, three-phase circuit, 3p3w or 3P4W. |
HTEW-7S5,HTEW-9S5 is an economical and practical intelligent power acquisition and monitoring device which integrates power parameter acquisition, monitoring and control.
Electricity measurement:
1. Phase voltage, line voltage, phase current;
2. Split phase active power and total active power;
3. Split phase reactive power and total reactive power;
4. Power and total apparent power are divided into two phases;
5. Split phase power factor and total power factor;
6. Total active and total reactive watt-hour kwh energy;
7. RS485 Modbus-RTU communication.
HTEW-7S5,HTEW-9S5 Multifunction Meter
1. True RMS Measurements
2. Thd with 2-31th total harmonic rate
3.Internal Optional 4DI&2DO or 2DI&2DO&2AO
Communication
Standard: RS485(Modbus-RTU)
Display
LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement
Rated U and I
Voltage: AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; Current: AC 1A, 5A
Accuracy
Active energy: Class 0.5
Auxiliary power supply
AC/DC 80~265V or DC24V,DC48V
Consumption
Voltage: Power consumption <0.1VA;
Current: Power consumption< 0.4VA;
Auxiliary power supply:power consumption≤4VA
Dimension(L*W*H)
Panel size (L×W): 96*96mm
Cutout (L×W): 91*91mm
Housing (L×W×H): 89.5*89.5*88mm
Product Paramenters
|  |
Technical parameter | Value | ||
Input | Rated value | AC voltage:Single phaseAC 100V(110V),220V,380V(450V) | |
Overload | Voltage: 1.2 times rated value(continuous); 2 times rated value /10 second | ||
Frequency | 45Hz~65Hz | ||
Power consumption | Power consumption of each voltage,current input circuit is less than 0.4VA | ||
Accuracy Class | Class 0.5 | ||
Display | LED or LCD | ||
Function | Communication | RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) | |
Alarm | 1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, | ||
Analog | DC4~20mA,( load <500Ω) | ||
switching | Input | 4 channel or 2 channel dry contact Input,built in power supply | |
Output | 2 channel switching output,NO relay contact,capacity: | ||
Auxiliary supply | Voltage range | AC/DC80~265VorDC24V,DC48V | |
Power consumption | <4VA | ||
Insulation resistance | ≥ 100MΩ | ||
Mean time between failures | ≥5000h | ||
Power frequency withstand voltage | Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) | ||
Environment | Temperature | Operation: -15℃~+55℃Storage: -30°C ~+70°C | |
Humidity | ≤93%RH,no condensation,without corrosive gas | ||
Altitude | ≤2500m | ||
Wiring diagram
Outline and Size of Cut Out
Outline | Panel size | Housing size | Cutout size | ||||
Unit:mm | Height | width | Height | width | Depth | Height | width |
72*72 | 72 | 72 | 65.5 | 65.5 | 68 | 67 | 67 |
96*96 | 96 | 96 | 89.5 | 89.5 | 88 | 91 | 91 |
