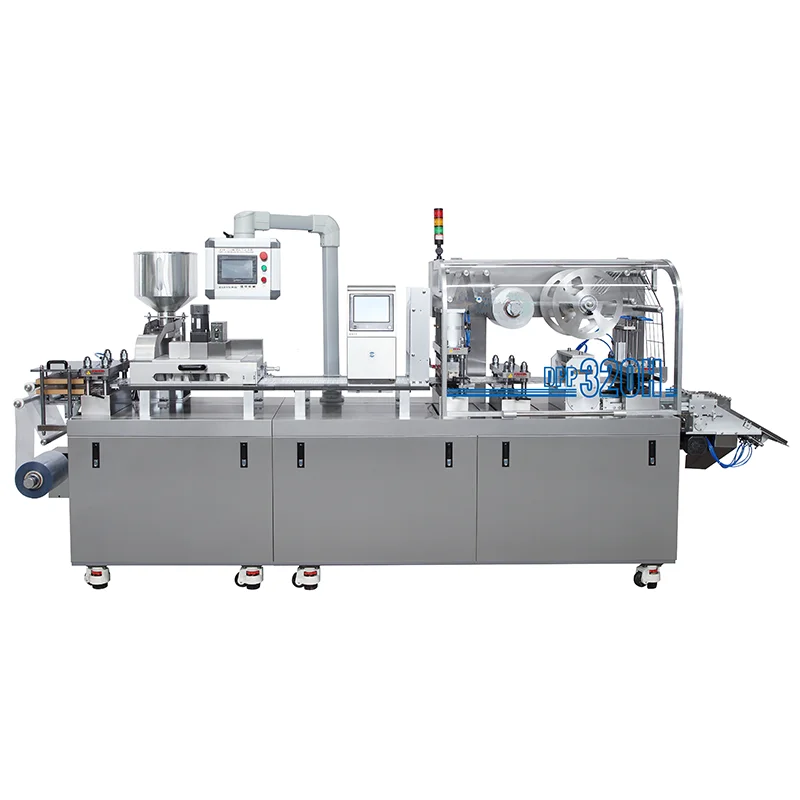

Высокое качество DPP 320H ALU PVC блистерная упаковочная машина
- Category: Blister Packaging Machines >>>
- Supplier: Huizhou Pingfang Tranding Co. Ltd.
Share on (1600286670529):
Product Overview
Description
The machine integrates light, machinery, electricity and gas,which is controlled by PLC programmable. Which can automatically completed the process of forming, feeding, heat sealing, creasing and cutting. Applicable to pharmaceutical,food,electronics,medical equipment,hardware and other industries of aluminum-pvc,paper-aluminum,aluminum-aluminum and other packaging.

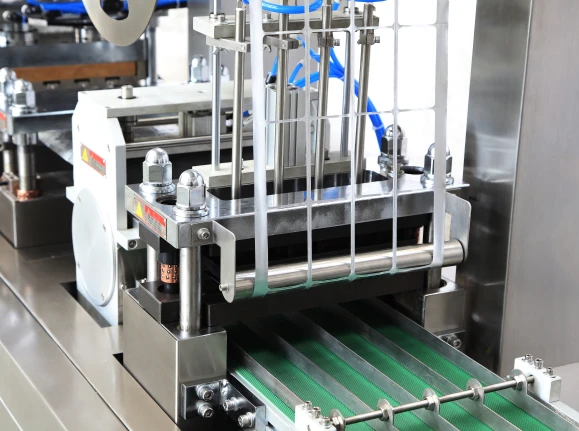

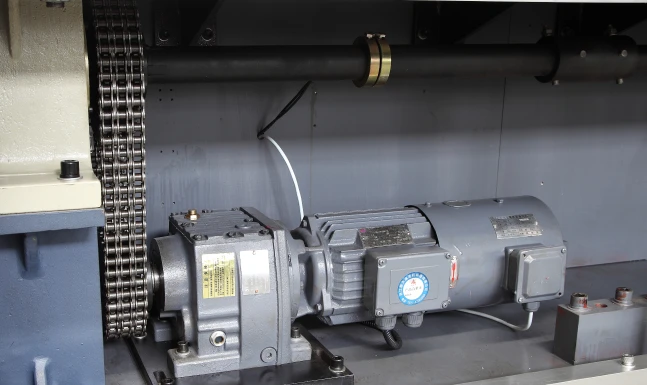

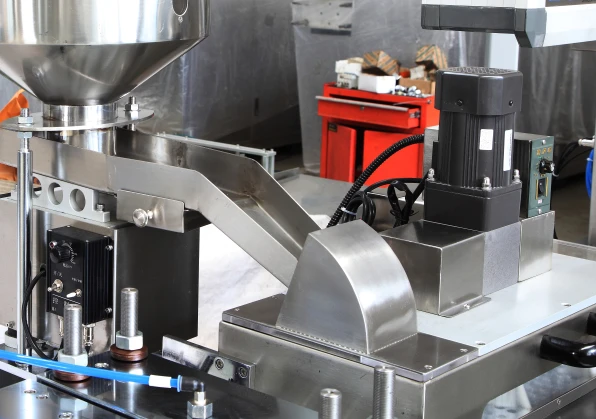

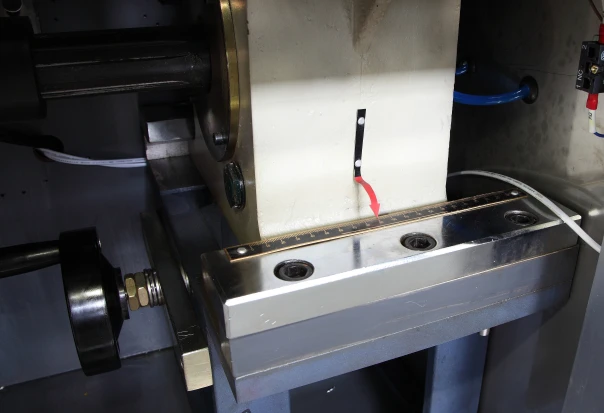

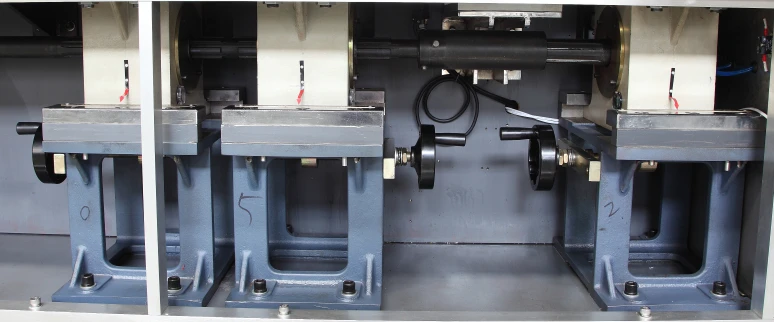

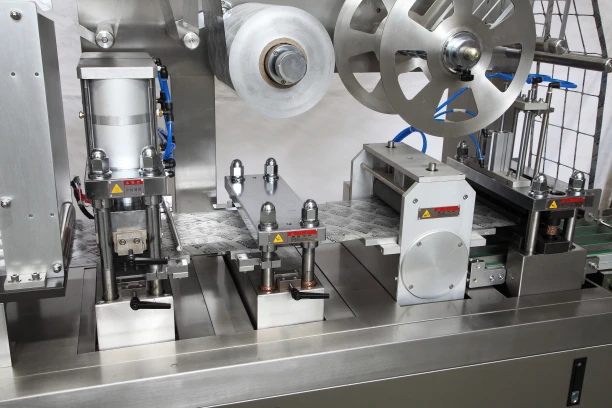

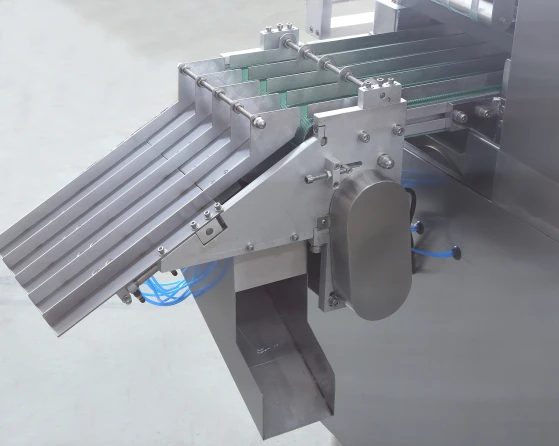

Detail Display
Features:
（1）This machine can realize two kinds of packing methods: aluminum plastic / paper plastic and aluminium and aluminium;
（2）This machine is lengthened and adopts split assembly, which is convenient for elevator and cleaning workshop;
（3）This machine is lengthened, molding and heat sealing loading station is 1.6m longer, convenient customer matching special feeder or camera detection system, ensure that the feeding rate and filling rate of finished products;

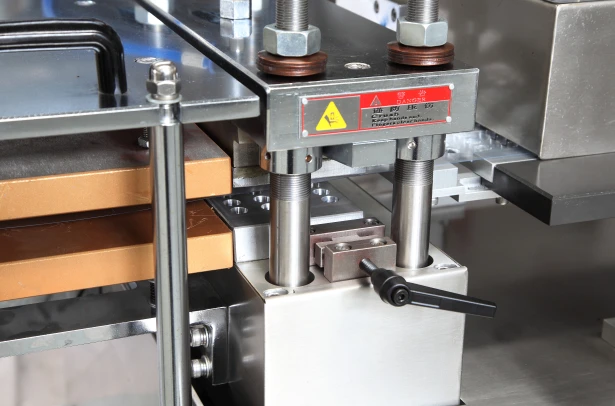

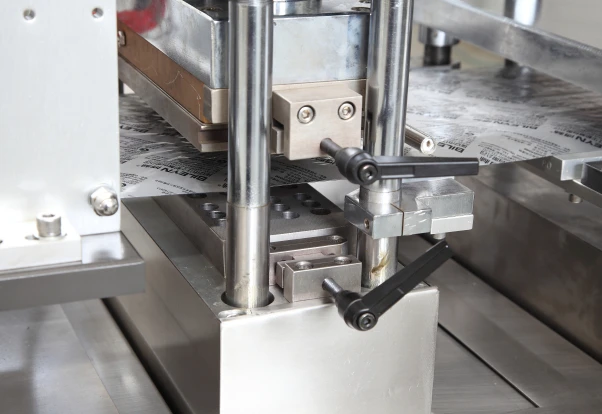

（4）Die with center positioning groove, convenient and rapid replacement; Also can be selected with Aluminum Alloy rail matching with mold, with more convenient adjustment;
（2）This machine is lengthened and adopts split assembly, which is convenient for elevator and cleaning workshop;
（3）This machine is lengthened, molding and heat sealing loading station is 1.6m longer, convenient customer matching special feeder or camera detection system, ensure that the feeding rate and filling rate of finished products;
（4）Die with center positioning groove, convenient and rapid replacement; Also can be selected with Aluminum Alloy rail matching with mold, with more convenient adjustment;
（5）This machine has increased the cam, can make the bubble maximum depth of 26mm, meet the special requirements of a large pill, medical equipment, food and other industries.；
（6）This machine transmission is separated from the electrical phase. The stainless steel outer cover is changed into open type for easy operation, maintenance and maintenance;
（7）The machine adopts integral arch plane frame, make the machine more precise,firm and durable, avoid cross contamination; All parts in contact with drugs are made of high quality 316 stainless steel and high quality aluminum alloy non-toxic materials , in full compliance with the GMP standard.
（8）Customers can choose photoelectric alignment, optical fiber inspection or camera detection device according to requirements;
（9）According to customer needs, optional online mode, by increasing the image detecting system (or optical fiber detection system), vacuum suction plate sorting device and conveyor belt etc. reserved line interface, can be directly with the pillow machine, cartoning machine and other equipment such as linkage automatic production line.
（6）This machine transmission is separated from the electrical phase. The stainless steel outer cover is changed into open type for easy operation, maintenance and maintenance;
（7）The machine adopts integral arch plane frame, make the machine more precise,firm and durable, avoid cross contamination; All parts in contact with drugs are made of high quality 316 stainless steel and high quality aluminum alloy non-toxic materials , in full compliance with the GMP standard.
（8）Customers can choose photoelectric alignment, optical fiber inspection or camera detection device according to requirements;
（9）According to customer needs, optional online mode, by increasing the image detecting system (or optical fiber detection system), vacuum suction plate sorting device and conveyor belt etc. reserved line interface, can be directly with the pillow machine, cartoning machine and other equipment such as linkage automatic production line.
Technical Data
Model | DPP-320H |
Cutting frequency | 10～60 blanking/minute |
Productivity | 18000～236000 pieces/hour（ALU-PVC） |
Max.forming area | 160×300mm |
Max.forming depth | 14mm |
Adjusting range of travel | 40～160mm |
Standard plate size | 80×57mm |
Width and thickness of PVC and PTP | PVC:320×0.15～0.45mm PTP:320×0.02～0.03mm |
Power source: | 380V 50HZ,Main motor 2.2KW,Hot-sealing 6KW |
Air requirement: | ≥0.3m3/min |
Cooling water: | Tap water or recycling consumption 60L/H |
Overall size: | 3500×1300×1680mm |
Weight: | 3000kg |
ABOUT US
Huizhou PingFang Trading Co.,Ltd
Huizhou PingFang Trading Co.,Ltd established in 2004, is a professional engaged in the research development. We are specializing in machinery including tablet press machine, counting machine,coating machine, soft capsules filling machine, hard capsules filling machine , ampoule filling and sealing machine. Our vast product selection caters to numerous industries, worldwide.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
Cooperation
Certificate
Packing & Shipping
FAQ
Q: How about the after service and guarantee period?
A:we make the guarantee time 12 months form the machine's arrival in buyer facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:What's your payment way?
A: T/T by our bank accout directly ,or by Alibaba's trade assurance serive, or by the West Union, or in cash.
