Product Overview
Description
Products Description
Outlook Support Customization!
you can also choose other model,and you can change color and logo
Please click below to see working effect difference
Select the appropriate configuration according to your material
200w laser cleaning metal rust
Almost no damage to the original material
1000W working effect
Faster and thicker cleaning

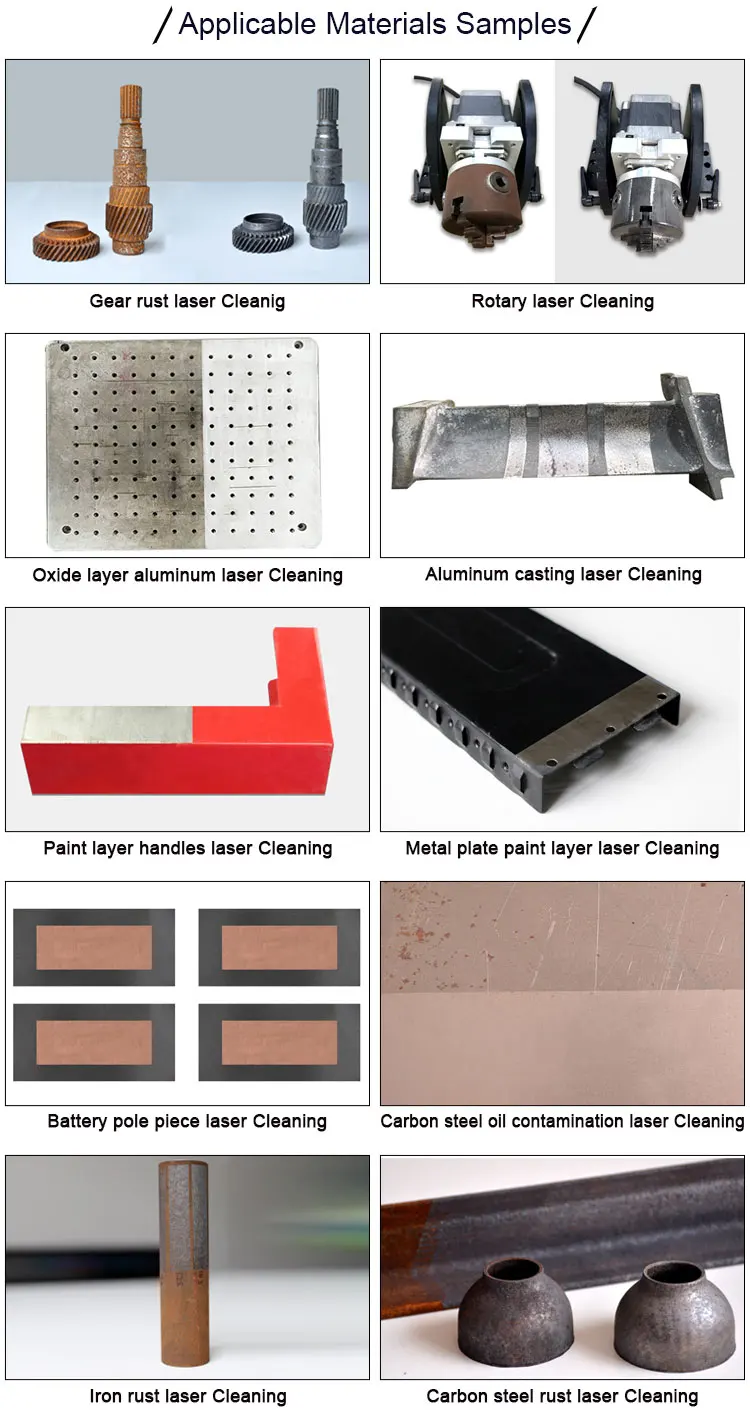

Application
Advantages of laser cleaning
Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning and high-frequency ultrasonic cleaning, laser cleaning has obvious advantages.
1. Advantages of environmental protection: laser cleaning is a "green" cleaning method. It does not need to use any chemical agent and cleaning solution. The cleaned waste is basically solid powder. It is small, easy to store and recyclable. It can easily solve the problem of environmental pollution caused by chemical cleaning.
2. Effect advantages: the traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the cleaned object,which cannot be removed and produces secondary pollution. The non grinding and non-contact of laser cleaning can solve these problems; Laser cleaning can remove various types of pollutants on the surface of various materials and achieve cleanliness that conventional cleaning cannot achieve. It can also selectively clean the pollutants on the material surface without damaging the material surface.
3. Control advantages: the laser can be transmitted through optical fiber, cooperate with manipulator and robot, conveniently realize long-distance operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.
4. Cost advantage: laser cleaning has high efficiency and saves time; Although the one-time investment in the purchase of laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time and has low operation cost.
2. Effect advantages: the traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the cleaned object,which cannot be removed and produces secondary pollution. The non grinding and non-contact of laser cleaning can solve these problems; Laser cleaning can remove various types of pollutants on the surface of various materials and achieve cleanliness that conventional cleaning cannot achieve. It can also selectively clean the pollutants on the material surface without damaging the material surface.
3. Control advantages: the laser can be transmitted through optical fiber, cooperate with manipulator and robot, conveniently realize long-distance operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.
4. Cost advantage: laser cleaning has high efficiency and saves time; Although the one-time investment in the purchase of laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time and has low operation cost.
More importantly, it can easily realize automatic operation.
Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Renovated like new | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Details Images
CONTROL SYSTEM
Easy to operate
support multiple languages
LASER CLEANING HEAD
RAYCUS cleaning head
WSX optional
LASER GENERATOR
raycus 100w to 3000w
JPT/MAX optional
HAND HELD CLEANING GUN
More flexible
handheld operation
POWER BOTTOM
More secure with
multiple protections
S&A WATER CHILLER
Guaranteed operating temperature
Product Paramenters
Item | Specifications | Specifications | Specifications | Specifications | |||
Power | Raycus 100W | Raycus/Max/JPT 200W | Raycus 300W | Raycus 500W | |||
Laser head | Raycus RFL-7C-0100 | Raycus RFL-7C-0200 | Raycus RFL-7C-0300 | Raycus RFL-7C-0500 | |||
Weight of the laser head | 2KG | 2KG | 3KG | 3KG | |||
Scanning width | 10-100mm | 10-100mm | 10-100mm | 10-100mm | |||
Average laser power | ≥100W | ≥200W | ≥300W | ≥500W | |||
Output power instability | ＜5% | ＜5% | ＜5% | ＜5% | |||
Power adjustment range（%） | 10-100(Gradient adjustable) | 10-100(Gradient adjustable) | 10-100(Gradient adjustable) | 10-100(Gradient adjustable) | |||
Pulse width（ns） | 130-160 | 130-160 | 130-160 | 130-160 | |||
Central wavelength（nm） | 1064±5 | 1064±5 | 1064±5 | 1064±5 | |||
Repeat frequency（kHz） | 10-50 (Gradient adjustable | 10-50 (Gradient adjustable | 25-50（Gradient adjustable） | 25-50（Gradient adjustable） | |||
Maximum single pulse energy（mJ） | 1 | 8 | 12.5 | 15 | |||
Peak power（kW） | 90 | 94 | 96 | 96 | |||
Core（μm） | 30 | 96 | 100 | 180 | |||
Standard cable length | 5M | 5M | 5M（Can be customized to 7 meters） | 5M（Can be customized to15 meters） | |||
Cleaning thickness（mm） | 1 | 1.5 | 2 | 2.5-3 | |||
Cleaning efficiency（m2/h） | 10 | 13 | 15 | 20 | |||
Focal length（mm） | 160/210 Replaceable | 160/210 Replaceable | 160/210 Replaceable | 160/210 Replaceable | |||
Cooling method | Air cooling | Water cooling CW5200 | Water cooling | Water cooling | |||
CW5300 | CWFL500an | ||||||
Consumption | 1000W | 2500W | 3200W（Including water chiller） | 4000W（Including water chiller） | |||
(Including water chiller） | |||||||
Company Profile

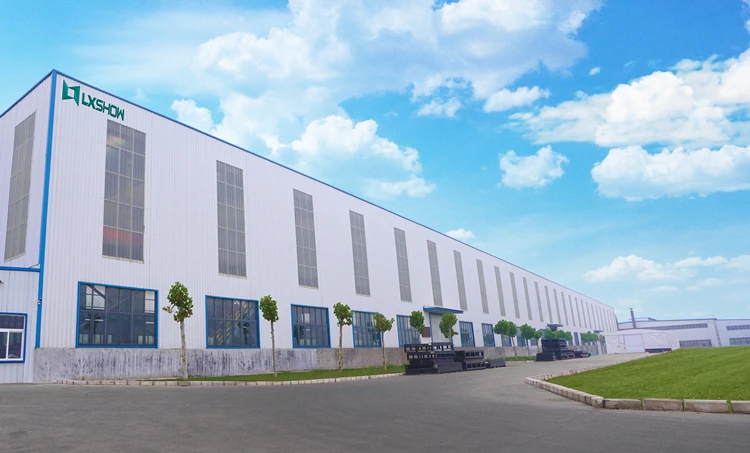

JINAN LXSHOW MACHINERY CO.,LTD

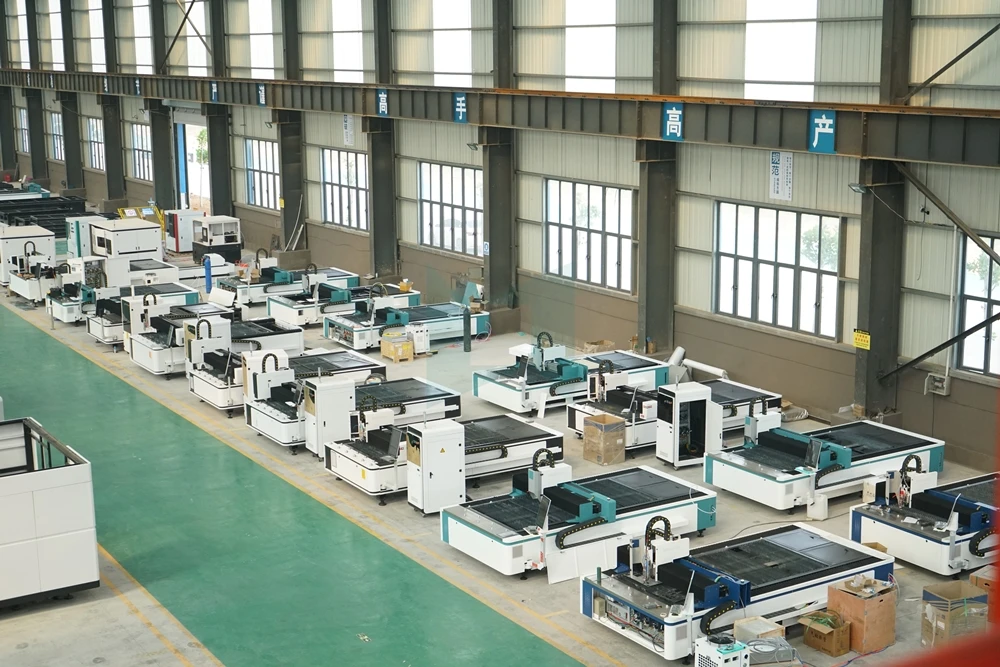

LXSHOW is a laser equipment manufacturing factory established in Jinan, China in 2004. Our mission is to use the latest laser technology to help metal processing work more convenient, more intelligent and more economical.
In 2020, LXSHOW laser has more than 200 employees, and the company's annual turnover exceeds US $100 million, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.We have provided 21314 machines for laser processing practitioners in 156 countries and regions, Super factory and experienced workers can guarantee excellent quality and fast delivery
In 2020, LXSHOW laser has more than 200 employees, and the company's annual turnover exceeds US $100 million, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.We have provided 21314 machines for laser processing practitioners in 156 countries and regions, Super factory and experienced workers can guarantee excellent quality and fast delivery
OUR MAIN PRODUCTS:
1.LASER CUTTING MACHINE
2.LASER WELDING MACHINE
3.LASER CLEANING MACHINE
4.LASER MARKING MACHINE
WHY CHOOSE US
◆Premium OEM Factory
*We have 16 years of manufacturing experience.
*The factory price is sold directly,support OEM&ODM.
*The products are strictly inspected to ensure good quality.
*Support the visualization of the whole production process.
*All the machine passed CE certification,
◆ Verified Suppliers
*We have passed world-class inspection .

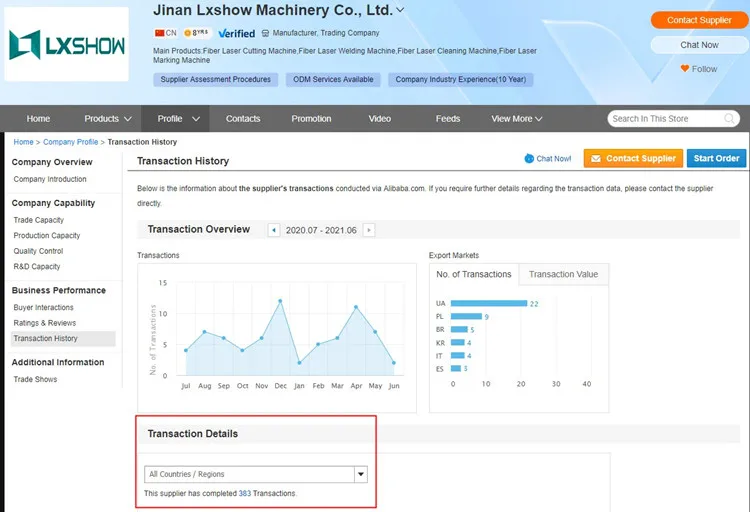

*We has completed 383 Transactions on Ali which can help you choose a cost-*Effective transportation route and freight reference.
*Ali's credit guarantee is provided throughout the transaction.
◆Professional After-sales Service
*We provide free training and free samples .
*Two-year warranty for the laser cleaning machine.
*Machine installation instructions and remote guidance.
*Door to door maintenance within 2 days.
◆Numerous Partners
Our machines use well-known brand parts.
You have more options to configure the machine.
The machine is more durable, and it is more convenient to repair and replace parts.
FAQ
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2: I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and cleaning surface thickness:choose most suitable power.
Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q6:Delivery time
A5:General configuration:7 days. Customized:7-10 working days.
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2: I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and cleaning surface thickness:choose most suitable power.
Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q6:Delivery time
A5:General configuration:7 days. Customized:7-10 working days.
