8 ways 2 6 GHz power divider/ splitter SMA Connector for 5G/6G/wifi test
- Category: >>>
- Supplier: Shenzhen Osbay Technology Co. Ltd.
Share on (1600286784748):
Product Overview
Description
Office:1st Floor, Sanwei ,Baoan, Shenzhen Factory: Sukeng, Changping, Dongguan Hq: RM14 29/F,HO King Commercial Centre,Mongkok, KL, Hongkong www.rfshieldingbox.com | Silo Head-Sales Division Shenzhen Osbay Technology Co.,LTD Tel.: +86 13670169390 sales@rfshieldingbox.com | |
What products Osbay do ? Shielding chamber, shielding room,EMI room, power divider, signal amplifier/ attenuator, Rf coupler&cable,etc. What service Osbay provide? Strict Quality; No MOQ; Video Technician & assembling Training ; Customized chamber size & Filter module; Contact us now if any of our product interest you. | ||
Brief Introductions
Microstrip Power divider full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.

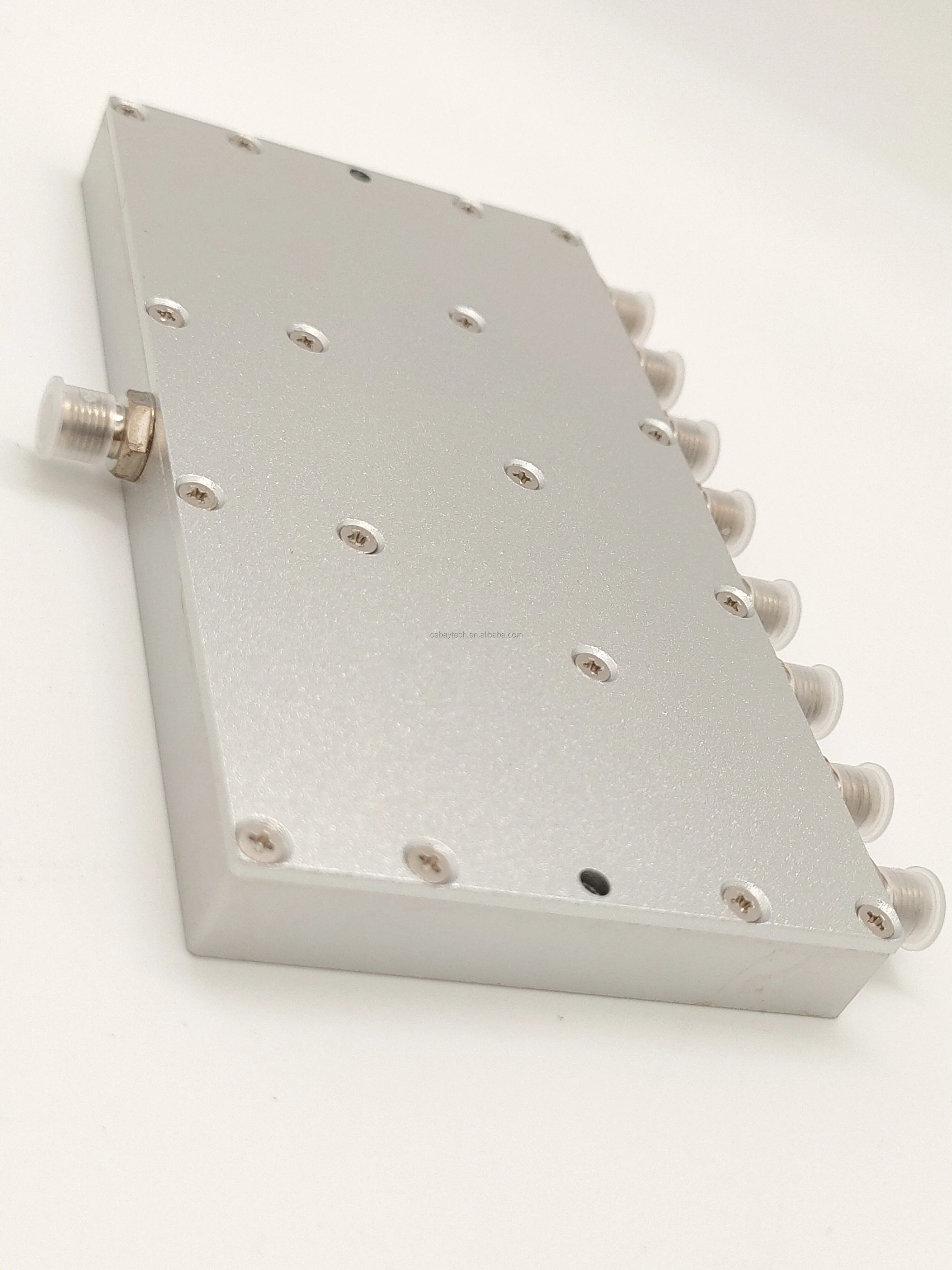

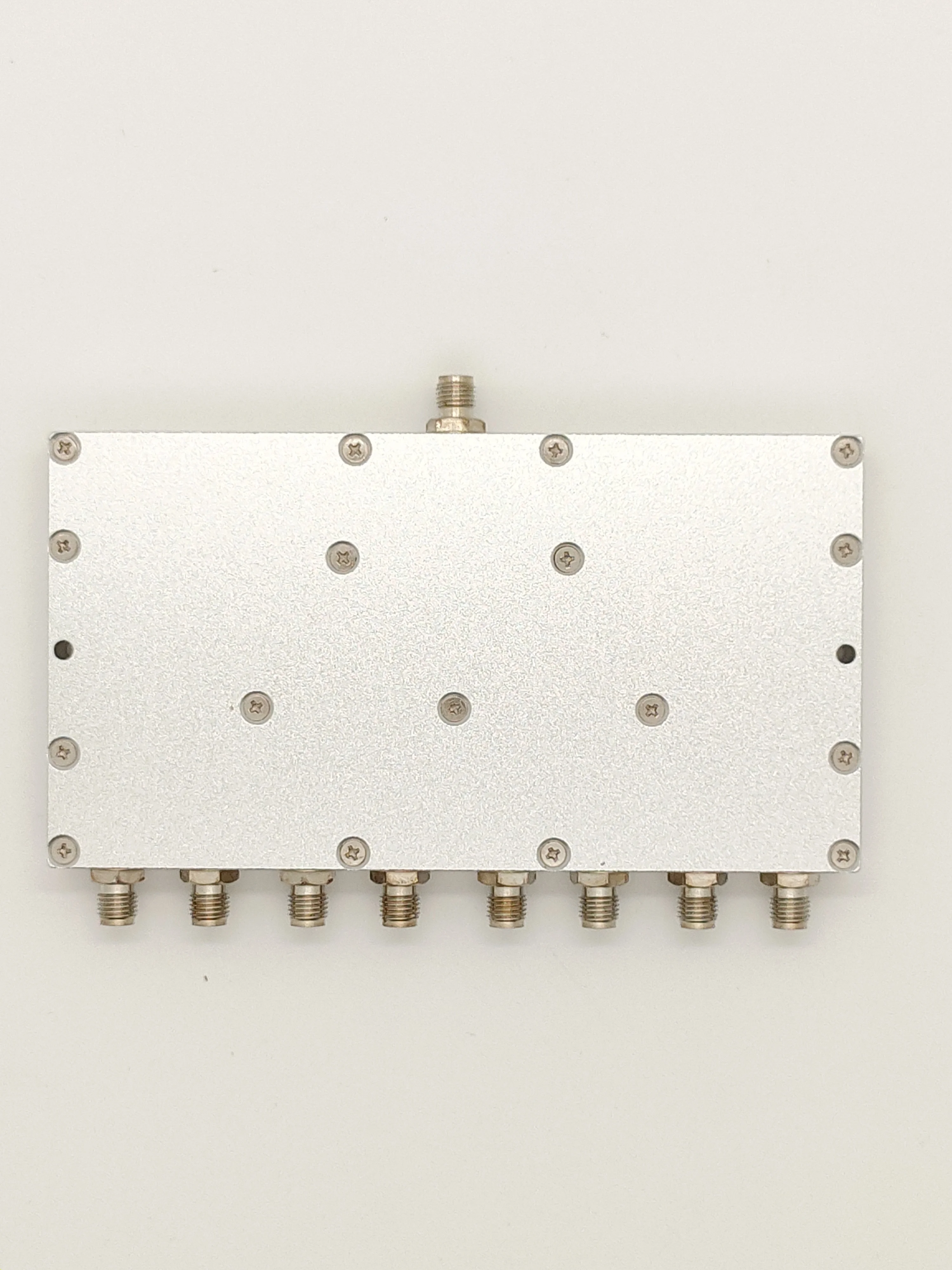

Front Overview

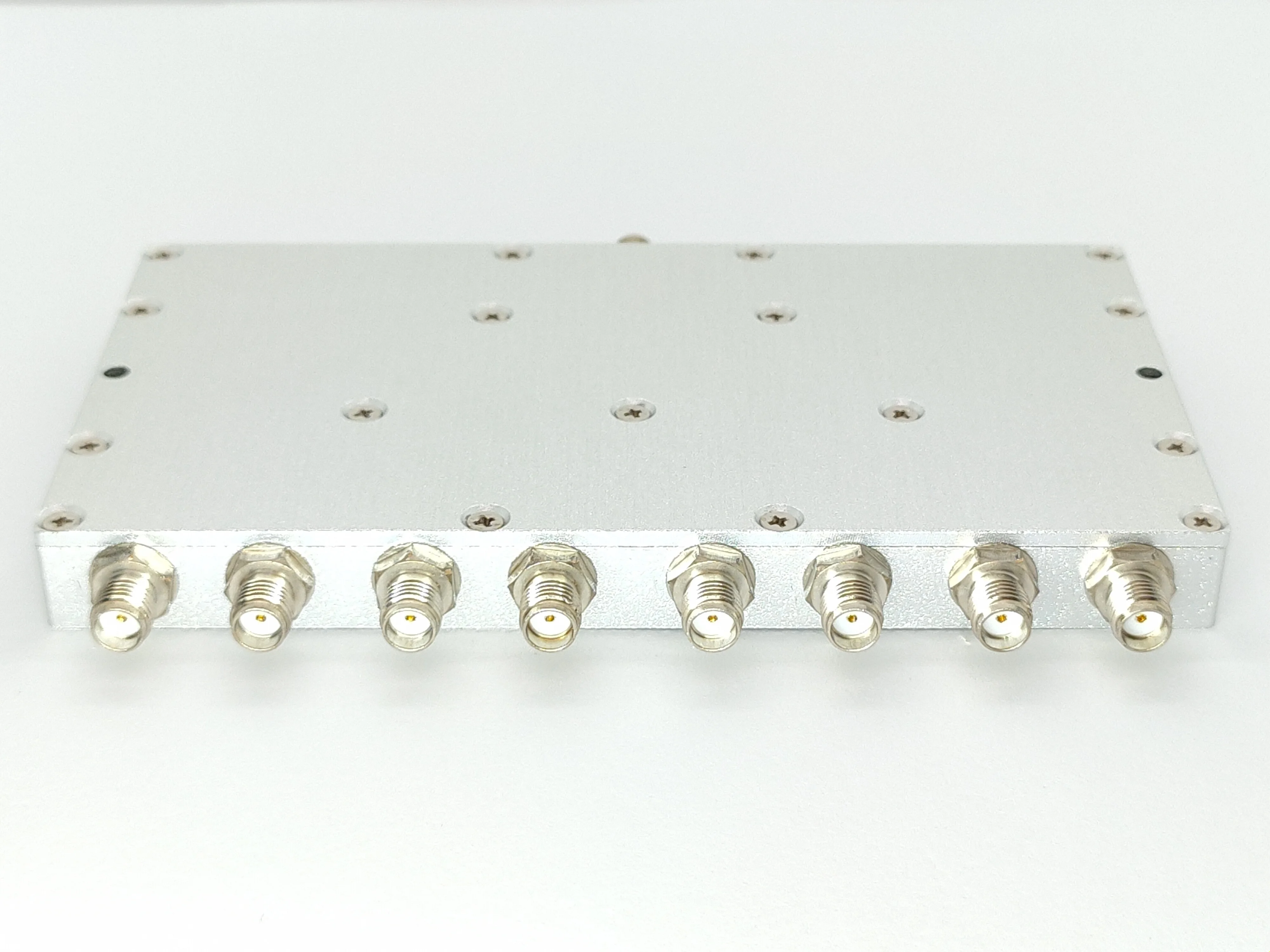

Back View

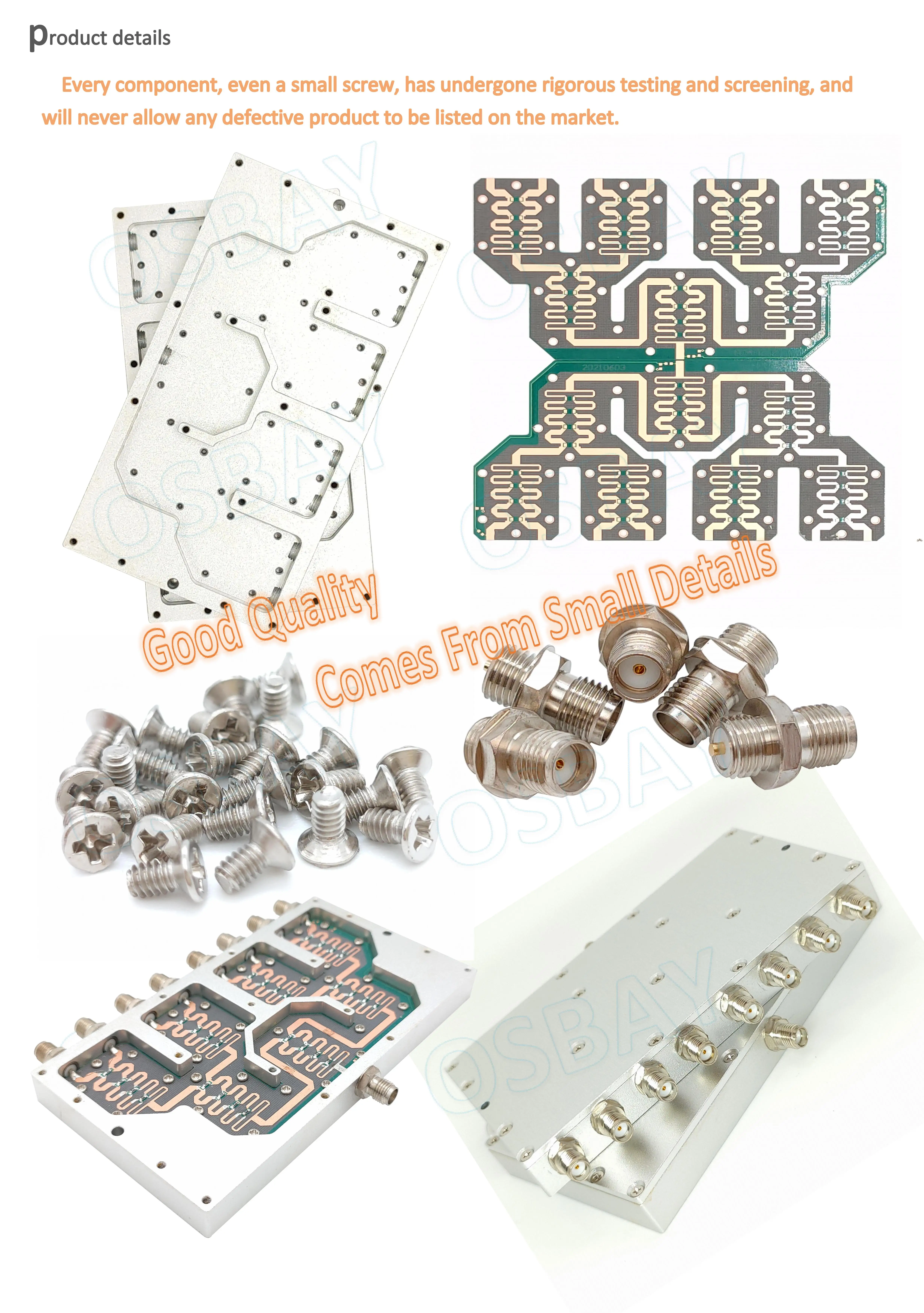

Inside View
Detailes refer to www.rfshieldingbox.com
High performance RF power diveder | Applications | ODM Options (on request) | ||||||
* Up to 40GHz. * Ideal for testing cellular handsets, RFID, wireless, Zigbee, WiMax, WLAN or similar wireless devices. * Can be constructed in any connector. | * Digital forensics * Wireless testing * R&D * EMC Testing * Smart Products * IoT | This power divider can be equipped with any or all of the following options: * The frequecy * The connector * The Power * The LOGO and the Outer packaging * Can be contructed in any size | ||||||

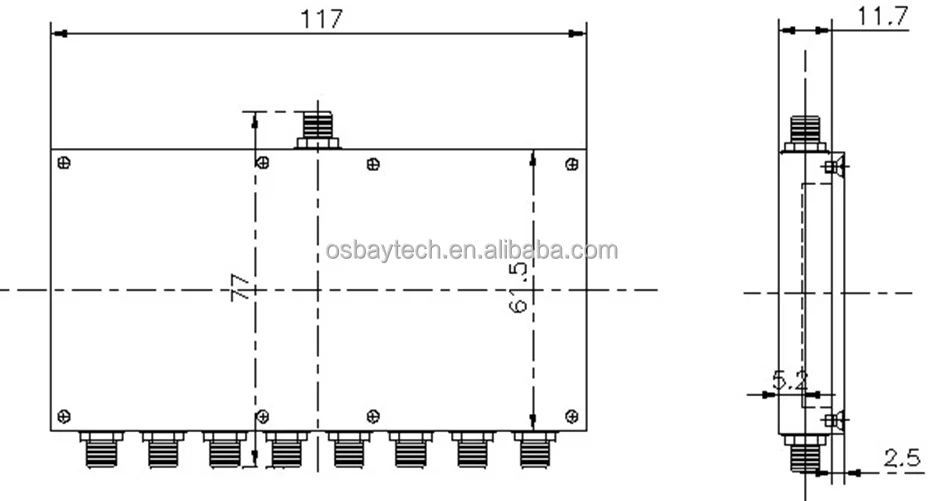

This RF Testing Box Technical Drawing: | ||||||||

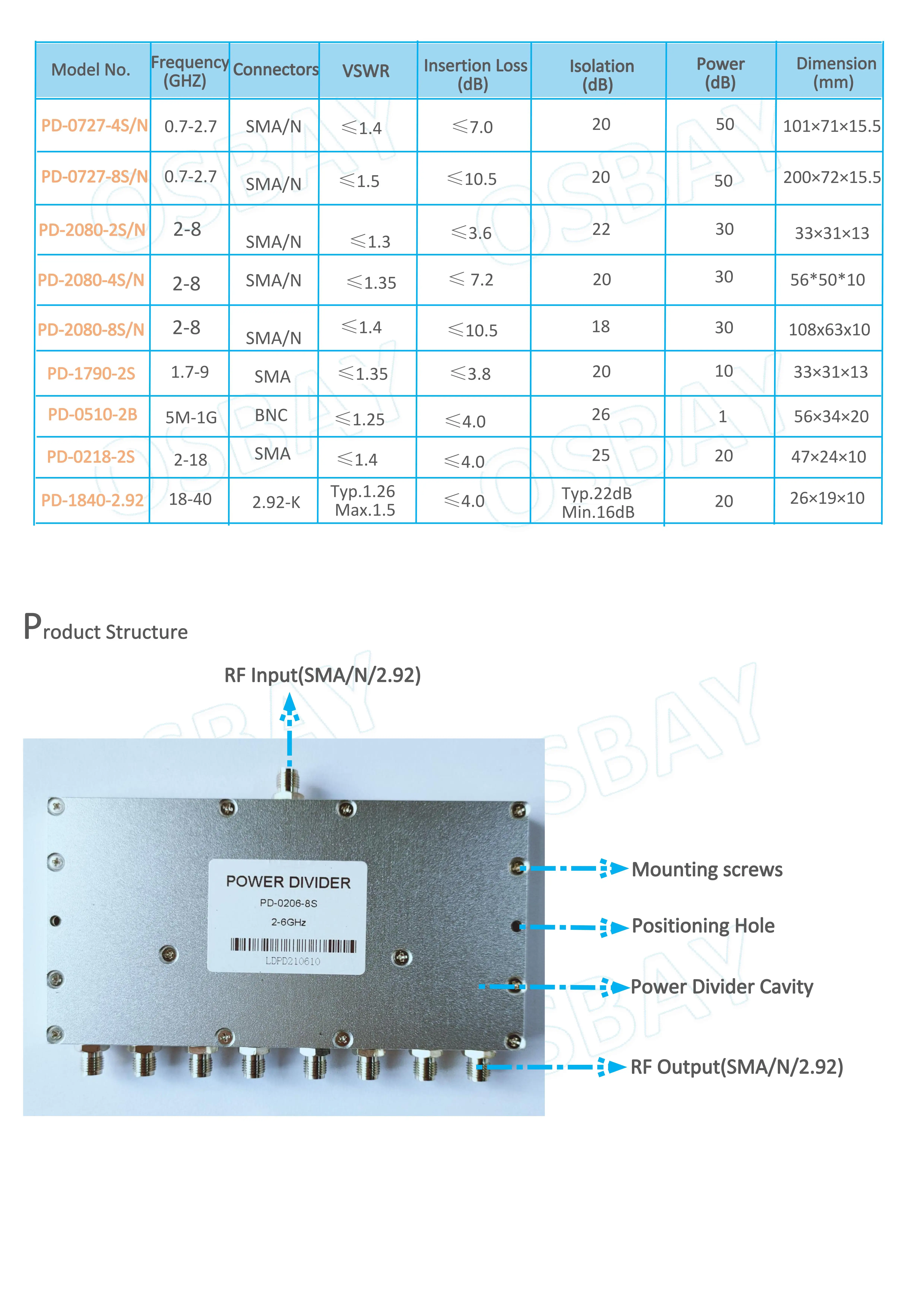

Specifications: | ||
Product Name | 8 ways 2-6 GHz power divider/ splitter SMA Connector for 5G/6G/wifi test | |
Model | PS0206-8S | |
Optional Frequency(MHz) | 2000-6000 | |
Insertion loss ( dB) | ≤10 | |
Isolation ( db) | ≥ 20 | |
Standing-wave Ratio (VSWR) | ≤1.5 | |
Amplitude balance degree | ≤0.3 | |
Impedance(Ω) | 50 | |
Connector Type | SMA-K | |
Power | 20W | |
Operating Temperature(℃) | -30~+70 | |
Dimension | 77x117x12 | |
Net Weight | 0.23kg | |
Package | Box Package for 2000-6000MHz 8 Way Power Divider | |

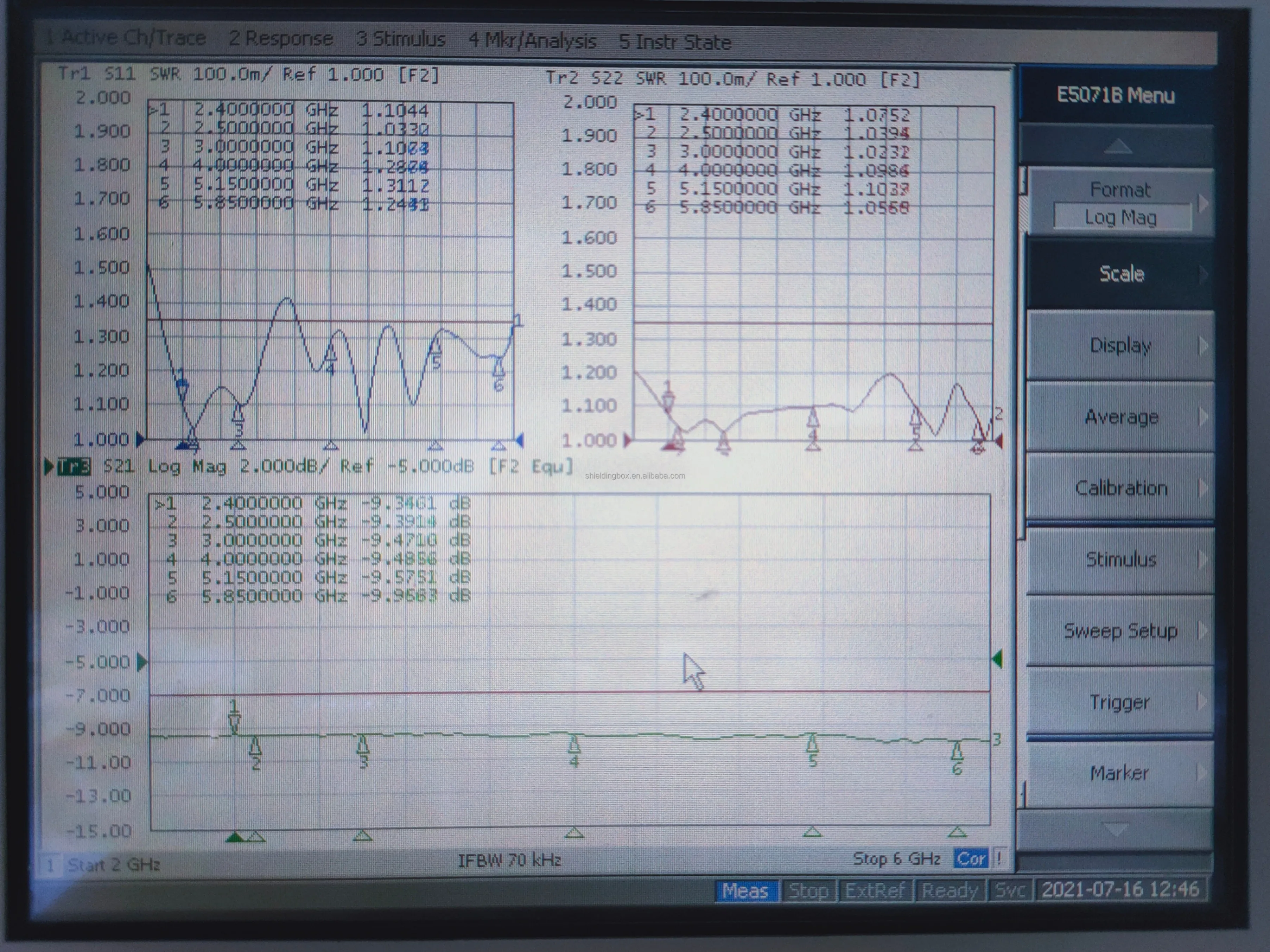

Product Test
More products
Why Choose Us
Customized design
Offering whatever size you need according to your DUT.
No MOQ
Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
Fast Delivery
Delivering the products within 3 business days for some models.
Strict Productiong & Testing Flow:
ODM Project
Product packaging
Each shielding chamber has been well packed with wooden package.
225(W)*320(D)*140(H) mm Manual rf shield box with High isolation wifi gsm 5g,wireless signal test single-layer Rf Shield Box is packaged in Export-Free Inspection and Fumigation-Free Wooden Boxes, with a firm structure. Ensure that the shielding box is not easily damaged during transportation. This kind of wooden box is suitable for long-distance transportation, including sea and air transportation, and can be exported to any country in the world.
Our company
Osbay is one of the leading professional manufacturer in the electromagnetic compatibility (EMC) field, provide full range of EMI shielding materials and EMC solutions.Our EMI shielding materials are widely used for various communication, computer, medical equipment, shielding room, MRI room, EMC chamber, electronics, military equipment, etc.We have cooperated with a group worldclass customers from all industries at home and abroad.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge
Q: What is your warranty?
A: One year
Q: It is possible to print our logo on the box?
A: yes, we will make logo card freely for you, you only need to send the LOGO picture to us (please be sure it is your own LOGO,we wont be responsiable for the risk caused by tortious logo)
Q: How will you pack the shield box?
A: we will pack the box with plywood carton with foam inside, but pack with paper carton directly for the small shield box
Q:How to place the order for the SHIELD BOX:
1. Please click the button " CONTACT SUPPLIER" to send enquiry and tell us your requirement on working size , interface
type,quantities and other request you need.
2. We will contact you within 12 hours by email or online directly about the further details
3. After we confirm all with you, we will make invoice for your payment. we accept Credit card ONLINE pay
4. After the goods ready, we send the goods out to you and tell you the tracking number.
5. We will track your goods until you receive the goods.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge
Q: What is your warranty?
A: One year
Q: It is possible to print our logo on the box?
A: yes, we will make logo card freely for you, you only need to send the LOGO picture to us (please be sure it is your own LOGO,we wont be responsiable for the risk caused by tortious logo)
Q: How will you pack the shield box?
A: we will pack the box with plywood carton with foam inside, but pack with paper carton directly for the small shield box
Q:How to place the order for the SHIELD BOX:
1. Please click the button " CONTACT SUPPLIER" to send enquiry and tell us your requirement on working size , interface
type,quantities and other request you need.
2. We will contact you within 12 hours by email or online directly about the further details
3. After we confirm all with you, we will make invoice for your payment. we accept Credit card ONLINE pay
4. After the goods ready, we send the goods out to you and tell you the tracking number.
5. We will track your goods until you receive the goods.
If you have another question, pls feel free to contact us.
Others
The Shielding box full box without breaking hole design (Filter, SMA holes excluded), the frequency band is 0.8GHz ~ 6GHz,isolation ismore than 80dB. Shielded box opened and closed is controlled by the manual button or through RS232 interface communication command. The rf shielding chamber or enclosures opens way is to take a large angle clamshell to facilitate operation. To prevent the hand grip design avoids industrial safety accident. In accordance with testing requirements can choose to use different filter interface.
