Chinese Conical felting needle for filter fabric Pre needling
- Category: >>>
- Supplier: Taizhou Chengxiang Trading Co. Ltd.
Share on (1600286864583):
Product Overview
Description
Product Description
Product Paramenters
Gauge | Shank (mm) | Intermediate Section (mm) | Working part Triangular blade beight (mm) | |||
9 | 3.56 | |||||
10 | 3.25 | |||||
12 | 2.67 | |||||
13 | 2.35 | 2.50 | ||||
14 | 2.03 | 2.05 | ||||
15 | 1.83 | 1.75 | 1.95 | |||
16 | 1.63 | 1.55 | 1.65 | |||
17 | 1.37 | 1.35 | 1.45 | |||
18 | 1.21 | 1.20 | 1.30 | |||
19 | 1.15 | |||||
20 | 0.90 | 1.00 | ||||
22 | 0.95 | |||||
23 | 0.92 | |||||
25 | 0.80 | 0.90 | ||||
26 | 0.85 | |||||
28 | 0.80 | |||||
30 | 0.75 | |||||
32 | 0.65 | 0.70 | ||||
34 | 0.65 | |||||
36 | 0.60 | |||||
38 | 0.55 | |||||
40 | 0.50 | |||||
42 | 0.45 | |||||
43 | 0.40 | |||||
46 | 0.35 | |||||
The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height. | ||||||
Conical needles come with the most wider range of sizes.
(available sizes –36G, 38G, 40G)
(available sizes –36G, 38G, 40G)
Application field
Nonwoven fabrics can be bonded together by high temperature, chemical or mechanical methods, the latter of which requires the use of a needle.When mechanical bonding is used, the fibers are transported by a barbed needle and wound into the fabric.This improves the friction between the fibers to increase the bonding of non-woven fabrics.The needle plate of the needle machine has a large number of needles embedded in it, and these needles will pass through the non-woven fabric in the specified direction.Mainly used in geotextile, press cloth, filter bag, artificial leather, disposable carpet, car interior, handmade wool, cotton, bra cotton and other surface requirements of the production of products.
Soundproof cotton
Artificial leather
Automotive Interior
Geotextile
Linoleum machine cloth
filter bag

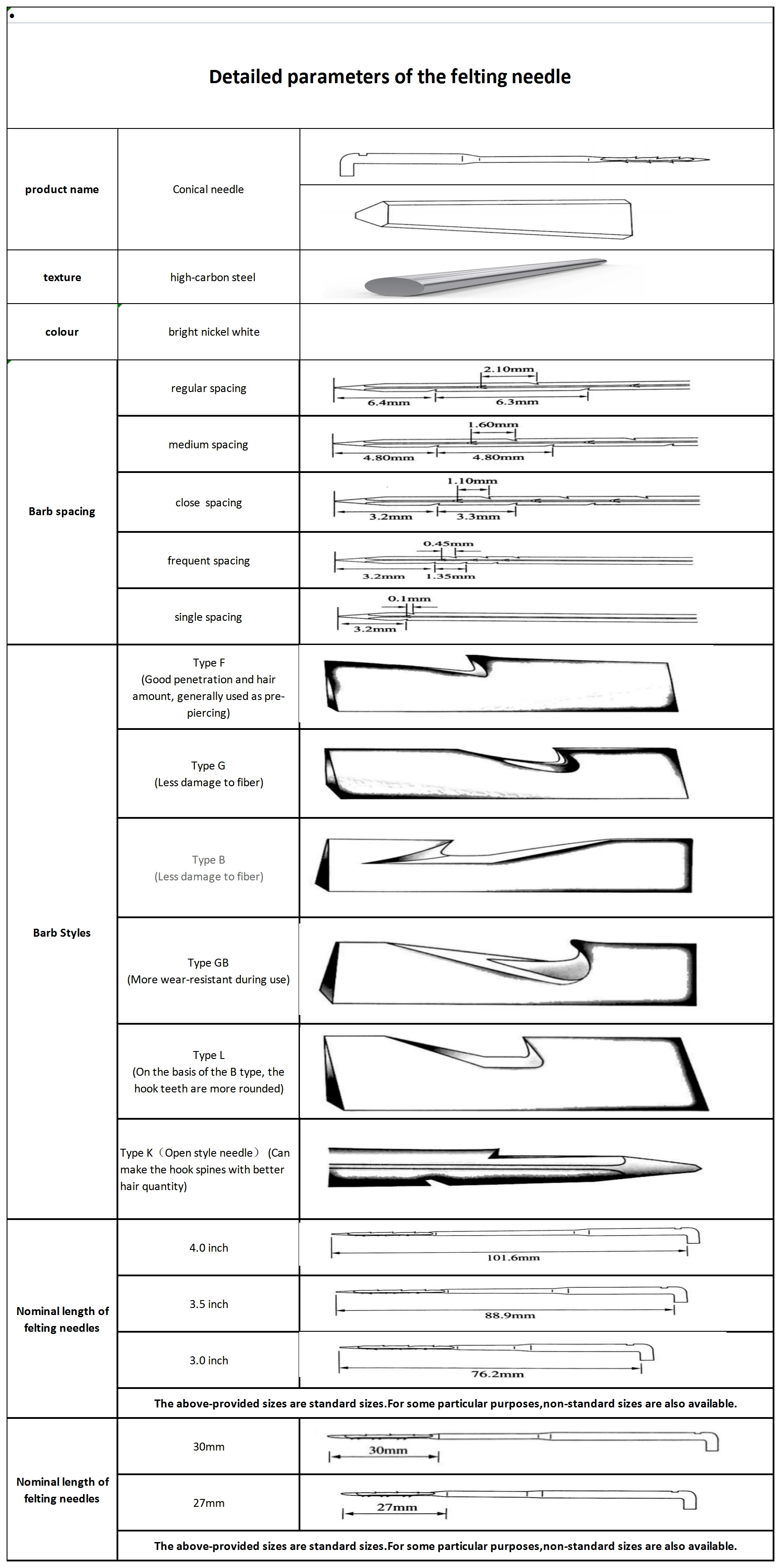

*The needle is composed of three foliage, the needle is perpendicular to the length of the conical triangular needle on any position of the cross section are triangular, from the needle tip to the needle waist direction of the front end of the needle gradually coarsening;
*The cone Angle increases significantly from the tip to the end of the working site
*The size of the barbs on each edge is graded: the closer to the tip, the smaller the barbs are
*A plurality of barbed hooks are arranged helically on the three edges of the needles, and the tip of the barbed hook is oriented toward the direction of the tip of the needle.The conical needle can reduce the probability of breaking needle,reduce calorific value and avoid fiber damage on the premise of guaranteeing the penetration power.
*The cone Angle increases significantly from the tip to the end of the working site
*The size of the barbs on each edge is graded: the closer to the tip, the smaller the barbs are
*A plurality of barbed hooks are arranged helically on the three edges of the needles, and the tip of the barbed hook is oriented toward the direction of the tip of the needle.The conical needle can reduce the probability of breaking needle,reduce calorific value and avoid fiber damage on the premise of guaranteeing the penetration power.
*More uniform bending strength, better elasticity, better stability than standard needles (fewer broken needles), higher production speed, reduce net offset
*Less initial puncture resistance, resulting in better needle guidance, less deflection, and fewer broken needles
*The number of hooks is large, the load is not too high, the bending performance is better, and the possibility of needle breaking at the back of the working part is lower
*Better surface quality of processed products (smaller funnel-shaped dents in finalproducts)
*Less machine load
*Reduce the contamination of needle, needle plate, supporting plate and stripping plate when processing recycled fiber
*Less initial puncture resistance, resulting in better needle guidance, less deflection, and fewer broken needles
*The number of hooks is large, the load is not too high, the bending performance is better, and the possibility of needle breaking at the back of the working part is lower
*Better surface quality of processed products (smaller funnel-shaped dents in finalproducts)
*Less machine load
*Reduce the contamination of needle, needle plate, supporting plate and stripping plate when processing recycled fiber
factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are the appointed foreign trade agent for the factory.
A: We are the appointed foreign trade agent for the factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
A: Generally it is 5-10 days if in stock. 15-20 days customized making and shipment, depends on the product quantity, delivery destination and custom clearance time.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How long do felting needles last?
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
A:if you are careful and learn how to use the needles correctly, a felting needle can lastfor months or even years with regular use and you can avoid painful puncture wounds.
Q:How can you tell felting needles apart?
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb.
A:Felting needles come in different gauges. The gauge number refers to the diameter of the needle. The higher the number, the finer the needle so a 40 gauge needle is finer than a 36 gauge. Different needles come with varying numbers of barb.
Q:Is needle felting expensive?
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
A:Needle felting can be as cheap as expensive as you want it to be depending on how much you do and how big your projects are and how complex they are. Also, the wool you buy places a large part in the overall cost.
Q:How long is the shelf life of the needle？
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
A:Unsplit can be stored for up to three years, if split, depending on the condition of preservation.
Q:How do I keep the needle？
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
A：Packed products should be kept in a dry place.Please oil the product if it has been disassembled, and keep away air and moisture.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 35% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
