HP-NXT High Speed Full Automatic Plastic Film 4 Colour Printer Four Color Flexo Printing Machine
- Category: Flexographic Printers >>>
- Supplier: Suzhou,Hanplas,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Details & Specification
Model | HP-NXZ4-1200 |
Max. Material width | 1250mm |
Max. Effective print width | 1160mm |
Print length ( repeat) | 300-900mm |
Printing material | Plastic film, PE, HDPE, LDPE, PP, OPP, BOPP, PET ........etc. |
Max. Mechanical speed | 130m/min (Actual speed depend on print material, plate, ink etc.) |
Max. Printing speed | 10-120m/min(Actual speed depend on print material, plate, ink etc.) |
Register precision | Longitude:±0.20mm ; Transverse:±0.20mm |
Suitable Ink | Water-based ink or Oil-based ink |
Plate material | Resin or rubber plate material |
Thickness of Plate | 2.28mm ( or at your choice) |
Thickness of Glue | 0.38mm, German Tesa |
Master motor | 3.7Kw, Taiwan taibang brand |
The frequency converter | 3.7KW , Taiwan delta brand |
Machine power | 42kw |
Cover Dimensions (m) | 5.6× 2.6× 3.0m |
Machine weight | Around 5200KGS |
Voltage | 380V, 50HZ, 3PHASE ( or at ur choice) |
Plate roller on the machine | 4pcs × 40cm ( plate roller with chromplate avoid rusting) |
Notice:
As well we continuously keep working on research and improvement our machine, we might change the specifications, design and characteristics on this table.
Please refer to the inquiry results for actual specifications
Please refer to the inquiry results for actual specifications

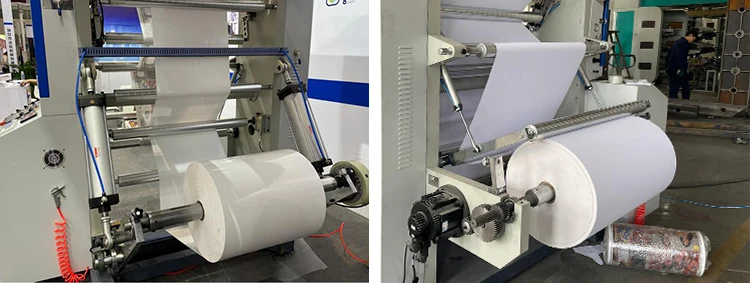

Single Unwind & Single Rewind Unit
Automatic Tension Controller
Motorized Register Control
Notice:
Bag making machines are usually customized according to customer requirements.
Please send your bag samples to us as well as its bag size. It is better for us to check each details and provide the corresponding solutions.
We can work out a proper offer soon.
Please send your bag samples to us as well as its bag size. It is better for us to check each details and provide the corresponding solutions.
We can work out a proper offer soon.
Sample Bag
