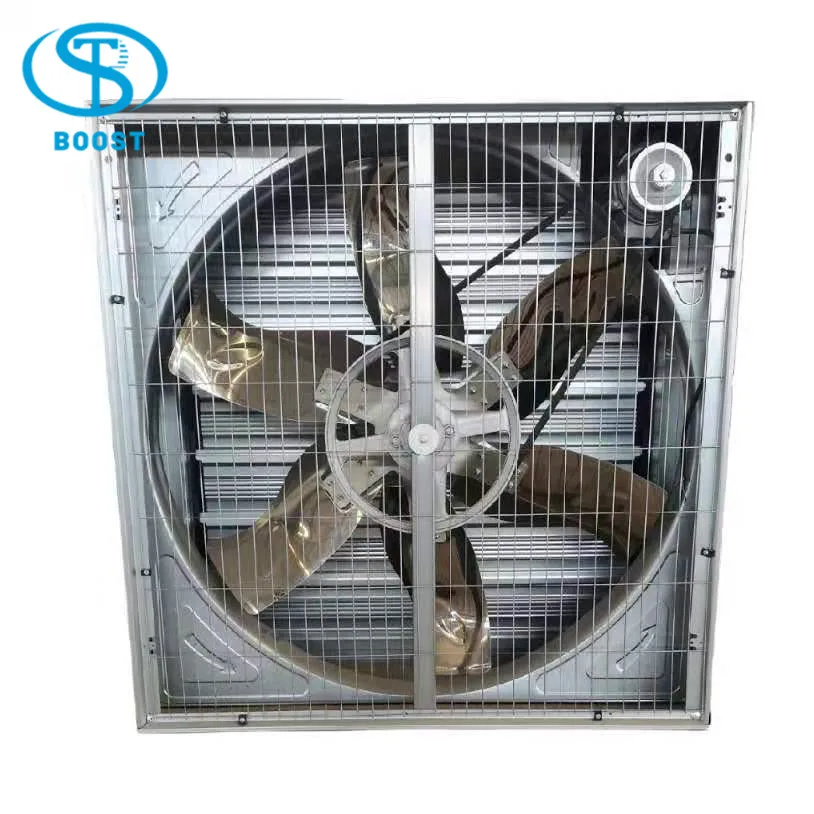

36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600286957533):
Product Overview
Description
Product Description
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Boost is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.Boost exhaust fan widely used in agriculture,flowers,animal husbandry,poultry house,greenhouse,factory workshop.
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow m³/hr | Input power (W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710 (28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750 (30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900 (36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 458 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Blade:
*Blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming.Large air volume,no deformation,no broken,no dust,attractive and durable.
*Thickness 1.2mm,surface finish BA grade.Stainless steel,galvanized and alumium for option.
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Motor:
*Motor voltage and frequency could be customized.
*Chinese famous motor,special design for fan,the first one put forward the phase lack protection device which could power off when
shortage of electricity.
*Motor protection grade IP55,insulation Class:Grade F
*Both Chinese famous motor and Siemens motor are available.
*Motor voltage and frequency could be customized.
*Chinese famous motor,special design for fan,the first one put forward the phase lack protection device which could power off when
shortage of electricity.
*Motor protection grade IP55,insulation Class:Grade F
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House

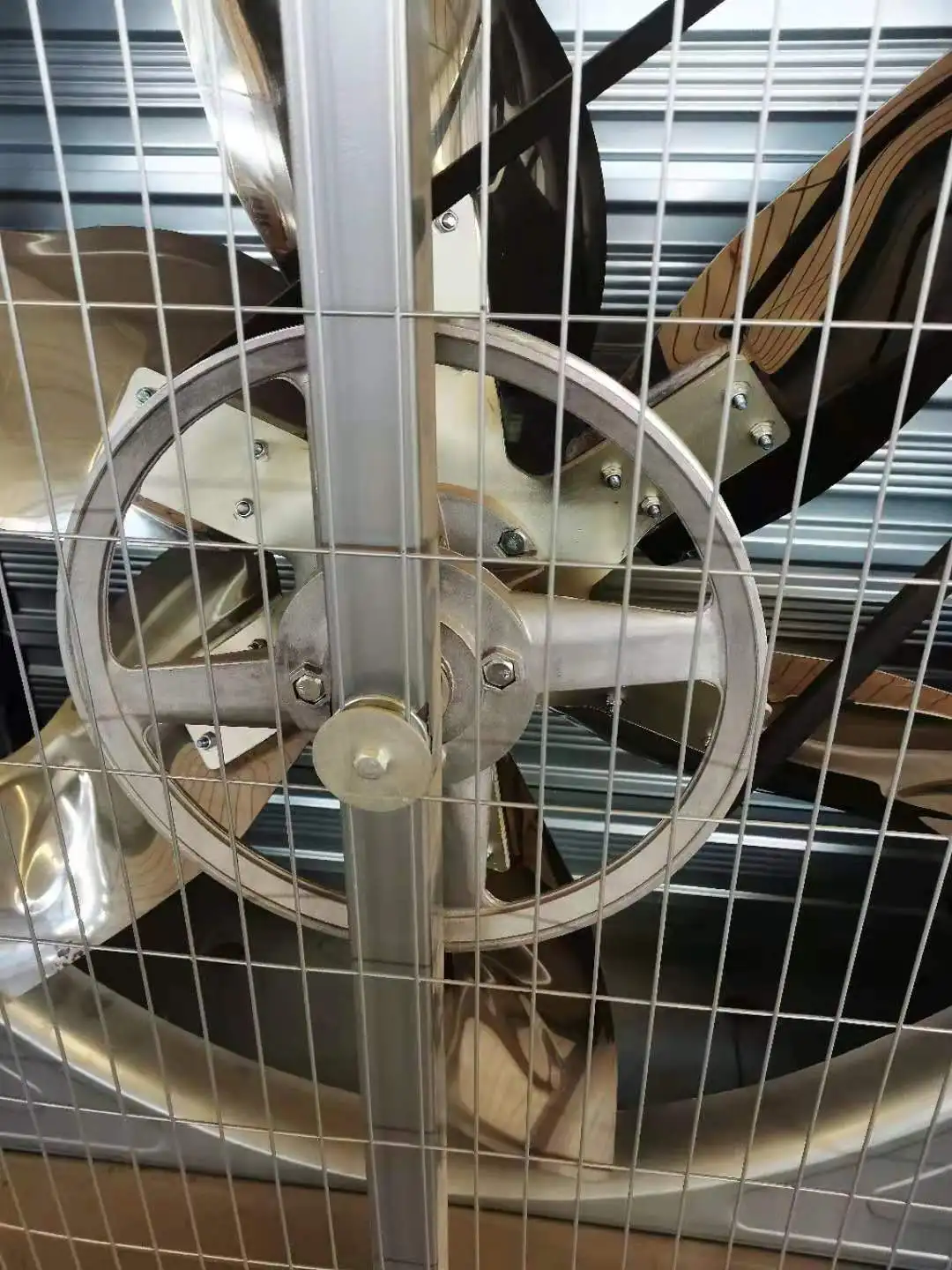

Fan belt pulley:
*Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting.Light weight,lower vibration.
*Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House

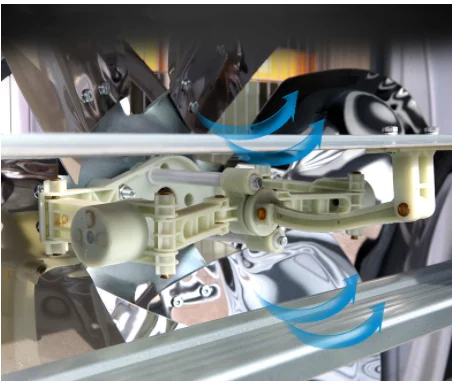

Centrifugal system open :
*Centrifugal system open the shutters at complete go degree to ensure the lowest air resistance and biggest air volume.
*When close,the sealing can efficiently bloce light and wind into the poultry farm house.
*As the first one adopt high quality nylon PA66 to ensure the long service life .
*The fasteners of centrifugal system all are copper rivets,wear-resisting and no rust,flexible,Guide rod is made of 304 stainless steel,ensure the high strength,no rust,and reduce friction
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Belt:
Use abroad belts,making sure long service life,free to maintain.
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
Frame:
Farm adopts Hot Galvanized sheet with zinc thickness of 275g/m2,which extremely improve its anti-corrosion performance ,
shutters:
shutters fixed parts are made of high quality nylon which ensure long service life,open flexibly.Shutters are made of galvanized sheet with thickness of 0.8mm and 1.5mm,ensure shutters no deformation,running stable
36.42.48.54 Inch 900.1060 1220 1380mm Industrial Ventilation Exhaust Fan For Greenhouse Poultry House
More humanized design

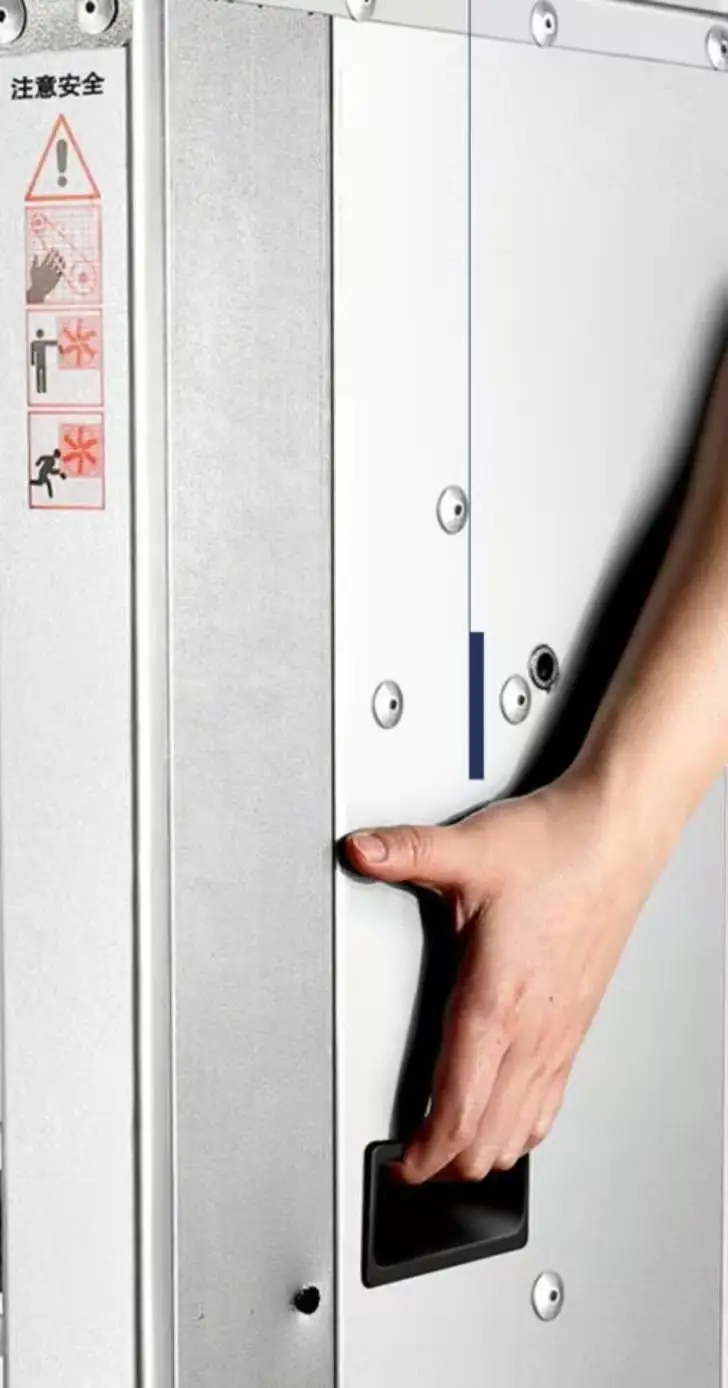

Easy to move
Not to be broken
Not to be broken

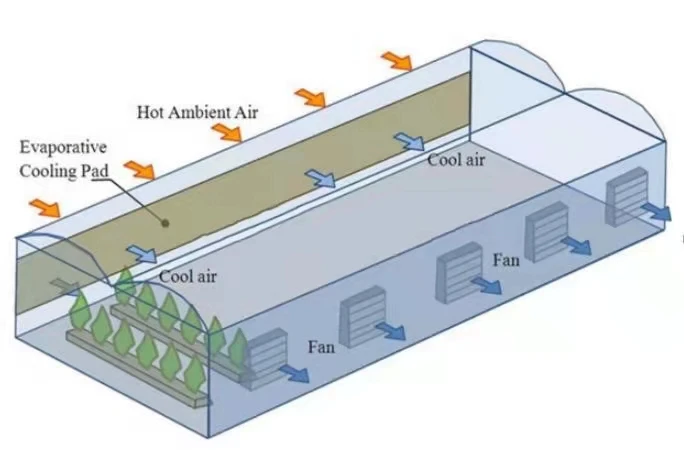

Working Principle Diagram
Details Images
Packing & Delivery
Factory&Workshop
Why choose BOOST?
BOOST factory is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.It has long cooperated with Shanghai Jiaotong University,China Agricultural University,,Huazhong University of Technology,etc.In cooperation with universities,a research institute integrating production,learning and research has been established
We have strong design and research capabilities and experienced production workers. Our products are exported to manycountries around the word.
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory..
* Sample testing support.
* Visit our Factory..
Title goes here.
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
