Top sale digital x ray inspection machine x ray tube industrial food inspection system in testing equipment
- Category: >>>
- Supplier: Guangdong Yiwan Testing Technology Co. Ltd
Share on (1600286957577):
Product Overview
Description
Products Description
Our X-ray foreign body detection machine advantages:
1. Testing comprehensive: A full range of foreign body testing, including metal, non-metallic foreign body; not limited to product attributes, can detect metal, non-metallic packaging and canned goods.
2. Accuracy: stainless steel ball accuracy of up to 0.3mm in diameter, stainless steel wire precision up to 0.2mm * 2mm diameter, ceramic ball accuracy of up to 1.0mm diameter, glass ball accuracy of up to 1.0mm in diameter.

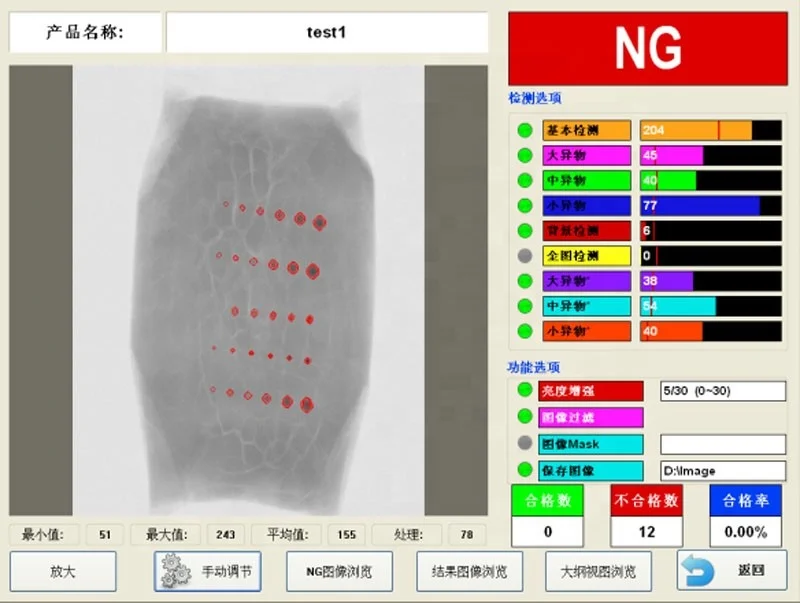

3 easy to operate: 15-inch large touch-screen display, easy to achieve man-machine dialogue; software comes with self-learning function, without the user manual setting of parameters to reduce the user's difficulty; automatically save the test product images, user-friendly analysis and tracking products.
4.Automatic shielding: according to the product testing requirements, shielding the area leading to reduced product testing accuracy and improve the overall testing accuracy. For example, ham clasps at both ends of the aluminum shield, while other areas of normal testing, this time aluminum buckle will not be considered as foreign bodies, does not affect the other areas of high-precision testing.
5. Adaptability: The machine is equipped with industrial air conditioning, testing from the external environment temperature and humidity effects.
6. Security: X-ray leakage in line with the European CE standard, less than 1 micro-Sec / hr; software and hardware at the same time with a complete safety precautions, the moment of the machine state to avoid misuse by the user For example, if the user opens the cabinet door while the machine is in operation, the machine automatically stops the X-ray irradiation immediately.
7. Quality Assurance: The main components such as X-ray source, X-ray detector, motor, inverter, etc. are well-known imported brands to ensure the performance and service life of the machine.
8. Quality Certification: CE certification, exported to Europe, North America, Africa and other regions, and in Canada, Britain, Hungary, Poland, South Korea and other countries and Taiwan have agents and distributors.
1. Testing comprehensive: A full range of foreign body testing, including metal, non-metallic foreign body; not limited to product attributes, can detect metal, non-metallic packaging and canned goods.
2. Accuracy: stainless steel ball accuracy of up to 0.3mm in diameter, stainless steel wire precision up to 0.2mm * 2mm diameter, ceramic ball accuracy of up to 1.0mm diameter, glass ball accuracy of up to 1.0mm in diameter.
3 easy to operate: 15-inch large touch-screen display, easy to achieve man-machine dialogue; software comes with self-learning function, without the user manual setting of parameters to reduce the user's difficulty; automatically save the test product images, user-friendly analysis and tracking products.
4.Automatic shielding: according to the product testing requirements, shielding the area leading to reduced product testing accuracy and improve the overall testing accuracy. For example, ham clasps at both ends of the aluminum shield, while other areas of normal testing, this time aluminum buckle will not be considered as foreign bodies, does not affect the other areas of high-precision testing.
5. Adaptability: The machine is equipped with industrial air conditioning, testing from the external environment temperature and humidity effects.
6. Security: X-ray leakage in line with the European CE standard, less than 1 micro-Sec / hr; software and hardware at the same time with a complete safety precautions, the moment of the machine state to avoid misuse by the user For example, if the user opens the cabinet door while the machine is in operation, the machine automatically stops the X-ray irradiation immediately.
7. Quality Assurance: The main components such as X-ray source, X-ray detector, motor, inverter, etc. are well-known imported brands to ensure the performance and service life of the machine.
8. Quality Certification: CE certification, exported to Europe, North America, Africa and other regions, and in Canada, Britain, Hungary, Poland, South Korea and other countries and Taiwan have agents and distributors.
Model | Standard TXR Series | ||||||||||||||
Standard | 2480 | 4080 | 4080L | 4080S | 4080SL | 4080SH | 5080SH | 6080SH | |||||||
X-ray Tube | MAX. 80kV, 150W | MAX.80kV, 210W | MAX. 80kV,350W | ||||||||||||
Inspection Width | 240mm | 400mm | 500mm | 600mm | |||||||||||
Inspection Height | 110mm | 160mm | 100mm | 160mm | 100mm | 220mm | 250mm | 300mm | |||||||
Best Inspection Sensitivity | Stainless steel ballΦ0.3mm Stainless steel wireΦ0.2*2mm Glass/Ceramic ballΦ1.0mm | Stainless steel ballΦ0.4mm Stainless steel wireΦ0.2*2mm Glass/Ceramic ballΦ1.0mm | |||||||||||||
Conveyor Speed | 10-60m/min | 10-40m/min | |||||||||||||
Operation System | Windows 7 | ||||||||||||||
Protection Method | Soft curtain | ||||||||||||||
X-ray Leakage | < 1 μSv/h (CE Standard) | ||||||||||||||
Level of Protection | IP66(Under belt) | ||||||||||||||
Working Environment | Temperature: -10~40℃ Cooling Mode: industrial air conditioning | ||||||||||||||
Humidity:30~90% no dew | |||||||||||||||
Rejecter Mode | Sound and light alarm, belt stops(Rejecter optional) | ||||||||||||||
Air Pressure | 0.8 Mpa | ||||||||||||||
Power Supply | 1.5kVA | ||||||||||||||
Main Material | SUS304 | ||||||||||||||
Surface Treatment | Mirror polish/Sand blasting | ||||||||||||||
Customer feedback
Recommend Products
Company Profile
FAQ
1.How long of the warranty period? Whole machine 1year. In warranty period, We will send the part free to replace the one
that is broken.
2.How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment? T/T, L/C, Western Union, etcA: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order? Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance? Wearing parts,for example, motor belt, Disassembly tool(free) are what we could provide.And we can give you technical guidance.
that is broken.
2.How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment? T/T, L/C, Western Union, etcA: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order? Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance? Wearing parts,for example, motor belt, Disassembly tool(free) are what we could provide.And we can give you technical guidance.
