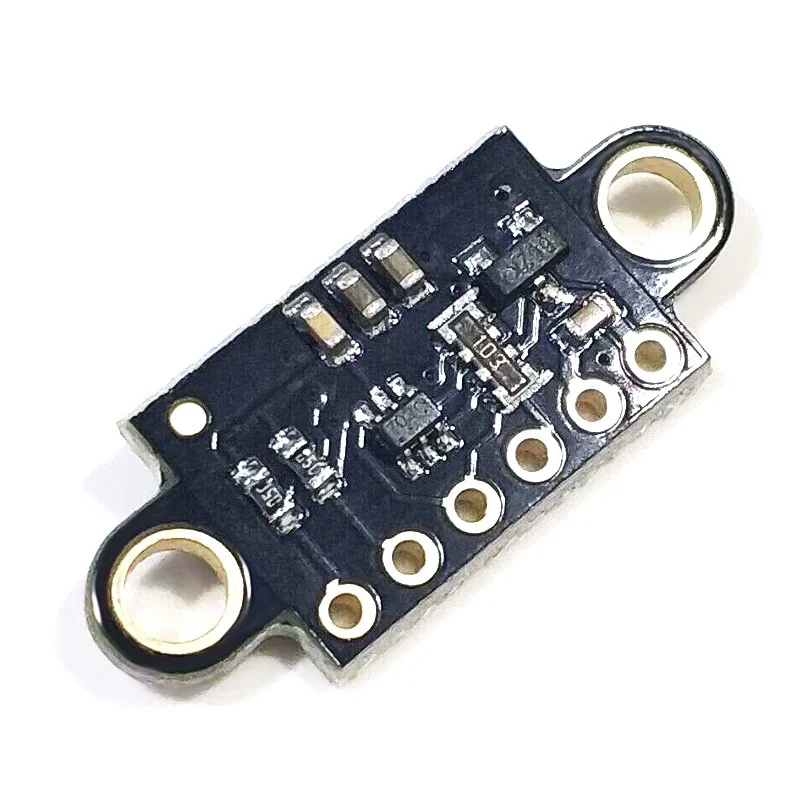

VL53L1X 3V 5V Distance 4M Measurement Laser Ranging Flight Time Sensor Module
- Category: >>>
- Supplier: Shenzhen Electronic Technology (Guangzhou) Ltd.
Share on (1600287069646):
Product Overview
Description
Products Description
Receive programmable ROI locations on the array to provide multi-zone operational control of the host. Made of high quality material, solid, durable and good performance, long service life. SPAD (single photon avalanche diode)receive array with integrated lens. Low-Power microcontrollers run advanced digital firmware.
Pin compatible with VL53L0X flight sense ranging sensor, but not compatible with the program. Fast and accurate long distance ranging, and distance measurement up to 400 cm, ranging frequency up to 50 Hz.
The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz Unlike conventional IR sensors, the VL53L1X uses ST’s latest generation ToF technology which allows absolute distance measurement
whatever the target color and reflectance. It is also possible to program the size of the ROI on the receiving array, allowing the sensor FoV to be reduced. Key Features Fully integrated miniature module Emitter: 940 nm invisible laser (Class1) SPAD (single photon avalanche diode) receiving array with integrated lens Low-power microcontroller running advanced digital firmware Pin-to-pin compatible with the VL53L0X FlightSense ranging sensor Fast and accurate long distance ranging Up to 400 cm distance measurement Up to 50 Hz ranging frequency Typical full field-of-view (FoV): 27 ° Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced Programmable ROI position on the receiving array, providing multizone

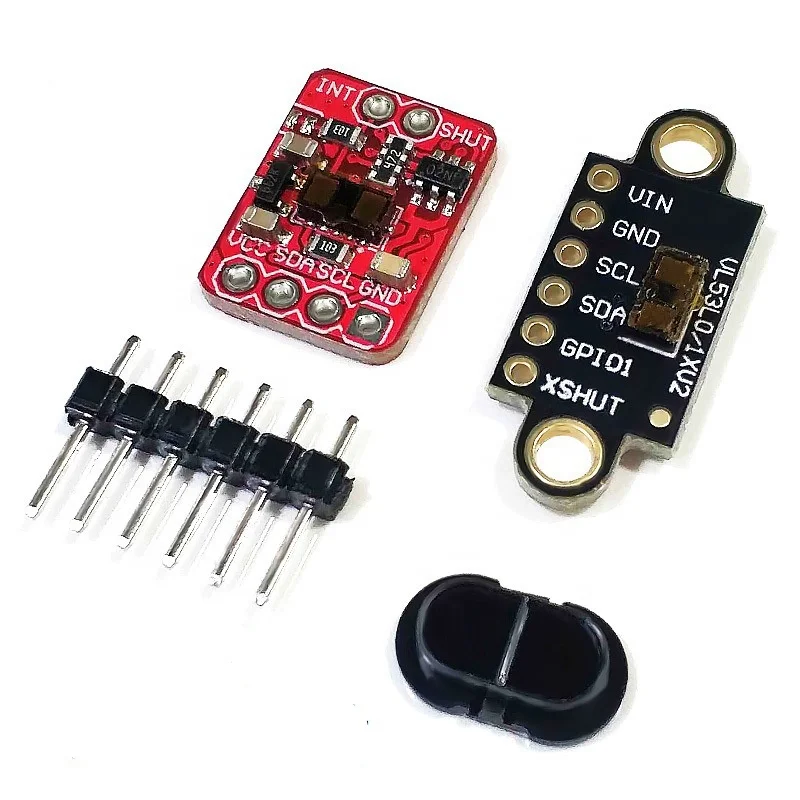

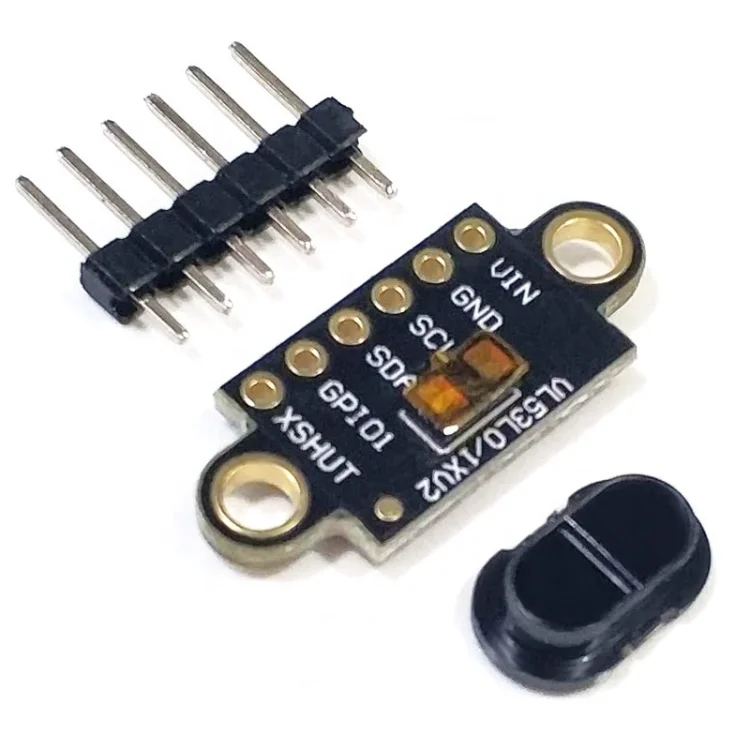

operation control from the host Easy integration Single reflowable component Can be hidden behind many cover window materials Software driver and code examples for turnkey ranging Single power supply (2v8) I⊃2;C interface (up to 400 kHz) Shutdown and interrupt pin 1 x Laser Ranging Flight Time Sensor Module 1 x Pin Header 1 xOptical cover
Pin compatible with VL53L0X flight sense ranging sensor, but not compatible with the program. Fast and accurate long distance ranging, and distance measurement up to 400 cm, ranging frequency up to 50 Hz.
The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz Unlike conventional IR sensors, the VL53L1X uses ST’s latest generation ToF technology which allows absolute distance measurement
whatever the target color and reflectance. It is also possible to program the size of the ROI on the receiving array, allowing the sensor FoV to be reduced. Key Features Fully integrated miniature module Emitter: 940 nm invisible laser (Class1) SPAD (single photon avalanche diode) receiving array with integrated lens Low-power microcontroller running advanced digital firmware Pin-to-pin compatible with the VL53L0X FlightSense ranging sensor Fast and accurate long distance ranging Up to 400 cm distance measurement Up to 50 Hz ranging frequency Typical full field-of-view (FoV): 27 ° Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced Programmable ROI position on the receiving array, providing multizone
operation control from the host Easy integration Single reflowable component Can be hidden behind many cover window materials Software driver and code examples for turnkey ranging Single power supply (2v8) I⊃2;C interface (up to 400 kHz) Shutdown and interrupt pin 1 x Laser Ranging Flight Time Sensor Module 1 x Pin Header 1 xOptical cover
