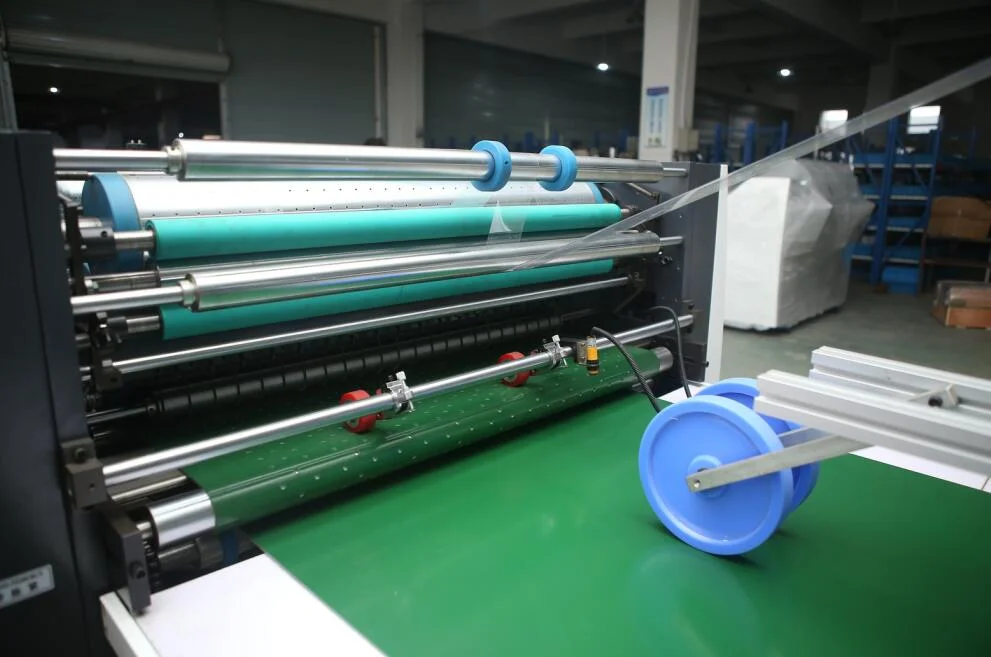

Automatic shaped window patching machine for carton and E flute box
- Category: >>>
- Supplier: Wenzhou Bonjee Machinery Co. Ltd.
Share on (1600287433490):
Product Overview
Description

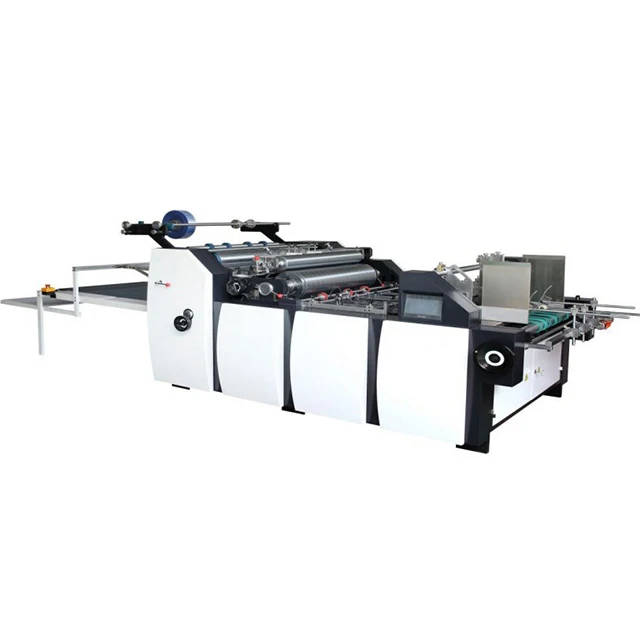

Window Patching Machine 1080T
1080T Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes. The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.
Product Description
1.Feeding

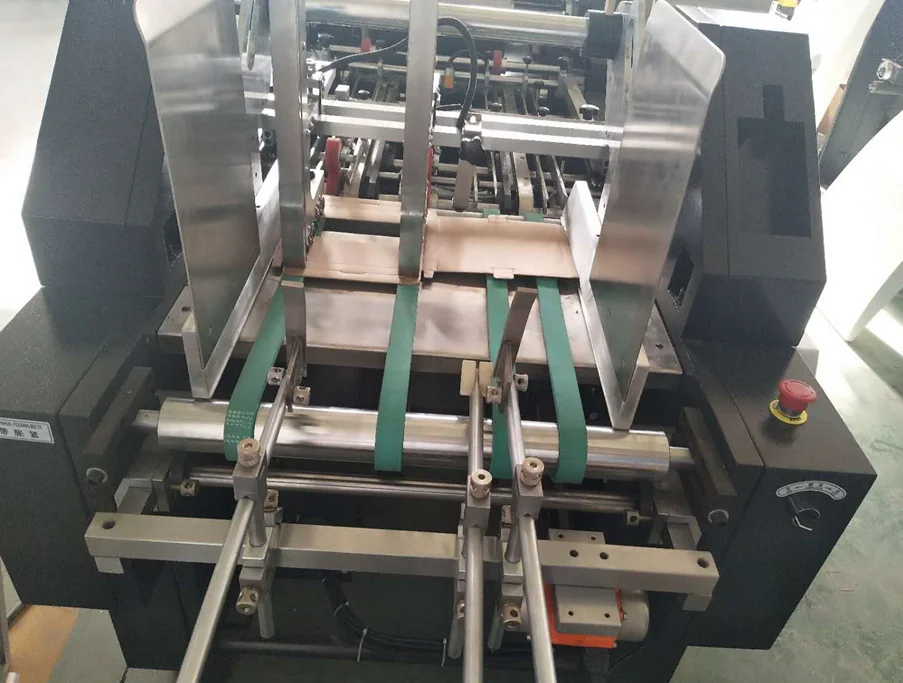

The paper feeder parts is controller by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life ,process the paper products to the conveying parts steady and orderly. Perfect for the cardboard and corrugated
2. Conveying Parts
Double paper servo control

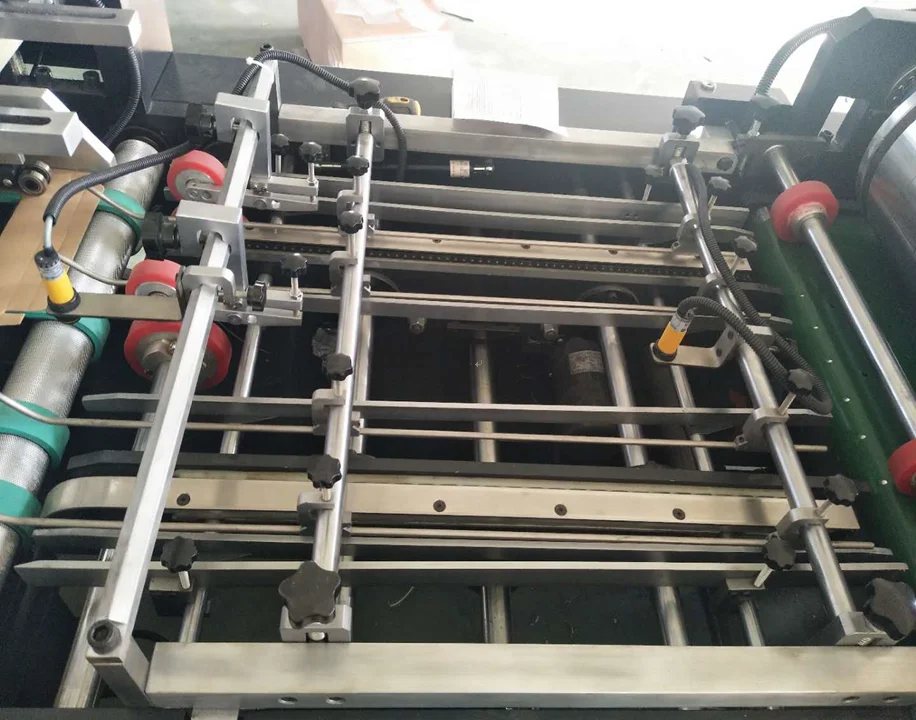

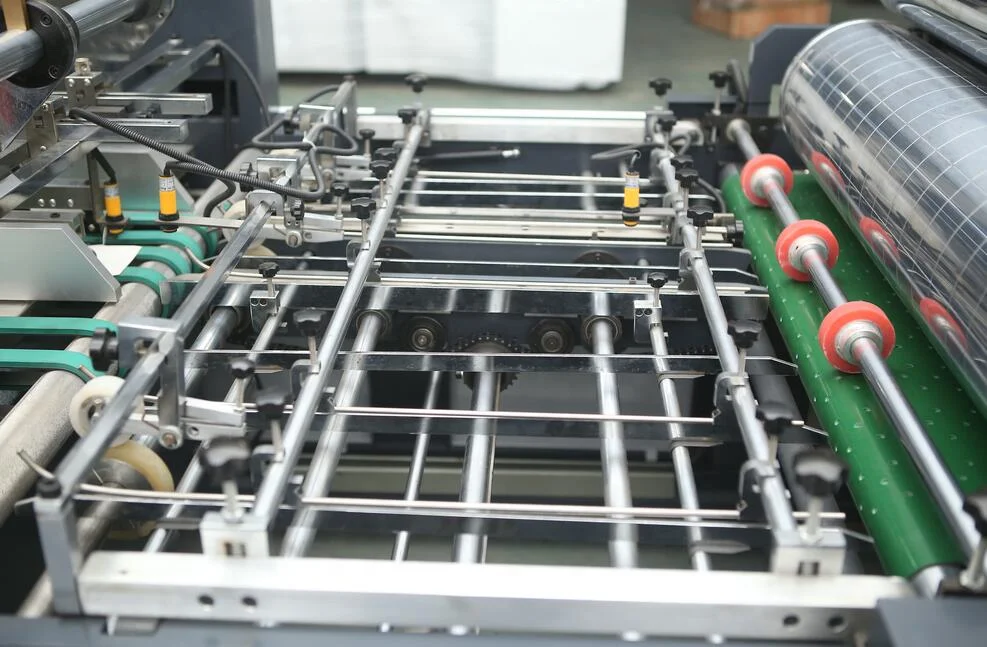

The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection.
The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection.
3. Gluing Parts
The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirement and the gluing position ,save the gluing quantity, it is easy for pulling out the gluing parts，convenient for washing. The gluing roller stopped the gluing when stopped the machine. And the conveying parts dropped automatically, the gluing is not easy to print on the conveyor belts.

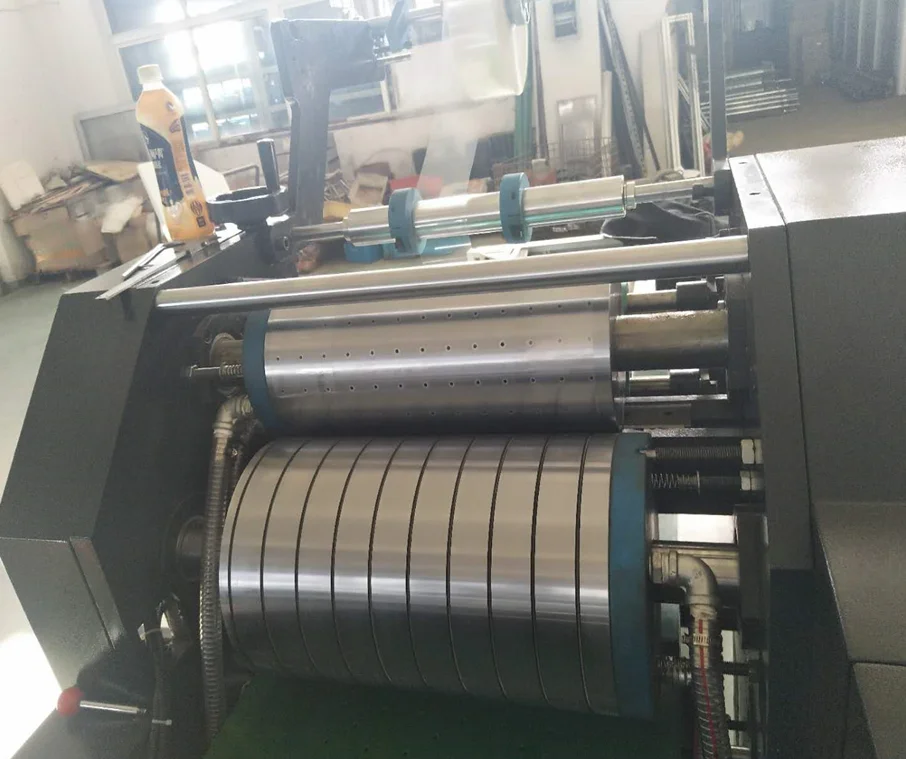

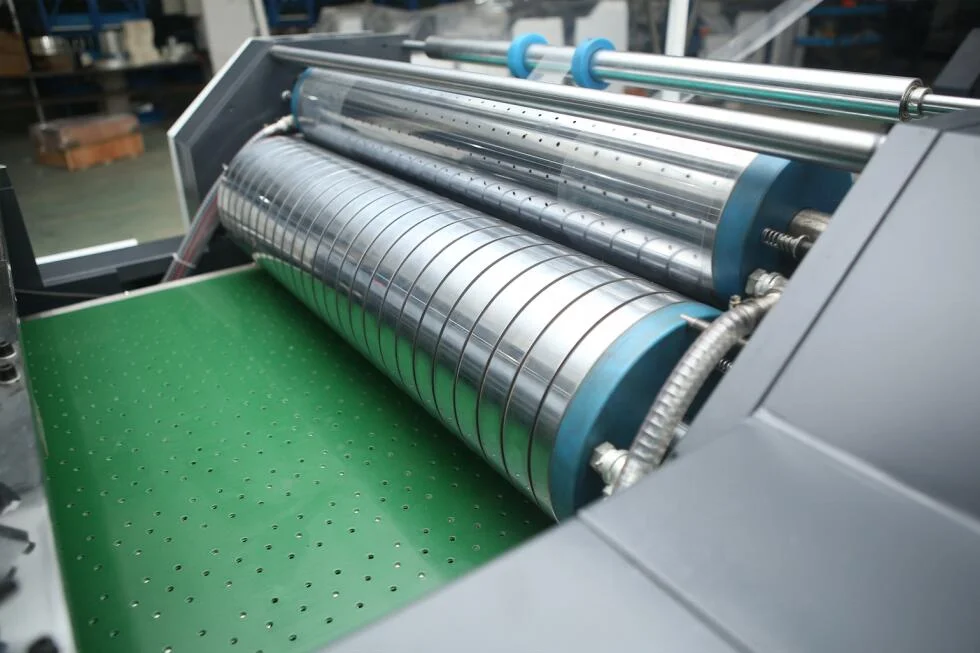

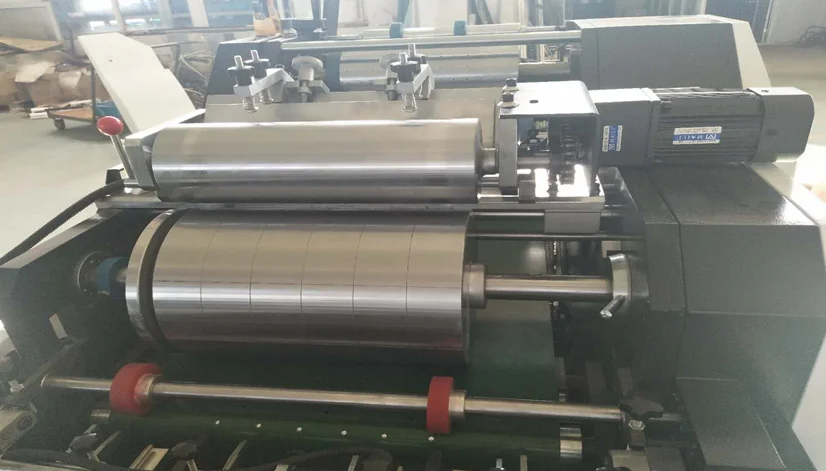

The upper roller is the cutting film roller with the two blade ,one the upper blade, the other is the lower blade, finishing the cutting of the film The below roller is the suction roller, the film is patched on the suction roller Servo film adjustment

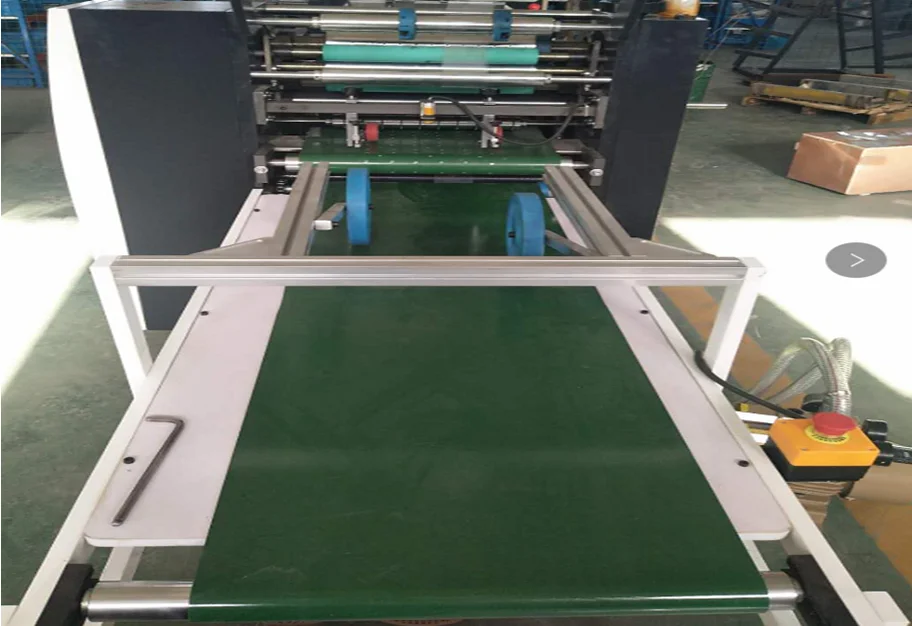

The patching products conveying to the paper delivery plate, finish the paper accumulation and collection Paper delivery parts can
be adjust single.
be adjust single.
Product Presentation
Max. Paper Size(mm) | 1080*680 |
Min. Paper Size(mm) | 140*140 |
Max. Film Size(mm) | 410*300 |
Min. Film Size(mm) | 80*60 |
Film Thickness(mm) | 0.05～0.25 |
Max. Working Speed | 10000s/h |
Cardboard | 200～800g/m2 |
