industrial Low speed sound proof injection machine side recycled waste degraded material plastic pulverizer
- Category: >>>
- Supplier: Guangdong Soxi Intelligent Equipment Co. Ltd
Share on (1600287459342):
Product Overview
Description
Product Description

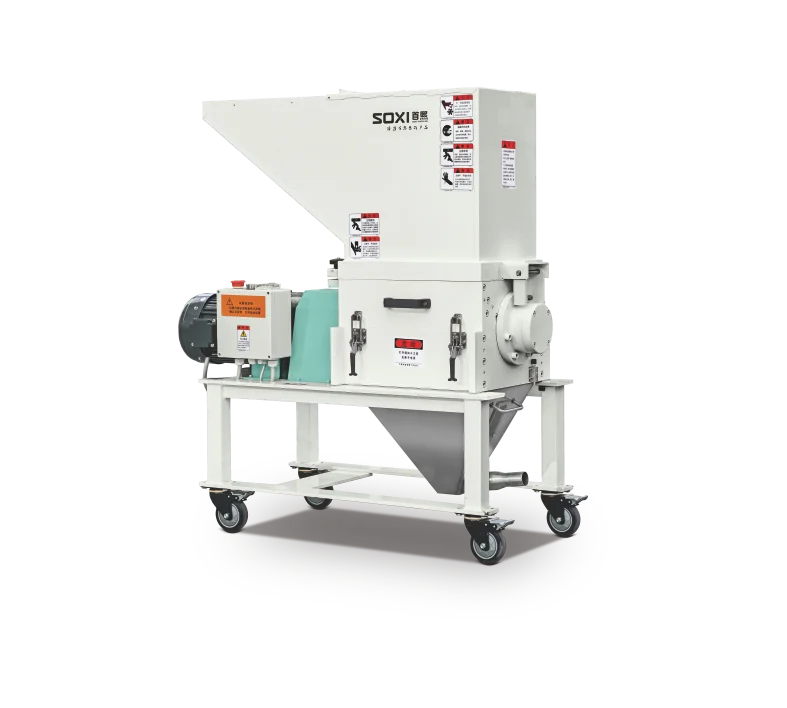

Low speed sound proof injection machine side recycled degraded material plastic pulverizer
The slow speed pulverizer is suitable for the immediate crushing and recycling of the nozzle material of the injection molding machine at the side of the machine to avoid material pollution and save the storage and crushing space of the workshop. Reduce dust and noise; improve the environment of the workshop.
Stable operation, Grinder durability is superior
Tooth gnawing type crushing tool,SKD-11 material
Specially developed worm gear reducer, high torque, quiet, impact resistance and durable
The crushing chamber body is all CNC processed and high precision to ensure the interchangeability of all parts
Crush and granulate most plastics part , shape , uniformity , less dust
Suitable for precise and demanding injection molding occasion
Suitable for injection molding machines with hard material nozzles for immediate recycling
Optional suction machine + proportional valve, conveyor belt, etc
According to standard machine classification a total of 4 models, respectively 1HP, 2HP, 3HP, 4HP, 5HP. General machine voltage is 3P, 380V, 50HZ, if it is 3P, 200V need special order. If you encounter fiberglass outlet material to be customized glass fiber special tools, such as Japan SKD-11 tool.

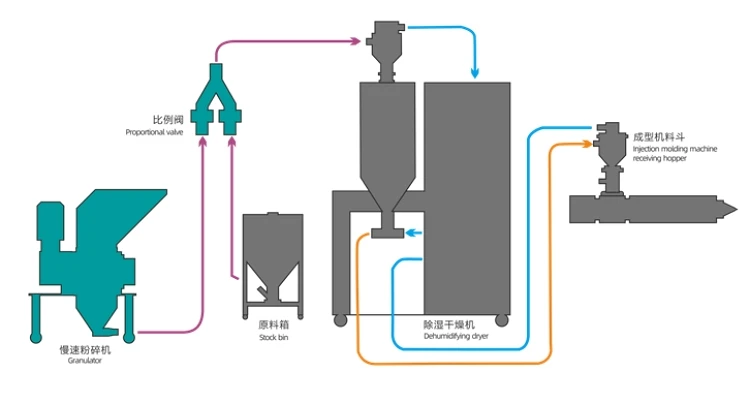

SUCTION TYPE INSTALLATION DIAGRAM

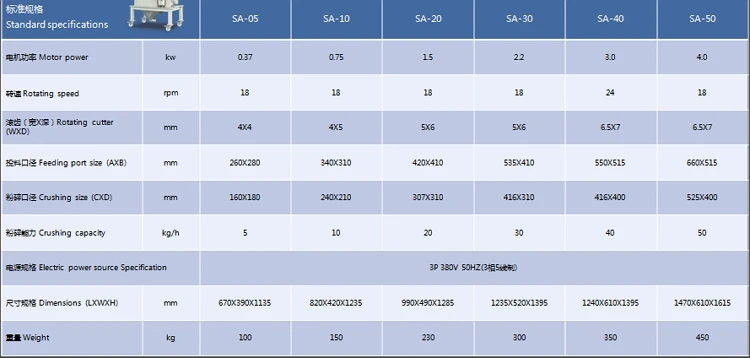

Low speed sound proof plastic crushing recycling axial granulator next to injection machine specs
| SA Series | SA-10 | SA-20 | SA-30 | SA-50 |
| Motor power KW | 0.75 | 1.5 | 2.2 | 3.7 |
| Rotating speed rpm | 18 | 18 | 18 | 18 |
| Rotating Cutter(W*D) mm | 5*6 | 5*6 | 6.5*7 | 6.5*7 |
| Feeding port size mm | 230*235 | 325*310 | 416*310 | 520*405 |
| Crushing capacity kg/h | 10 | 20 | 30 | 50 |
| Electric power source | 3p 380v 50hz (3 phase 5 lines) | |||
| Dimension (LWH)mm | 785*450*1070 | 990*485*1285 | 1235*520*1395 | 1315*700*1730 |
| weight | 200 | 230 | 265 | 500 |
Company Information
Manufacturing facility and Modernized Metal-processing workshop
PROJECT CASES in Plastic Injection Industry
SOXI Certificates
SOXI Clients
FAQ
Q: What differciate SOXI with hundreds of other manufacturer?
- there are two important procedures in the fabricating of plastic auxiliary equipment, assembly and cabinet production.soxi owns its own sheet metal workshop, which cut the transaction cost and have better quality control. the cabinet is sturdy and built to last.
Q: How large is SOXI manufacturing base?
A: SOXI manufacturing base is located in Heyuan,Guangdong province. it covers 12 acres of land area. the combined area of office and workshop is 22,000 square meters.
Q: How many workers do you have?
A: We have 180 staff members, the majority of staff are based on Heyuan city, while R&D and sales center are based in Shenzhen.
Q: How many years has the company been established?
A: The company was established in 2004 in Shenzhen, and in 2017, the company invested RMB128million in Heyuan to build modernized workshop. and changed company name from Shenzhen SOXI to Guangdong SOXI.
Q: Who are some of your reference customers?
A: F**W,To**ta, F**d, B*D....etc in automotive. H**er, T*L, A*X....etc in household electric. Sie***s, Xer*x, Fox***n,
Om**n....etc in electric supply.
Q: What is your standard delivery time?
A: For standard units with 230V/50Hz/1Phase or 400V/50Hz/3Phase, it's about 15~30 working days. Other voltages may take up to30~45 working days. For customize unit may take up to 40~50 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is Shenzhen China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
A: We have 180 staff members, the majority of staff are based on Heyuan city, while R&D and sales center are based in Shenzhen.
Q: How many years has the company been established?
A: The company was established in 2004 in Shenzhen, and in 2017, the company invested RMB128million in Heyuan to build modernized workshop. and changed company name from Shenzhen SOXI to Guangdong SOXI.
Q: Who are some of your reference customers?
A: F**W,To**ta, F**d, B*D....etc in automotive. H**er, T*L, A*X....etc in household electric. Sie***s, Xer*x, Fox***n,
Om**n....etc in electric supply.
Q: What is your standard delivery time?
A: For standard units with 230V/50Hz/1Phase or 400V/50Hz/3Phase, it's about 15~30 working days. Other voltages may take up to30~45 working days. For customize unit may take up to 40~50 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is Shenzhen China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
Thank you for your time, we appreciate your business
