Coin Cell Crimping Machine for All Types of Button Cells Battery
- Category: >>>
- Supplier: Guangdong Xiaowei Intelligent Technology Co. Ltd.
Share on (1600287518421):
Product Overview
Description

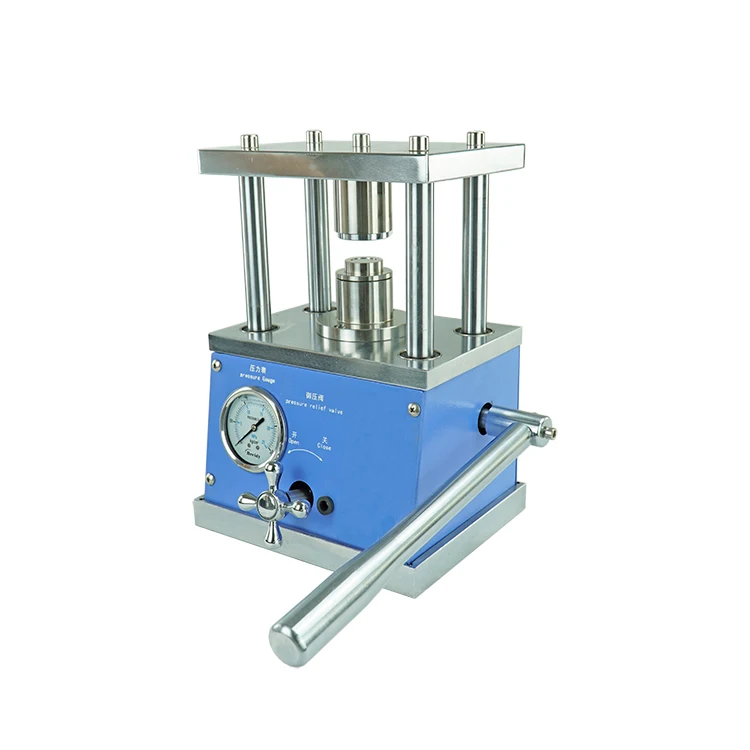

Compact Hydraulic Coin Cell Crimper Machine
for CR2016, CR2025, & CR2032 Button Cells
XW-CX120 is a newly designed coin cell disassembler with lighter weight and a smaller footprint. The coin cell disassembling machine is suitable for disassembling various types of coin cells, such as CR2032, CR2025, and CR2016, without destroying the internals of the cell in order to study the materials inside. It can also disassemble CR2325, CR2450, and other special size cases with optional die sets. In addition, customers can easily replace the original die for crimping purpose.
XW-CX120 is an ideal tool for operations in a glove box.
Coin Cell Crimper Machine
No | Item | XW-CX120 |

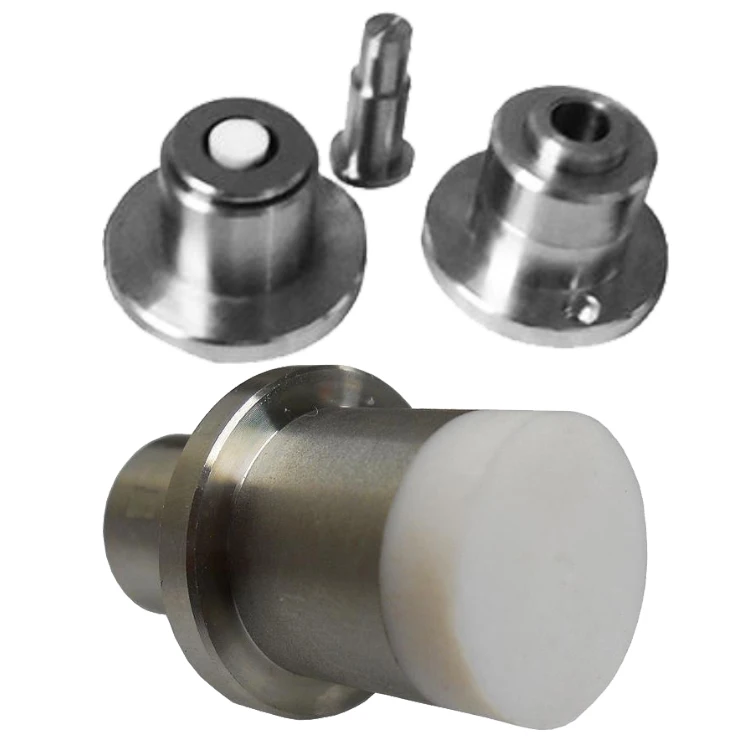

1 | Standard Disassembling Die | 1. One set of disassembling die for CR2032, CR2025, & CR2016 2. PTFE Anti-corrosion core prevents coin cell from being short circuited. 3. Optional die available from product option for crimping CR2325, CR2450, AG3, AG5 |
2 | Pressure | Max. 8 metric Ton hydraulic with automatic return |
3 | Structure | Heavy Duty Steel Platform |
4 | Product Dimensions | 232* 190*330 mm (L*W*H) |
5 | Weight | 30 kg |
6 | Application Notes | 1. The main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. 2. For best slurry, you may consider ordering filter to remove larger particles in slurry. |
Left view
Front view
Right view
Features

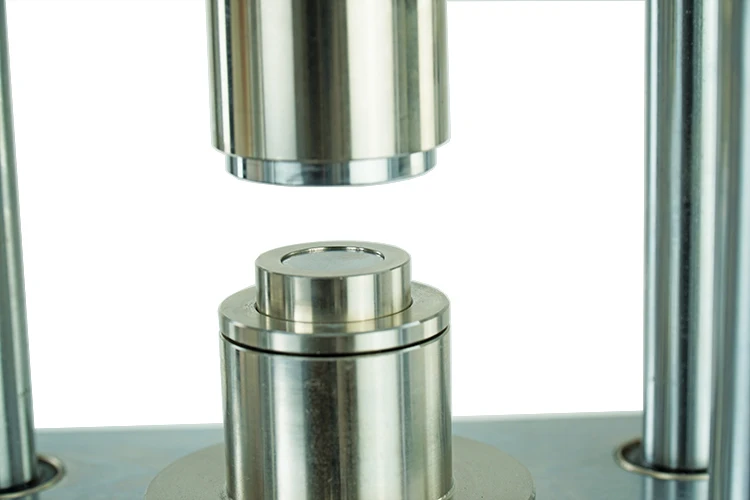

1. The lower die with high precision positioning ring spacing, control the battery package height.
2. The upper die is provide with a sealing cup inner screw spring mechanism, ensure in case the battery sealing clamp can not be removed, only the top screw clockwise and the button battery out.
2. The upper die is provide with a sealing cup inner screw spring mechanism, ensure in case the battery sealing clamp can not be removed, only the top screw clockwise and the button battery out.
XIAOWEI after-sales service policy
1. One year guarantee, one Year spare parts free if the machine parts damage, whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
