Wireless 4G Router module Portable Gateway with MT7688AN/MT7628 Chipset EC25 4G Chipset
- Category: Wireless Routers >>>
- Supplier: Shenzhen Hi-Link Electronic Co. Ltd.
Share on (1600287533596):
Product Overview
Description
1.Product Introduction
Internet access: 3G/4G dial-up Internet access, DHCP/STATIC, IP/PPPOE
Wifi rate：300Mbps
4G rate：150Mbps
Network Interface：2 100M
Number of connections: 32 terminals
Card：3G/4G
4G full Netcom
Router function
4G to network cable
4G to wifi
2.Application area
Smart home equipment
IoT control
Industrial control
Remote camera
Outdoor Internet
Network control equipment
Internet access
Internet access: 3G/4G dial-up Internet access, DHCP/STATIC, IP/PPPOE
Wifi rate：300Mbps
4G rate：150Mbps
Network Interface：2 100M
Number of connections: 32 terminals
Card：3G/4G
4G full Netcom
Router function
4G to network cable
4G to wifi
2.Application area
Smart home equipment
IoT control
Industrial control
Remote camera
Outdoor Internet
Network control equipment
Internet access
Packing List :

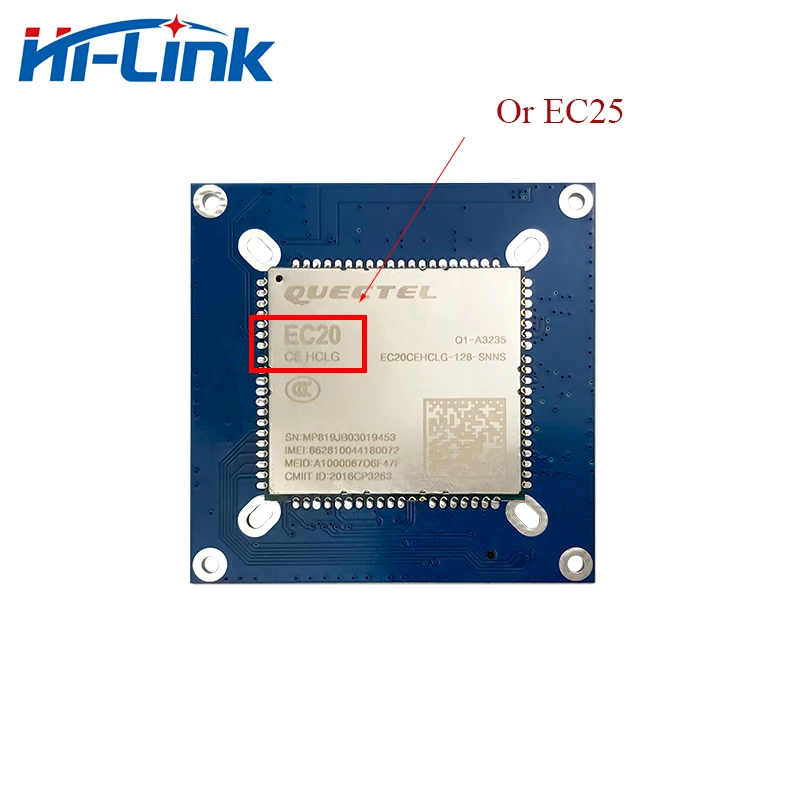

4G Module ( 7688A/7628N + EC25 + Adapter board ) * 1

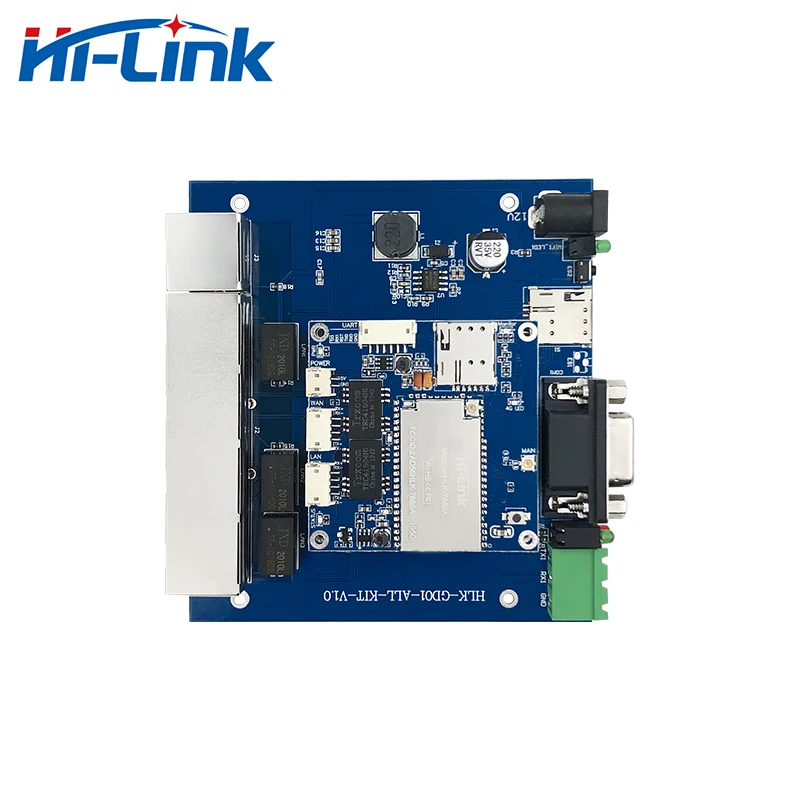

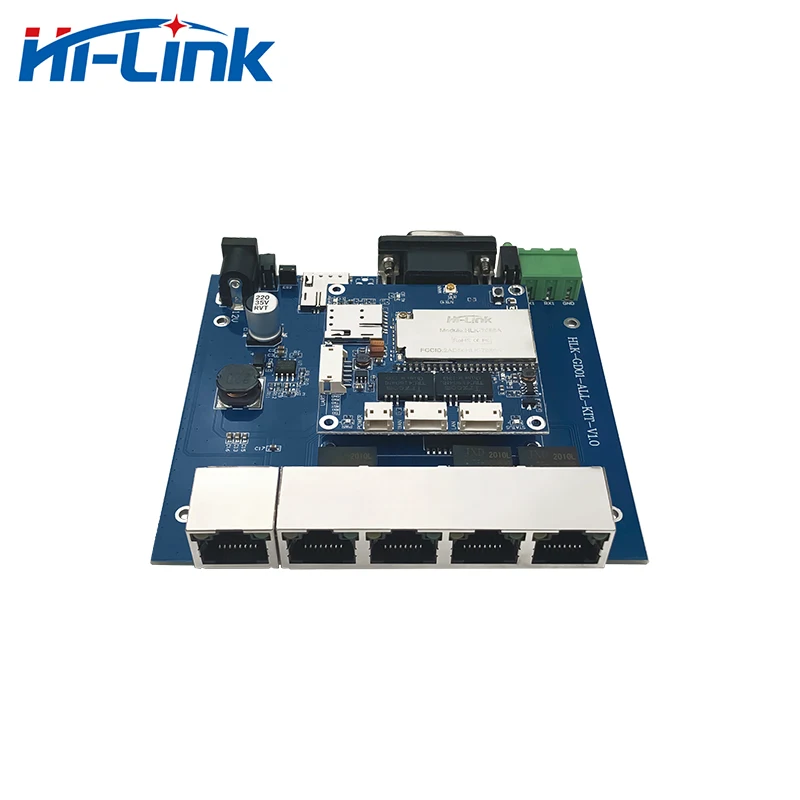

Test Board * 1
12V 1A Power Supply * 1
2.4G Antennas * 2
4G Antennas * 2
4G Module ( 7688A/7628N + EC25 + Adapter board ) * 1
Test Board * 1
12V 1A Power Supply * 1
2.4G Antennas * 2
4G Antennas * 2
Note:

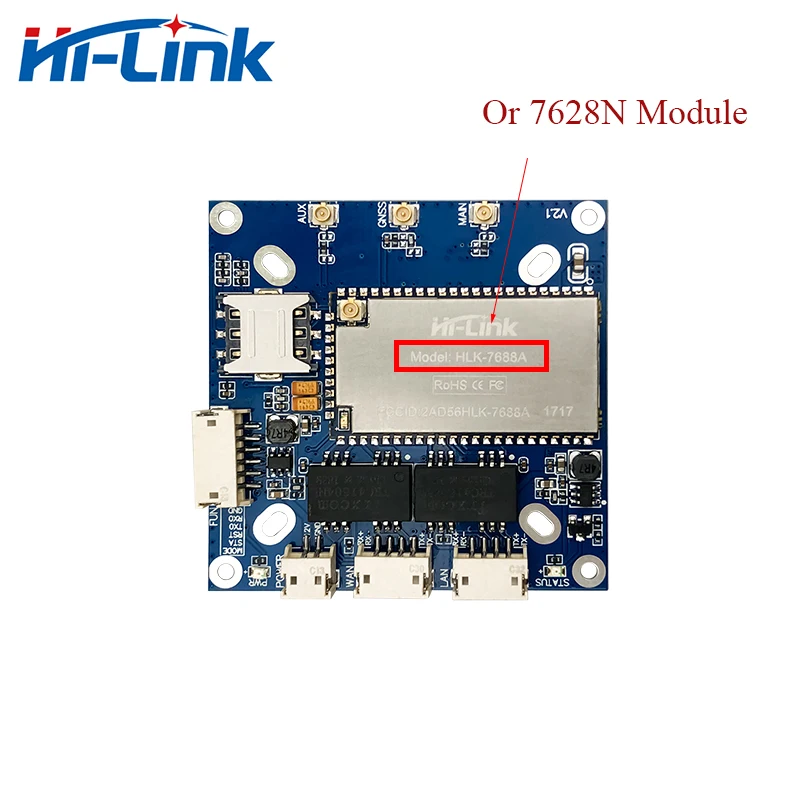

The tail of the GD01-N routing master HLK-7628N is 1.5mm longer than that of the GD01 routing master HLK-7688A (the part in the red box as shown in the figure).
Please make sure that there is enough space to change the position .
The tail of the GD01-N routing master HLK-7628N is 1.5mm longer than that of the GD01 routing master HLK-7688A (the part in the red box as shown in the figure).
Please make sure that there is enough space to change the position .
Indicator light description
SIM card detection indicator :module is powered on, mechanical
Detect whether the SIM card is inserted, the light is on to indicate that the SIM card is not inserted,and the light is off to indicate that the card is inserted
Networking indicator :This light will be on when using 3G/4G data to access the Internet, and it will be off if you cannot access the Internet or use external network communication
WAN port indicator light :the communicable network cable is connected to the WAN network port, the light will always be on or flashing
LAN port indicator light :the communicable network cable is connected to the LAN network port, the light will always be on or flashing
SIM card detection indicator :module is powered on, mechanical
Detect whether the SIM card is inserted, the light is on to indicate that the SIM card is not inserted,and the light is off to indicate that the card is inserted
Networking indicator :This light will be on when using 3G/4G data to access the Internet, and it will be off if you cannot access the Internet or use external network communication
WAN port indicator light :the communicable network cable is connected to the WAN network port, the light will always be on or flashing
LAN port indicator light :the communicable network cable is connected to the LAN network port, the light will always be on or flashing
Contact me please if you need the full datasheet of it .
