ANENG A3004 Multimeter Pen Type Meter 4000 Counts Non Contact AC/DC Voltage Resistance Capacitance Diode Continuity Tester Tool
- Category: >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600287644243):
Product Overview
Description

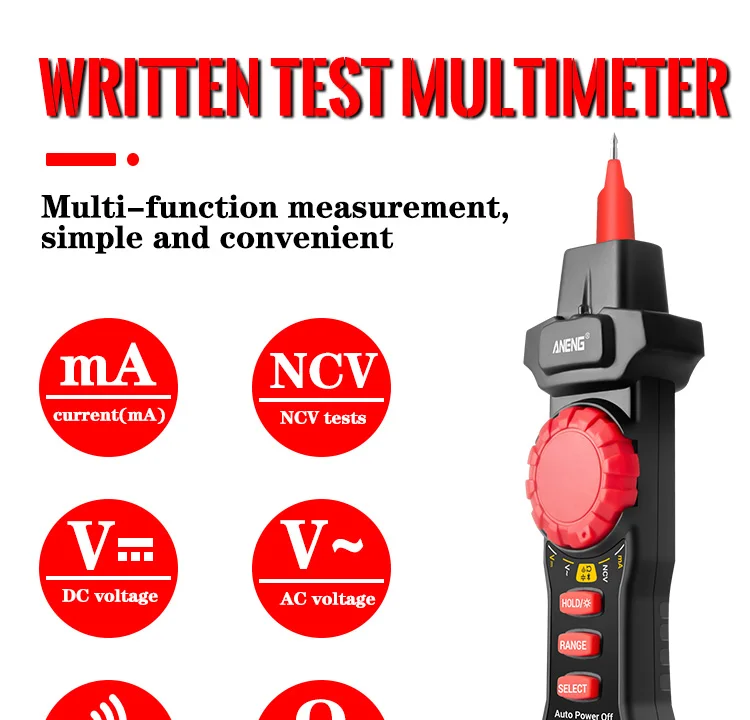

ANENG A3004
4000 Counts Multimeter Pen

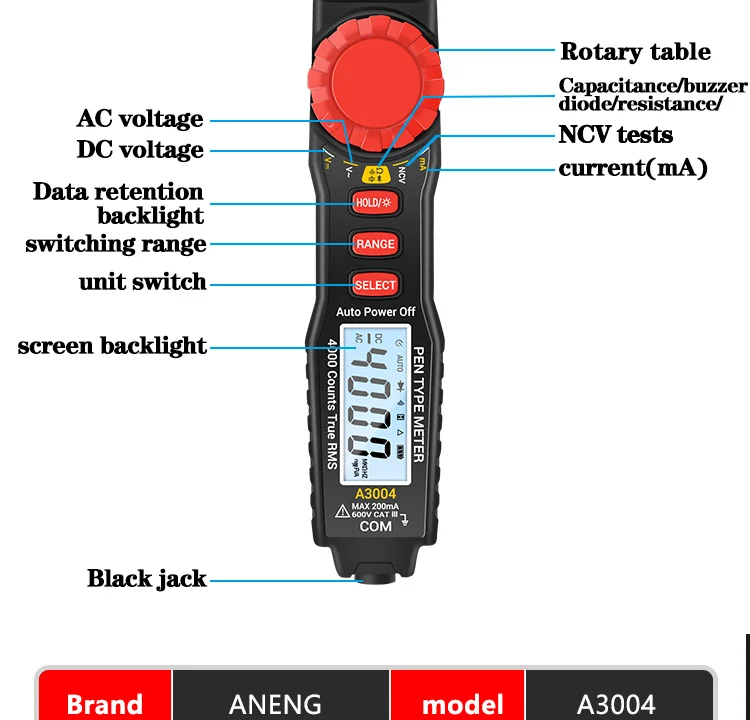

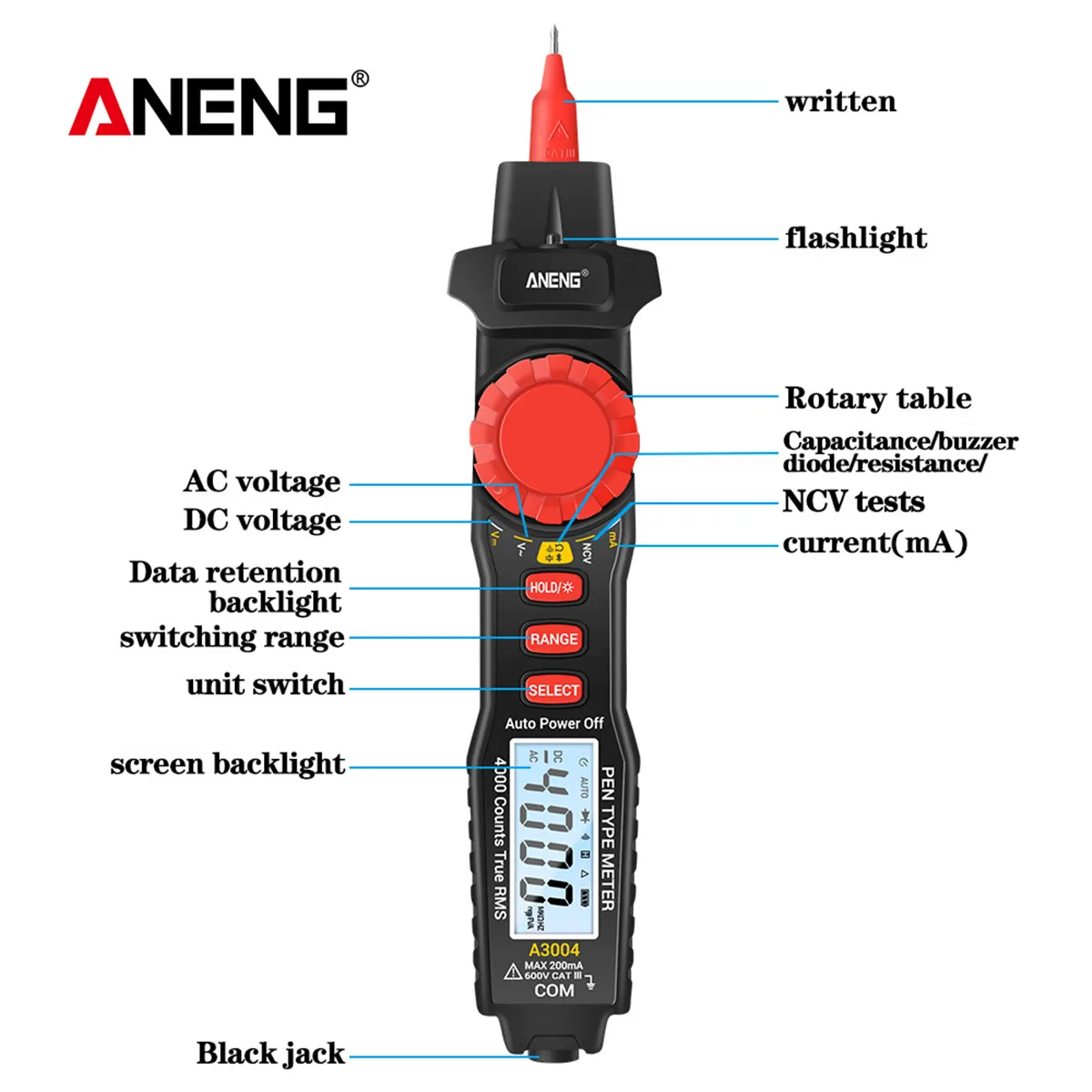

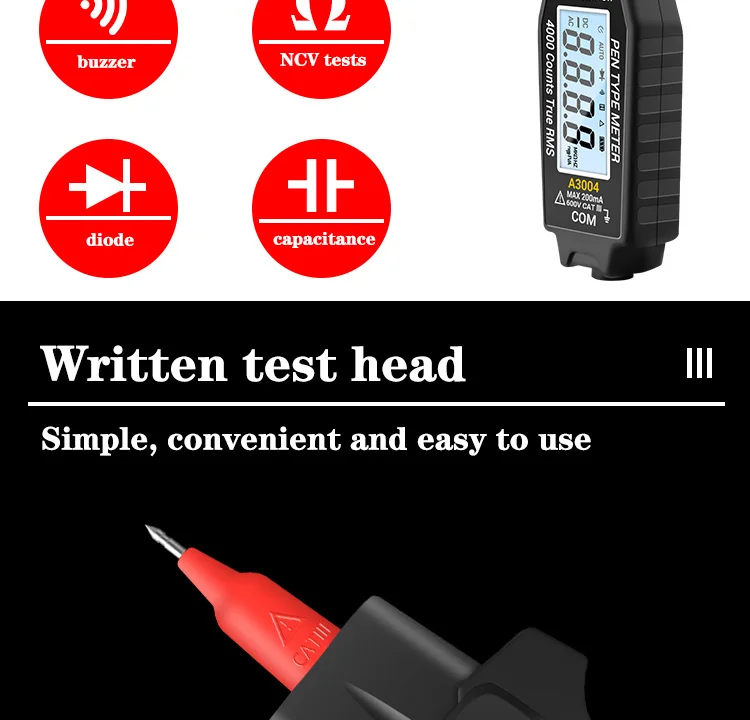

Feature:

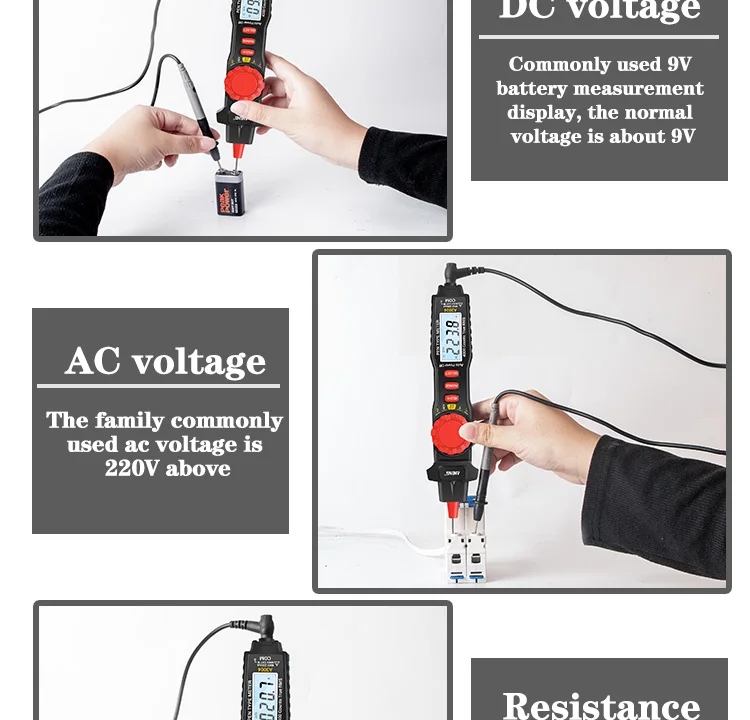

Measuring AC / DC voltage

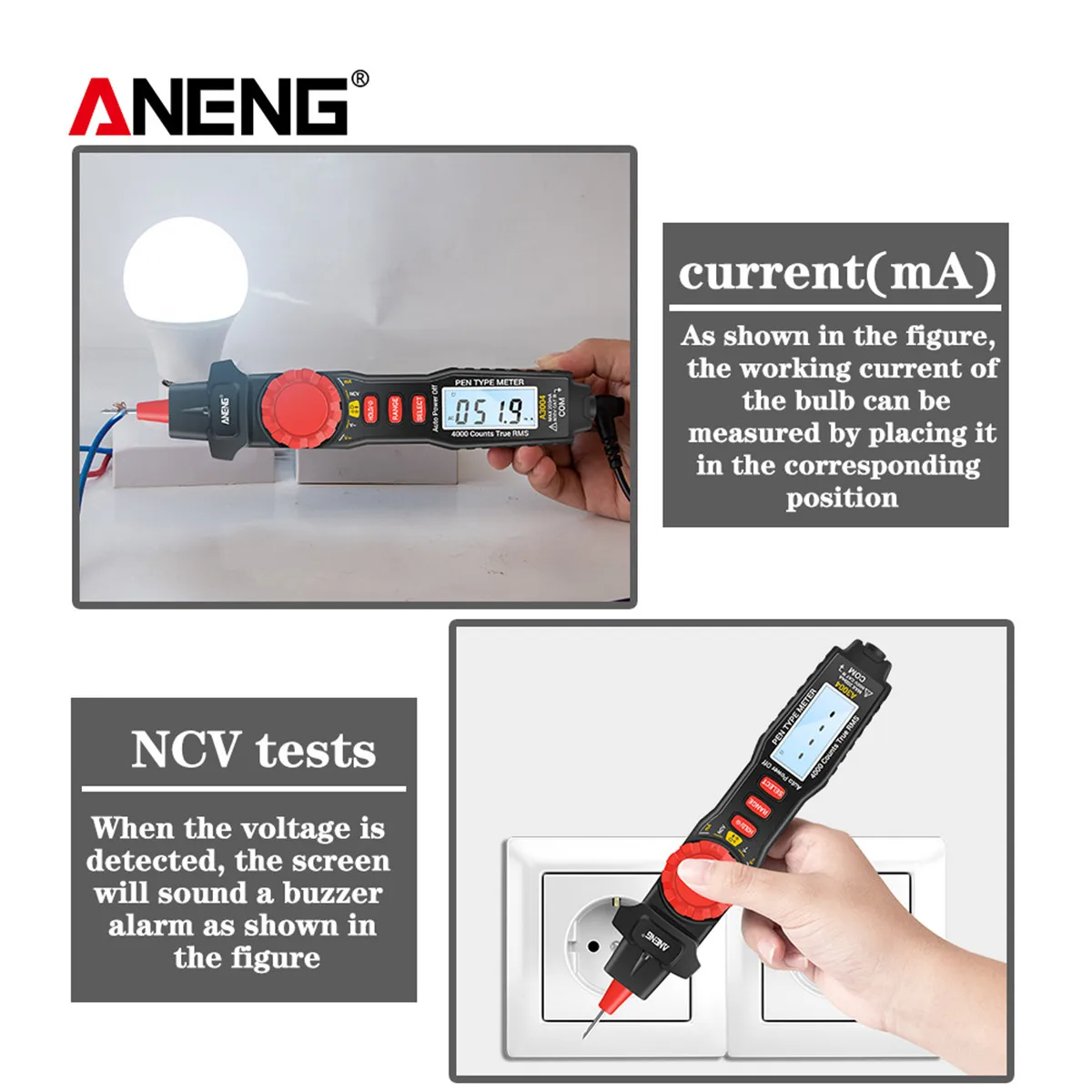

Measuring AC / DC current(mA)
Measuring resistance

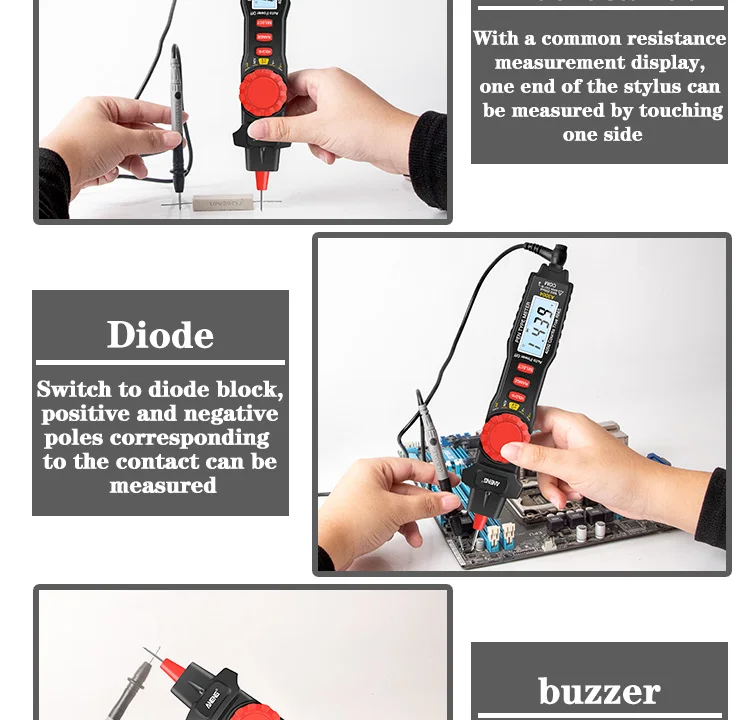

Measuring diode

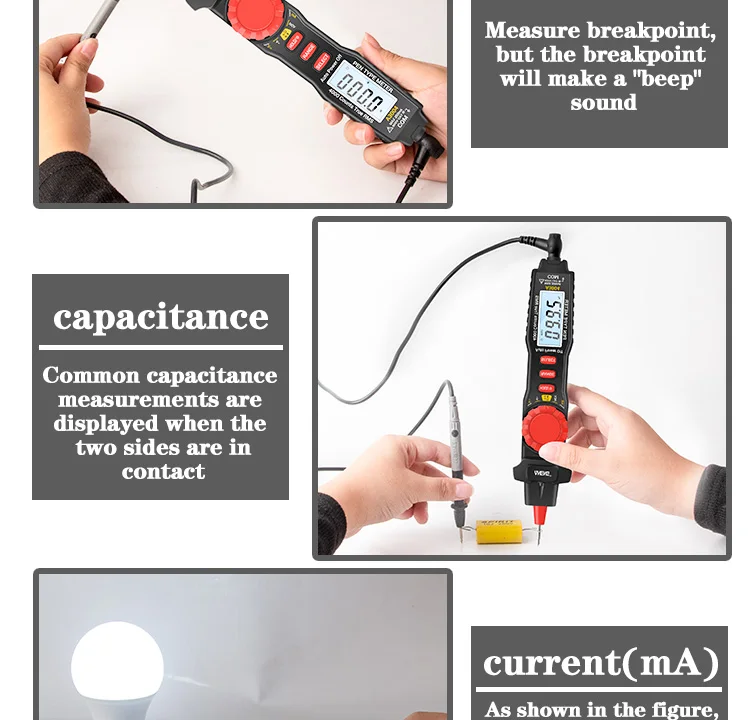

Measuring capacitance

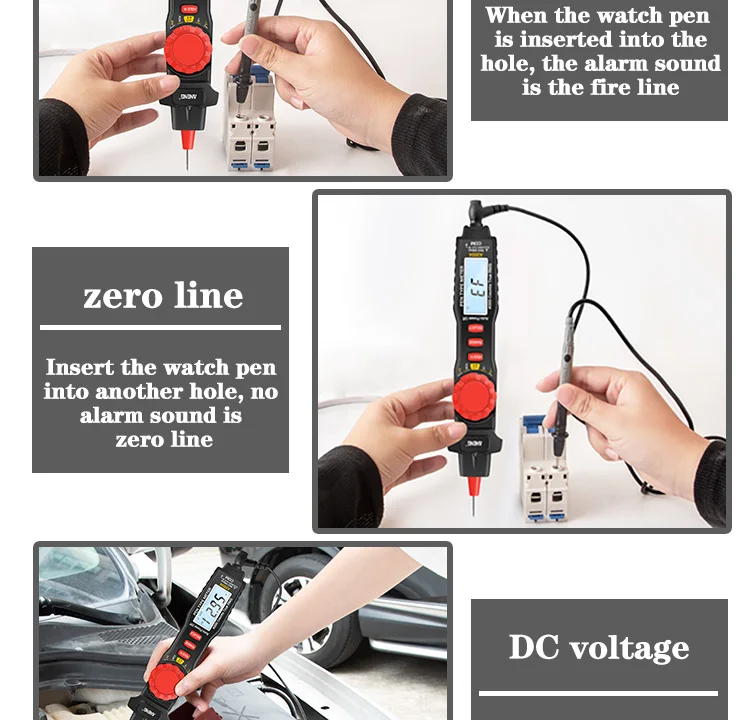

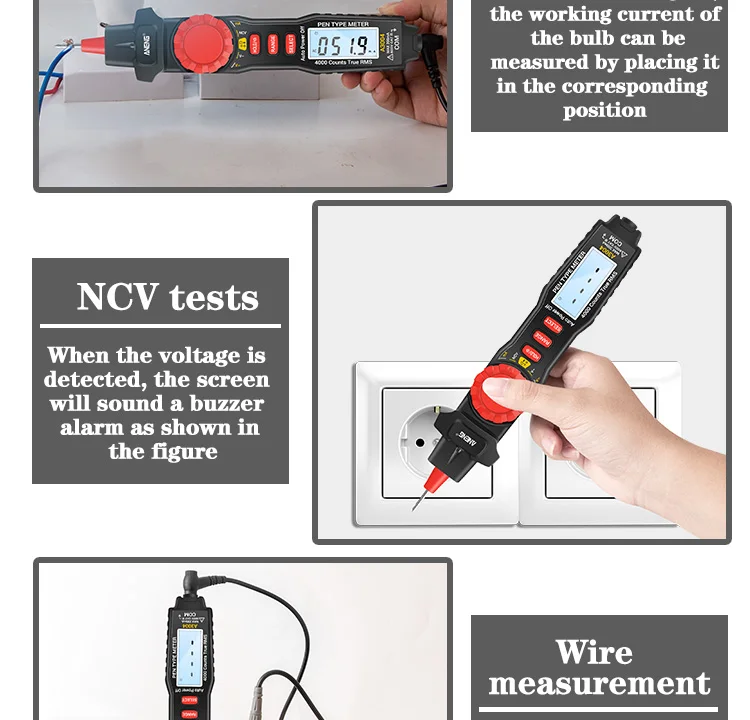

Buzzer/Non-contact voltage detectionZero fire detection

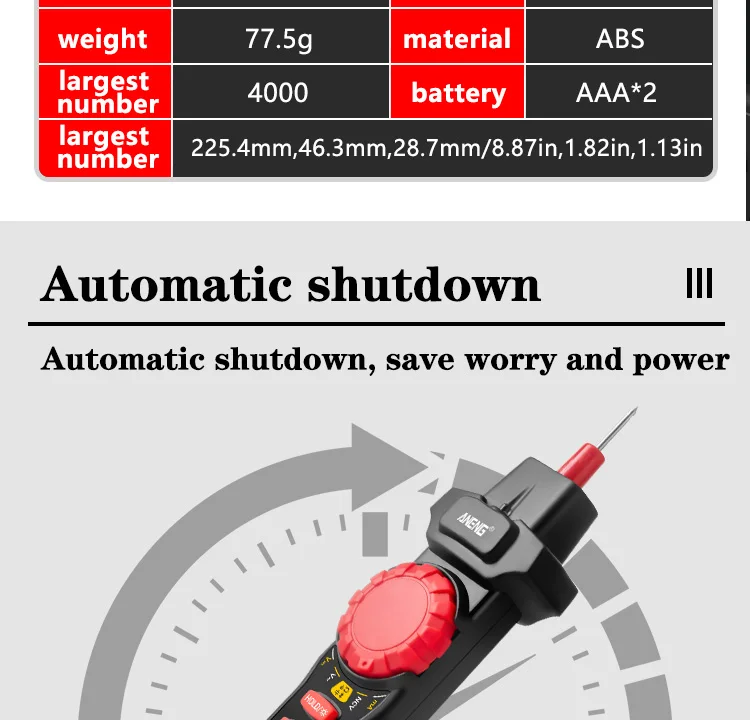

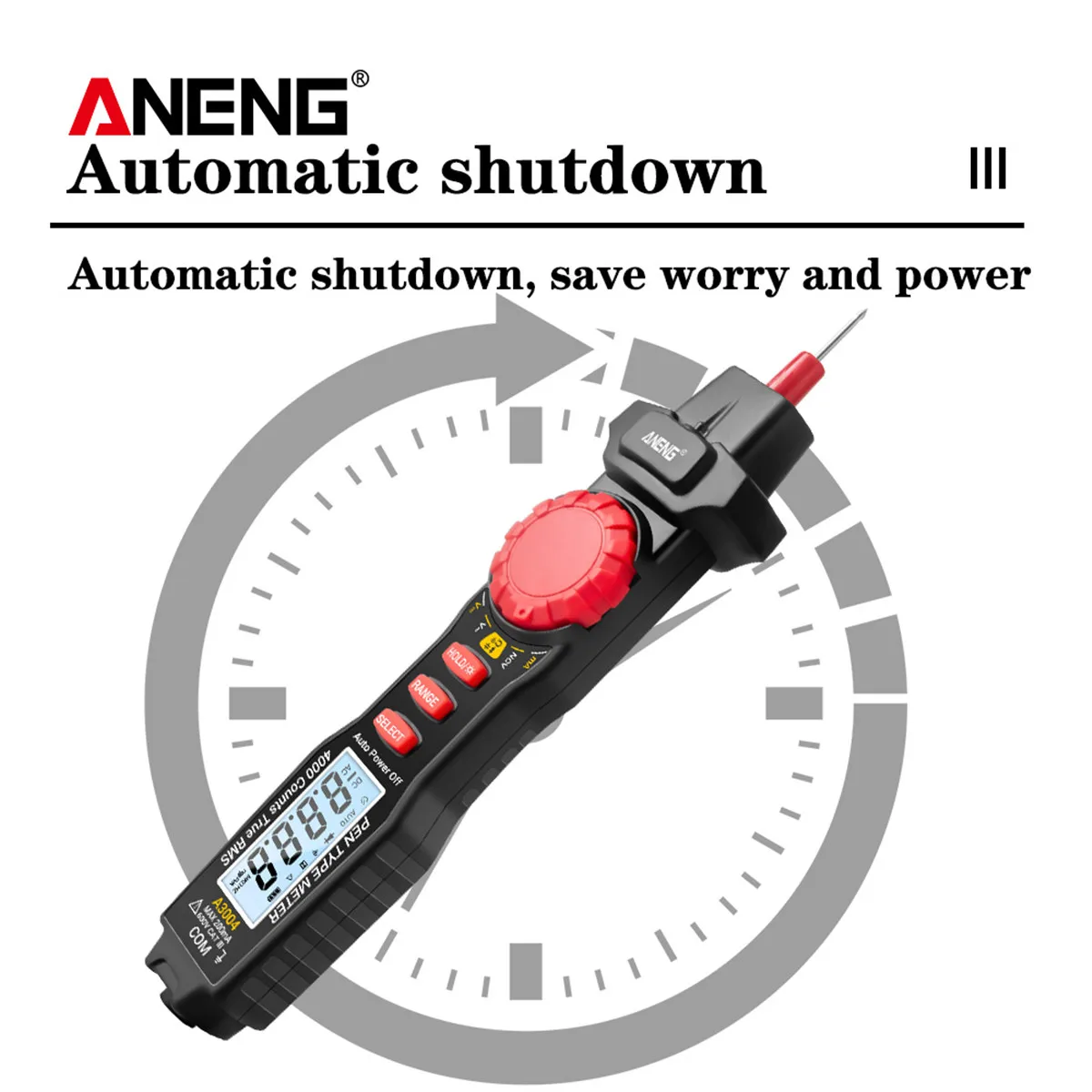

Automatic shut-down

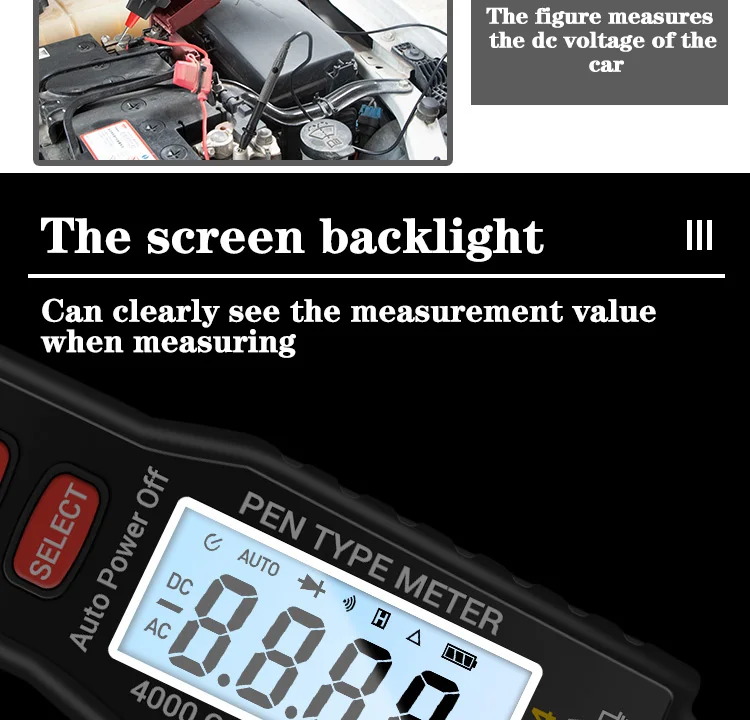

Backlit bright screen
Measuring AC / DC voltage
Measuring AC / DC current(mA)
Measuring resistance
Measuring diode
Measuring capacitance
Buzzer/Non-contact voltage detectionZero fire detection
Automatic shut-down
Backlit bright screen
Specification:
Brand | ANENG | Model | A3004 |
| Range | Accuracy |
DC Voltage | 400mV | ±(0.8%+5) |
| 4V/40V/400V | ±(0.8%+3) |
| 600V | ±(1%+3) |
AC Voltage | 4V/40V/400V | ±(1%+3) |
| 600V | ±(1.2%+5) |
DC Current | 40mA/200mA | ±(1%+3) |
AC Current | 40mA/200mA | ±(1.2%+5) |
Capacitance | 4nF/40nF/400nF/4uF/40uF/400uF | ±(3%+5) |
| 4mF | ±(5%+10) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ±(1.0%+5) |
| 40MΩ | ±(1.2%+8) |

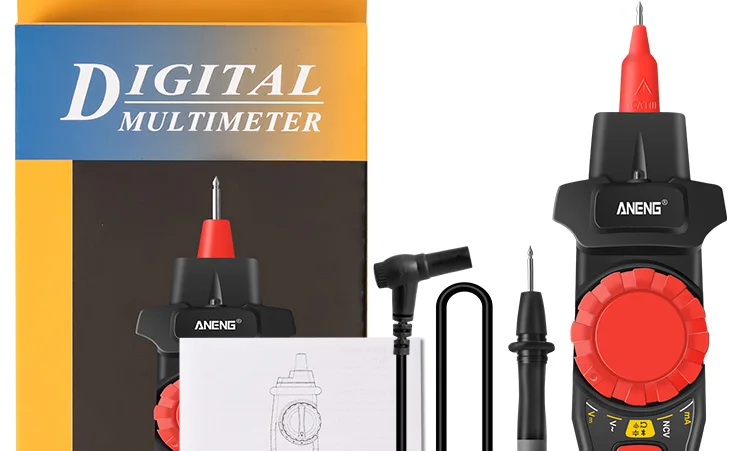

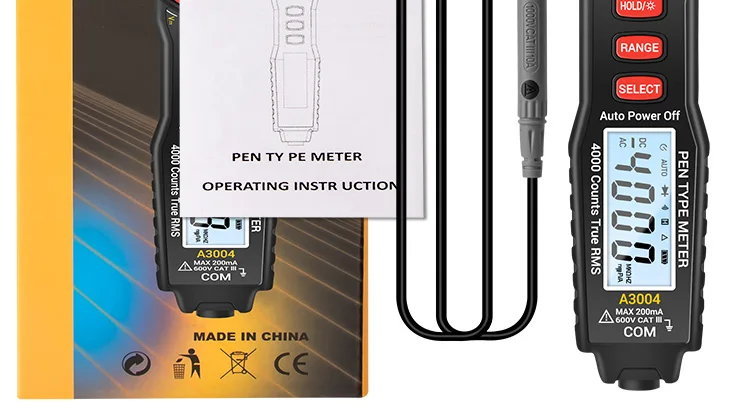

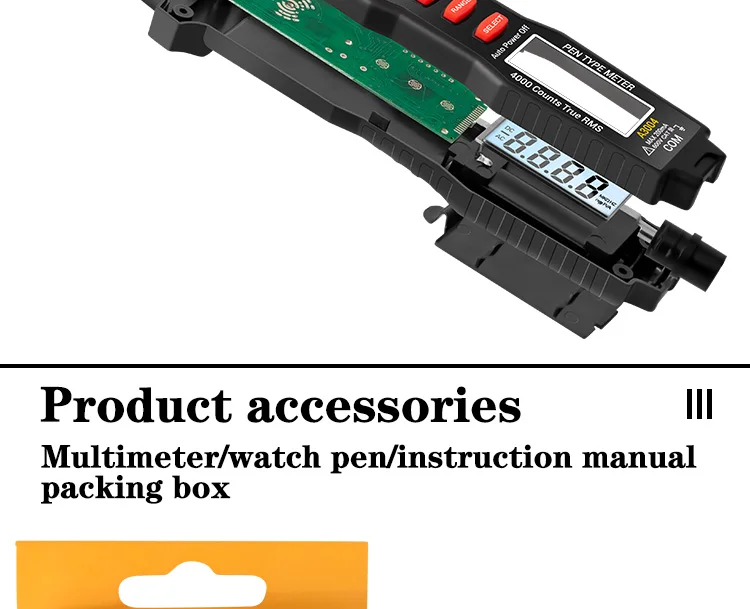

Package included:
1 * Tester line
1 * User Manual
1 * Box(according to the choice)
1 *A3004 pen multimeter(not including battery)
