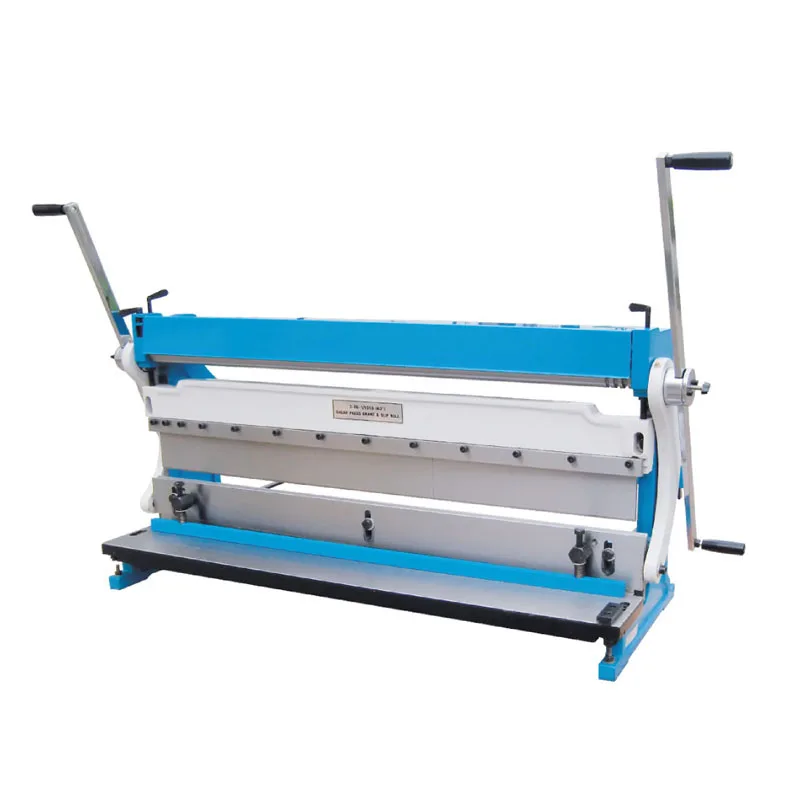

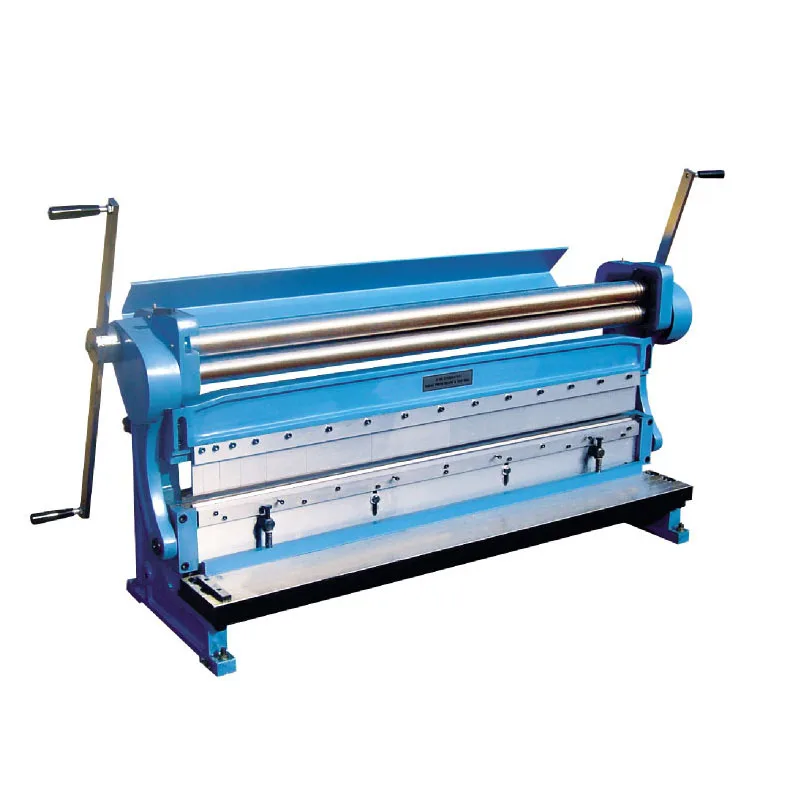

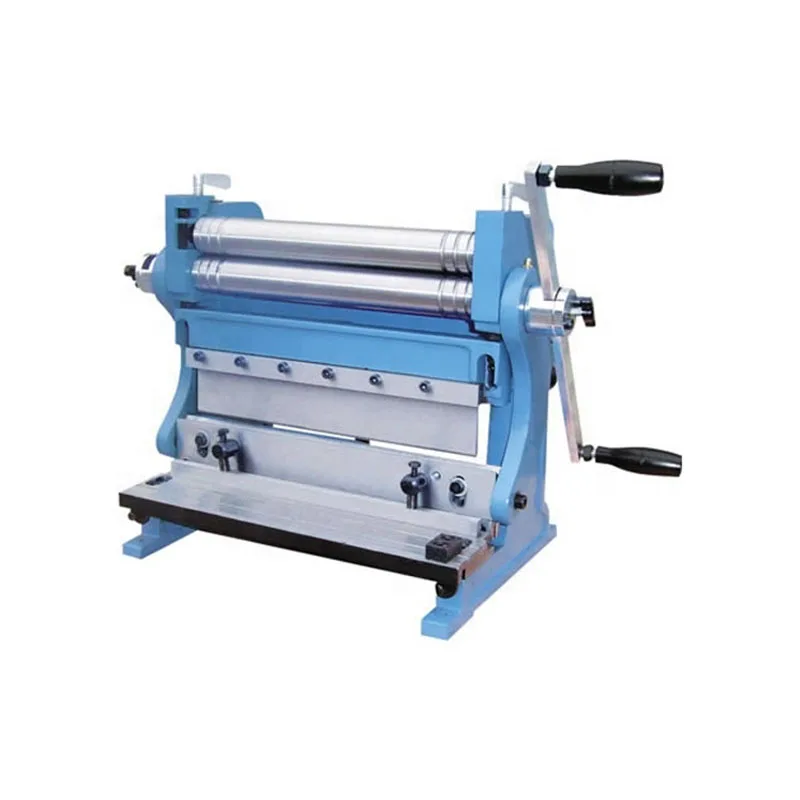

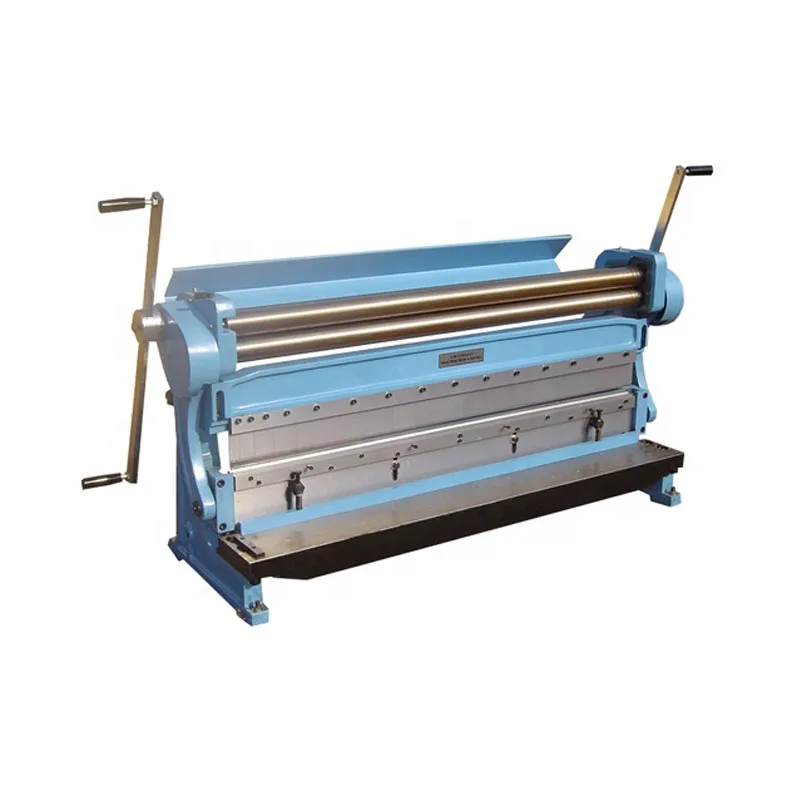

3 in 1/610 Hand Combination Shear Bend Slip Roll 3 in 1 Machine for Metal Sheet
- Category: >>>
- Supplier: Fuzhou JDC Mechanical Equipment Co. Ltd.
Share on (1600287970845):
Product Overview
Description
Product Description
Title goes here.
52” width lets you roll, bend, and shear 4’ x 8’ sheets;
Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom;
3 grooves on the roll can form wire or round rod; Manual press brake section comes with a fixed bottom V-block die, 90 ° bending,
segment finger for box pan brake;
It is easy to adjust the blade gap to fit different gauges of sheet metal;
Hardened, reversible blades stay sharp.
Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom;
3 grooves on the roll can form wire or round rod; Manual press brake section comes with a fixed bottom V-block die, 90 ° bending,
segment finger for box pan brake;
It is easy to adjust the blade gap to fit different gauges of sheet metal;
Hardened, reversible blades stay sharp.
SKU | 371004 | 371005 | 371006 | 371007 | 371008 |
Model | 3-IN-1/1016 | 3-IN-1/1067 | 3-IN-1/1320 | 3-IN-1/1067x1.5 | 3-IN-1/1320x1.5 |
Bed width | 1016 mm | 1067 mm | 1320 mm | 1067 | 1320 |
Max. shear thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.5 mm | 1.5 mm |
Max. bend thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.5 mm | 1.5 mm |
Max. bend angle | 90° | 90° | 90° | 90° | 90° |
Max. rolling thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.5 mm | 1.5 mm |
Min. rolling dia. | 40 mm | 42 mm | 50 mm | 60 mm | 60 mm |
Packing size (cm) | 135x45x72 | 139x54x78 | 168x54x78 | 150x59x93 | 179x59x94 |
N.W./G.W. (kg) | 195/212 | 276297 | 349/388 | 390/440 | 470/530 |
