60m/min (0.3 2)X1500 automatic cut to length line

Product Overview

Description

60m/min-(0.3-2)X1500 automatic cut to length line

Video link:

YouTube: https://youtu.be/zGFaHtitYco

QQ video: https://v.qq.com/x/page/b32158vf8mi.html

Baidu video: https://haokan.baidu.com/v?vid=4605804851956389733&bfe=1

Production line main parameters

No.	Name	Specification and parameters
1	Steel coil thickness	0.5-3.0mm
2	Steel coil width	800--2000mm
3	Cutting accuracy	Length:±0.5mm based on 2000mm length Long gauge diagonal ±1mm based on 2000mm length
4	Cutting length	500-3000mm
5	Production line working height	About 1150mm
6	Production line speed	20-60m/min Speed segment adjustable

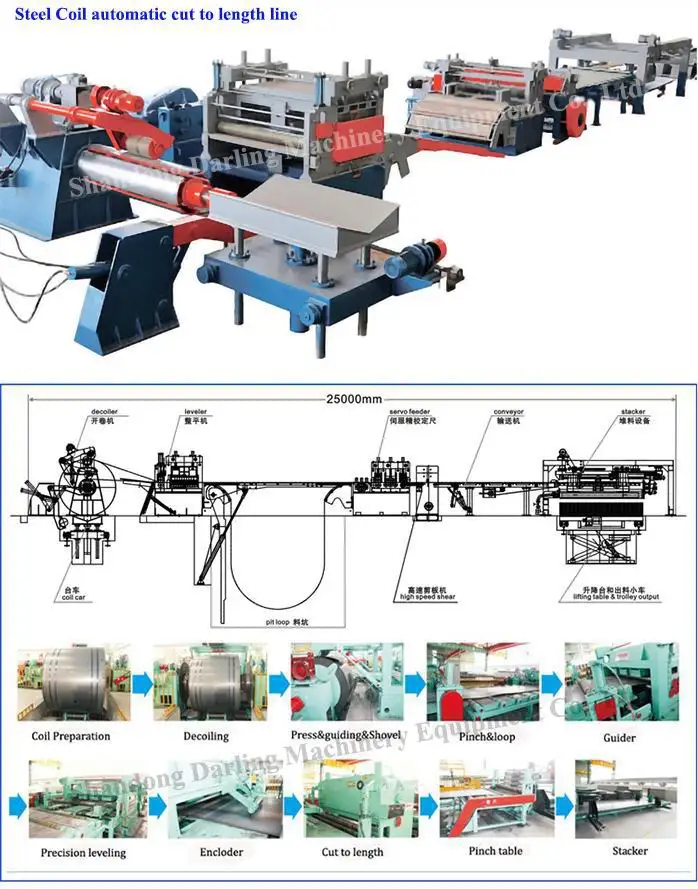

Production line equipment composition

No.	Name
1	Loading trolley

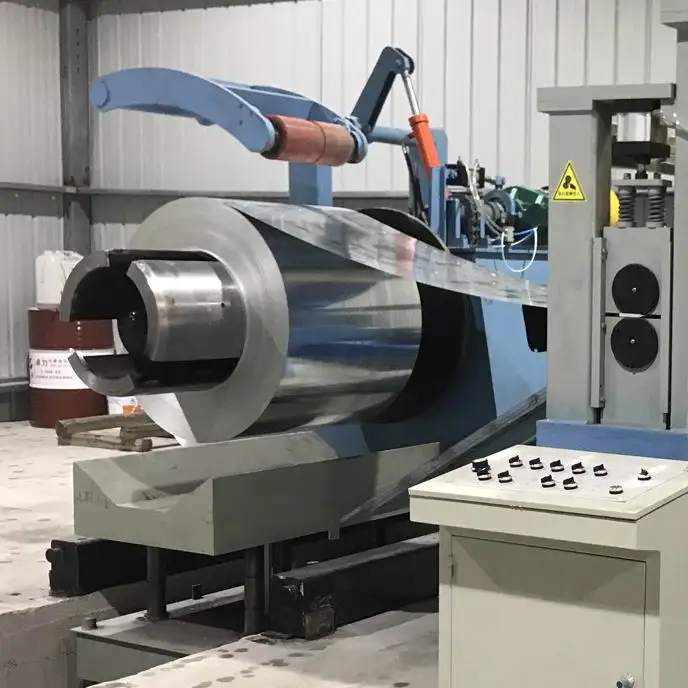

2	Single cantilever uncoiling machine
3	Material guiding and leveling machine
4	Hydraulic bridge + correction device
5	Servo size confirming machine
6	High-speed pneumatic cutting machine
7	Material feeding platform

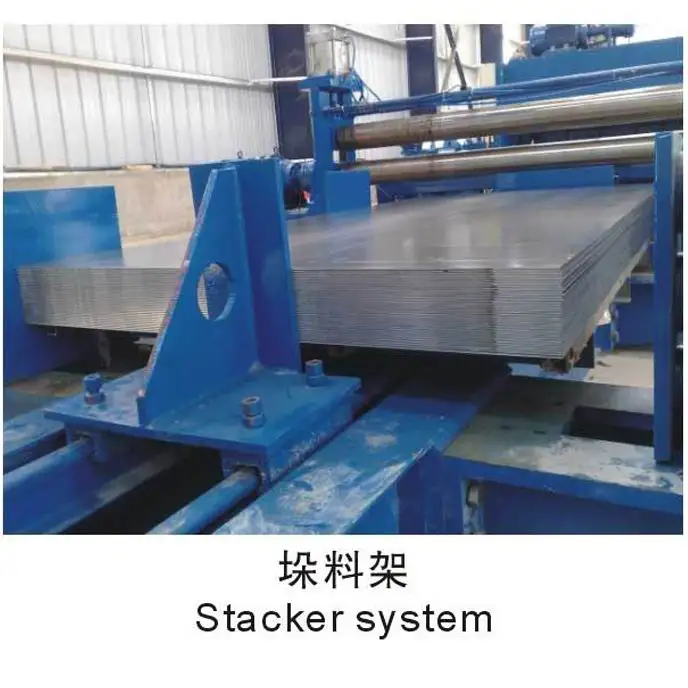

8	Material stacking machine + lifting machine + unloading trolley
9	Hydraulic and pneumatic systems
10	Electric control and automation

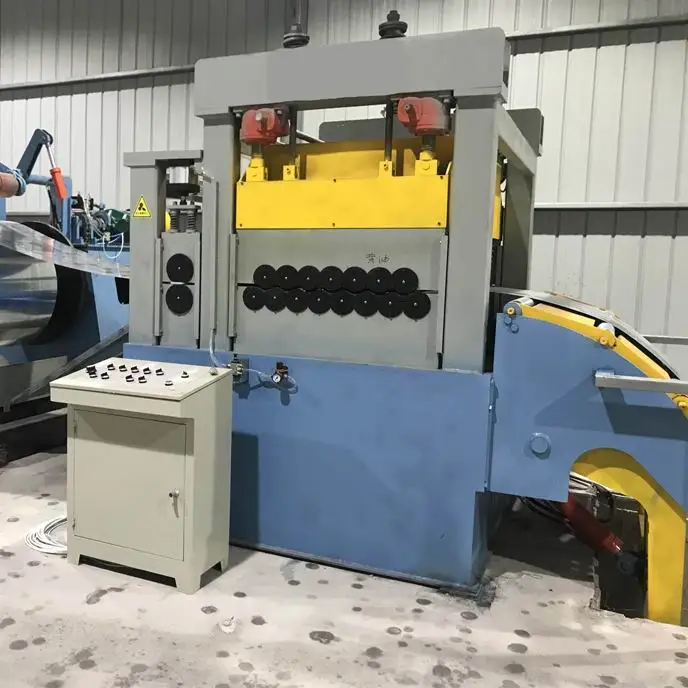

15-axis fine leveling machine

The leveling machine adopts the gear box universal joint transmission, additional support rollers are up and down, the sheet is sent to the middle of the leveling roller, and the leveling purpose is achieved after repeated deformation in the forward and reverse directions. It is mainly composed of frame part, working roller part, lifting part and main transmission part. The frame adopts a steel plate welded box structure. The working roller part, the lifting part and the frame part are organically combined. The shape is novel, the structure is reasonable, and the installation and maintenance are convenient. The working roller is a front-to-back roll, which is driven by a universal joint of the gear box. Active up and down. Reach the corresponding leveling of different material steel plates. The function of the lifting part is to lift the up working rollers, adjusting the working space, the purpose of lifting the up rollers is achieved by using a motor-driven reducer to drive screw rod.

Main technical parameters

(1) Leveling plate thickness: 0.5-3.0mm

(2) Leveling plate width: 2000mm

(3) Leveling roller diameter: φ130mm 40Cr medium frequency quenching 50°-55° surface is plated with hard soldering.

(4) Leveling roller length: 2200mm

(5) Main motor power: 37KW motor  (Chinese famous brand)

(6) Speed reducer: 200 worm gear reducer

(7) Oil lubrication system: Centralized oil supply

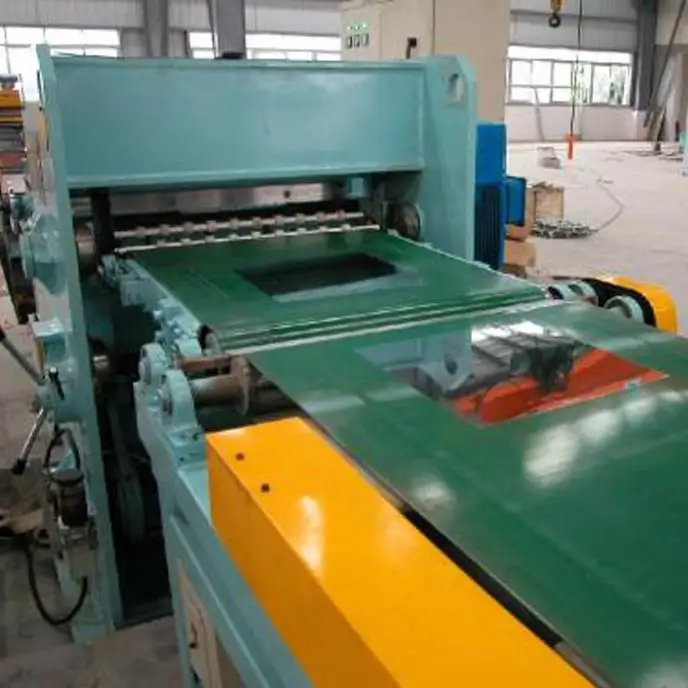

cutting machine (Pneumatic high-speed cutting machine, air source supplied by user)

It is mainly composed of left and right brackets, connecting rods, up and down knife rack, worktable, driving part, etc. it also can be prepared by the user, or selected according to user requirements.

The main technical parameters:

(1) Max. cutting thickness: 4.0mm

(2) Cutting width: 2200mm

(3) Motor power: about 15KW (Chinese famous brand)

(4) Blade material: 6CrW2Si
