TCK36A CNC LATHE MACHINE MANUFACTURER
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (1600288045802):
Product Overview
Description
COMPANY INTRODUCTION

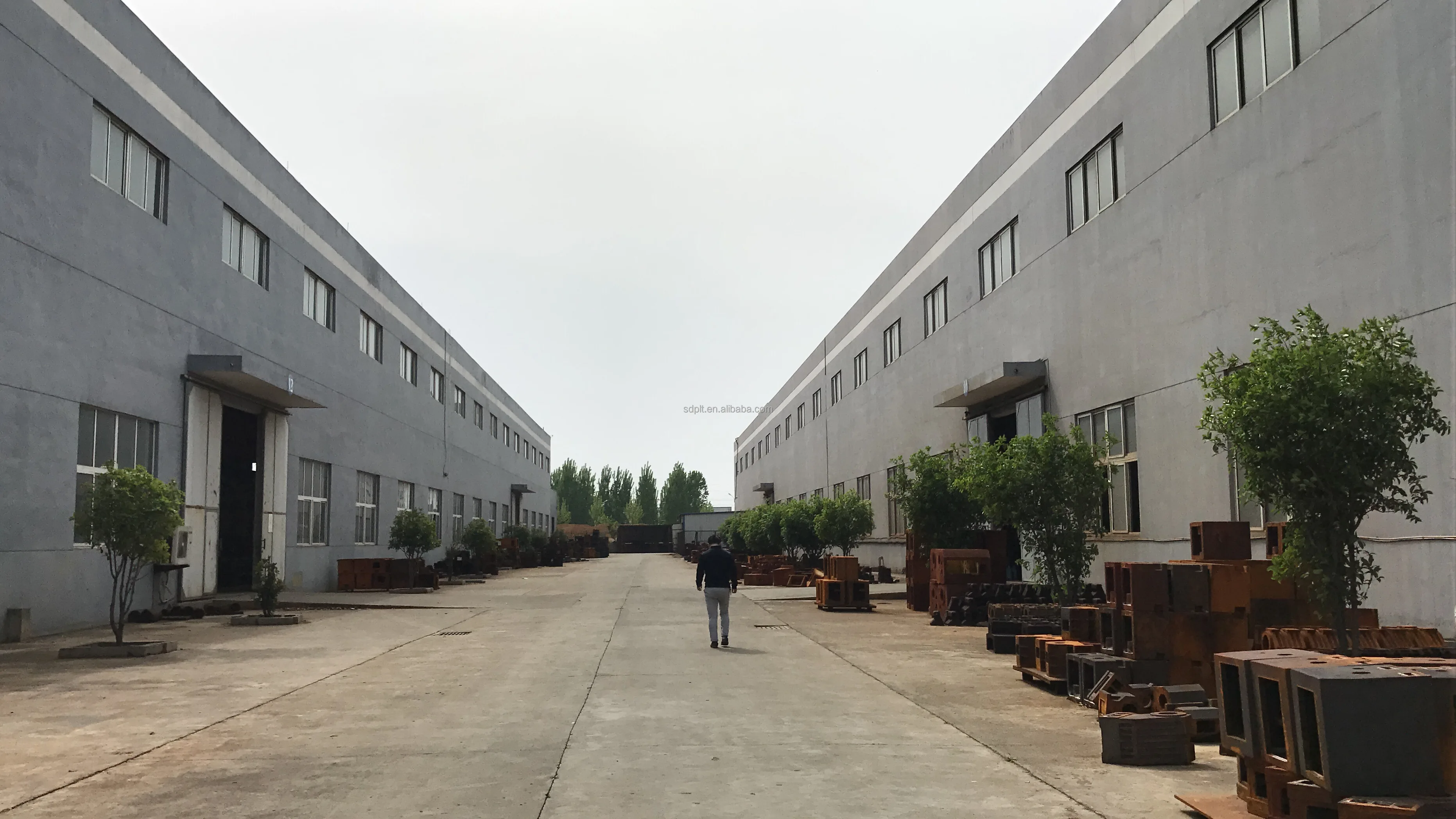

Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.
Machining center assembling workshop
Machining center assembling workshop
cnc lathe assembling workshop
cnc lathe assembling workshop
Plastic spraying and splash metal guard workshop
Machining workshop
CNC lathe assembling workshop
one of our warehouses

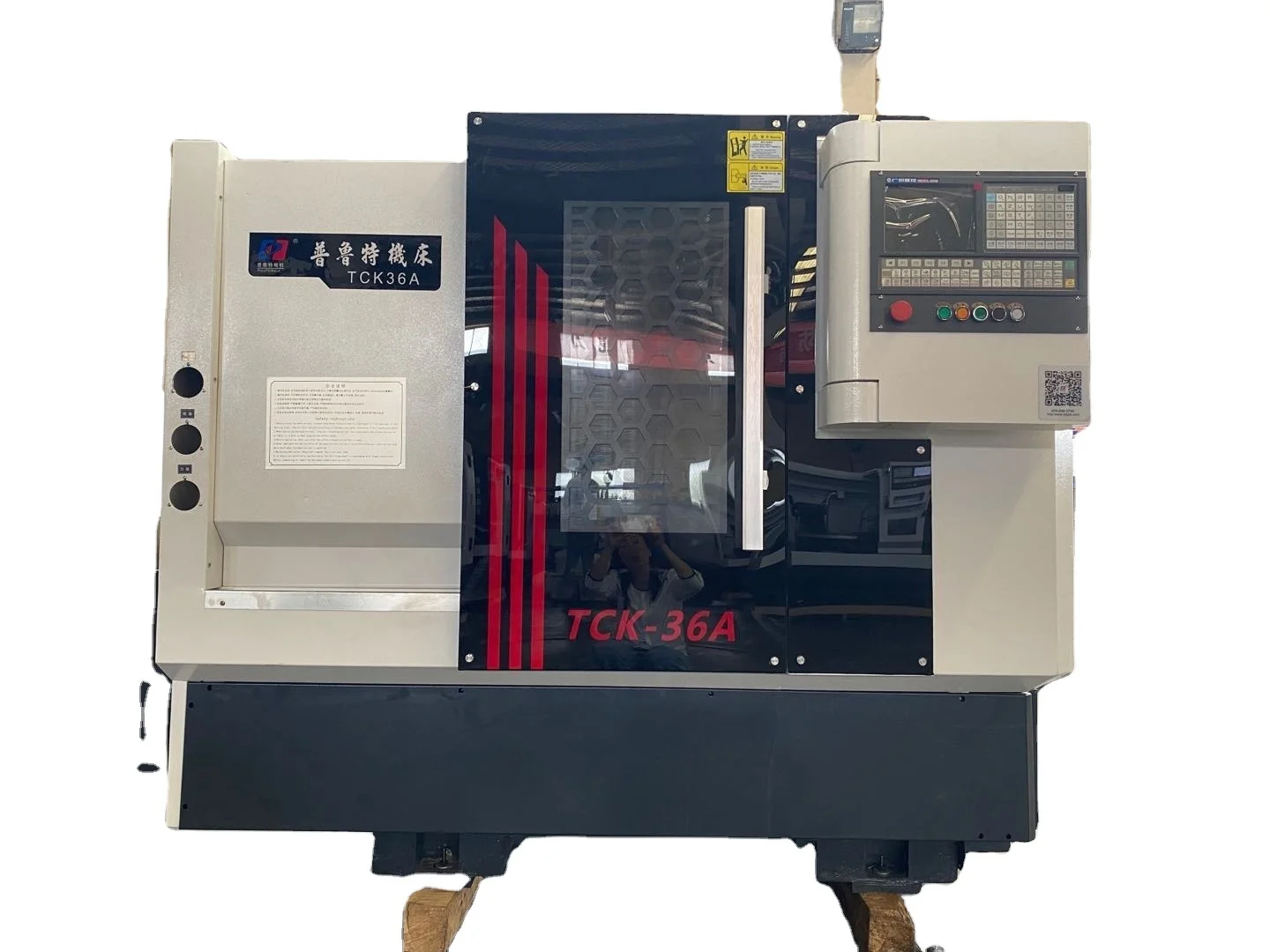

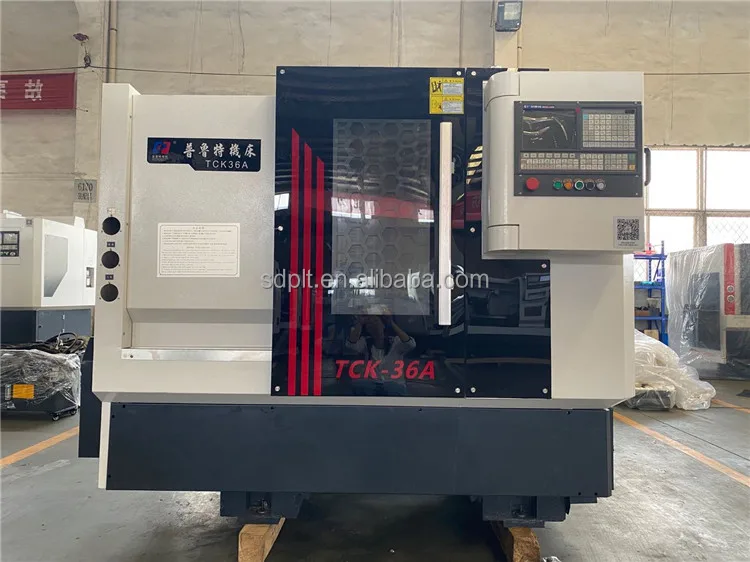

SPECIFICATION AND CONFIGURATION OF TCK36A SLANT BED CNC LATHE MACHINE
processing capacity | max. swing over bed | 360mm |
max. swing over cross slide | 170mm | |
max. processing length | 300mm | |
X axis travel | 200 mm | |
Z axis travel | 350 mm | |
spindle | spindle transmission type | infinitely variable frequency |
spindle speed | 3500 rpm | |
spindle nose | A2-5 | |
spindle bore | 48 | |
spindle motor | 5.5 kw | |
X and Z axes | ball screw diameter and pitch on X axis | 2510 |
ball screw diameter and pitch on Z axis | 3210 | |
feeding motor torque on X axis | 6 N.m | |
feeding motor torque on Z axis | 6 N.m | |
X/Z axis rapid traverse | 20/20 m/min | |
X/Z axis repeatability | +/-0.003 mm | |
processing accuracy | processing accuracy | IT6-IT7 |
work piece surface roughness | Ra 1.6 | |
tail stock | tail stock quill diameter | 65 mm |
tail stock quill traverse | 50 mm | |
tail stock quill taper | MT4# | |
others | cutting tool size | 20X20 mm |
machine dimension | 2100X1450X1700 mm | |
N.W. | 2100 kgs |
MAIN ADVANTAGES

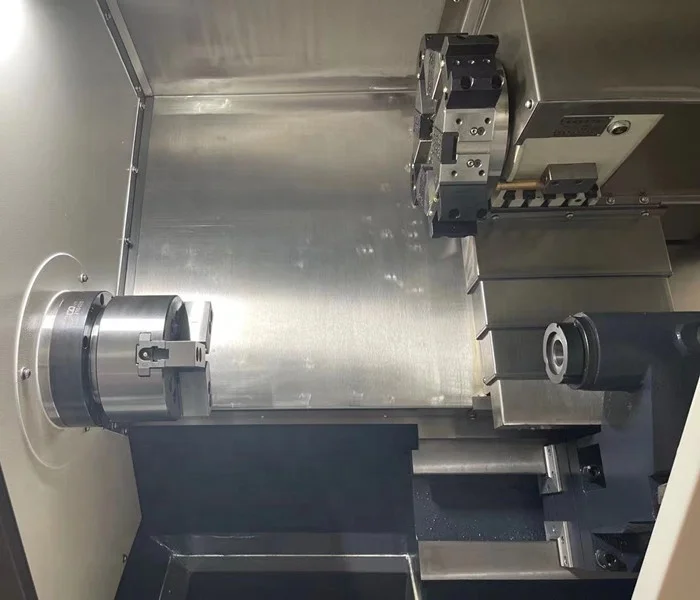

45-degree slant bed type

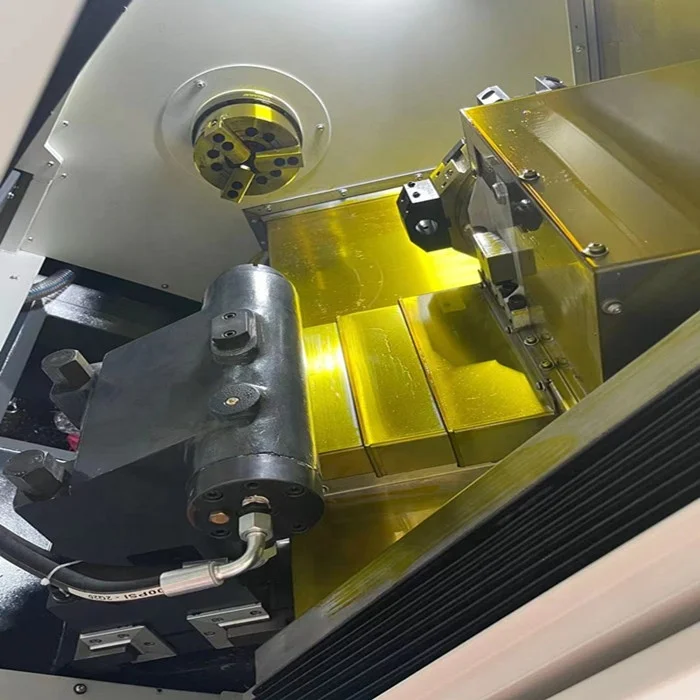

Taiwan brand 8 station hydraulic turret as standard
6-inch open hydraulic chuck as standard
GSK988T NC controller as standard
Siemens 808D and 828d, Fanuc 0i TF, Mitsubishi E80 and M80, Fagor 8055, Syntec 6TA and 21TA, etc are optional.
hydraulic tail stock as standard
Taiwan brand HIWIN or PMI linear guide as standard
one-piece machine bed casting
Chinese brand ball screw as standard
CERTIFICATES AND HONORS
Since PULUTE company was founded in the year of 2008, Shandong Pulute Machine Tool Co., Ltd. has won many honorary certificates every year.

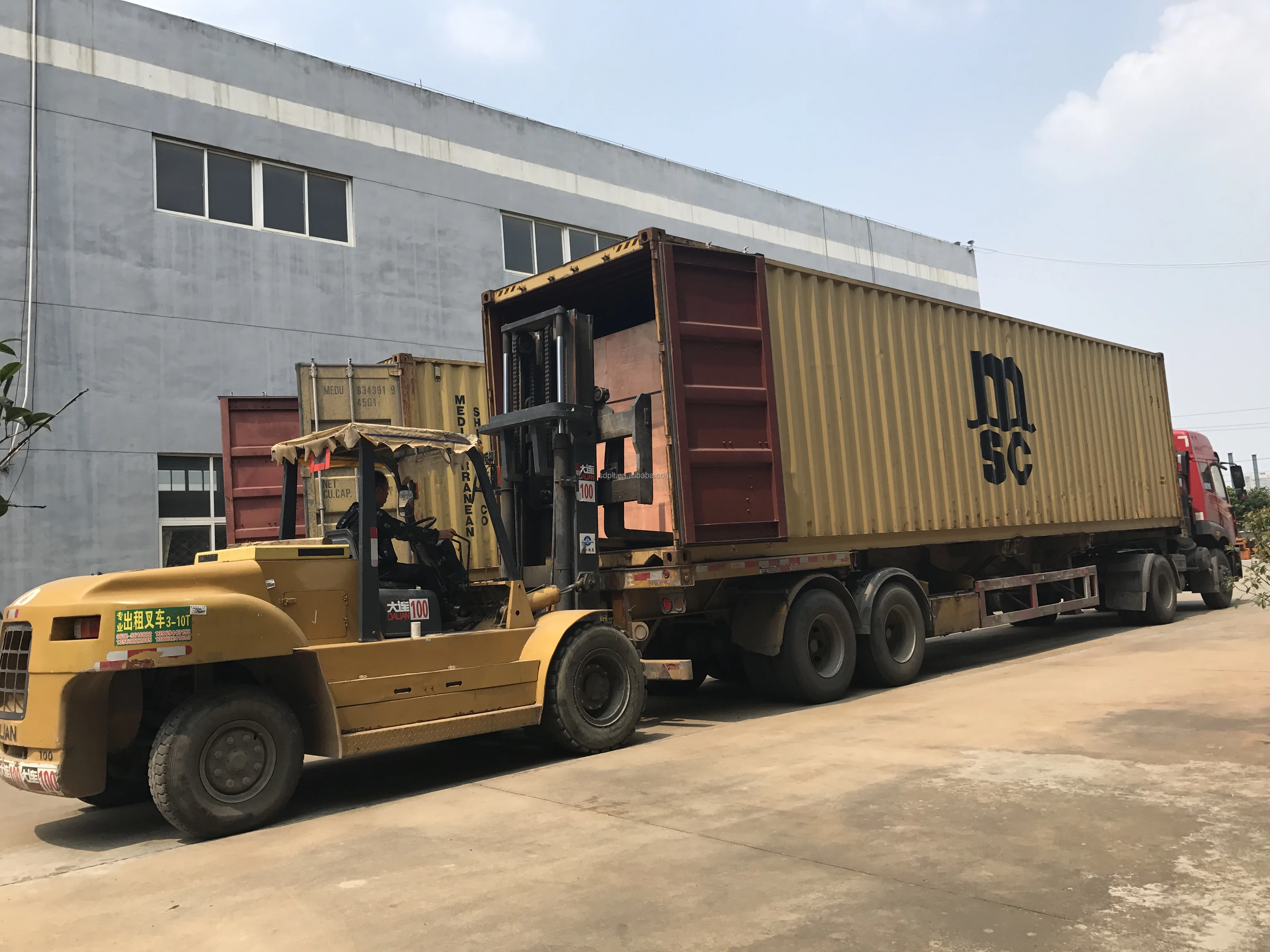

PACKING AND DELIVERY
There is the professional packing and delivery team in SHANDONG PULUTE MACHINE TOOL CO., LTD.
