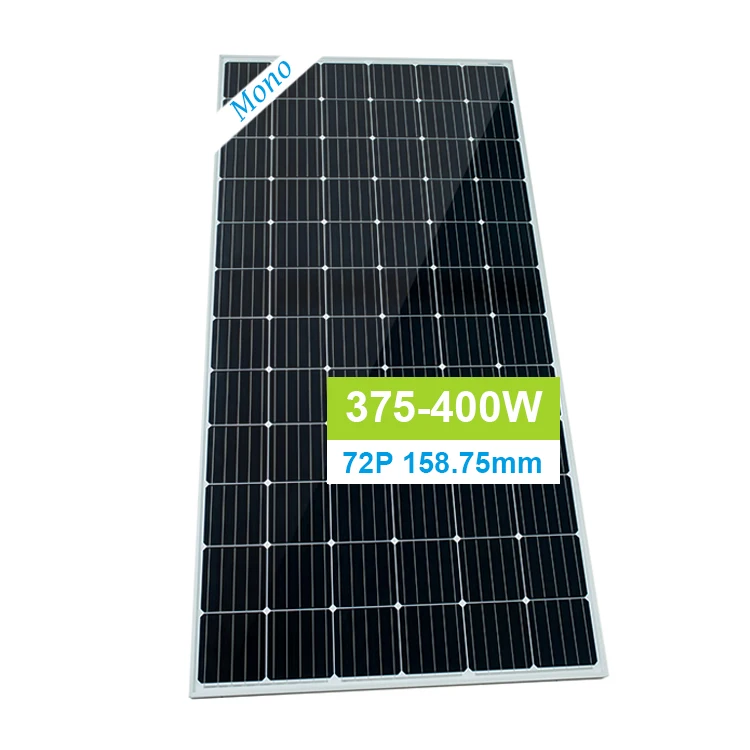

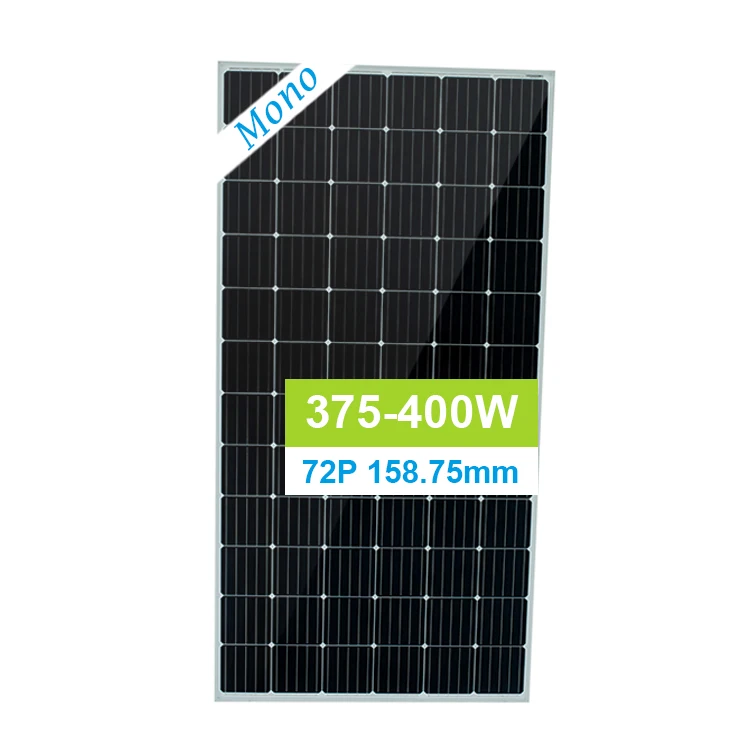

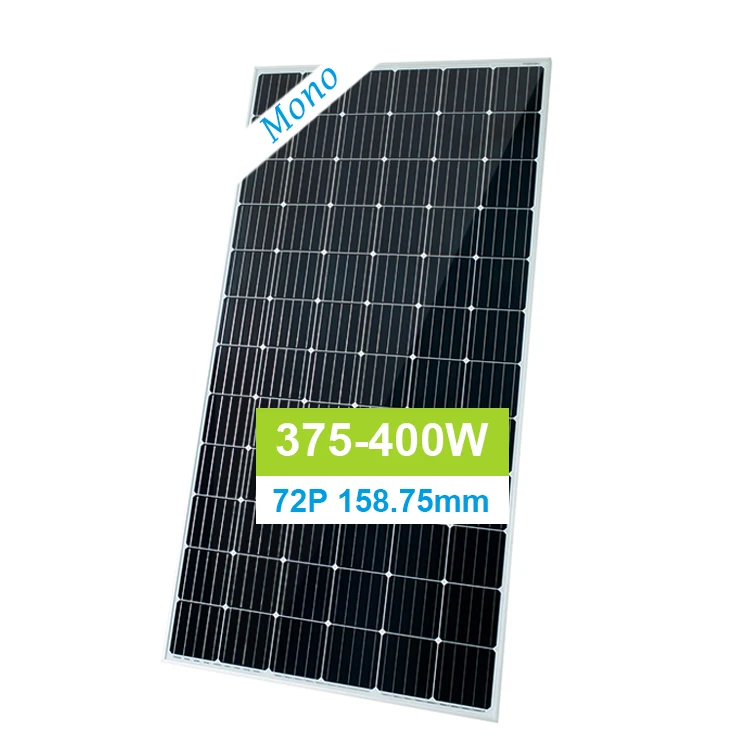

Factory Wholesale Panel Price Trina Foldable 375W 390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels
Factory Wholesale Panel Price Trina Foldable 375W-390W PV Solar Module Panels

Factory Wholesale Panel Price Trina Foldable 375W 390W PV Solar Module Panels

Share on (1600288092889):


Price:$0.20 - $0.26

Quantity:


Product Overview

Description









STC                                                                                                                                        Electrical performance parameter
Model Number
JD375M6C
JD380M6C
JD385M6C
JD390M6C
JD395M6C
JD400M6C
Component power range
(W)
375W≤Pm＜380W
380W≤Pm＜385W
380≤Pm＜385W
390W≤Pm＜395W
395W≤Pm＜400W
400W≤Pm＜405W
The most powerful
Pm(W)
375
380
385
390
395
400
Maximum working voltage
Vm(V)
40.2
40.5
40.8
41.1
41.4
41.7
Maximum working current
Im(A)
9.34
9.39
9.44
9.49
9.55
9.6
The open circuit voltage
Voc(V)
48.7
48.2
49.1
49.3
49.5
49.8
Short circuit current Isc
(A)
9.63
9.75
9.92
10.12
10.23
10.36
The efficiency of the component
(%)
18.9
19.1
19.4
19.7
19.9
20.1
Power Tolerance
(W)
0~+5W
Temperature Coefficient Pmax
(%/°C)
-0.36
Temperature Coefficient Voc
(%/°C)
-0.26
Temperature Coefficient Isc
(%/°C)
0.043
Working temperature
(°C)
-40°C ~ +85°C
The AAA solar simulator(IEC 6094-4),the electrical performance date test uncertainty is between plus or minus 3%
