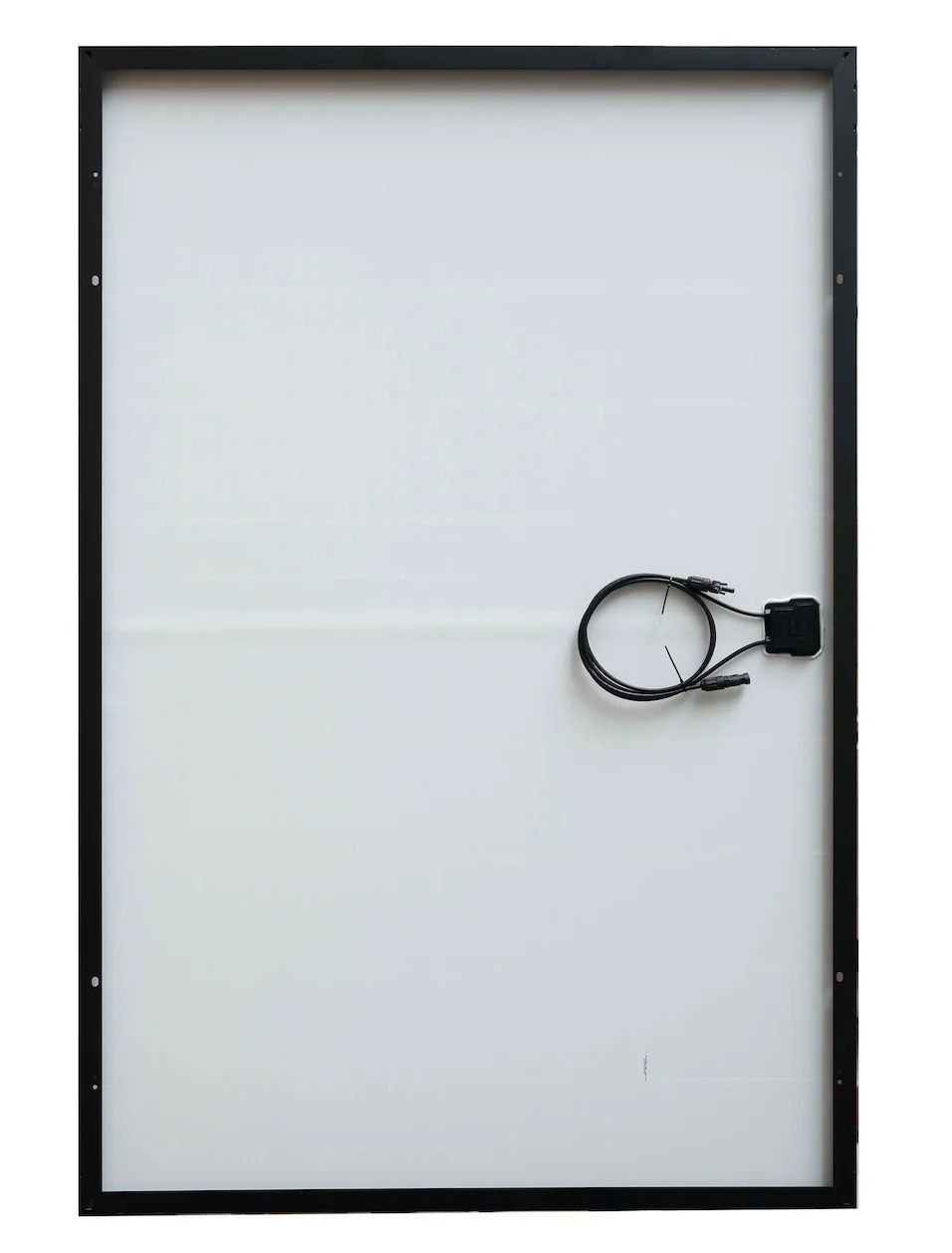

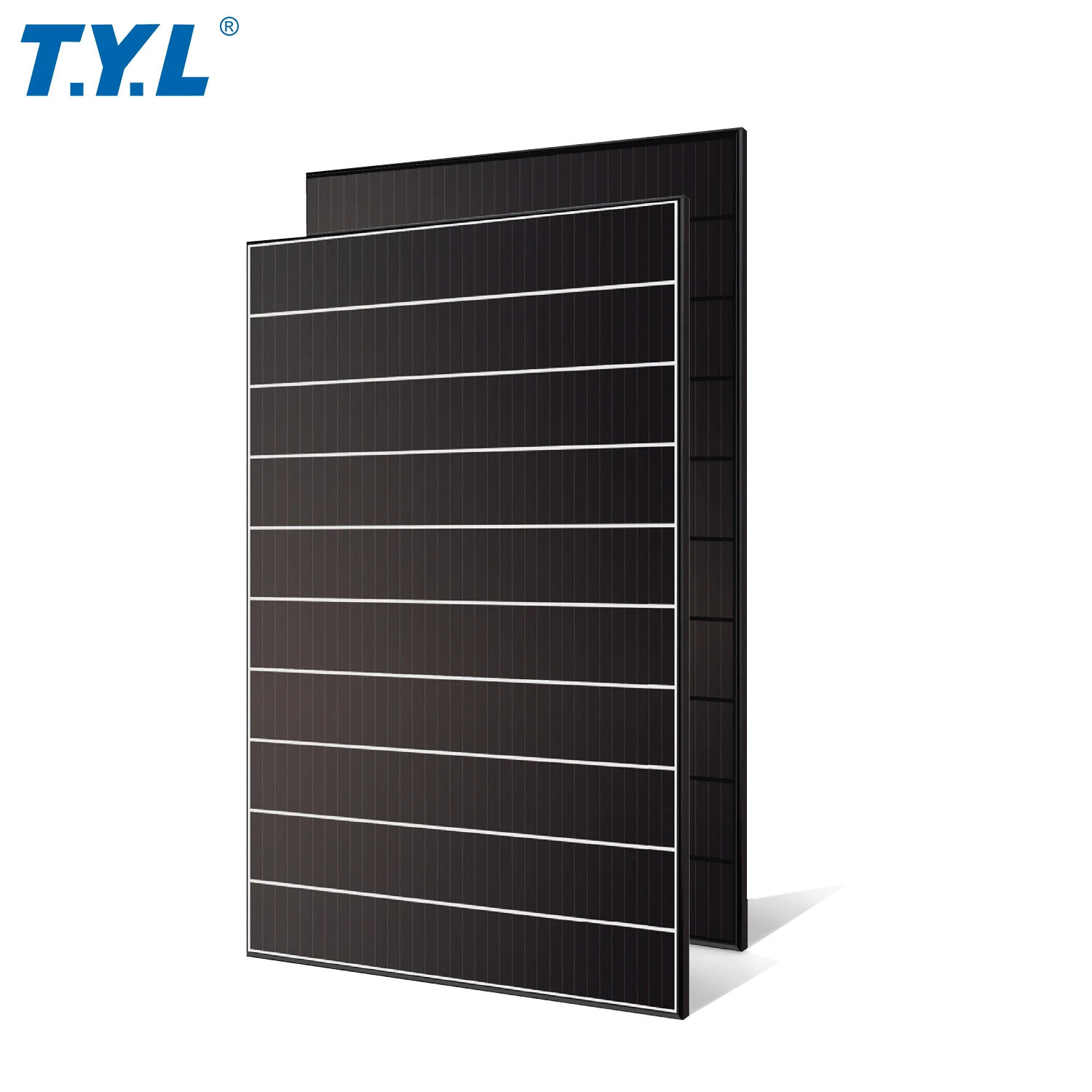

Hot Sale Fast Delivery Monocrystalline 365W 370W 375W 380W Solar Roof Shingles Panel Factory in China
- Category: >>>
- Supplier: Guangzhou Tongli New Energy Co. Ltd.
Share on (1600288201014):
Product Overview
Description
Hot Sale Fast Delivery Monocrystalline 365W 370W 375W 380W Solar Roof Shingles Panel Factory in China

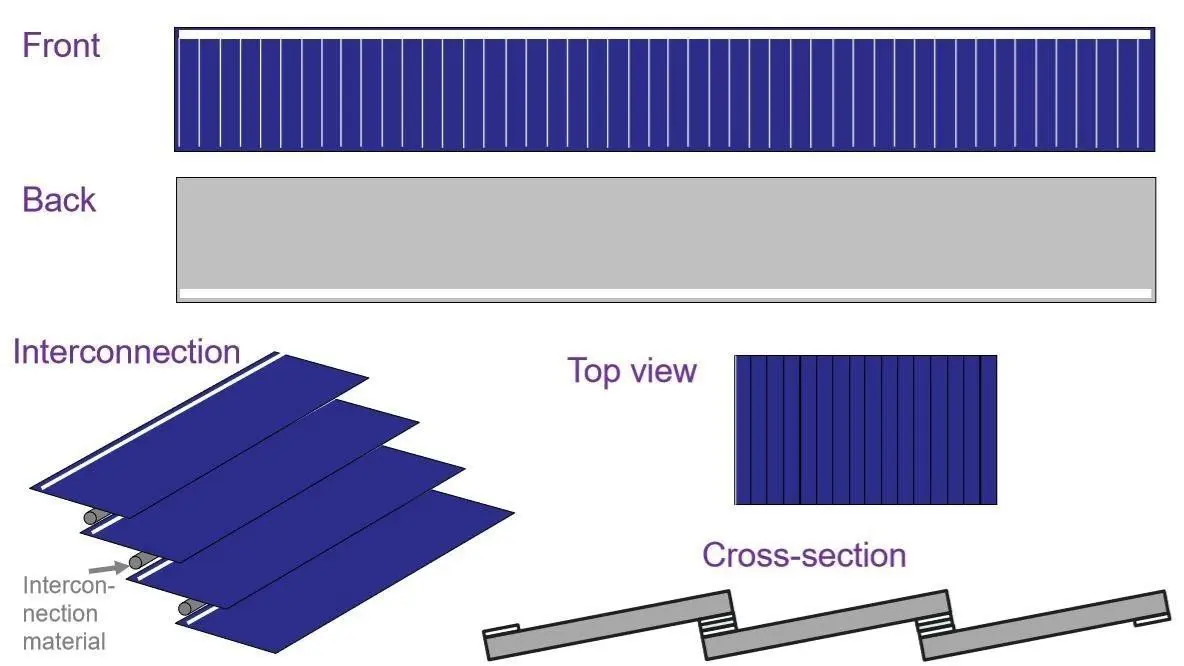

Conventional solar modules are made up of a number of solar cells electrically connected using metallic busbars. The solar cells on conventional solar modules have gaps around them and busbars typically cross over the cells to link them together. Shingled solar modules have layers of solar cells which touch each other and electrically connected using an electrically conductive adhesive (ECA). This eliminates the need for metallic busbars. This method means there are no gaps between the solar cells increasing the surface area of the silicon cells in the solar module. Plus there are no busbars covering the cells which reduce the light on the solar cells. This improves the electrical and mechanical performance and the aesthetics of the solar module.
Panel size MM\t1730*1018*35MM\t\t\tPanel weight Kg\t19.4\t\t
Solar cell\tMono Cell210*210\t\t\t
Cell arrangement\t210*30;8*34 arrangement\t\t\t
Packaging\t32PCS/Pallet；Packing size(L*W*H)：1750*1110*1160MM\t\t\t
Product Description
Versatile
The solar panel supports a number of mounting options, the panel can adapt flat surface mounts (Z-bracket, tilt adjustable bracket) and pole/wall installation
High-efficiency
Uses high performance solar cells encapsulated in EVA (ethylene-vinyl-acetate) Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
Waterproof
The solar module is Anti-reflective, high transparency, low iron-tempered glass . IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
Specification

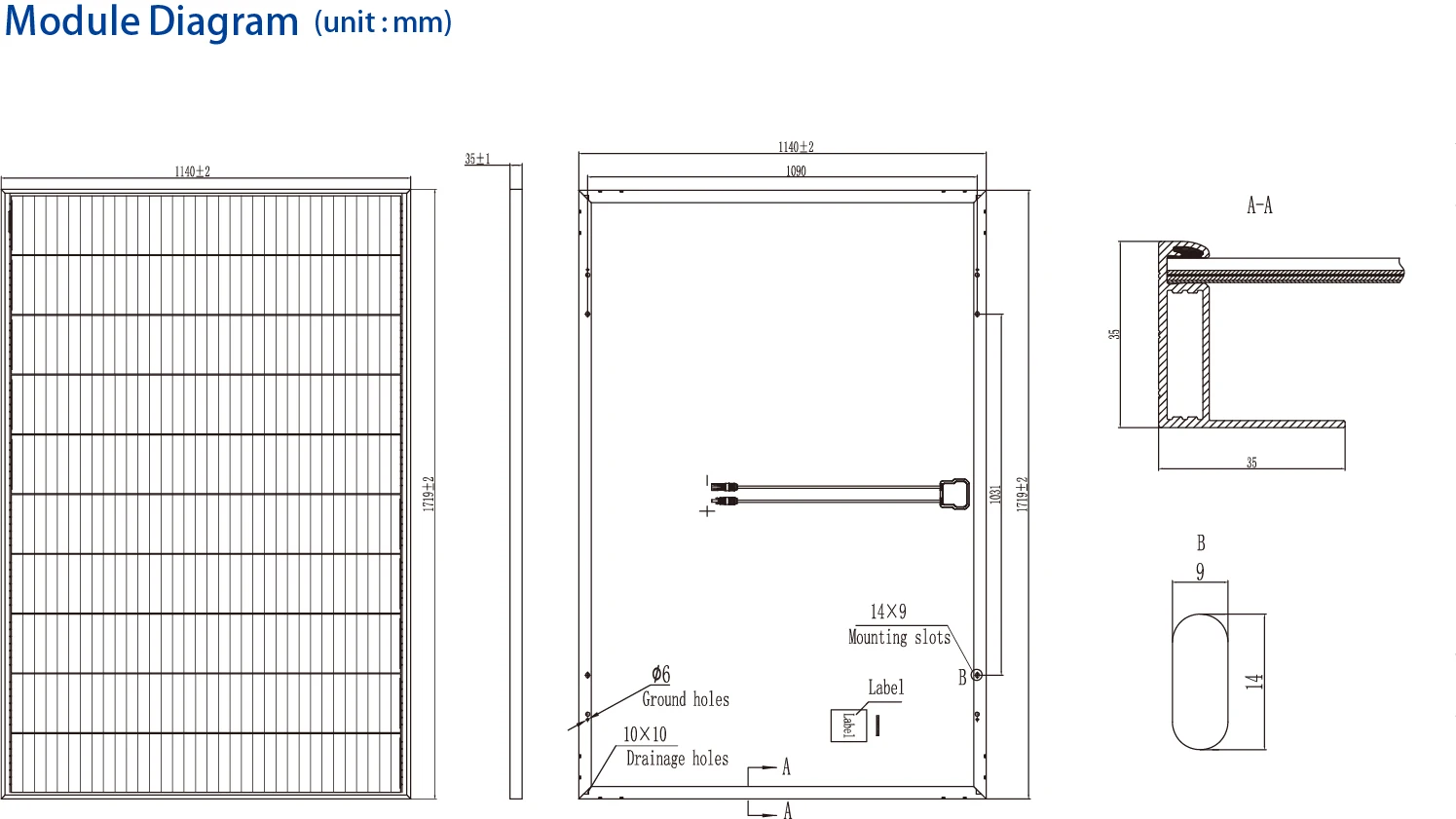

Panel size MM | 1730*1018*35MM | ||||||
Panel weight Kg | 19.4 | ||||||
Solar cell | Mono Cell210*210 | ||||||
Cell arrangement | 210*30;8*34 arrangement | ||||||
Packaging | 32PCS/Pallet；Packing size(L*W*H)：1750*1110*1160MM | ||||||
Max. working power (W) | 365 | 370 | 375 | 380 | |||
Max. working voltage (V) | 38.83 | 38.90 | 38.96 | 39.03 | |||
Max. working current (A) | 9.40 | 9.51 | 9.62 | 9.74 | |||
Open voltage (V) | 45.36 | 45.42 | 45.49 | 45.79 | |||
Short circuit current(W) | 9.94 | 10.04 | 10.15 | 10.22 | |||
Module efficiency | 20.68 | 20.97 | 21.25 | 21.53 | |||
Testing condition | Radiance 1000 W/m²; AM 1.5；Ambient temperature 25℃。 | ||||||
Shingled Solar Panel Date Sheet | ||||||||||||
Model | Power (w) | Voltage (v) | Material | Module efficiency(%) | Size (mm) | Arrangement | ||||||
540-555W | 36V | SHINGLED | 21.75 | 2148*1188*35 | 210*30;10*40 | |||||||
495-510W | 36V | SHINGLED | 21.98 | 2148*1080*35 | 210*30;10*36 | |||||||
465-480W | 36V | SHINGLED | 21.91 | 2148*1020*35 | 210*30; 10*34 | |||||||
435-450W | 36V | SHINGLED | 21.82 | 2148*960*35 | 210*30;10*32 | |||||||
390-405W | 36V | SHINGLED | 21.68 | 1730*1080*35 | 210*30;8*36 | |||||||
365-380W | 36V | SHINGLED | 21.53 | 1730*1018*35 | 210*30;8*34 | |||||||
345-360W | 36V | SHINGLED | 21.68 | 1730*960*35 | 210*30;8*32 | |||||||
345-360W | 36V | SHINGLED | 21.68 | 1730*960*35 | 210*30;8*32 | |||||||
325-340W | 36V | SHINGLED | 21.84 | 1730*900*35 | 210*30;8*30 | |||||||
290-305W | 36V | SHINGLED | 21.56 | 1310*1080*35 | 210*30;6*36 | |||||||
Detailed Images

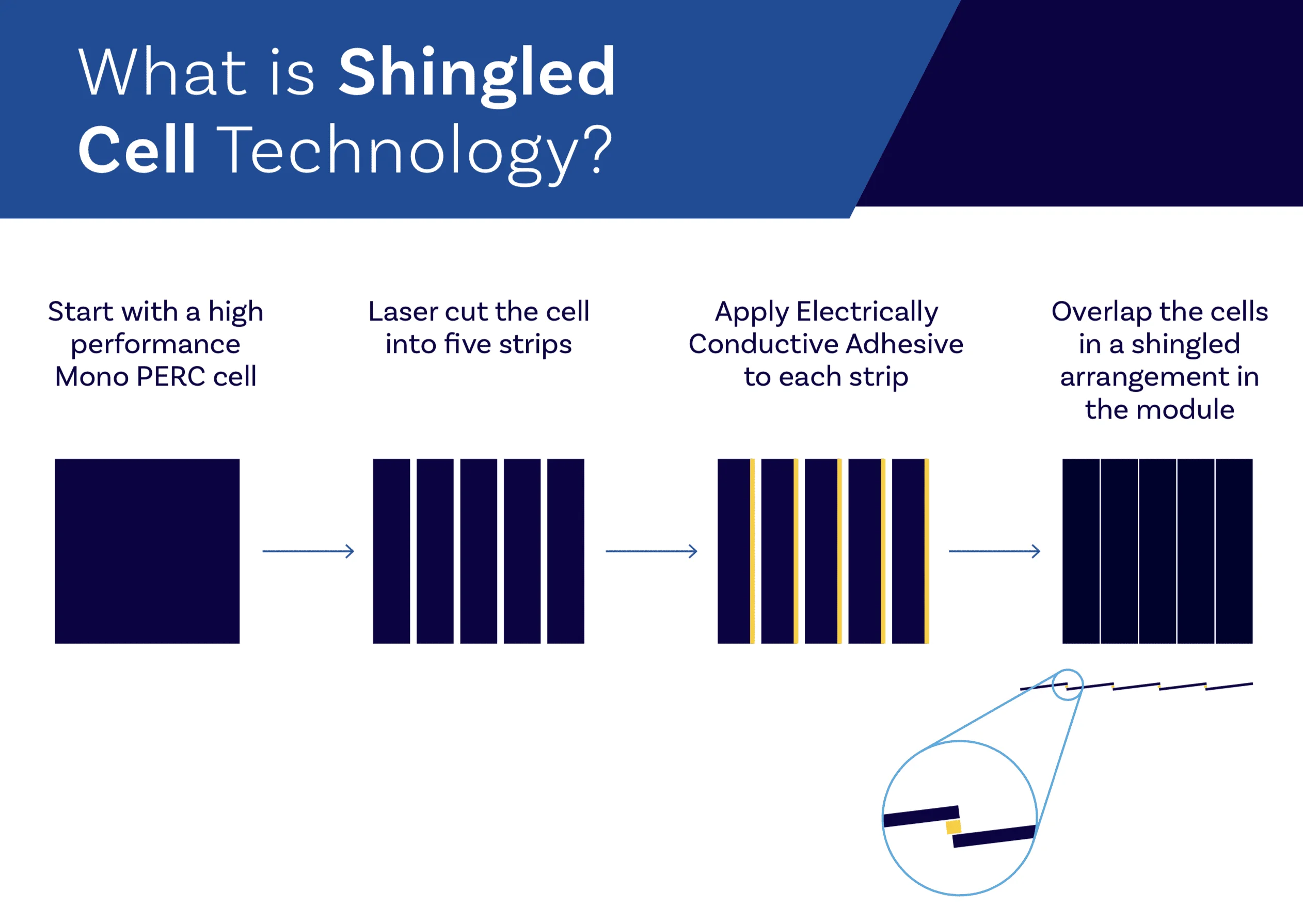

PERC mono solar cells
> Shingled components of the same area can be packed into more cells > Conductive glue is connected to conduct electricity,
reducing resistance > Reduce power loss and hot spots caused by shading
reducing resistance > Reduce power loss and hot spots caused by shading
Glass.
> Ture clear low iron glass
> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
Frame.
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
Humanized design.
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Junction box.
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Back sheet
>Low moisture permeability against snail trail defect
>Excellent electric insulation for high system voltage up to 1500v
>Outstanding weatherproof performance
>Excellent electric insulation for high system voltage up to 1500v
>Outstanding weatherproof performance
Production Process
Cell sorting
Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area
Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame

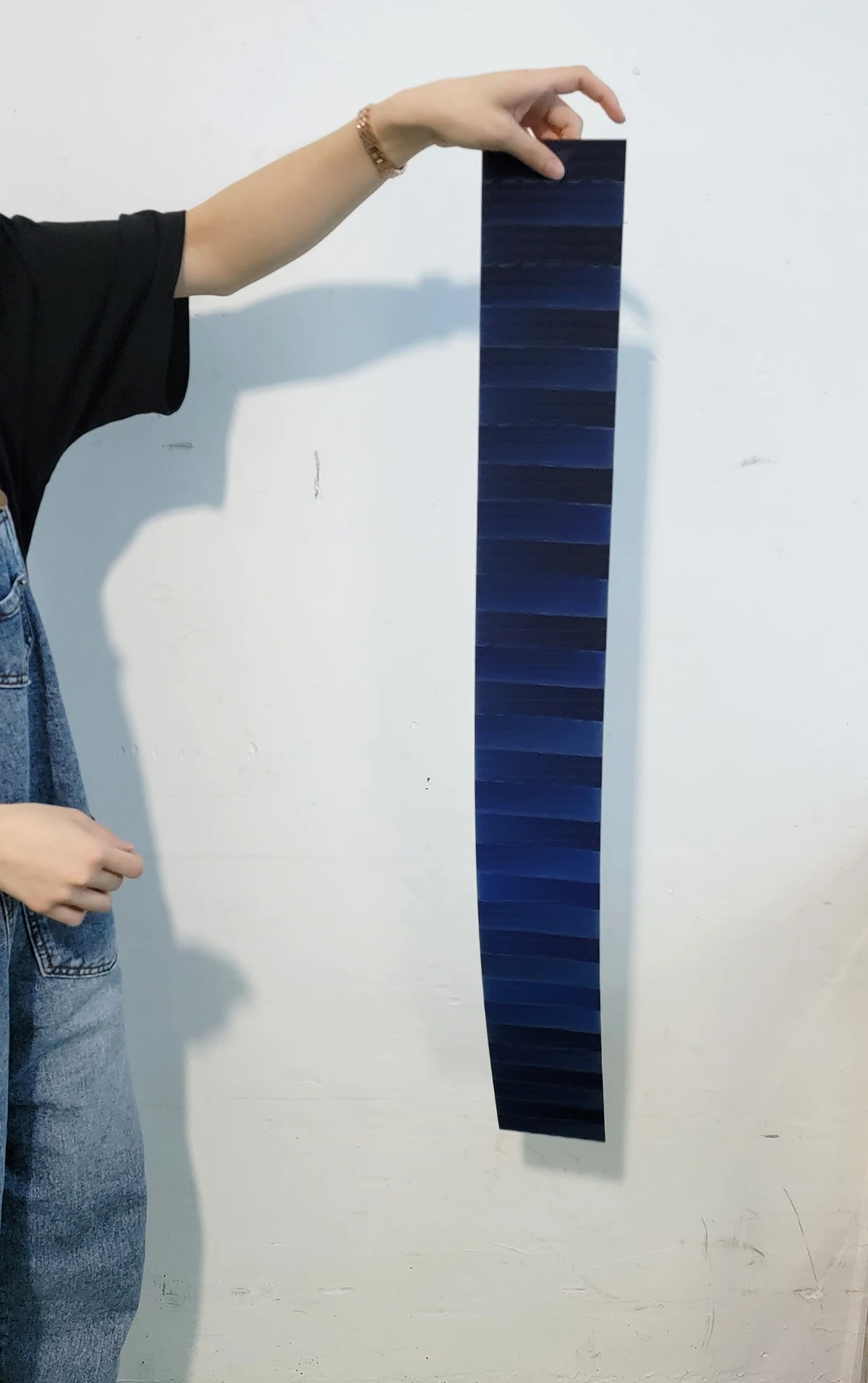

Flexible solar panel sorting and packaging
Integrated solar street light assembly
Certifications
Company Profie
Guangzhou Tongli New Energy co., LTD.
Belongs to Guangdong Tongli Group, which was founded in Guangzhou in 1999 by Dr. Tony Tong, which is a comprehensive hi-tech enterprise of R&D, manufacturing, and trade.
And the first company that is engaged in Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive battery, motorcycle batteries, motorcycle electrical parts in China.
Headquartered in the international city of China-Guangzhou. Now we have three factories. Guangzhou factory with more than 500 workers, Covers an area of 40000 square meters，mainly develops and produces solar power systems. Linghang battery in Longgui Shaoguan, the factory covers an area of 60000 square meters, with more than 1000 workers, mainly develops and produces batteries. Tongli factory in Wengyuan shaoguan, the factory covers an area of 70000 square meters, with more than 800 workers, mainly develops and produces batteries.
The Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive batteries, Motorcycle batteries, and related electrical products are exported to major United States, Europe, the Middle East, Africa, South America. The Company and its products have achieved the certificates like UL, CE, IEC, ISO9001, ISO9008, ISO14001.
Our trademarks T.Y.L have received a good reputation from our distributors and users. Our products serve LV, Mobike, CNPC, CSCEC, and so on. We are Dongfeng Automobile nominated supplier, Storage battery Manufacturing base.
We believe in our product and we will be proud to serve you. In the future, we will take technical and market advantages fully, and further enhance the business capability and industry-leading capability, join hands with our business partners from around the world for the prosperity of the global Solar power market to make a new and greater contribution.
And the first company that is engaged in Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive battery, motorcycle batteries, motorcycle electrical parts in China.
Headquartered in the international city of China-Guangzhou. Now we have three factories. Guangzhou factory with more than 500 workers, Covers an area of 40000 square meters，mainly develops and produces solar power systems. Linghang battery in Longgui Shaoguan, the factory covers an area of 60000 square meters, with more than 1000 workers, mainly develops and produces batteries. Tongli factory in Wengyuan shaoguan, the factory covers an area of 70000 square meters, with more than 800 workers, mainly develops and produces batteries.
The Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive batteries, Motorcycle batteries, and related electrical products are exported to major United States, Europe, the Middle East, Africa, South America. The Company and its products have achieved the certificates like UL, CE, IEC, ISO9001, ISO9008, ISO14001.
Our trademarks T.Y.L have received a good reputation from our distributors and users. Our products serve LV, Mobike, CNPC, CSCEC, and so on. We are Dongfeng Automobile nominated supplier, Storage battery Manufacturing base.
We believe in our product and we will be proud to serve you. In the future, we will take technical and market advantages fully, and further enhance the business capability and industry-leading capability, join hands with our business partners from around the world for the prosperity of the global Solar power market to make a new and greater contribution.
Company Philosophy Professional Trustworthiness Win-win, Quality Policy Product is constantly improved, service is forever.
Quality Objective:
1. The wastage rate of production is controlled below 0.1%.
2. The rate of contract fulfillment on schedule is 100%.
3. The degree of customer satisfaction is above 99%.
Environment Policy:
1.Being disciplined and law-abiding;
2.Control of environmental pollution;
3. Promoting energy conservation by innovation;
4.Full participation;
5.Continual improvement.
There is no ending for the pursuit of development, Tongli is going to adhere to the version of "a world-famous brand, a century enterprise. the core value of Loyalty and integrity, continuous improvement, customers first, Family happiness. and comply with the principle of "high-end-based, efficiency first, innovation-driven, and fast development. and stick to the contribution of a harmonious society and sustainable development, meanwhile, we are willing to work with people at home and around with lofty destinations to create new brilliance. and will continue enthusiastic public welfare, and pay attention to environmental protection.
Quality Objective:
1. The wastage rate of production is controlled below 0.1%.
2. The rate of contract fulfillment on schedule is 100%.
3. The degree of customer satisfaction is above 99%.
Environment Policy:
1.Being disciplined and law-abiding;
2.Control of environmental pollution;
3. Promoting energy conservation by innovation;
4.Full participation;
5.Continual improvement.
There is no ending for the pursuit of development, Tongli is going to adhere to the version of "a world-famous brand, a century enterprise. the core value of Loyalty and integrity, continuous improvement, customers first, Family happiness. and comply with the principle of "high-end-based, efficiency first, innovation-driven, and fast development. and stick to the contribution of a harmonious society and sustainable development, meanwhile, we are willing to work with people at home and around with lofty destinations to create new brilliance. and will continue enthusiastic public welfare, and pay attention to environmental protection.
Public-spirited
Help-Guangdong Tongli donated 140KW solar power station in "Da Aipingjiang" Archives
Helping the poor-Guangdong Tongli donated 70KW solar power station in the "Ai Pingjiang" Anding Home for the Elderly
Assistance-Guangdong Tongli donated home drinking water project
Teaching Assistant-Guangdong Tongli Donated Hometown Alma Mater Construction
Teaching Assistant-Guangdong Tongli donated multimedia teaching to Guangzhou Yongxing Primary School
Teaching Assistant-Guangdong Tongli donated 70KW solar power station in Pingjiang No.1 Middle School
Teaching Assistant-Guangdong Tongli Boss initiates the establishment of his hometown alma mater Pingjiang No. 1 Middle School with 3 million scholarships
Student Aid-Guangdong Tongli Boss Gives Big Red Envelopes to Employees of 211 University

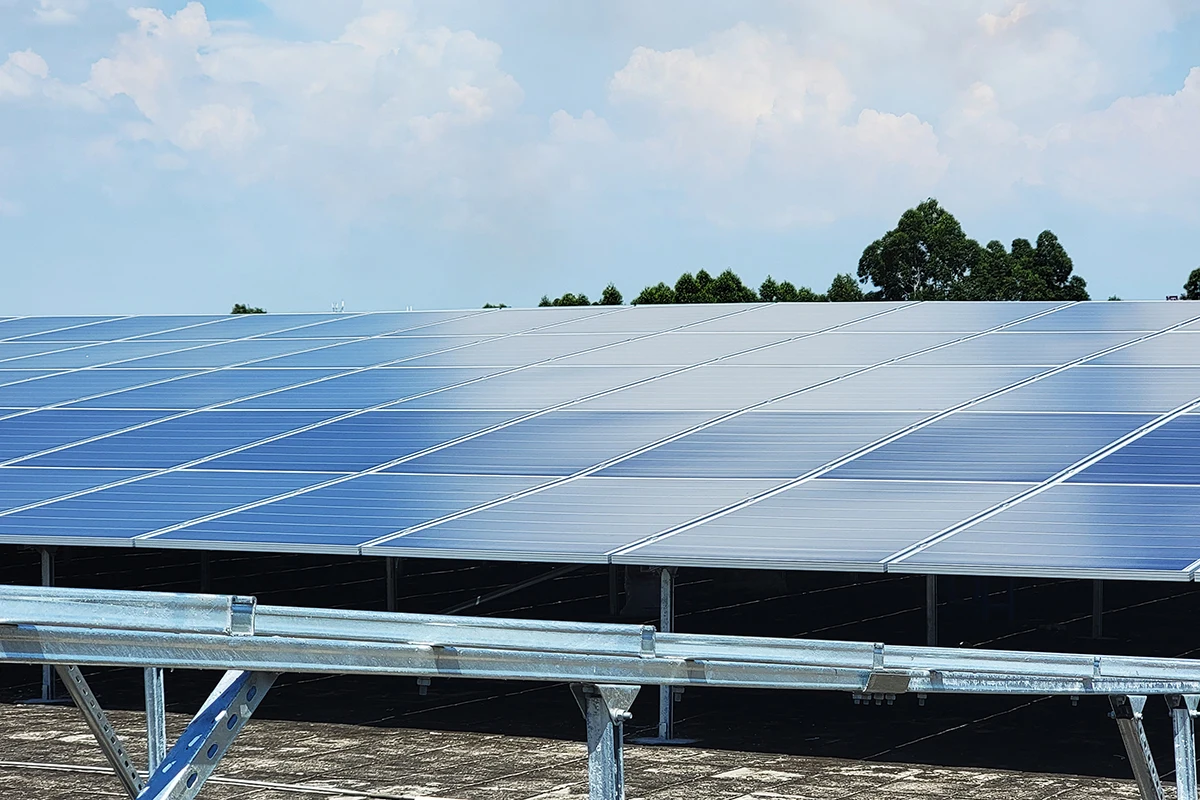

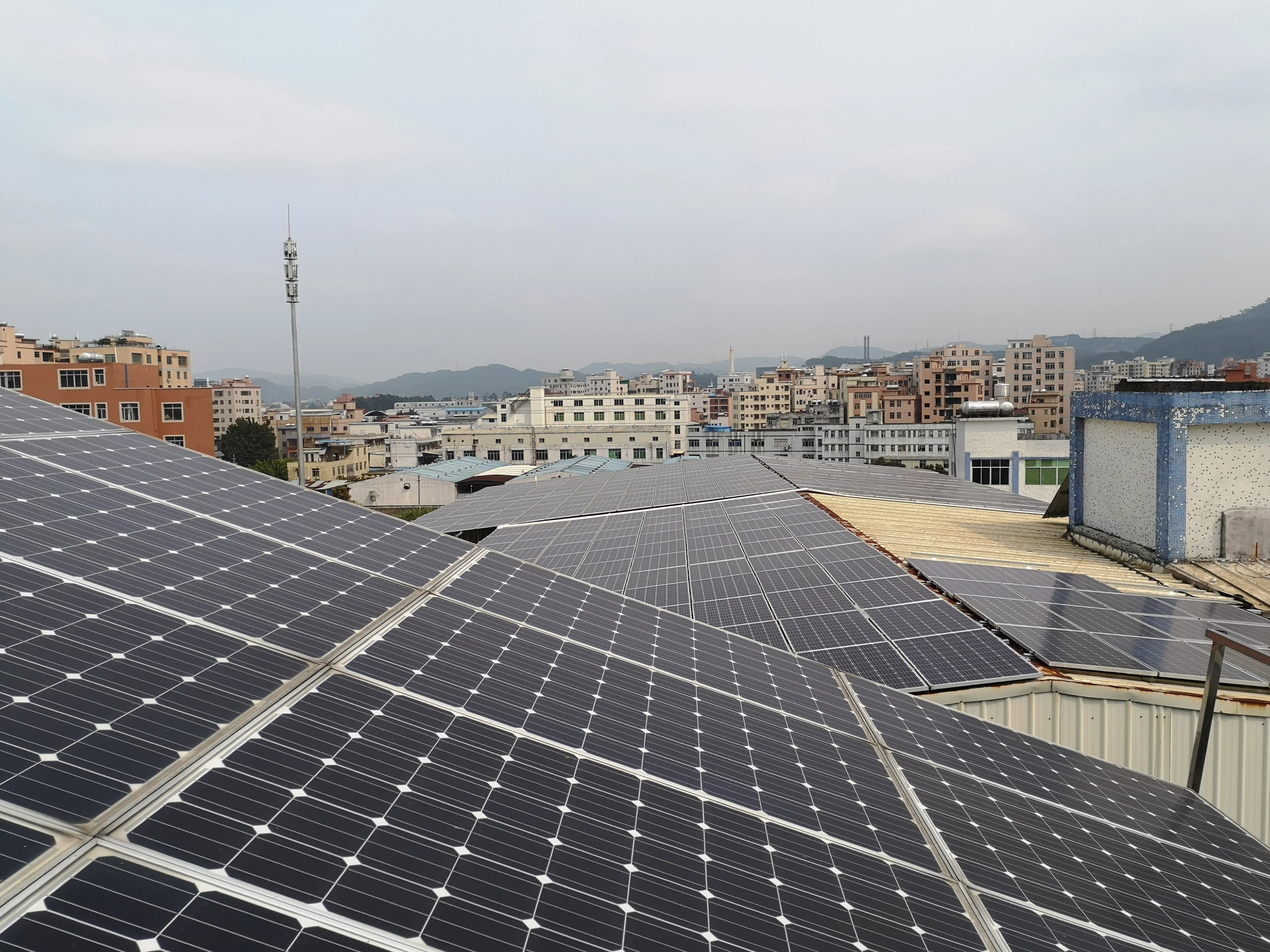

Solar power generation on roofs of factories in Guangdong Tongli
Guangdong Tongli boss donates blood to employees every year
Guangdong Tongli boss was named the county's model worker
The general manager of Guangzhou Tongli New Energy was awarded the caring entrepreneur by Guangdong Pingjiang Chamber of Commerce

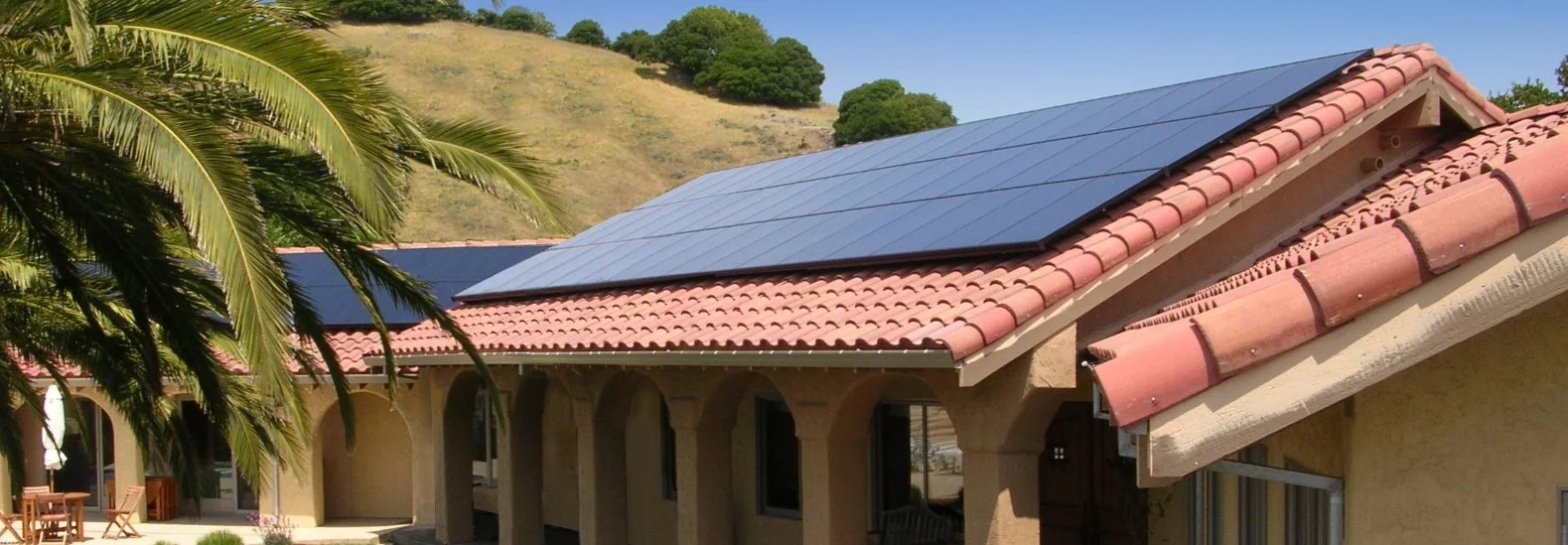

Customer case
French LV customer
Indian customers
Pakistan customers
African customers
FAQ
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A4: We provide free sample for most of products, and you just need to arrange the delivery things.
Q5: What is the warranty for solar panels?
A5: 5 years warranty on FGET-Solar product, 10 year optional, while the life time is 30 years ,
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you factory ?
A7: We are manufacturer in solar products area more than 10 years .
