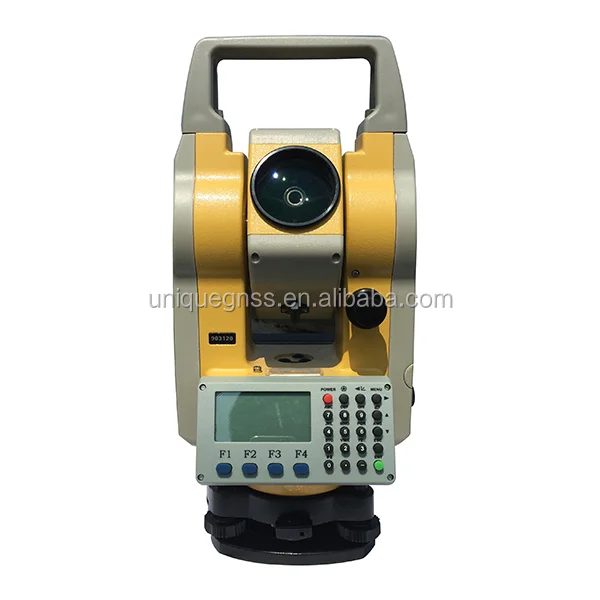

Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m
Surveying instrument Total Station DTM622R6 with Reflectorless 600m

Surveying instrument Total Station DTM622R6 with Reflectorless 600m

Share on (1600288321102):


Price:$1,490.00 - $1,590.00

Quantity:


Product Overview

Description



Specification


                                                                                   Model DTM622R6
Distance Measurement Section

Range
Non-prism
600m
prism
Single prism
3000m
Three prism
5000m
Accuracy
Non-prism
±（3mm+2ppm·D）
Prism
±（2mm+2ppm·D）, ±（3mm+2ppm·D）
Unit
m／ft
Display
Maximum
99999999.9999m
Minimum
0.1mm
Measuring time
Precise model:1S, Track model:0.8S
Number of time Set
1 ～ 99
Meteorologiccorrection
Input the value and correct automatic
Prismconstant
Input the value and correct automatic
Angle Measurement Section
Method
Absolute coding
Grating diameter
79mm
Minimum reading
1″
Detection
Horizontal
Diametrical detection
Vertical
Diametrical detection
Accuracy
2″
Telescope Section
Imaging
Positive
Length
170ｍｍ
Effectiveaperture
48mm
Magnification
30×
Angle of vision
1.5°
Distinguishability
3.5″
Minimum focus distance
1.5m
Compensator
System
Double axis photoelectric tilt sensor or
Single axis liquid tilt sensor
Working range
±3′
Distinguishability
1″
Display Section
Type
Double sides,240×160 LCD Display
Data Transmission
Port
USB，RS-232C
Capacity
40,000 data at least
Others
Plummet
Optical or Laser plummet
Power
Rechargeable lithium battery,DC7.4V,3600mAh
Continuous working time
8 hours at least
Size
174×207×383mm
Weight
6.8Kg
Working temperature
-20℃ ～ 50℃


Product Description

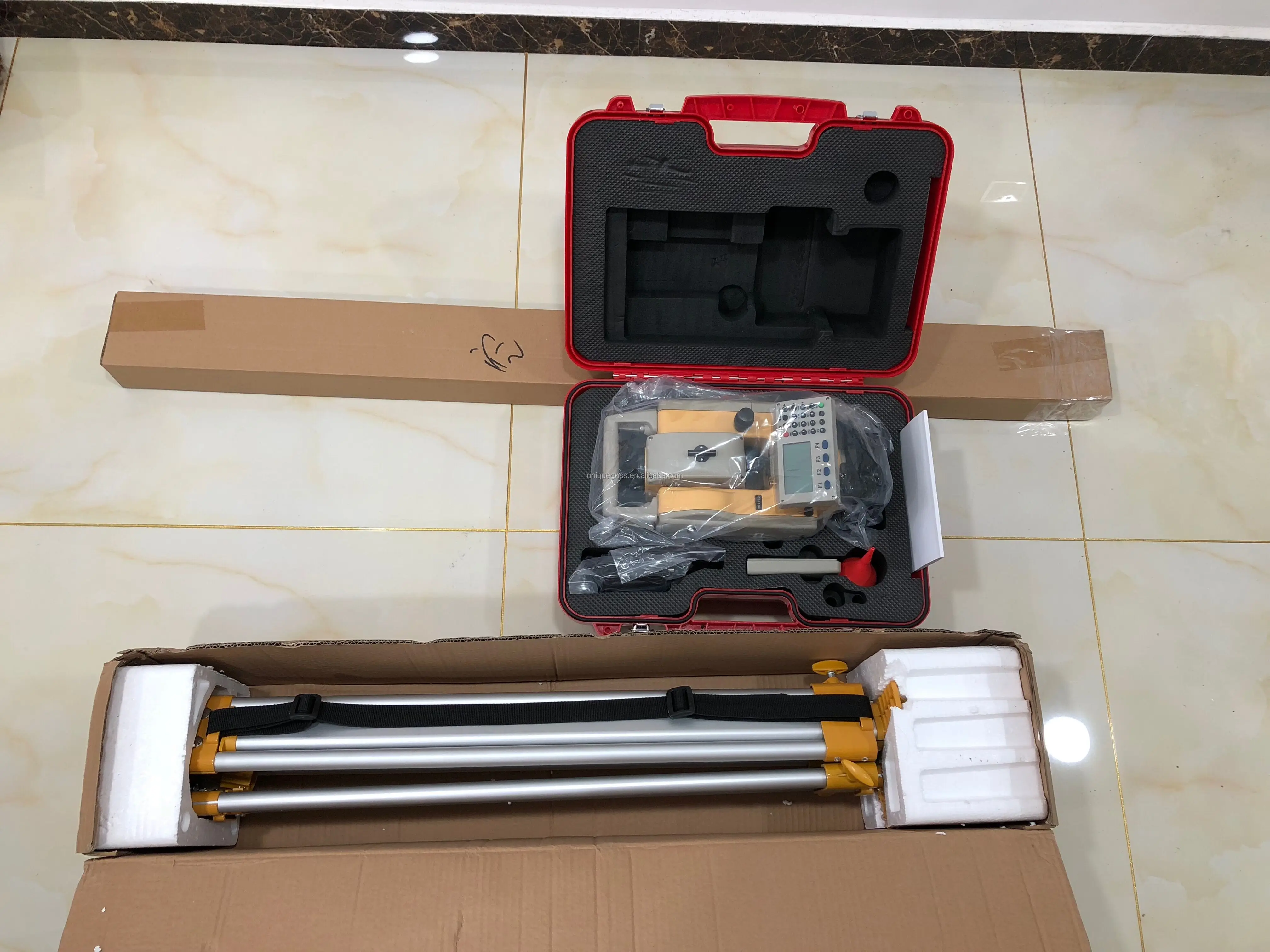

Packing & Delivery




Cartons




Multiple delivery methods


Company Profile


Tianjin Unique Technology Co., Ltd is an professional supplier for GIS data collector, Handheld GPS, GNSS RTK Receiver, GNSS for machine control, GNSS OEM Board, GNSS Antenna, Total station, Theodolite, and other Surveying equipments. Supply the best products and services to customers.


FAQ


1. who are we?
We are based in Tianjin, China, start from 2017,sell to Africa(30.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),North America(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.

3.what can you buy from us?
GNSS RTK Receiver, GIS handheld GPS, GNSS Receiver for machine control, Total Station, Theodolite, GNSS Board

4. why should you buy from us not from other suppliers?
Tianjin Unique Technology Co., Ltd is an professional supplier for GIS data collector, Handheld GPS, GNSS RTK Receiver, GNSS for machine control, Total station, Theodolite, and other Surveying equipments. Supply the best products and services to customers.
