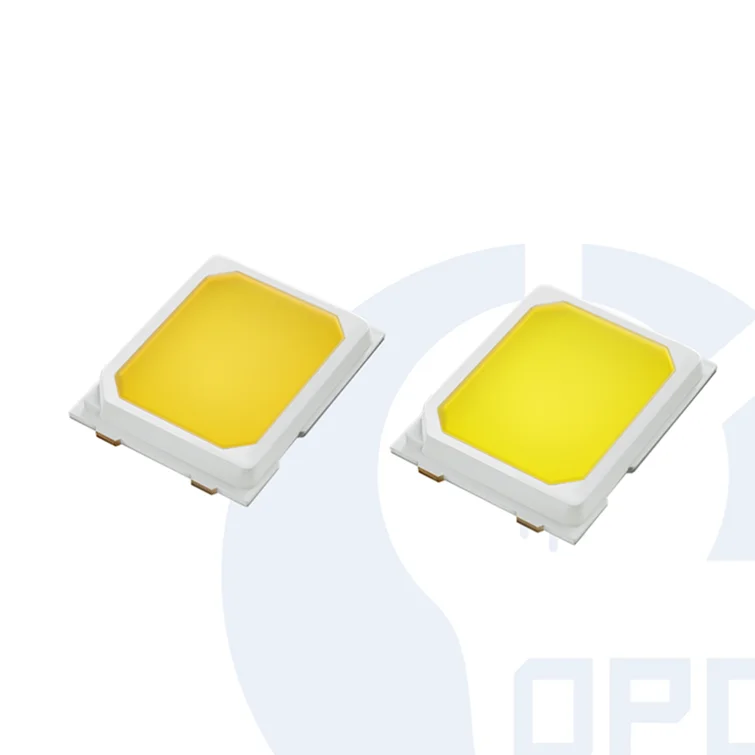

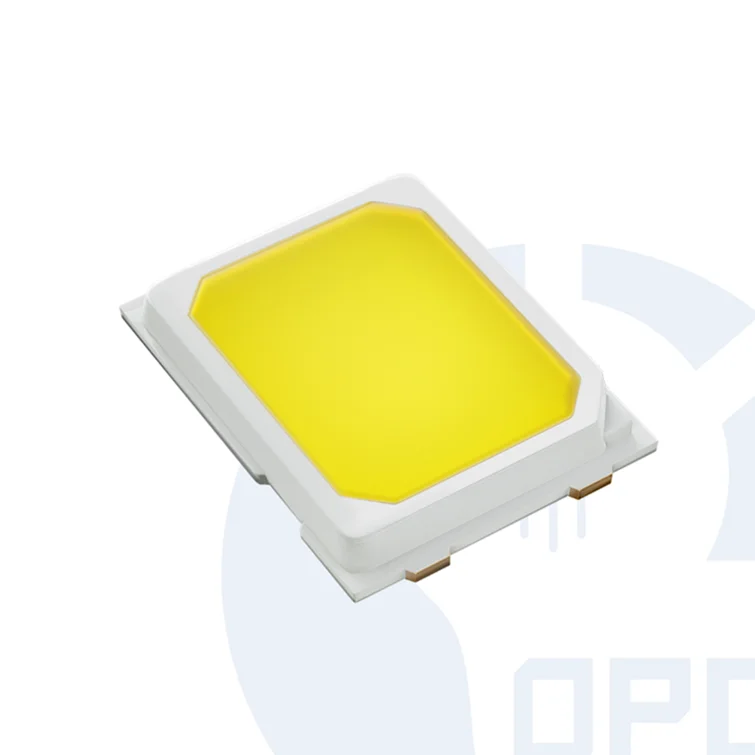

Quality Guarantee And Led Smd 2835 Led Light Source Led Chips
- Category: >>>
- Supplier: Zhongshan Copda Electronics Technology Co. Ltd.
Share on (1600288339043):
Product Overview
Description

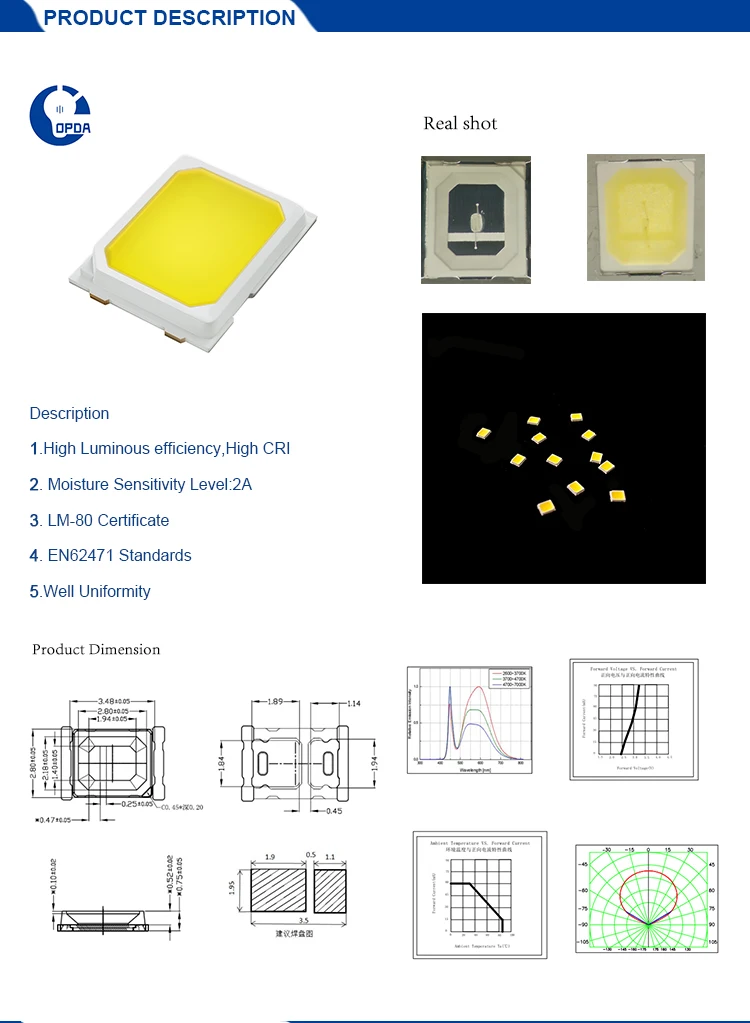

Product Description

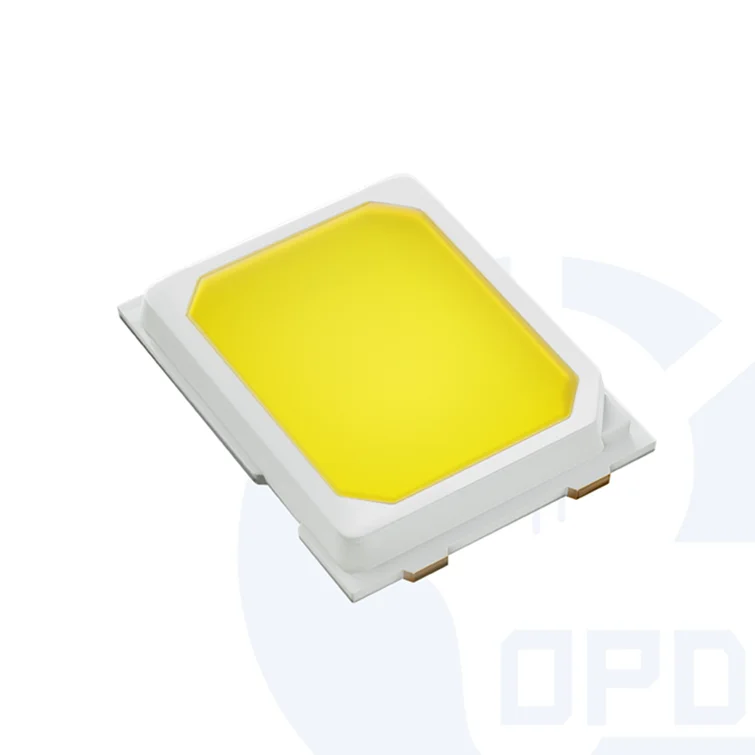

Quality Guarantee And Led Smd 2835 Led Light Source Led Chips
Main photoelectric characteristic arameter table (TA=25°c)
Item | Symbol | Min Value | Standard | Max Value | Unit | Testing Condition |
Forward Voltage | VF | 3 | - | 3.4 | V | IF=60mA |
Reverse Current | IR | - | - | 1 | uA | VR=7V |
Color Tolerance | SDCM | - | 5 | - | Step | IF=60mA |
Luminous flux | Φ | 22 | - | 24 | lm | IF=60mA |
Ra | CRI | 90 | - | - | - | IF=60mA |
Half power angle | 2θ1/2 | - | 120 | - | Deg | IF=60mA |
Maximum Specifications(TA=25°C)
Item | Symbol | Maximum Specifications | Unit | |
Forward Current | IF | 60 | mA | |
Peak Forward Current | IEP | 65 | mA | |
Reverse Voltage | VR | 7 | V | |
Power Consumption | PD | 200 | mW | |
Junction Temperature | ≤125°C | |||
Pin Application Temperature | ≤75°C | |||
Working Temperature | -40°C~+85°C | |||
Storage Temperature | -40°C~+85°C | |||

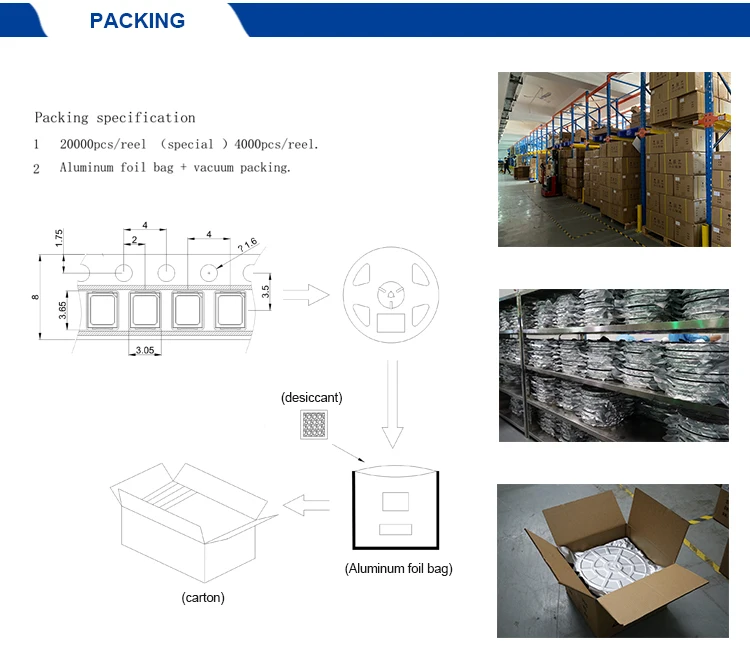

Packaging & Shipping
