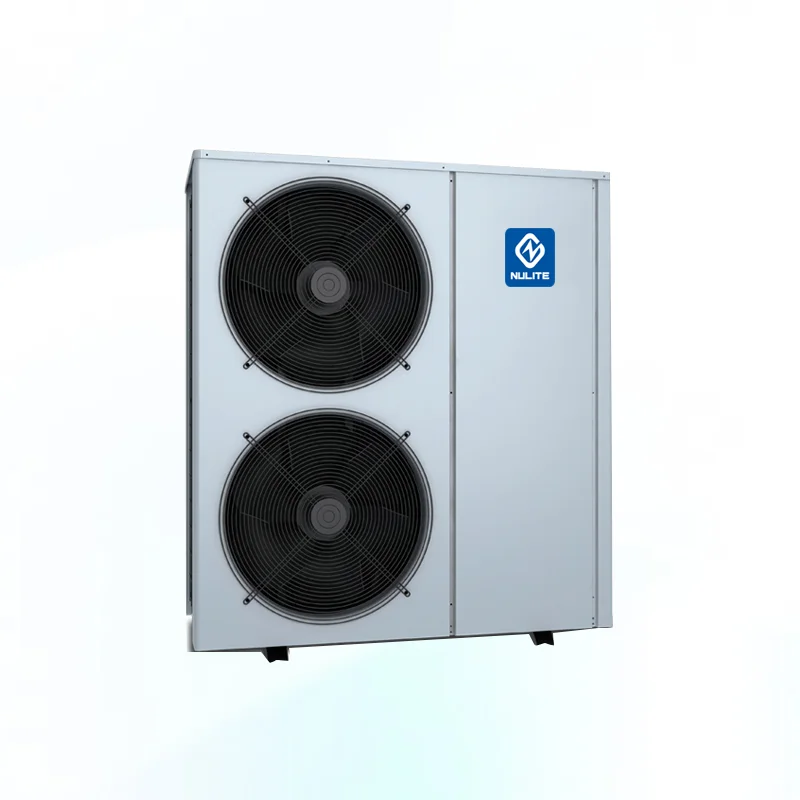

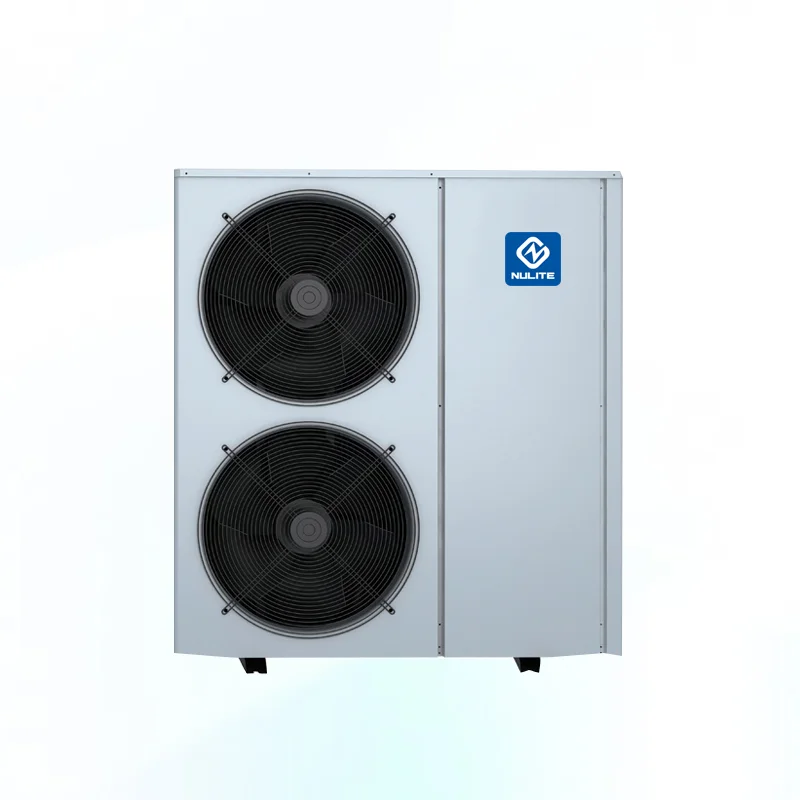

10kw 20kw 30kw high effeciency air to water heat pump water heater monoblock
- Category: >>>
- Supplier: Nulite New Energy (Guangzhou) Co. Ltd.
Share on (1600288348392):
Product Overview
Description
Product Description
NuLite 70C 75C 80C Heatpump Hot Water Radiator Heating
Scroll Compressor15KW R134A High Temperature Heat Pump
10KW 20KW 22KW 30KW 38KW Air Source Inverter Heat Pump
Super Low Noise, High Efficiency, Space Saving & Energy Saving
Product NameHigh Temp Heat Pump Model Name Heating Capacity | High Temperature Air Source Heat Pump (Heating/Hot Water)Heat Pump Heating Capacity B3S B5S B10S 8KW 15KW 30KW (A25W65) |
Manufacturer | Guangzhou NuLite Group |
Factory Scale | in total 3 manufacturing Base in Guangdong Province, more than 400,000sqm. 1,000,000+ units producing ability, 200,000+ units sold in 2018 |
Heat Pump Function | Combined with Water Tank, Radiator, FCU, Floor Heating Cooling & Hot Water |
MOQ | 18 Units+ (1-2 Units available with stocks) |
High Efficiency | 3.5~5 from A7~A35/W45 |
EVI Monobloc Heat Pump | Heat Pump 8KW (60~90m2) B3S Heat Pump 14KW (100-180m2) B5S |
1. ASHP Heating Capacity: 70~80C 8KW 15KW 30KW high temperature Monobloc Heat Pump at A25W70
2. Best Selling Market: Gemany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria, Switzerland, Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia, New Zealand, Chile, Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.
3. Ambient Temp of Using: Minus 25C, max 60C Hot Water Output
4. Certificate: ISO9001, CE, CB, EMC, MSDS, Scop, erP Energy Label, ROHS
5. Low Ambient Scroll Compressor for B3S B5S B10S High Temp Heat Pump Series
5. Low Ambient Scroll Compressor for B3S B5S B10S High Temp Heat Pump Series
Model | NERS-B5S | ||
Rated heating capacity | 19700W | ||
Rated input power/ current | 4450W/8.0A | ||
Max input power/ current | 6408W/11.4A | ||
Rated power | 380V～50Hz | ||
Rated water volume | 420L/h | ||
Level of security | IPX4 | ||
Electric shock protection grade | Ⅰ | ||
Refrigerant/ injection volume | R134a/3250g | ||
Compressor Brand | Copeland | ||
Rated water flow | 5.0m3/h | ||
Unit | Weight | 138kg | |
Net size | 1108mm×489mm×1257mm | ||
Rated water temp | 65℃ | ||
Max water temp | 80℃ | ||
Unit weight | 175kg | ||
Noise | ≤60dB(A) | ||
Inlet/outlet water pressure drop | 50kPa | ||
Why Choose Us
#ODM OEM customised service.
# large quantity storage,Rapid Logistics
# large quantity storage,Rapid Logistics
#100% complete quality inspection.
# working test of every machine before selling
# working test of every machine before selling
# competitive products with factory price.
#Professional technical support and project solution
Company Profile
Three main modern manufacturing factories
#covering 580,000 square meters#1,200,000 units production ability
#over 1,500 employees
#over 1,500 employees
Modern technology production line——assembly, leak detection, evacuation, safety test, commodity inspection, final assembly, etc..
Certificates of Export & wall of heat pump patents
#CE, EMC, erP, CB certificated
#16+ years manufacturing and export experience
#Singapore7S strict high quality production management.
#Specialize in ASHP line, have more than 1000 professional patents.
#16+ years manufacturing and export experience
#Singapore7S strict high quality production management.
#Specialize in ASHP line, have more than 1000 professional patents.
Advanced energy-saving integrated performance laboratory.
#The laboratory received approval from SGS can conduct third-party testing certification independently at the facility.
#R&D team of more than 80 people..
#The laboratory received approval from SGS can conduct third-party testing certification independently at the facility.
#R&D team of more than 80 people..
Why Trust Us
NULITE NEW ENERGY | Pictures from factory

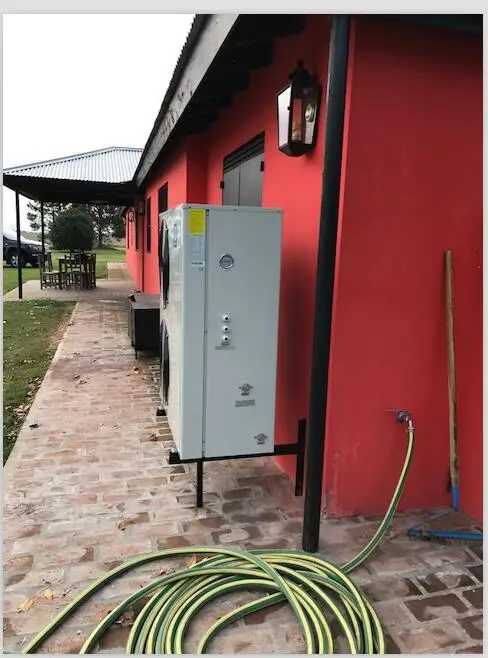

NULITE NEW ENERGY | Installation Pictures
NULITE NEW ENERGY | Pictures of product and customers

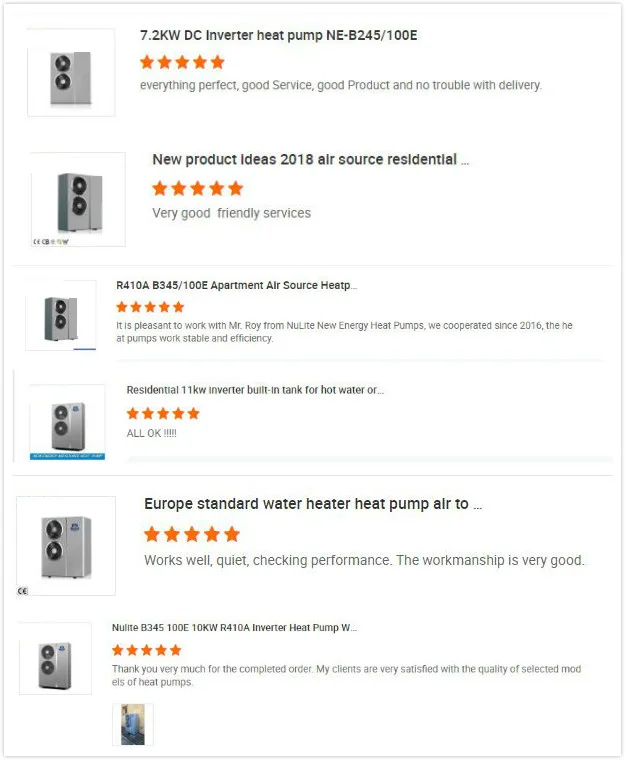

Customer Feedback
FAQ
1.What is your advantages,comparing with other water heaters?
# Avoiding electric water heater leakage, dry, high power consumption.
# Avoiding the drawbacks of gas water heater,such as producing harmful gases,Fits and starts etc.
# Energy efficient, safety and environmental protection, all-weather operation, easy to use
2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
4. How about your delivery time?
Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
5. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
More details to confirm, please send inquiry and contact us.
Best Regards.
# Avoiding electric water heater leakage, dry, high power consumption.
# Avoiding the drawbacks of gas water heater,such as producing harmful gases,Fits and starts etc.
# Energy efficient, safety and environmental protection, all-weather operation, easy to use
2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
4. How about your delivery time?
Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
5. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
More details to confirm, please send inquiry and contact us.
Best Regards.
