Large Size seawater desalination filter wedge wire water filter Passive Intake Screens

Share on (1600288357429):


Price:

Quantity:


Product Overview

Description



Product Description

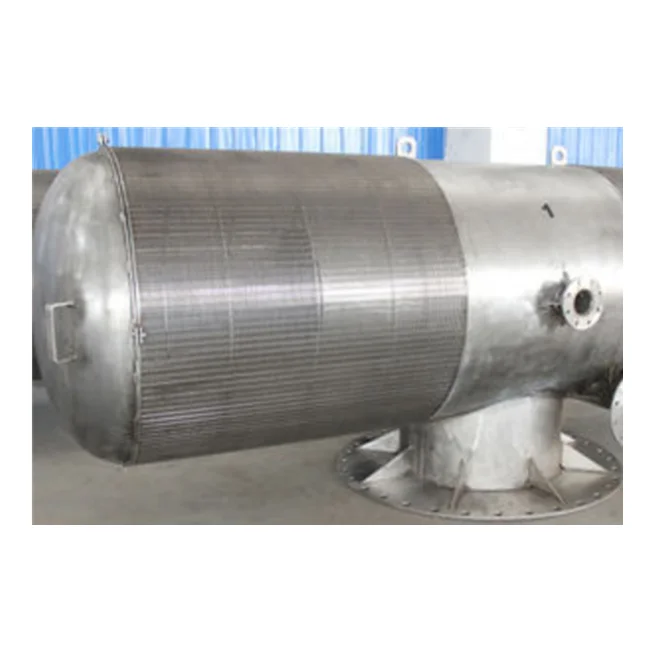

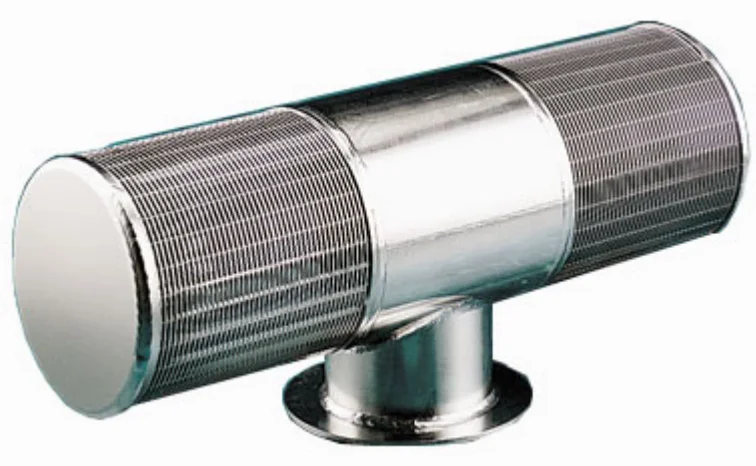

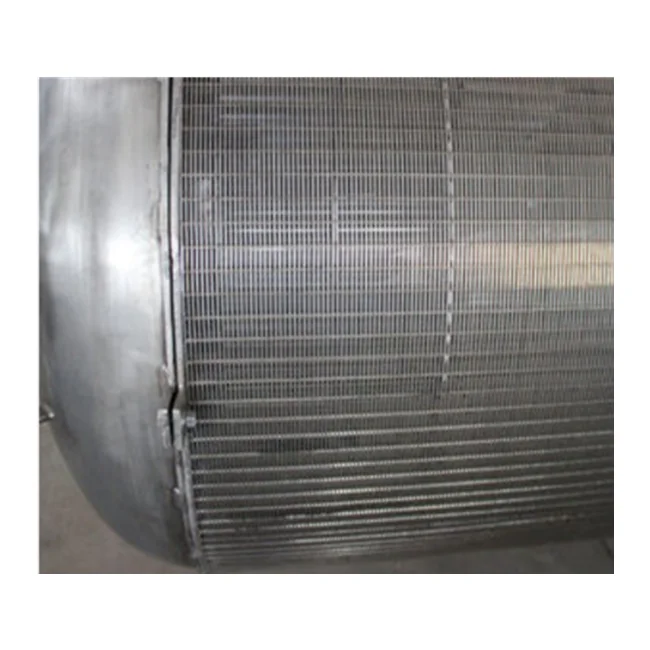

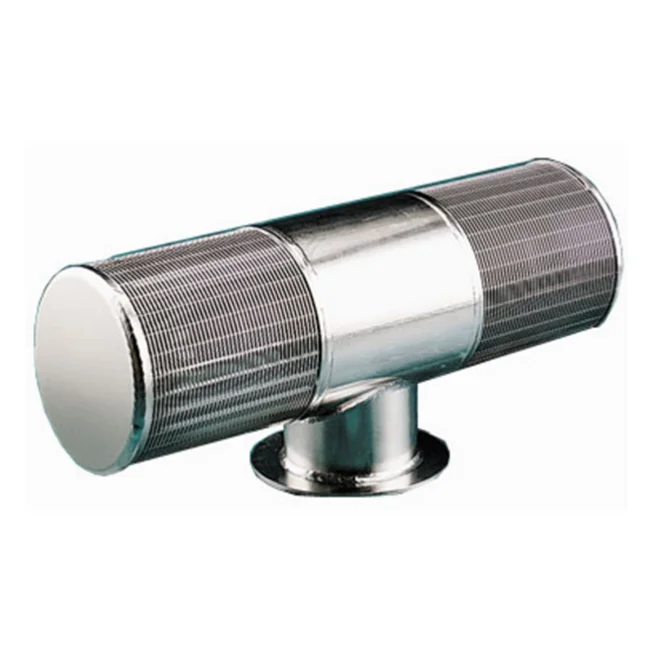

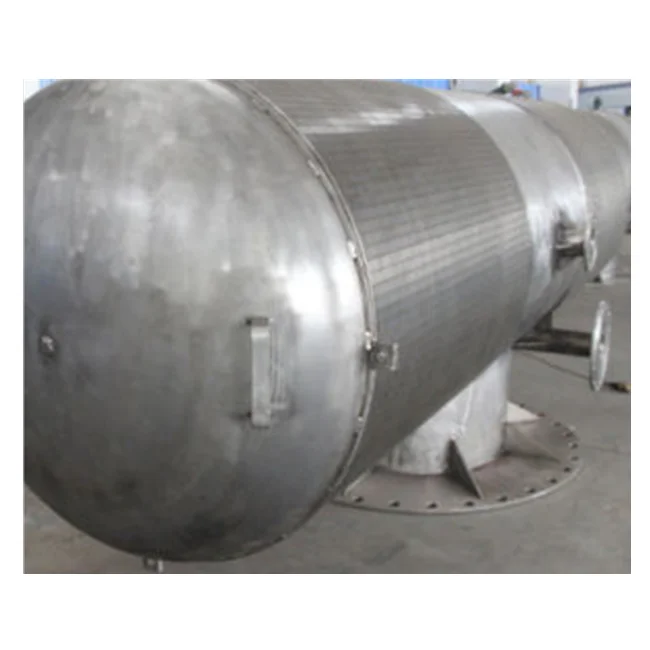

Sea water passive intake screens
ECO Screens-Sea water passive intake screens are carefully designed to protect the natural surroundings and aquatic life near the intake. Equipped with our primary filtration system, the passive intake screen is designed to reduce slot entrance velocity. This lower velocity helps to prevent debris clogging.

The ECO Screens intake system offers many benefits including:
Low cost
Limited maintenance
Environmentally friendly
Easy cleaning
No disposal of debris
Adaptability

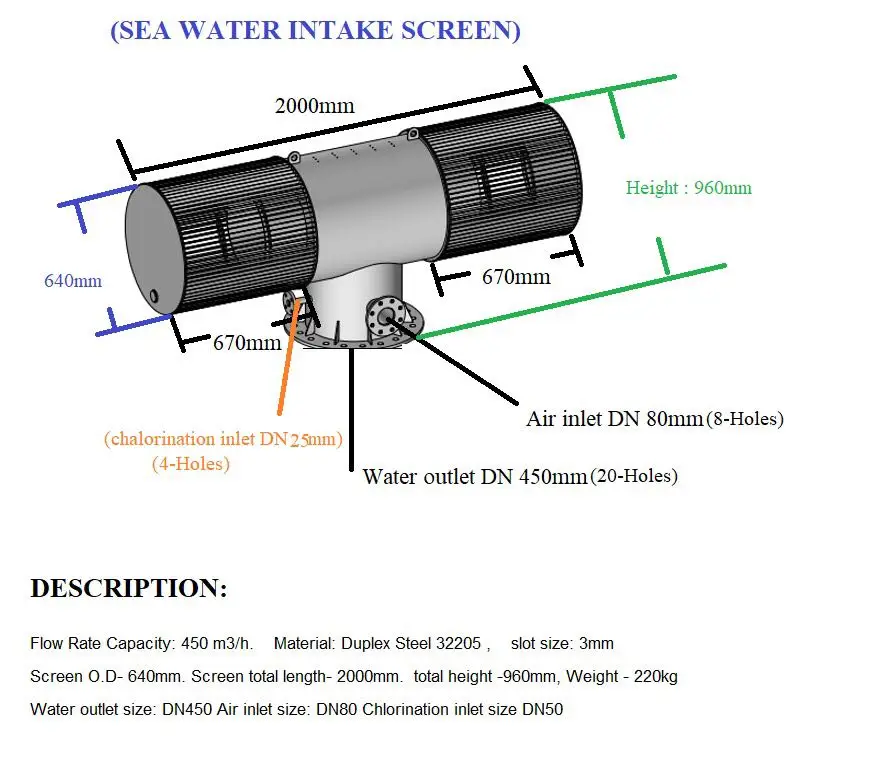

Specification


item
value
Flow rate capacity
450 m3/h or customized
Material
Duplex steel 32205, SS316L or customized
Slot size
3mm or customized
Screen O.D.
640mm or customized
Screen total length
2000mm or customized
Total height
960mm or customized
Water outlet size
DN450  or customized
Air inlet size
DN80 or customized
Chlorination inlet size
DN50 or customized


Working Principle

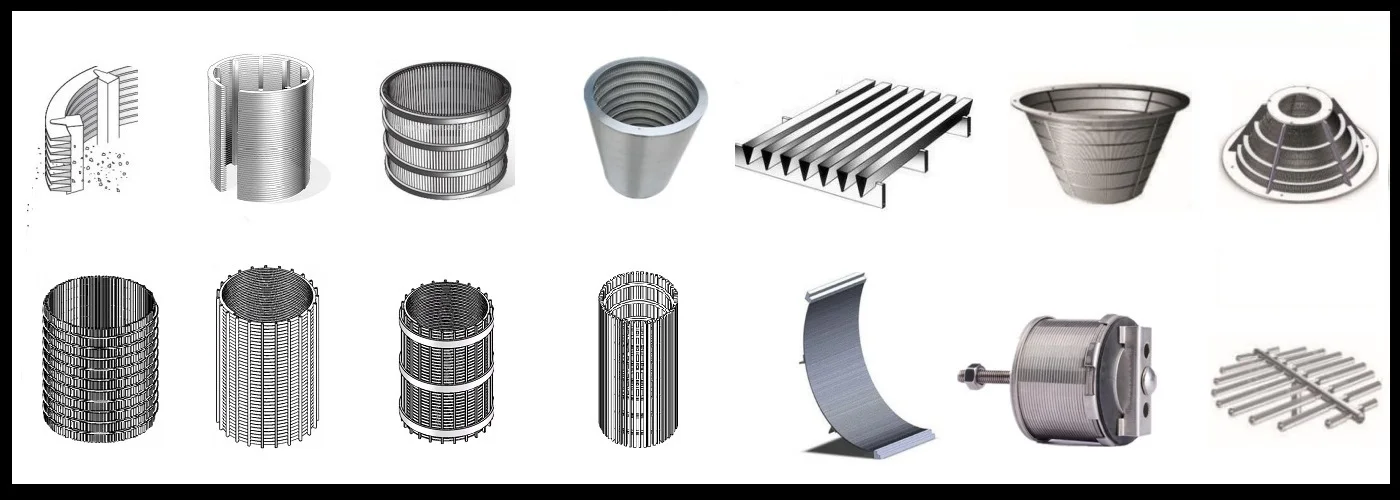

Recommend Products




Packing & Delivery

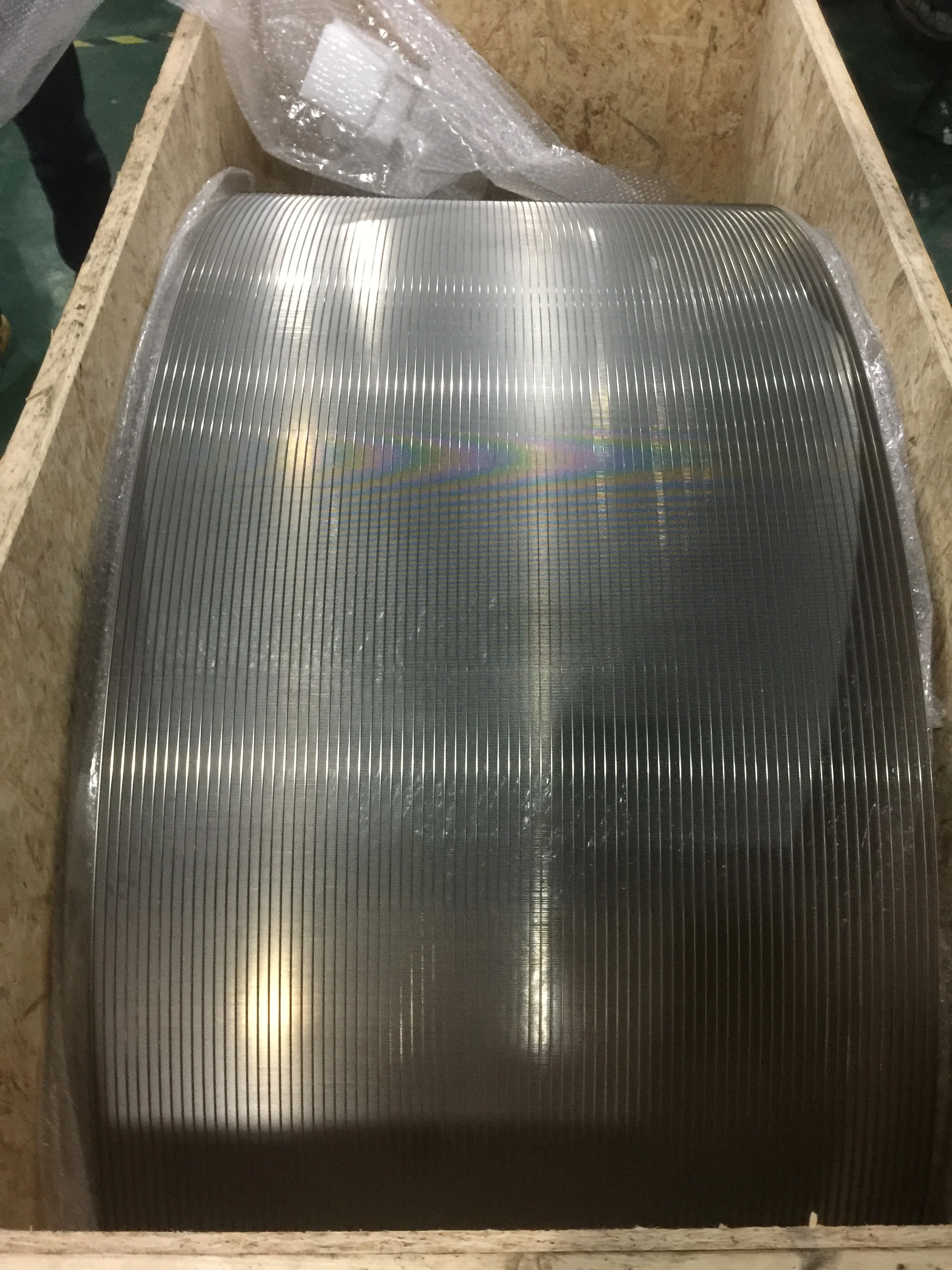

Film wrapped, plywood packed, standard sea or air transportation packing standard
