BestScope BUC5F 310C C mount USB3.0 CMOS Digital Microscope Camera for Bright Field Microscope
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (1600288391597):
Product Overview
Description
Products Description
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BUC5F-2100C | 21M/IMX269 (C) 4/3 “(17.4×13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438 | 1×1 1×1 2×2 3×3 9×9 | 0.1ms~15s |
BUC5F-2000C | 20M/IMX183(C) 1”(13.06×8.76) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440×3648 50@2736×1824 60@1824×1216 | 1×1 2×2 3×3 | 0.1ms~15s |
BUC5F-1800C | 18M/SONY Special(C) 1/2.2” (5.86×4.46) | 1.2 x1.2 | 130mv with 1/30s 0.1mv with 1/30s | 17@4880×3720 40@2448×1836 50@1728×1296 | 1×1 2×2 3×3 | 0.1ms~15s |
BUC5F-1560C | 15.6M/SONY Special (C) 1.1 “(13.0×13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@3952×3952 56@1976×1976 67@1316×1316 | 1×1 2×2 3×3 | 0.1ms~15s |
BUC5F-1230C | 12.3M/IMX304(C, GS) 1.1”(14.13×10.35) | 3.45×3.45 | 1146mv with 1/30s 0.1mv with 1/30s | 23.4@4096×3000 46.3@2048×1500 | 1×1 1×1 | 0.244ms~15s |
BUC5F-1200C | 12M/IMX226(C) 1/1.7“(7.40×5.55) | 1.85×1.85 | 280mv with 1/30s 0.1mv with 1/30s | 25@4000×3000 50@2048×1080 | 1×1 2×2 | 0.1ms~15s |
BUC5F-900C | 9.0M/IMX305(C, GS) 1“ (14.13×7.45) | 3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 34@4096×2160 60@2048×1080 | 1×1 1×1 | 0.1ms~15s |
BUC5F-830C | 8.3M/IMX274(C) 1/2.5”(6.22×3.50) | 1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s | 32@3840×2160 65@1920×1080 | 1×1 2×2 | 0.244ms~15s |
BUC5F-830BC | 8.3M/IMX334(C) 1/1.8”(7.68×4.32) | 2.0×2.0 | 505mv with 1/30s 0.1mv with 1/30s | 35@3840×2160 60@1920×1080 | 1×1 2×2 | 0.02ms~15s |
BUC5F-830CC | 8.3M/IMX485(C) 1/1.2”(11.14×6.26) | 2.9×2.9 | 2188mv with 1/30s 0.15mv with 1/30s | 45@3840×2160 70@1920×1080 | 1×1 2×2 | 0.02ms~15s |
BUC5F-630C | 6.3M/IMX178(C) 1/1.8“ (7.37×4.92) | 2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s | 30@3072 x2048 38@1536x 1024 | 1×1 2×2 | 0.1ms~15s |
BUC5F-630BC | 6.3M/IMX178(C) 1/1.8“ (7.37×4.92) | 2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s | 59@3072 x2048 59@1536x 1024 | 1×1 2×2 | 0.02ms~15s |
BUC5F-500C | 5.0M/IMX264(C, GS) 2/3” (8.45×7.07) | 3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 35@2448×2048 50@1224×1024 | 1×1 1×1 | 0.1ms~15s |
BUC5F-310C | 3.1M/IMX123(C) 1/2.8“ (5.12×3.84) | 2.5×2.5 | 600mv with 1/30s 0.15mv with 1/30s | 50@2048×1536 50@1920×1080 | 1×1 1×1 | 0.1ms~15s |
BUC5F-310BC | 3.1M/IMX265(C, GS) 1/1.8“ (7.07×5.30) | 3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 53@2048×1536 85@1024×768 | 1×1 1×1 | 0.1ms~15s |
BUC5F-200C | 2M/IMX385(C) 1/2“ (7.2×4.05) | 3.75×3.75 | 2350mv with 1/30s 0.15mv with 1/30s | 125@1920×1080 | 1×1 | 0.1ms~15s |
BUC5F-150C | 1.5M/IMX273(C, GS) 1/2.9“ (4.968×3.726) | 3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 164@1440×1080 320@720×540 | 1×1 2×2 | 0.1ms~15s |
Note: C: Color; M: Monochrome; GS: Global Shutter
Other Specification for BUC5F Series Cameras | ||
Spectral Range | 380-650nm (with IR-cut Filter) | |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor | |
Color Technique | Ultra-fineTM HISPVP /NA for Monochromatic Sensor | |
Capture/Control API | Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview | |
Recording System | Still Picture and Movie | |
Cooling System* | Natural | |
Operating Environment | ||
Operating Temperature (in Centigrade) | -10~ 50 | |
Storage Temperature (in Centigrade) | -20~ 60 | |
Operating Humidity | 30~80%RH | |
Storage Humidity | 10~60%RH | |
Power Supply | DC 5V over PC USB Port | |
Software Environment | ||
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux | |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
Memory: 2GB or More | ||
USB Port: USB3.0 High-speed Port | ||
Display: 17” or Larger | ||
CD-ROM | ||

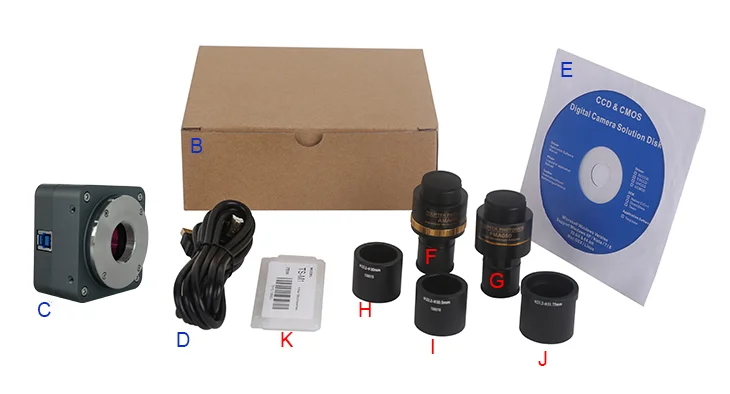

Standard Camera Packing List | ||||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |||
B | Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) | |||
C | BUC5F series USB3.0 C-mount CMOS camera | |||
D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | |||
E | CD (Driver & utilities software, Ø12cm) | |||
Optional Accessory | ||||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | ||
C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | ||||
G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | ||
C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) | ||||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application. | ||||
H | (Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | |||
I | (Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | |||
J | (Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | ||
