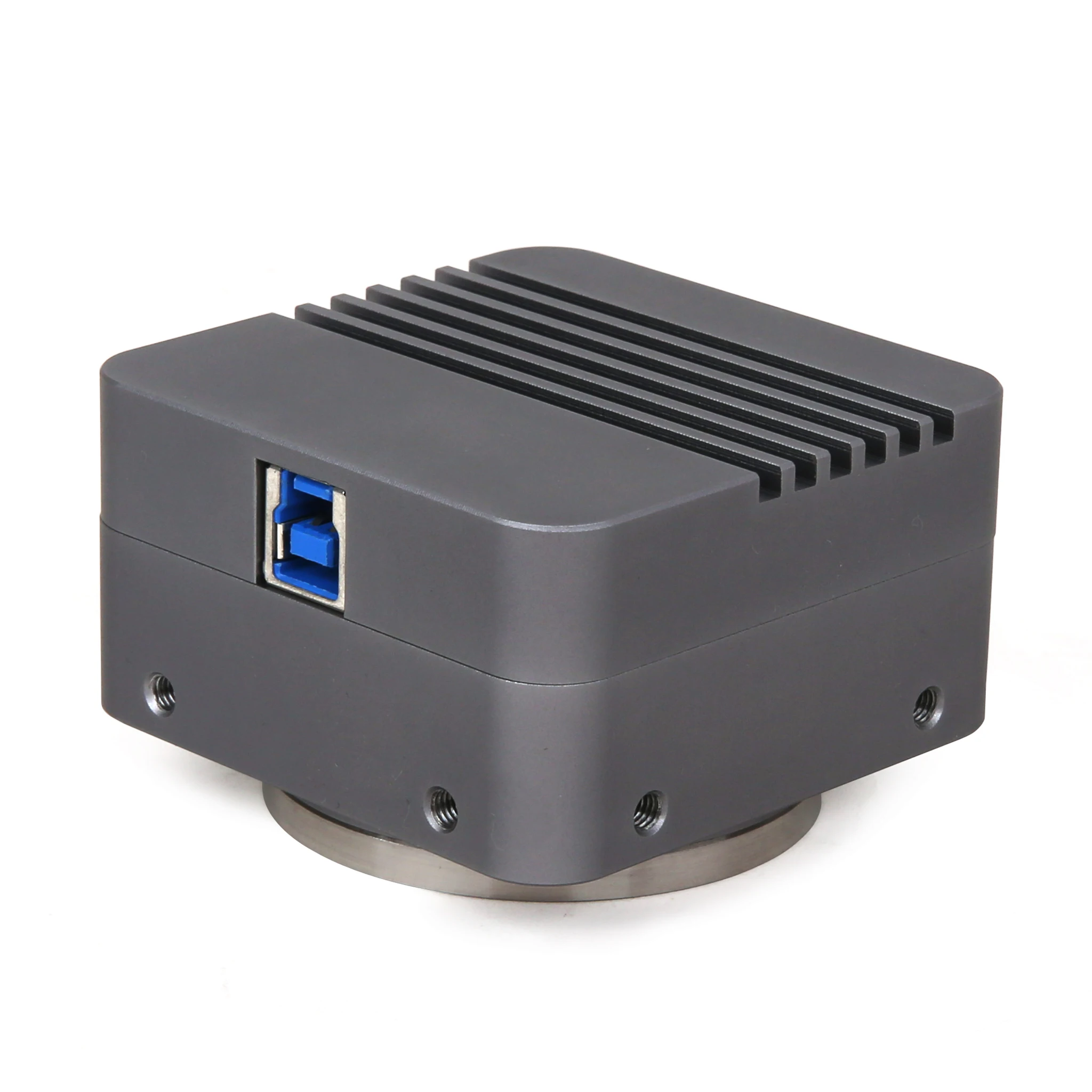

BestScope BUC3M42 420MB 4.2MP M42 and M42 to C or F Mount USB3.0 CMOS Monochrome Digital Microscope Camera
- Category: >>>
- Supplier: Beijing Bestscope Technology Co. Ltd.
Share on (1600288449879):
Product Overview
Description
Products Description
Introduction
BUC3M42 series cameras use Sony Exmor, Exmor R, Exmor RS back-illuminated CMOS sensors or GSENSE large-size sensors. The cameras comes with M42 mount, we also supply M42 mount to C-mount and M42 mount to F-mount adapters. Exmor series CMOS sensors use double-layer noise reduction technology, with ultra-high sensitivity and ultra-low noise, GSENSE series sensors have big pixel size. The sensors have adopted advanced back-illuminated processing technology, the peak quantum efficiency is as high as 94%; through correlated multi-sampling technology (CMS), the chip readout noise is less than 1.2e-, and the dynamic range is as high as 90dB, which is ideal choice for biological imaging and scientific applications. At the same time, GSENSE2020BSI supports global reset rolling shutter exposure with high frame rate, which provides a new solution for high-performance UV industrial inspection, corona inspection and other applications.
BUC3M42-420MB (with GSENSE2020BSI Sensor) cameras have integrated a 12-bit ultra-fine hardware image signal processor video streaming engine (Ultra-FineTM HISPVP), through which can realize hardware demosaic adjustment, automatic exposure, gain adjustment, one-click white balance, image color adjustment, saturation adjustment, gamma correction, brightness adjustment, contrast adjustment, Bayer format image conversion to RAW data and finally output in 8/12bit. HISPVP transfers the traditional work that should be processed by the computer CPU to the camera hardware processing, it has greatly improved the transfer speed of the camera and reduces the CPU usage.
The BUC3M42 series cameras can be used to capture general bright, dark field, low light or fluorescence microscopy images.
Features
1. Adopted SONY Exmor or GSENSE Back-illuminated large scientific CMOS sensor, with M42x0.75 mount, USB3.0 CMOS digital camera;
2. Wide spectrum range, some models even have high response in the ultra-violet to infrared wavelength;
3. Real-time 8/12bit depth switch(depending on sensor), allow any ROI size;
4. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 30 frames for 10MP resolution);
5. Ultra low noise and low power consumption by using column-parallel A/D conversion;
6. With hardware resolution from 4.2M to 10.3M;
7. Standard M42 mount and M42 to C-mount or F-mount;
8. CNC aluminum alloy housing;
9. With advanced video & image processing application ImageView;
10. Providing Windows/Linux/Mac OS multiple platforms SDK;
11. Native C/C++, C#/VB.Net, DirectShow, Twain.
BUC3M42-420MB (with GSENSE2020BSI Sensor) cameras have integrated a 12-bit ultra-fine hardware image signal processor video streaming engine (Ultra-FineTM HISPVP), through which can realize hardware demosaic adjustment, automatic exposure, gain adjustment, one-click white balance, image color adjustment, saturation adjustment, gamma correction, brightness adjustment, contrast adjustment, Bayer format image conversion to RAW data and finally output in 8/12bit. HISPVP transfers the traditional work that should be processed by the computer CPU to the camera hardware processing, it has greatly improved the transfer speed of the camera and reduces the CPU usage.
The BUC3M42 series cameras can be used to capture general bright, dark field, low light or fluorescence microscopy images.
Features
1. Adopted SONY Exmor or GSENSE Back-illuminated large scientific CMOS sensor, with M42x0.75 mount, USB3.0 CMOS digital camera;
2. Wide spectrum range, some models even have high response in the ultra-violet to infrared wavelength;
3. Real-time 8/12bit depth switch(depending on sensor), allow any ROI size;
4. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 30 frames for 10MP resolution);
5. Ultra low noise and low power consumption by using column-parallel A/D conversion;
6. With hardware resolution from 4.2M to 10.3M;
7. Standard M42 mount and M42 to C-mount or F-mount;
8. CNC aluminum alloy housing;
9. With advanced video & image processing application ImageView;
10. Providing Windows/Linux/Mac OS multiple platforms SDK;
11. Native C/C++, C#/VB.Net, DirectShow, Twain.
Specification
BUC3M42 Datasheet
Order Code | Sensor & Size(mm) | Pixel Size(μm) | G Sensitivity/ Dark Signal | FPS/Resolution | Binning | Exposure |
BUC3M42-1000C | 10.3M/IMX294(C) 4/3“ (17.47x12.86) | 4.63 x 4.63 | 419mv with 1/30s 0.12mv with 1/30s | 30@3704x2778 34.5@4096x2160 39.5@2760x2072 62@2048x1080 86@1360x720 | 1x1, 1x1, 1x1, 2x2, 3x3 | 0.1ms~15s |
BUC3M42-420MA | 4.2M/GSENSE2020e (M, RS) 1.2” (13.31x13.31) | 6.5 x 6.5 | 8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm 13(e-/s/pix) | 45@2048x2048 45@1024 x 1024 | 1x1 2x2 | 0.01ms~60s |
BUC3M42-420MB | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2” (13.31x13.31) | 6.5 x 6.5 | 1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 80(e-/s/pix) | 22@2048 x2048 22@1024 x1024 | 1x1 2x2 | 0.01ms~60s |
BUC3M42-420MC | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2” (13.31x13.31) | 6.5 x 6.5 | 1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 80(e-/s/pix) | 44@2048x2048(12bit) 44@1024x1024(12bit) 44@680x680(12bit) 44@512x512(12bit) | 1x1 2x2 | 0.01ms~60s |
BUC3M42-420MD | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2” (13.31x13.31) | 6.5 x 6.5 | 1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 80(e-/s/pix) | 44@2048x2048(16bit) 44@1024x1024(16bit) | 1x1 2x2 | 0.01ms~60s |
BUC3M42-420MB2 | 4.2M/GSENSE2020BSI (M, UV, RS) 1.2”(13.31x13.31) | 6.5 x 6.5 | 1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 80(e-/s/pix) | 22@2048x2046(12bit) | 1x1 | 0.01ms~60s |
BUC3M42-420ME | 4.2M/GSENSE400BSI (M, UV, RS) 2.0“(22.53x22.53) | 11 x 11 | 3.25x108 (e-/((W/m2).s)) Peak QE 95.3% @560nm 345(e-/s/pix) | 37@2048 x2048 37@1024 x1024 | 1x1 2x2 | 0.01ms~60s |
C: Color; M: Monochrome; RS: Rolling Shutter; GS: Global Shutter; UV: Good UV response
Other Specification for BUC3M42 Camera | ||
Spectral Range | 200-1100nm (UV without IR-cut Filter) or 400-900nm | |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor | |
Color Technique | Ultra-fineTM HISPVP /NA for Monochromatic Sensor | |
Capture/Control API | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |
Recording System | Still Picture and Movie | |
Cooling System* | Natural | |
Operating Environment | ||
Operating Temperature (in Centigrade) | -10~ 50 | |
Storage Temperature (in Centigrade) | -20~ 60 | |
Operating Humidity | 30~80%RH | |
Storage Humidity | 10~60%RH | |
Power Supply | DC 5V over PC USB Port | |
Software Environment | ||
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux | |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
Memory: 2GB or More | ||
USB Port: USB3.0 High-speed Port | ||
Display: 17” or Larger | ||
CD-ROM | ||

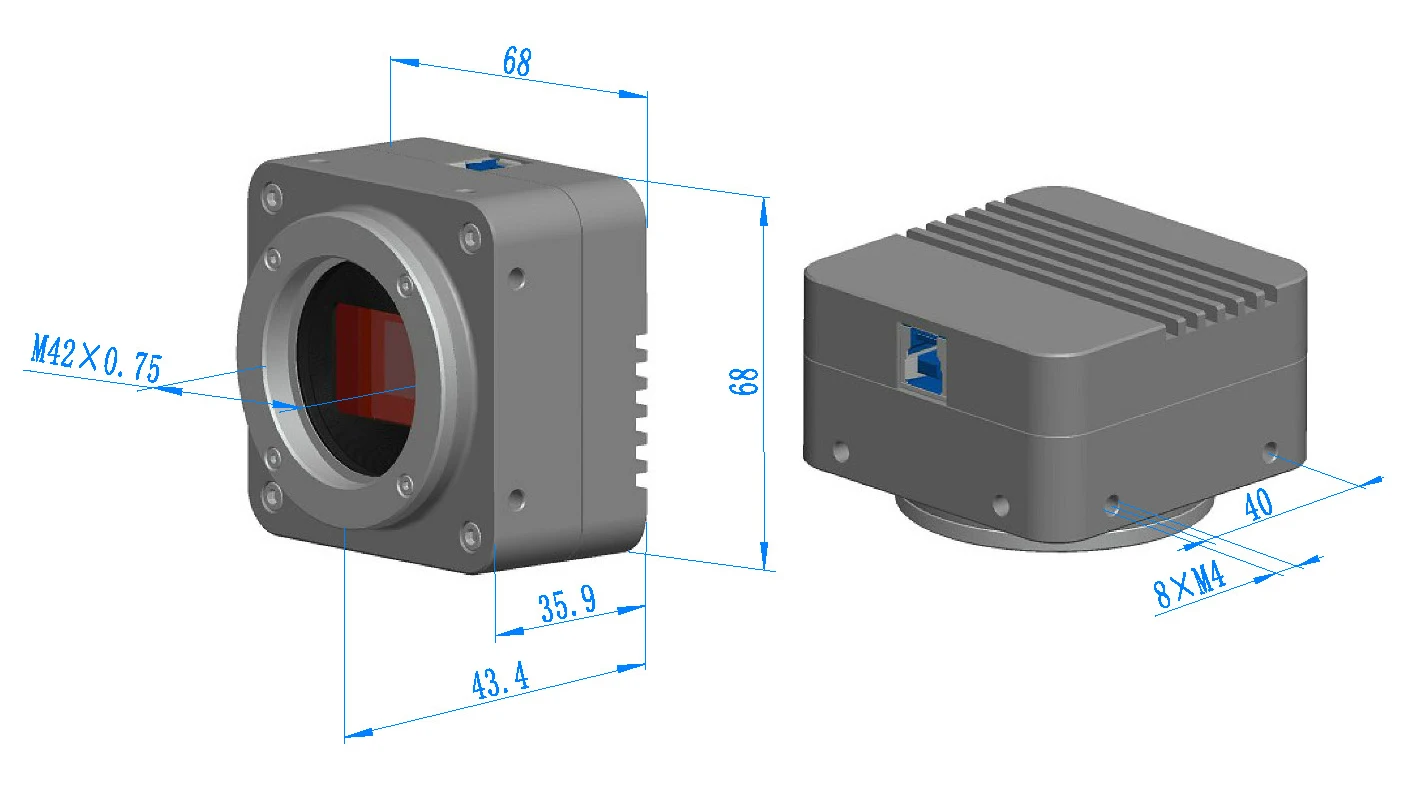

Dimension of BUC3M42
The BUC3M42 body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR glass to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

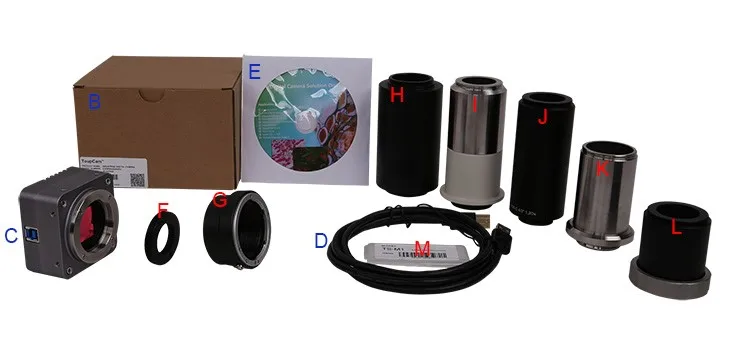

Packing Information for BUC3M42
Standard Camera Packing List | ||||
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |||
B | Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) | |||
C | BUC3M42 series USB3.0 M42-mount CMOS camera | |||
D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | |||
E | CD (Driver & utilities software, Ø12cm), has been upgraded to USB flash drive | |||
Optional Accessory | ||||
F | M42x0.75mm-mount to C-mount converter (If C-mount adapter is used) | |||

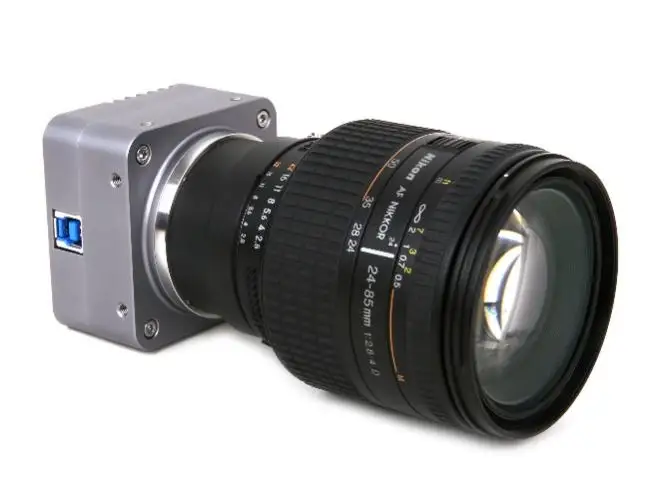

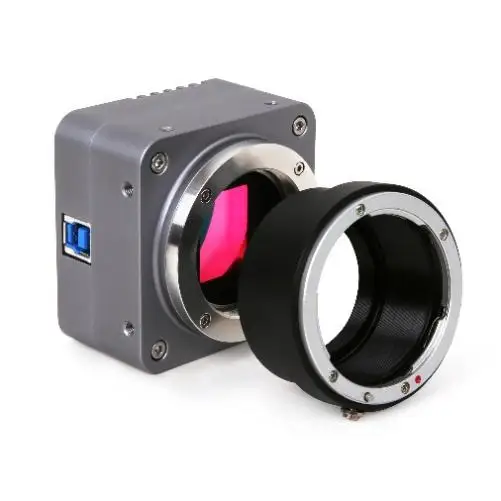

G | M42x0.75mm-mount to F-mount converter (If F-mount lens is used) | |||
H | Phototube to M42x0.75 mount adapter (U-TV1.2XT2) for Olympus microscope | |||
I | Phototube to M42x0.75 mount adapter (MQD42120 MBB42120) for Nikon microscope | |||
J | Phototube to M42x0.75 mount adapter (P95-T2 4/ P95-C 1″ 1.0 x 3” 1.2x) for Zeiss Primo Star series, Zeiss Primo vert series microscope | |||
K | Phototube to M42x0.75 mount adapter (11541510-120 HT2-1.2X) for Leica microscope | |||
L | Phototube to M42x0.75 mount adapter (60N-T2 4/3″ 1.2x) for Zeiss Axio series microscope | |||
Note: For 4/3” sensor, 1.2X adapter with M42x0.75 mount should be chosen, for the 1.2” sensor, 1.0X adapter with C-mount could be used to get the better FOV; | ||||
M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | ||
